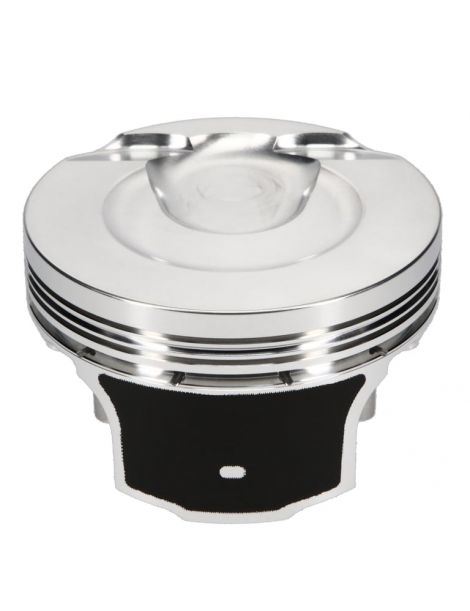

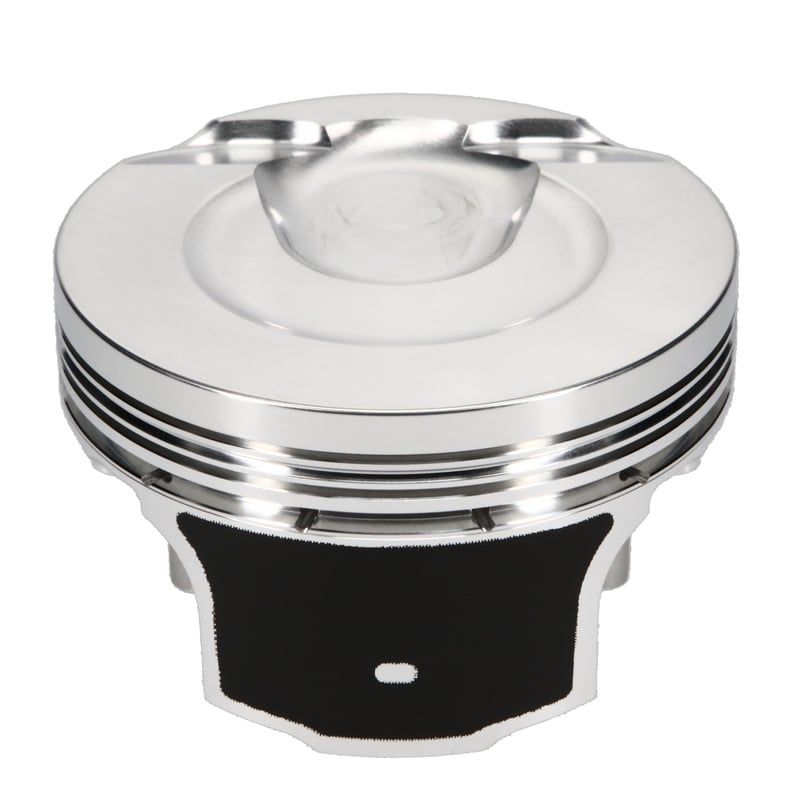

Ford 3.5 EcoBoost Gen 1 forged pistons bores 92.5-93 mm, RV 9-10:1, axle 23 mm. JE / JE FSR ranges. Applications: F-150 (2011-2016), Taurus SHO, Flex, Explorer Sport, Lincoln MKS/MKT.
Characteristics of the forged pistons offered by NSB Concept for Ford 3.5 L 24 v EcoBoost (Gen 1):
| Reference Piston | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-315146 | 92.5 | 9:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -8.6 | 384 | N/A |
| JE-367885 | 92.5 | 10:1 | 23 | 31.5 | I | N/A | N/A | N/A | -0.5 | N/A | N/A |
| JE-315149 | 92.5 | 10:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -0.5 | 398 | N/A |
| JE-315147 | 92.75 | 9:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -8.9 | 387 | N/A |
| JE-367886 | 92.75 | 10:1 | 23 | 31.5 | I | N/A | N/A | N/A | -0.8 | N/A | N/A |
| JE-315150 | 92.75 | 10:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -0.8 | 402 | N/A |
| JE-315148 | 93 | 9:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -9.3 | 387 | N/A |
| JE-367887 | 93 | 10:1 | 23 | 31.5 | I | N/A | N/A | N/A | -1.1 | N/A | N/A |
| JE-315151 | 93 | 10:1 | 23 | 31.5 | JE FSR | 2618 | N/A | FSR | -1.1 | 406 | N/A |
Engine compatibility:
Family
Ford 3.5 EcoBoost V6 Gen 1
designation:
3.5 EcoBoost V6 (GTDI) Gen1
.
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Ford | Shipping | U324 | 3.5 EcoBoost V6 | 365 | 2015-2017 |
| Ford | Explore Sports | U502 | 3.5 EcoBoost V6 | 365 | 2013-2019 |
| Ford | F-150 | P415 (12th/13th) | 3.5 EcoBoost V6 | 365 | 2011-2016 |
| Ford | Flex | D4 | 3.5 EcoBoost V6 | 355-365 | 2010-2019 |
| Ford | Police Interceptor Utility | U502 | 3.5 EcoBoost V6 | 365 | 2013-2019 |
| Ford | Taurus SHO | D3 | 3.5 EcoBoost V6 | 365 | 2010-2019 |
| Lincoln | MKS | D3 | 3.5 EcoBoost V6 | 355-365 | 2010-2016 |
| Lincoln | MKT | D4 | 3.5 EcoBoost V6 | 355 | 2010-2019 |
Piston manufacturer references (OEM):
Ford/Taurus SHO, Flex, Explorer Sport, Lincoln MKS/MKT
: pistons
AA5Z?6108-L
/
AA5Z?6108-N
/
AA5Z?6108-P
(depending on vintage and bore).
F?150 (2011-2016)
: pistons
BL3Z?6108-H
/
BL3Z?6108-L
/
BL3Z?6108-N
(standard and oversizes, left/right).
Attention:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
