Forged connecting rods Mitsubishi 2.0 16V Turbo 4G63 7-bolt, 22 mm pin, 150 mm rod length, for forged pistons

The Mitsubishi 4G63 engine (7-bolt block)

The 4G63 is Mitsubishi's turbocharged 2.0-litre four-cylinder with double overhead camshafts and sixteen valves. Its so-called "7-bolt" version (the crankshaft flange is secured by seven bolts, versus six on earlier blocks) powers the Lancer Evolution IV to IX as well as the second-generation Eclipse and Talon. Cast-iron block, aluminium cylinder head: this architecture, reputed to be indestructible, explains its icon status in the tuning world.

On the Lancer Evolution, the 4G63T turbo produces around 280 hp in stock form, with considerable room for improvement; built engines routinely clear 400 to 600 hp. This rise in power stresses the rotating assembly far beyond what the factory connecting rods can withstand, and they eventually bend or break. Fitting forged connecting rods with a 150 mm rod length is the decisive step to make the bottom end of a pushed 7-bolt 4G63 reliable.

Forged connecting rods

Machined from high-strength forged steel (4340, and up to 300M or 817M40T steel for the most extreme versions), these rods offer fatigue and bending resistance far superior to the original sintered rods. Forging aligns the metal grain flow with the loads applied, whereas a sintered part contains crack-initiation sites.

They cover every discipline in which the 4G63 excels: rally, drift, drag, circuit, hillclimb and time attack. Depending on the profile and bolts chosen, they suit a Stage 2 build just as well as a Stage 3, Stage 4 and beyond competition engine, clearing 500 hp with ease. This listing brings together four brands (ZRP, Wössner, Boostline, Manley) and five profiles (H, H-HD, I, I-HD, I-3P), with ARP 2000, ARP L19 or ARP CA625+ bolts, all in 3/8" diameter.

Technical specifications of the 4G63 7-bolt forged connecting rods (22 mm pin, 150 mm rod length)

Torque and bolt stretch

Manufacturers recommend the stretch-gauge method as the reference: the instructions supplied with the kit always take precedence. The torque figures correspond to assembly with ARP lubricant.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

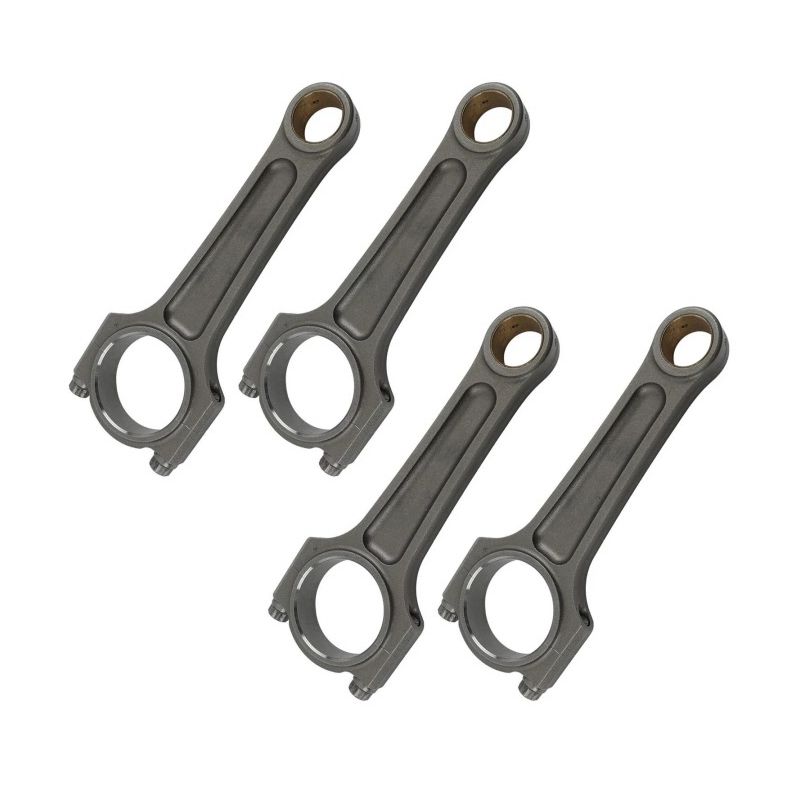

	I-beam profile. With its thinner central section, the I-beam rod is lighter: less inertia and freer rev pick-up. It is the preferred profile on modern turbo engines like the 4G63. Its I-HD (Heavy Duty) version is a reinforced variant, designed for higher loads.

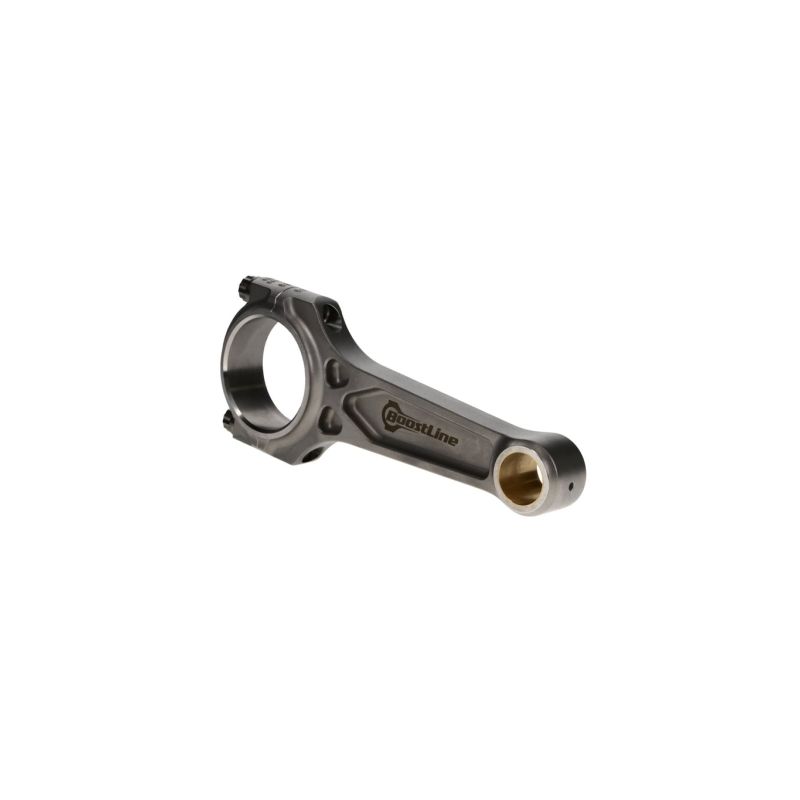

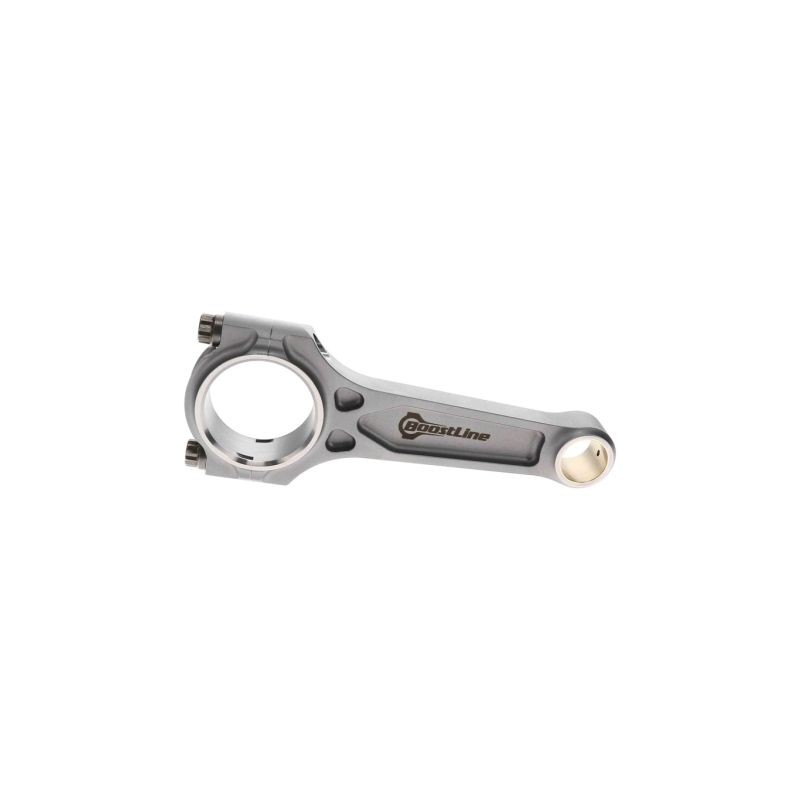

	I-3P profile (3-pocket I-beam, Boostline). Patented profile that keeps the lightness of an I-beam while adding triangulated reinforcements on the big end: bending resistance about 60% higher than an H-beam. Ideal on heavily boosted engines.
	H-beam profile. “H”-shaped section offering great rigidity and excellent resistance to bending and compression. Slightly heavier than an I-beam, it favours strength: the choice for high-torque engines, large displacements and drag. On a torque-oriented, reliability-focused 4G63, it is a safe bet.

How to choose your rod bolts?

The rod bolt is the most heavily stressed part of the assembly: it holds the cap clamped onto the crank pin on every cycle. On a built 4G63, the bolt choice governs how the engine copes with high rpm and heavy boost pressure. Every rod in this listing uses ARP bolts in 3/8" diameter.

	ARP 2000: tensile strength of around 220,000 psi (~1,517 MPa). In 3/8" diameter it handles roughly 200 hp per cylinder and covers the vast majority of builds, up to speeds close to 8,500 rpm. Best strength/price ratio and no storage constraints.
	ARP L19: high-strength bolts (~260,000 psi). In 3/8" it pushes the threshold to about 250 hp per cylinder and targets high power outputs and elevated engine speeds. Sensitive to oxidation: oil it and store it away from moisture.
	ARP CA625+: very high-performance stainless steel (~260,000 psi) with excellent corrosion resistance. Reserved for extreme builds and endurance use, in 3/8".

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands offered

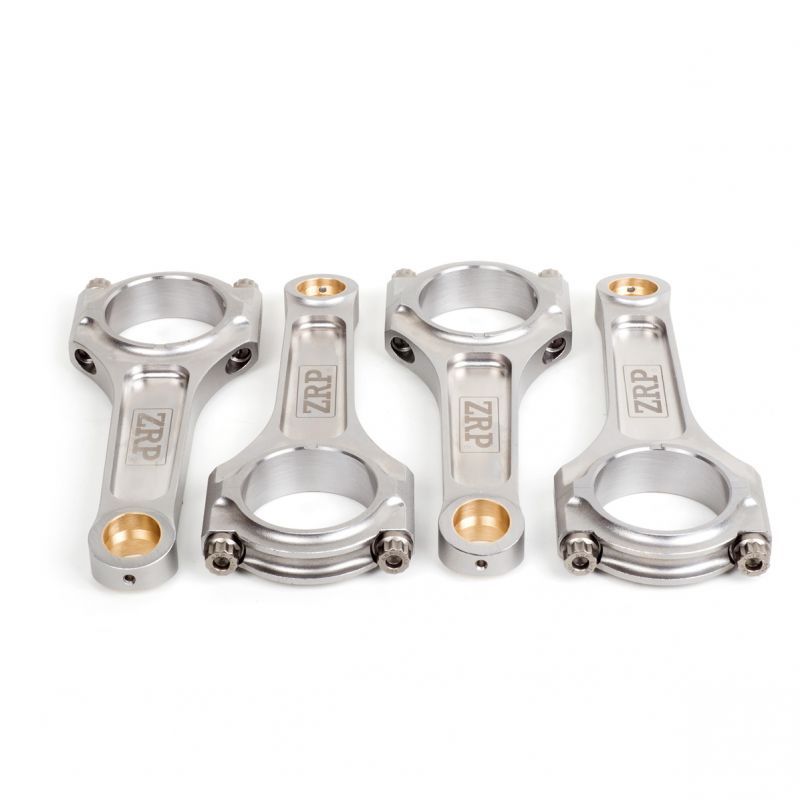

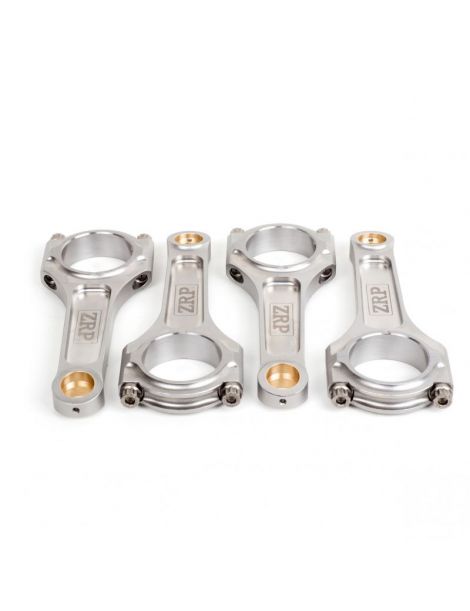

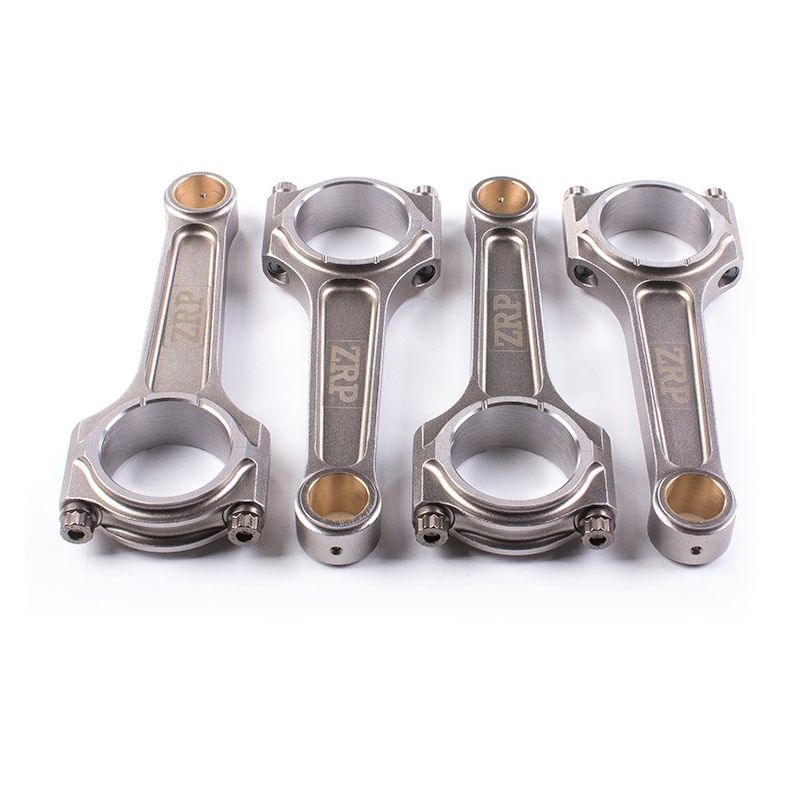

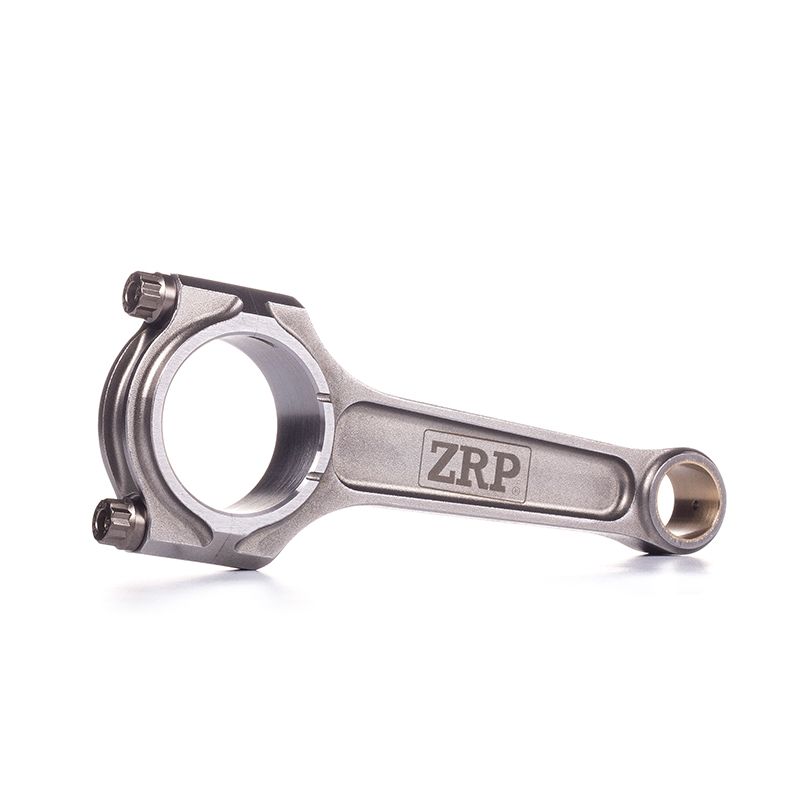

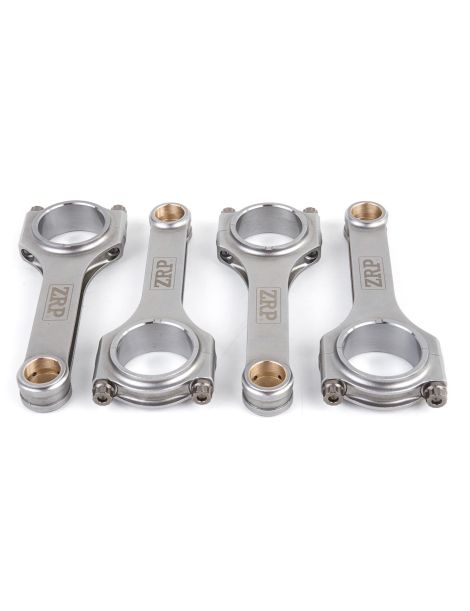

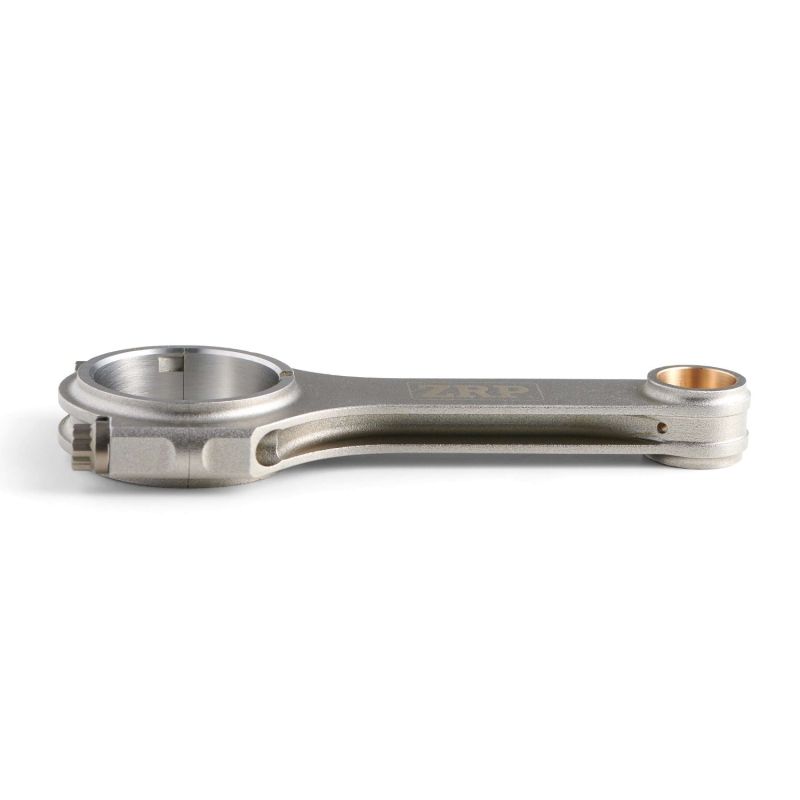

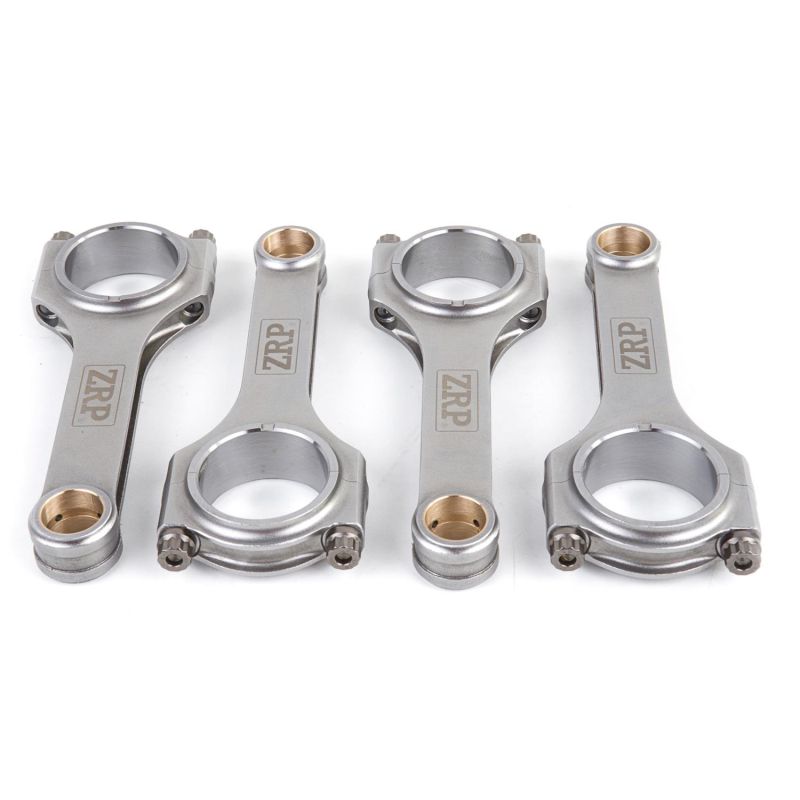

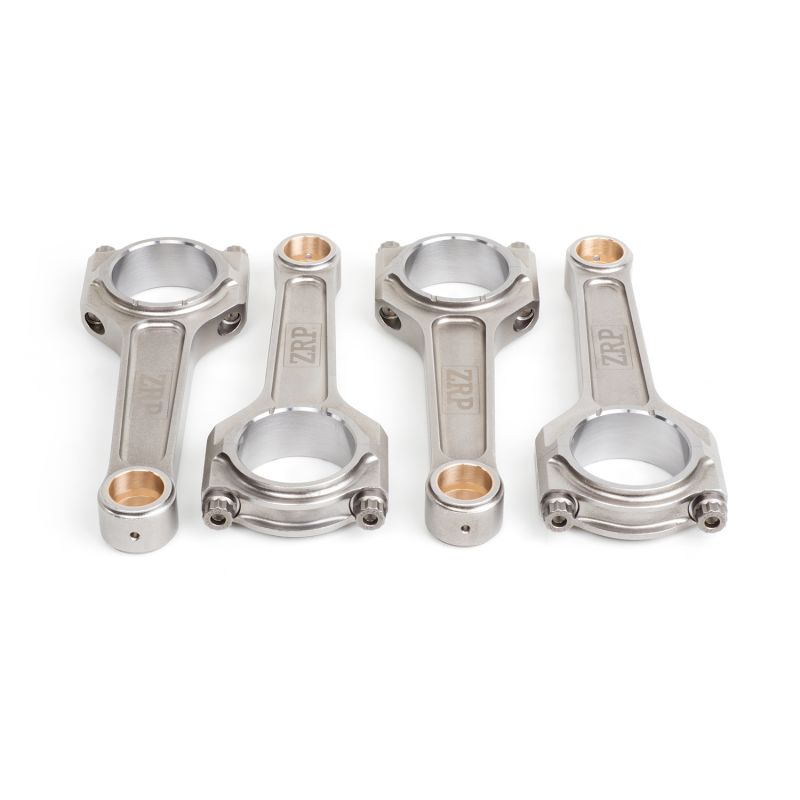

	ZRP, a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Available in I-beam or H-beam profile with ARP 2000, L19 or Custom Age 625+ bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift.

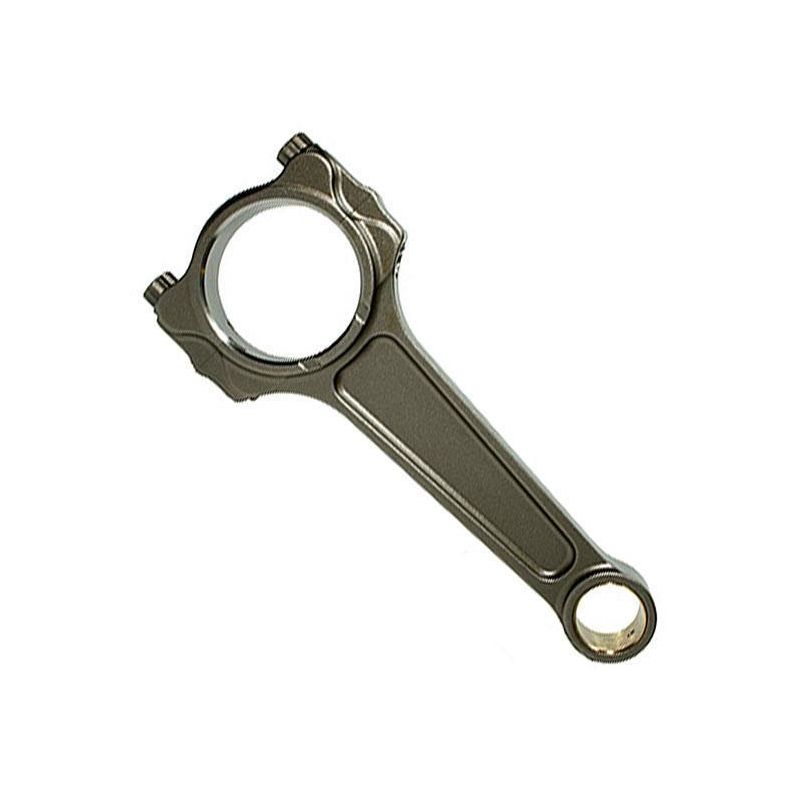

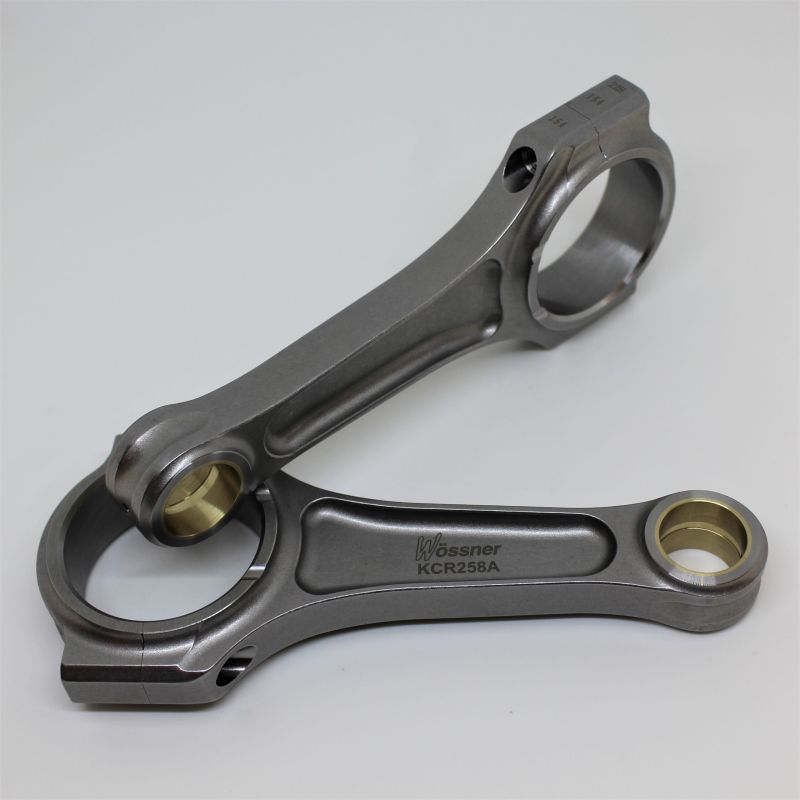

Wössner	Wössner, a German manufacturer renowned for its high-end forged pistons and connecting rods. Offered here in I profile, 4340 steel, ARP 2000 bolts.

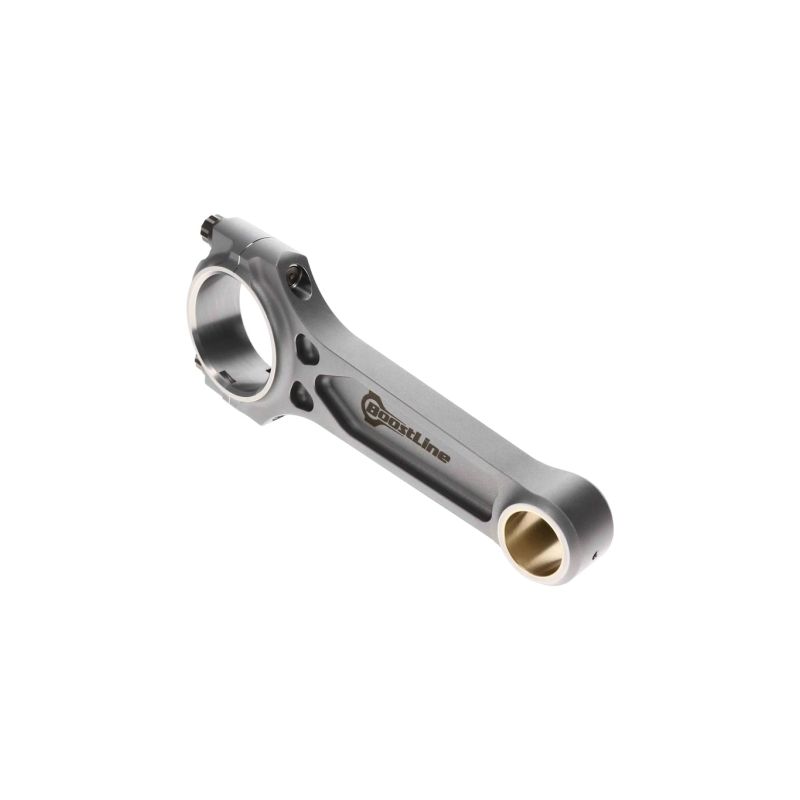

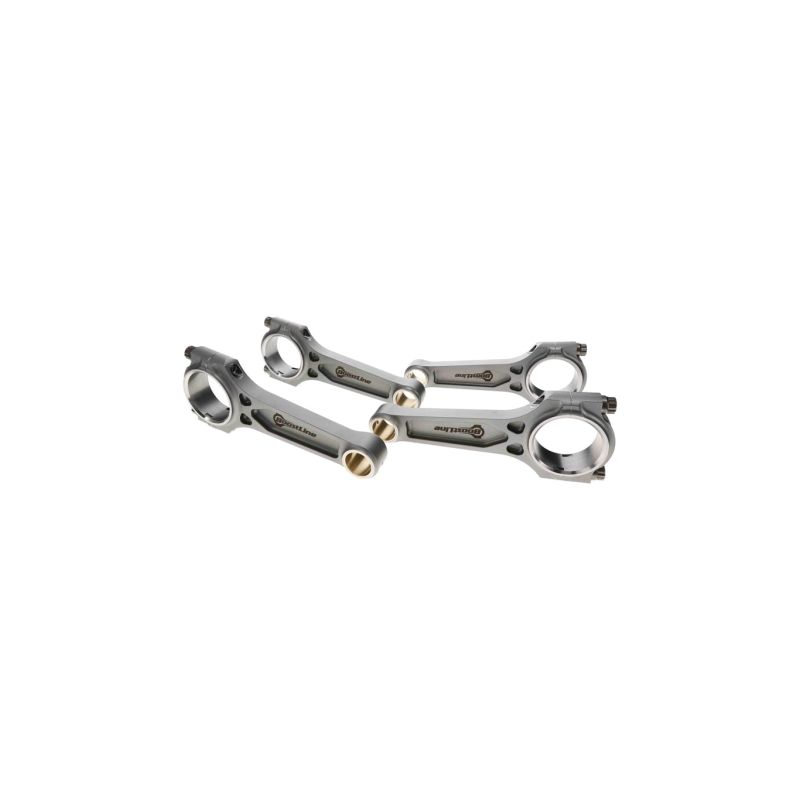

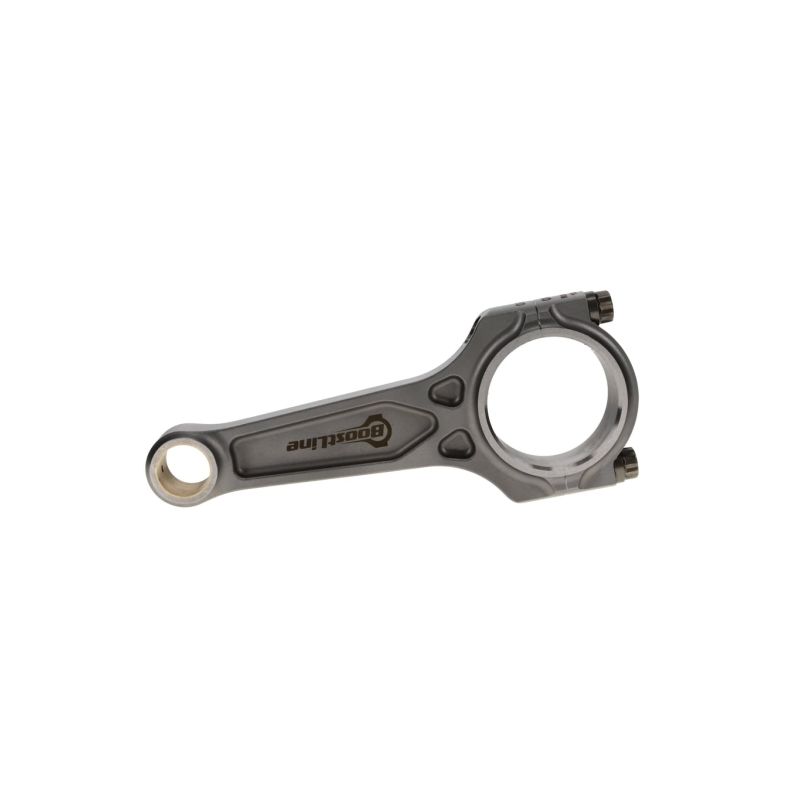

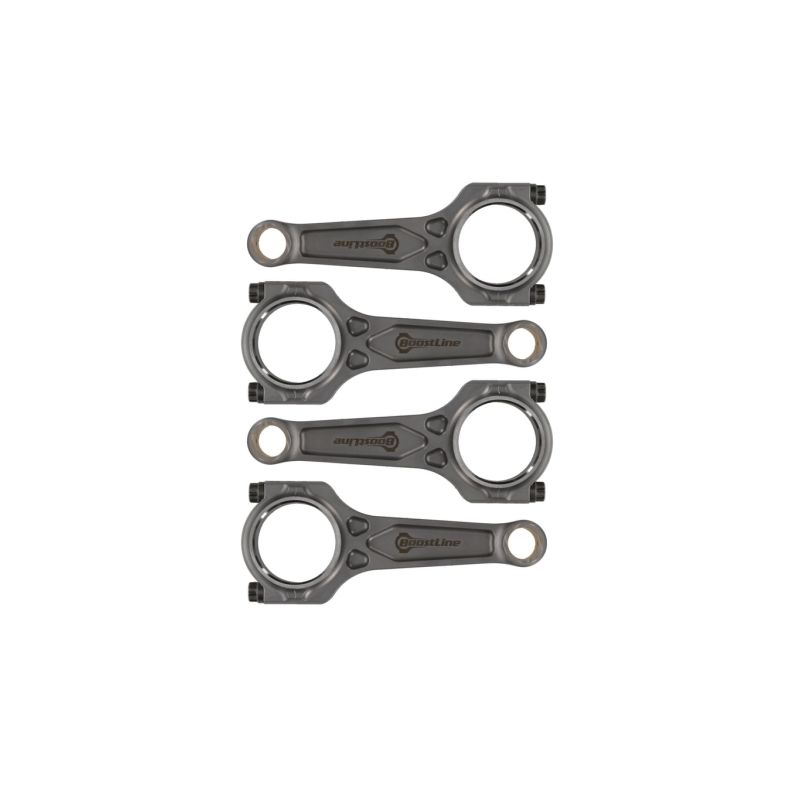

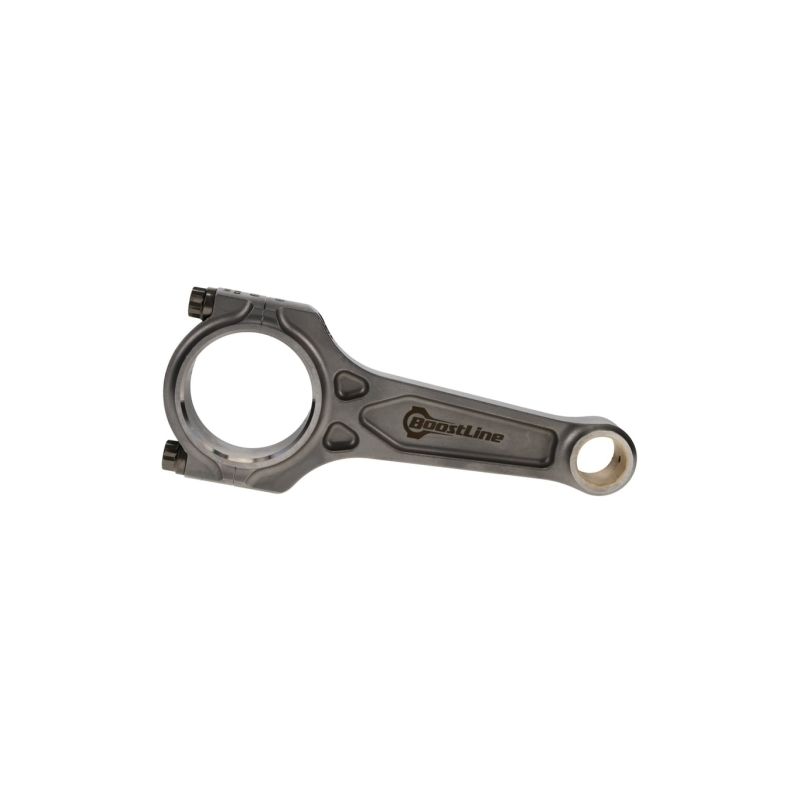

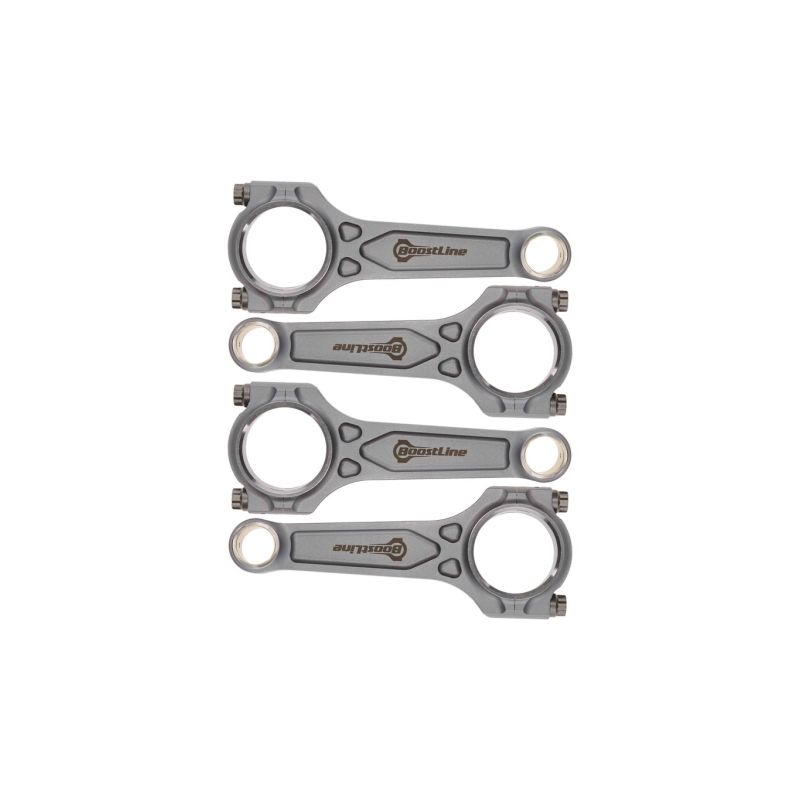

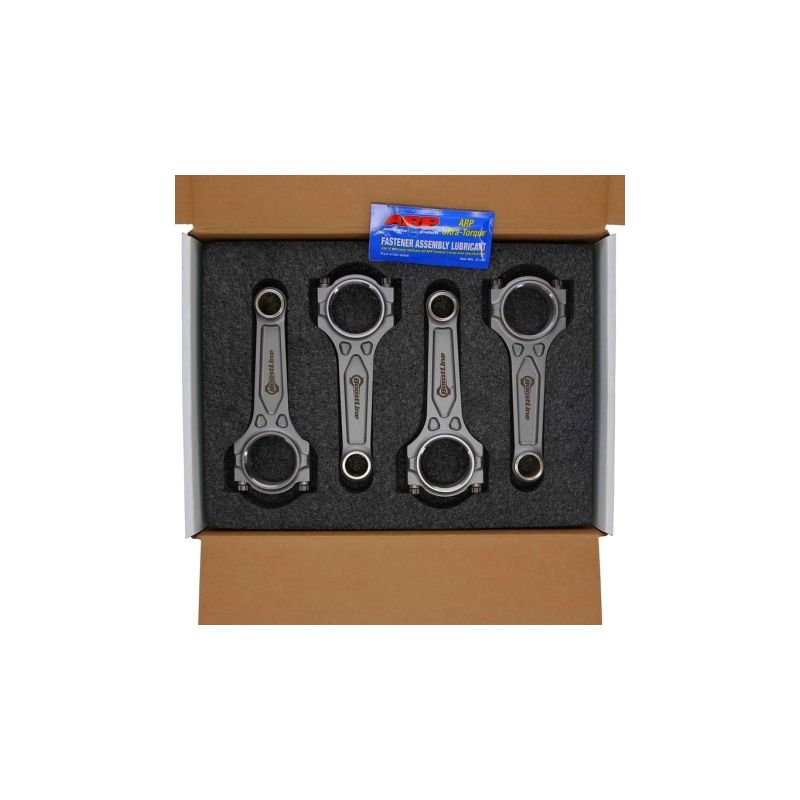

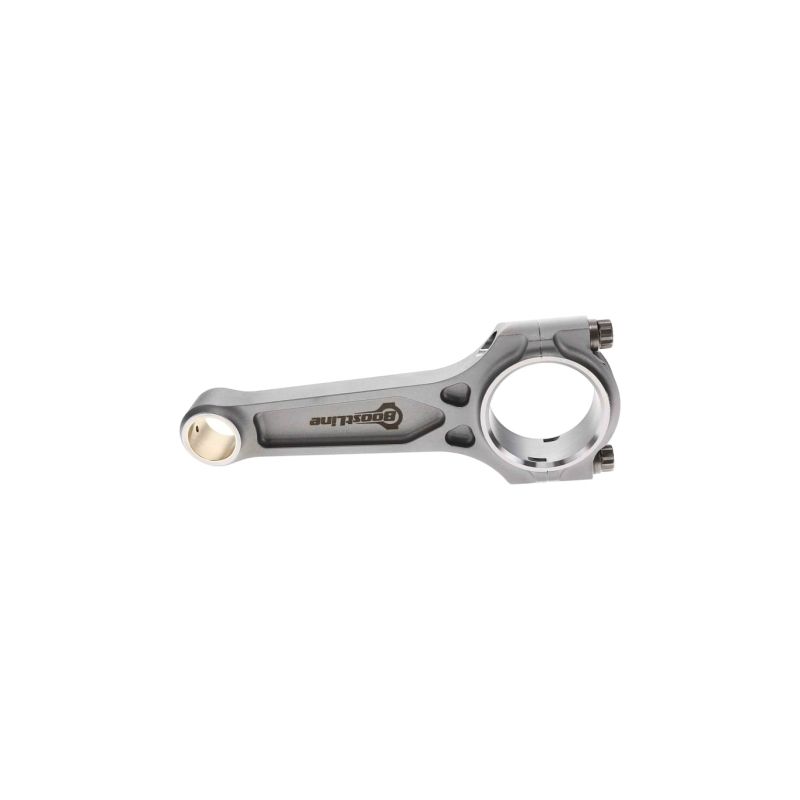

	BOOSTLINE (Wiseco group), a forged connecting rod range from the American Wiseco group, a benchmark since 1941. Its patented 3-pocket design combines the rigidity of an I-beam with the robustness of an H-beam. Forged from 4340 steel and machined in the USA, they come with ARP 2000 bolts (Custom Age 625+ optional) and are built for boosted engines.

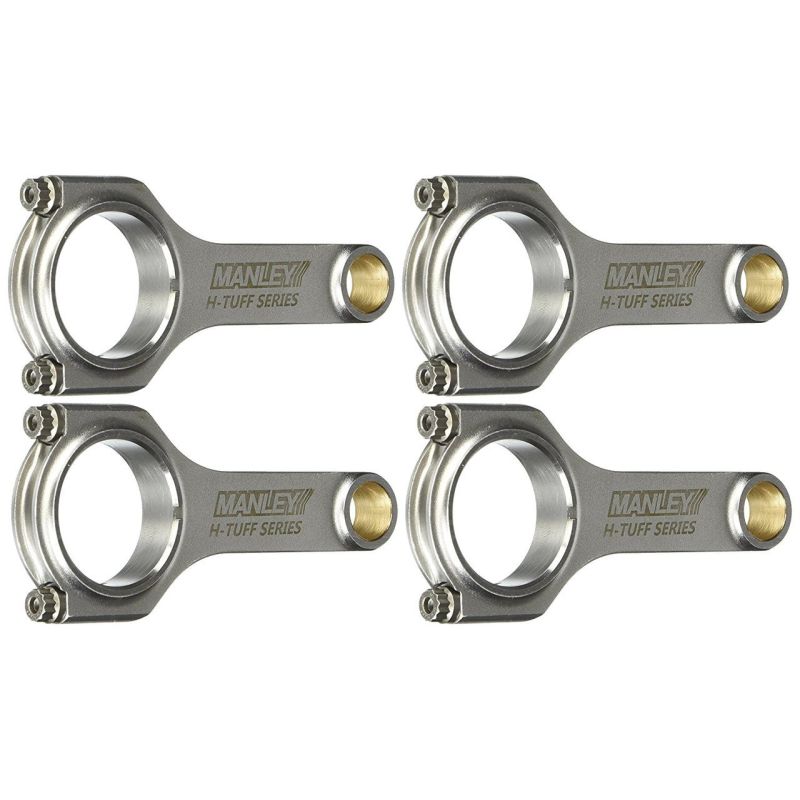

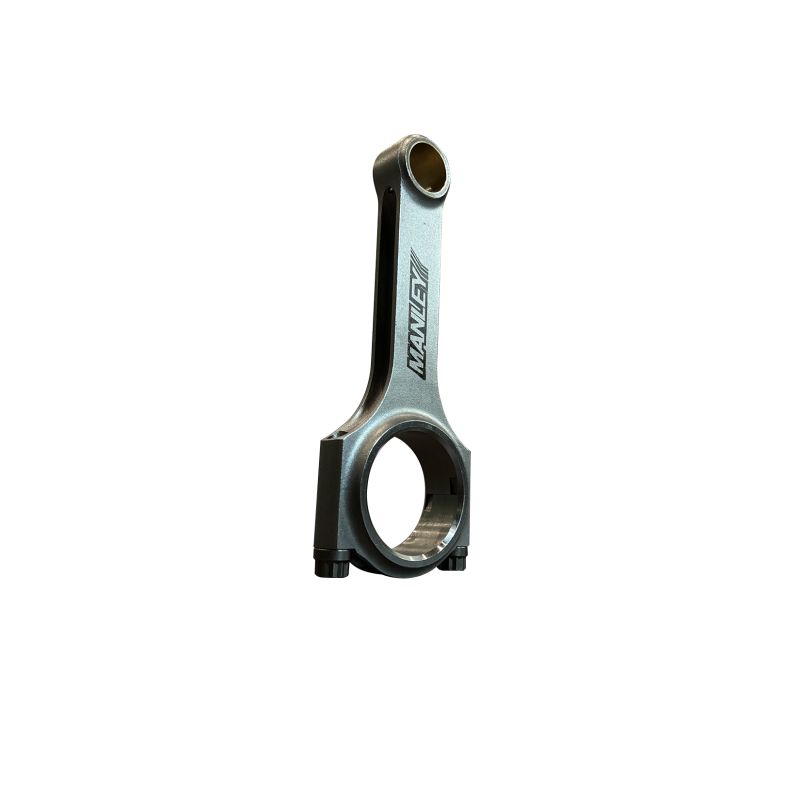

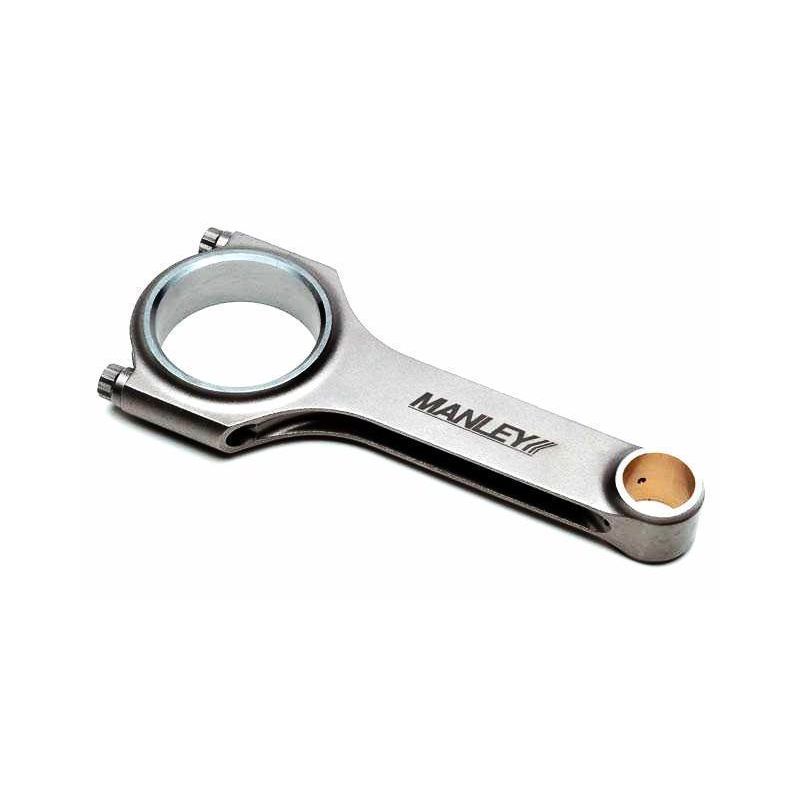

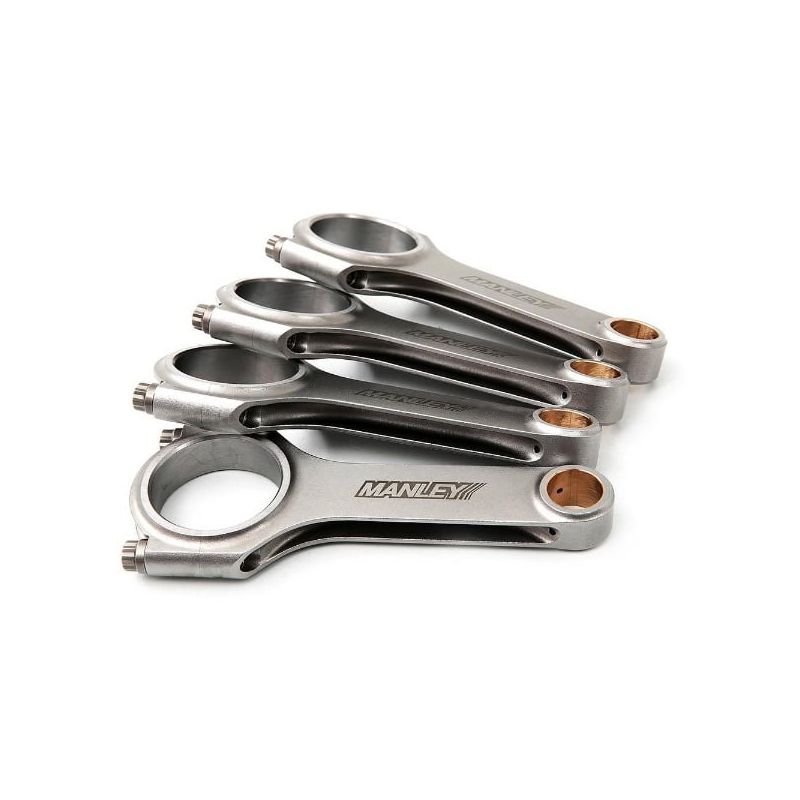

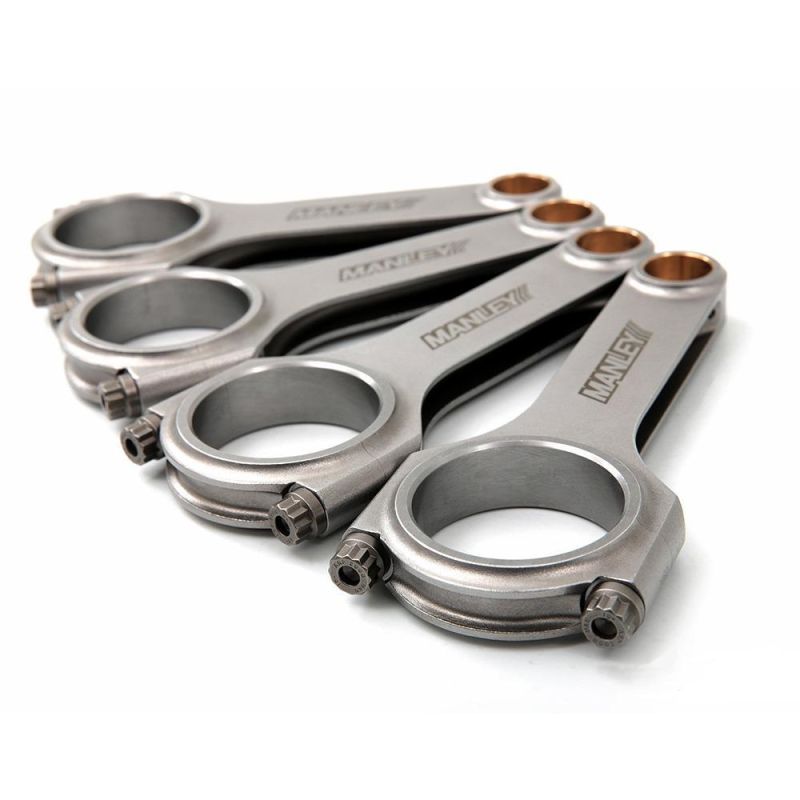

	MANLEY, an American forged connecting rod manufacturer since 1966. Machined from vacuum-degassed aerospace-grade 4340 steel, shot-peened and inspected one by one, its “Turbo Tuff” rods come in H-beam and I-beam profiles, with ARP 2000 or Custom Age 625+ bolts. A major name in engine building, from street to competition.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the Mitsubishi 4G63 engine (7-bolt)

OEM reference:

Why it’s the most cost-effective solution?

On a pushed 4G63, an original rod that lets go destroys the block, the crankshaft and sometimes the cylinder head: the bill then runs into thousands of euros. Investing in a set of forged connecting rods matched to the target power makes the bottom end reliable for the long term and removes the risk of failure. It is mechanical insurance, not just an expense: the best safety-to-investment ratio for building a 7-bolt 4G63.

For an equivalent budget, or even less, fitting 4340 forged steel connecting rods together with forged pistons brings markedly higher reliability and a greater safety margin, plus real potential for power growth. This is the solution chosen by European engine builders for more than 15 years.

At the same budget: more reliability, more potential, more longevity.
