2.0L 16v - 3S-GE
Manufacturers
2.0L 16v - 3S-GE
Warning: Last items in stock!
New product

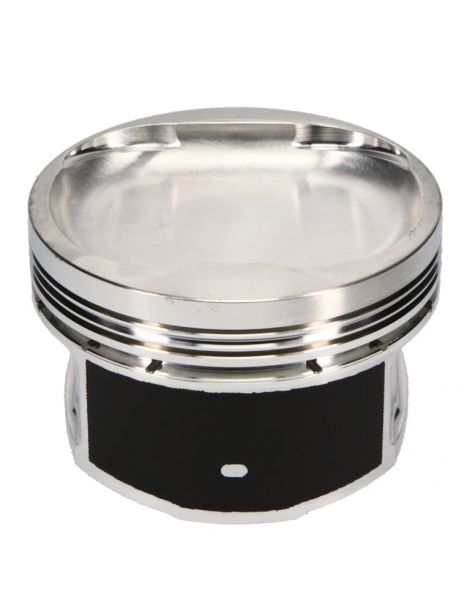

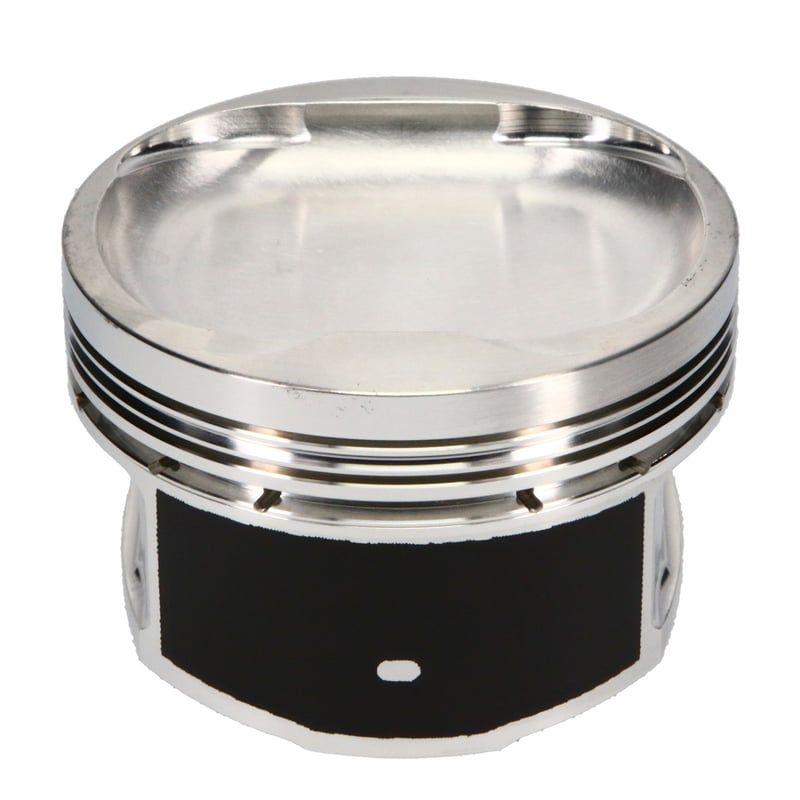

3S-GE BEAMS forged pistons: Table O86-87, Volume ratio 9.5:1/12.5:1, Pin 22, CH 33.8, alloy 2618 JE FSR. COMPatibilities Red/Grey/Black Top, JDM vehicles and Pistons OEM references.
Characteristics of the forged pistons offered by NSB Concept for Toyota 3S-GE BEAMS (Red/Black Top):
| Reference | Bore | VR | Axis | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-361461 | 86.0 | 9.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | -13.8 | 325.0 | N/A |
| JE-361465 | 86.0 | 12.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | 1.5 | 327.0 | N/A |
| JE-361462 | 86.25 | 9.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | -14.2 | 327.0 | N/A |
| JE-361466 | 86.25 | 12.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | 1.3 | 328.0 | N/A |
| JE-361463 | 86.5 | 9.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | -14.4 | 328.0 | N/A |
| JE-361467 | 86.5 | 12.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | 1.1 | 329.0 | N/A |
| JE-361464 | 87.0 | 9.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | -15.0 | N/A | N/A |
| JE-361468 | 87.0 | 12.5:1 | 22 | 33.8 | JE FSR | N/A | 2618 | FSR | 0.7 | 332.0 | N/A |
Compatibilities (engine codes):
3S-GE BEAMS "Red Top" Celica ST202 / MR2 SW20 (JDM).
3S-GE BEAMS "Grey Top" Caldina ST215 (JDM).
3S-GE BEAMS "Black Top" Altezza RS200 SXE10 (JDM).
Original vehicles equipped with 3S-GE BEAMS:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Toyota | Altezza RS200 (SXE10) MT | 3S-GE BEAMS Black Top | 210 hp | 1998-2005 |
| Toyota | Altezza RS200 (SXE10) AT | 3S-GE BEAMS Black Top | 200 hp | 1998-2005 |
| Toyota | Celica ST202 SS-II / SS-III | 3S-GE BEAMS Red Top | 200 hp (BVM) / 190 hp (BVA) | 1997-1999 |
| Toyota | MR2 SW20 G / G-Limited | 3S-GE BEAMS Red Top | 200 hp | 1997-1999 |
| Toyota | Caldina ST215 Active Sports GT | 3S-GE BEAMS Gray Top | 190 hp | 1997-2002 |
Piston manufacturer references (OEM):
Altezza RS200 SXE10 (Black Top)
: 13101-88570-01 / -02 / -03 (STD, Mark 1-3), 13103-88570 (O/S +0.50).
Celica ST202 / MR2 SW20 (Red Top)
: 13101-88460-01 / -02 / -03 (STD, Mark 1-3), 13103-88460 (O/S +0.50).
Caldina ST215 (Grey Top)
: 13101-88561-01 / -02 / -03 (STD, Mark 1-3), 13103-88560 (O/S +0.50).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
