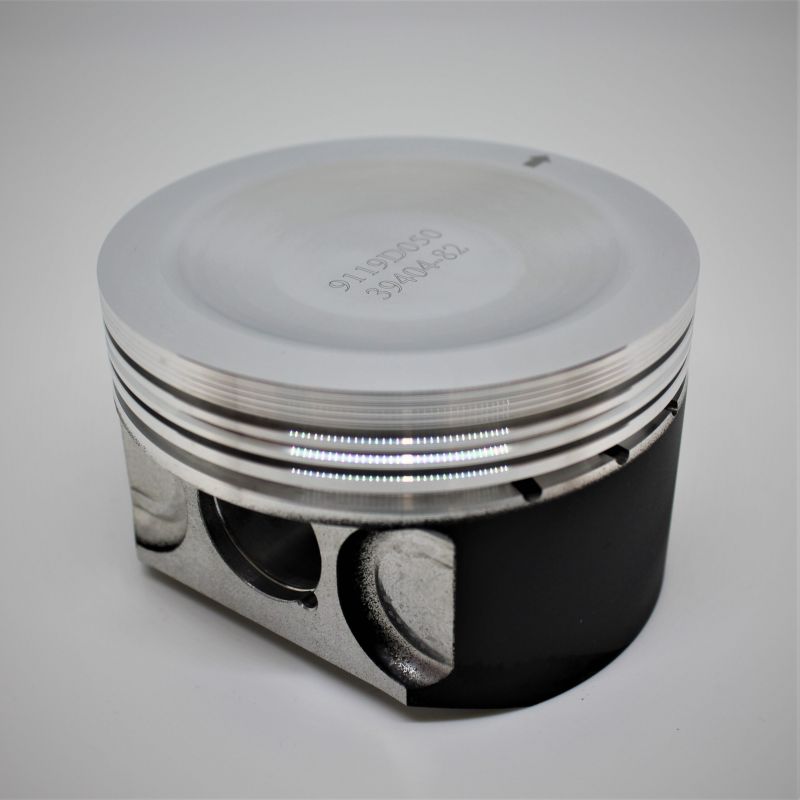

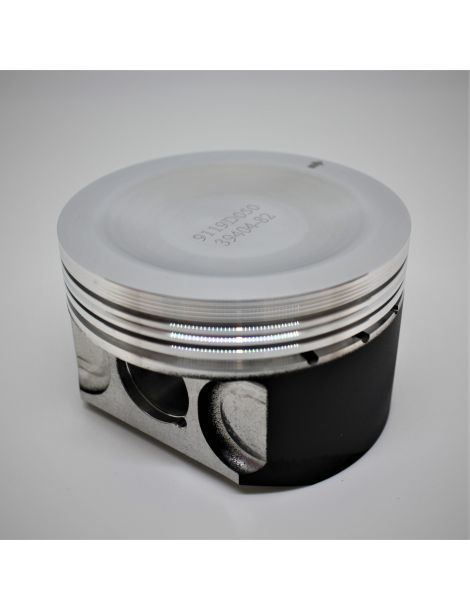

Forged Pistons for Saab 2.3L 16v B235 Engines
Specifications of the forged pistons offered by NSB Concept for Saab 2.3 L 16 V — engine B235 :
| Reference | OEM Bore 90,00 mm | OEM CR 8,8–9,3 :1 | OEM Pin 24 mm | Height OEM Pin 32,90 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE184M90 | 90.0 | 8.5:1 | 24 | 32.9 | Wiseco | Skirt | NC | NC | -18.0 | NC | 9000XX |
| K9119DA | 90.0 | 9.3:1 | 24 | 32.9 | Wossner | NC | NC | Round | -10.5 | NC | 900XPY |
| WKE184M9025 | 90.25 | 8.5:1 | 24 | 32.9 | Wiseco | Skirt | NC | NC | -18.0 | NC | 9025XX |
| WKE184M905 | 90.5 | 8.5:1 | 24 | 32.9 | Wiseco | Skirt | NC | NC | -18.0 | NC | 9050XX |
| K9119D050 | 90.5 | 9.3:1 | 24 | 32.9 | Wossner | NC | NC | Round | -10.5 | NC | 905XPY |
| WKE184M91 | 91.0 | 8.5:1 | 24 | 32.9 | Wiseco | Skirt | NC | NC | -18.0 | NC | 9100XX |
| K9119D100 | 91.0 | 9.4:1 | 24 | 32.9 | Wossner | NC | NC | Round | -10.5 | NC | 910XPY |
Compatibility (engine codes):
Original vehicles equipped with the engine B235 2.3 16v :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Saab | 9-3 I Viggen 2.3T | B235R | 225–230 hp | 1999 – 2002 |
| Saab | 9-5 I 2.3T | B235L | 200–220 hp | 1998 – 2009 |
| Saab | 9-5 I 2.3t (LPT) | B235E | 170–185 hp | 1998 – 2009 |
| Saab | 9-5 I Aero 2.3T | B235R | 230–260 hp | 1999 – 2009 |
OEM piston references :
B235 — piston STD: 30584595 (supersession 9197880) — Ø 90.00 mm.
B235 — piston +0.50: 30584596 (supersessions 9186396, 9197898) — Ø 90.50 mm.
pins (studs) & circlips: pin 30582432 (L=63 mm); circlips 55557265 (x2/piston).
STD ring set: 55557263 (Ø 90.00 mm).
*references to be confirmed via VIN and EPC manufacturer. Variants depending on model years & markets.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
