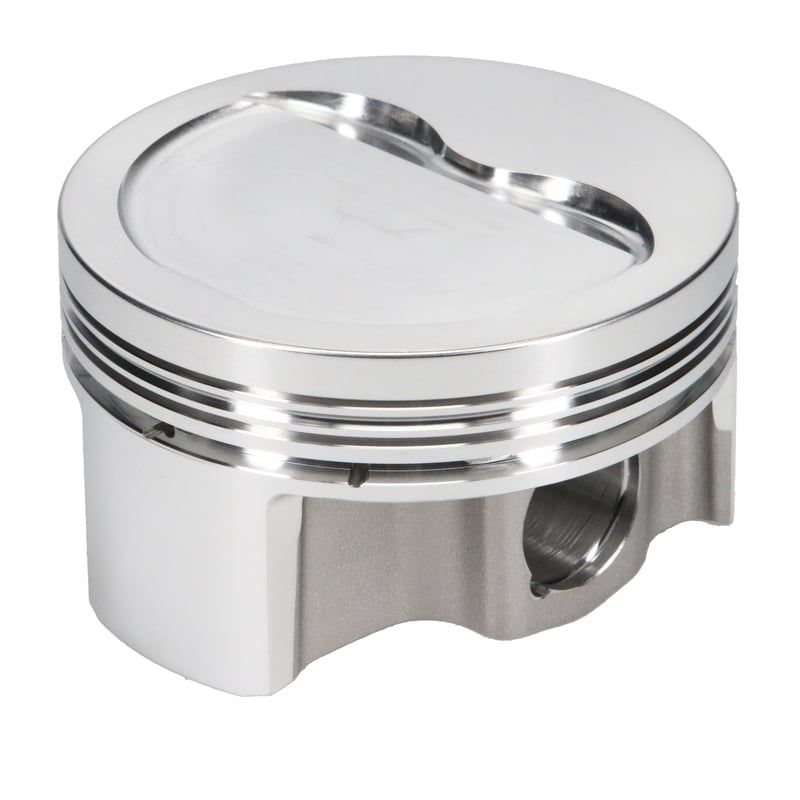

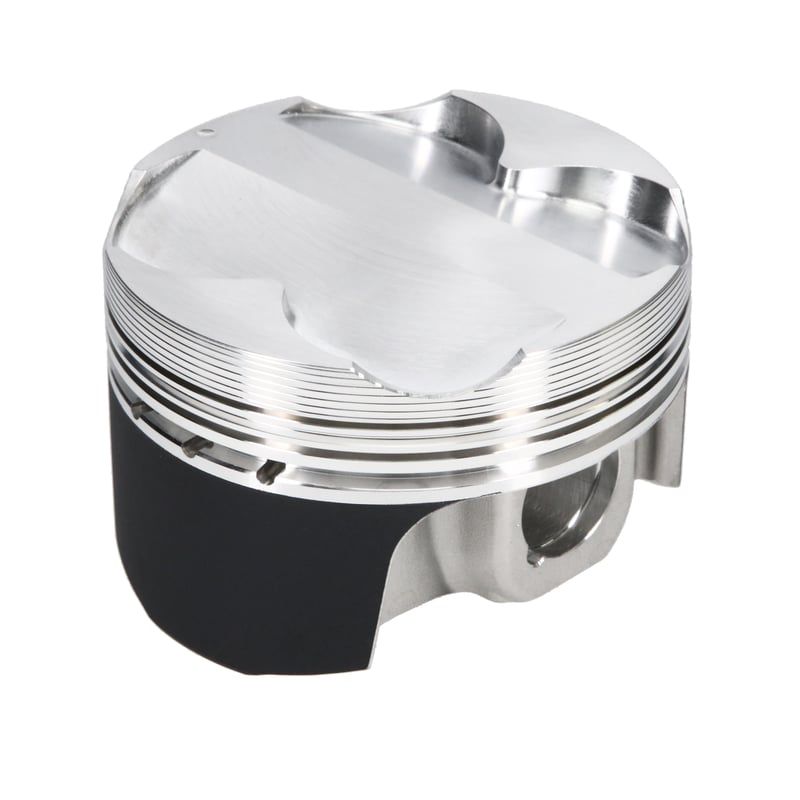

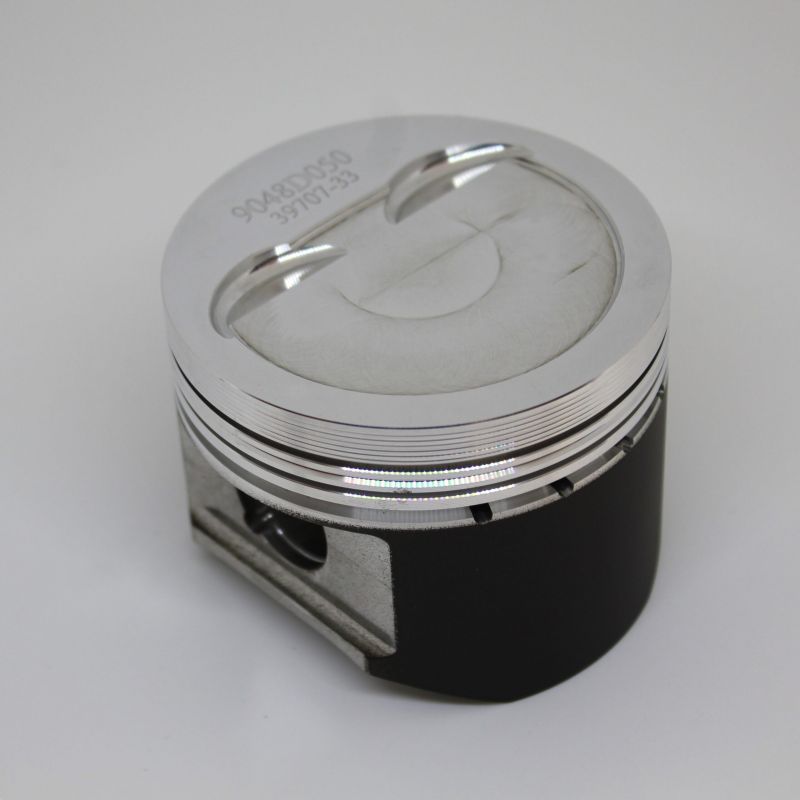

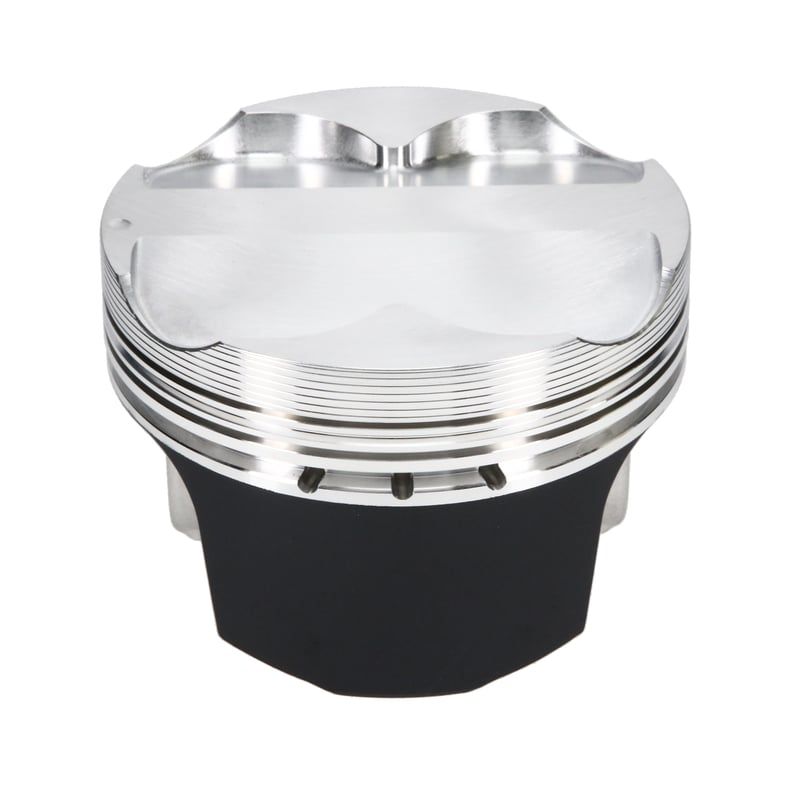

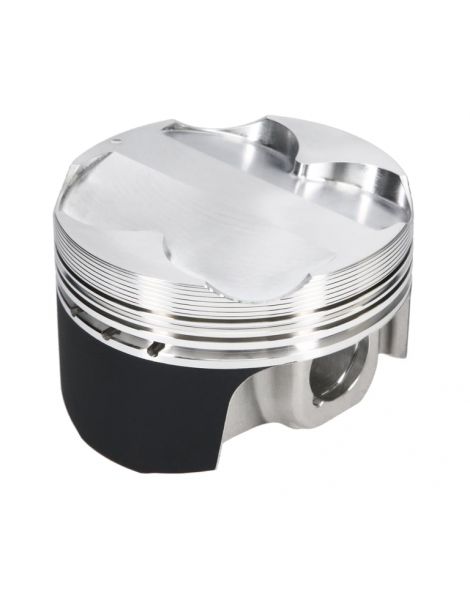

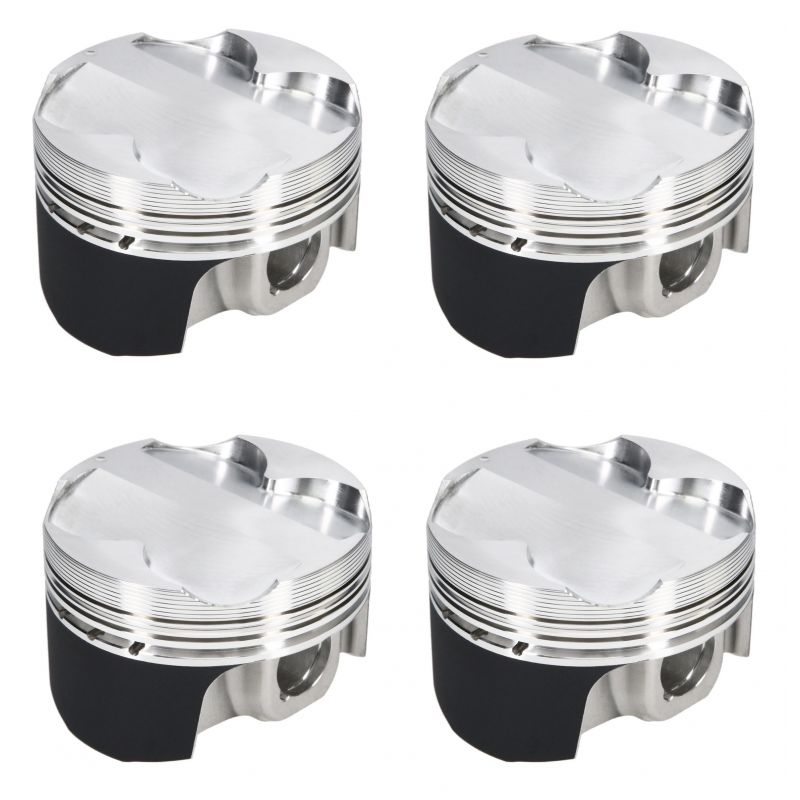

Pistons forged 1.4L 8v 176A4 Punto GT Fiat. NSB CONCEPT. Fast shipping!
Specifications of the forged pistons offered by NSB Concept for engines Fiat 1.4 L 8 v Turbo 176A4 :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-312400 | 80,50 | 7,8:1 | 22 | 34,15 | JE FSR | NC | 2618 | FSR | -3,7 | 285 | NC |
| WKE220M805 | 80,50 | 7,8:1 | 22 | 34,15 | Wiseco | Skirt | 2618 | NC | -10,0 | NC | 3169XC |
| K9048DA | 80,50 | 7,8:1 | 22 | 34,10 | Wössner | NC | NC | Round | -3,9 | NC | 805XPZ |
| JE-312401 | 81,00 | 7,8:1 | 22 | 34,15 | JE FSR | NC | 2618 | FSR | -3,7 | 292 | NC |
| WKE220M81 | 81,00 | 7,8:1 | 22 | 34,15 | Wiseco | Skirt | 2618 | NC | -10,0 | NC | 8100XX |
| K9048D050 | 81,00 | 7,9:1 | 22 | 34,10 | Wössner | NC | NC | Round | -3,9 | NC | 810XPY |
| WKE220M8125 | 81,25 | 7,8:1 | 22 | 34,15 | Wiseco | Skirt | 2618 | NC | -10,0 | NC | 8125XX |
| JE-312402 | 81,50 | 7,8:1 | 22 | 34,15 | JE FSR | NC | 2618 | FSR | -3,7 | 297 | NC |
| K9048D100 | 81,50 | 8,0:1 | 22 | 34,10 | Wössner | NC | NC | Round | -3,9 | NC | 815XPY |
Compatibility :
Original vehicles equipped with the engine 1.4 Turbo 8 v 176A4 :
| Brand | Model | Type engine | Power | Years |
|---|---|---|---|---|
| Fiat | Punto GT (Type 176) | 176A4.000 | 133 – 136 hp | 1993 – 1999 |
references piston manufacturer (OEM):
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
