2.3 16v - H23
Manufacturers
2.3 16v - H23
Warning: Last items in stock!
New product

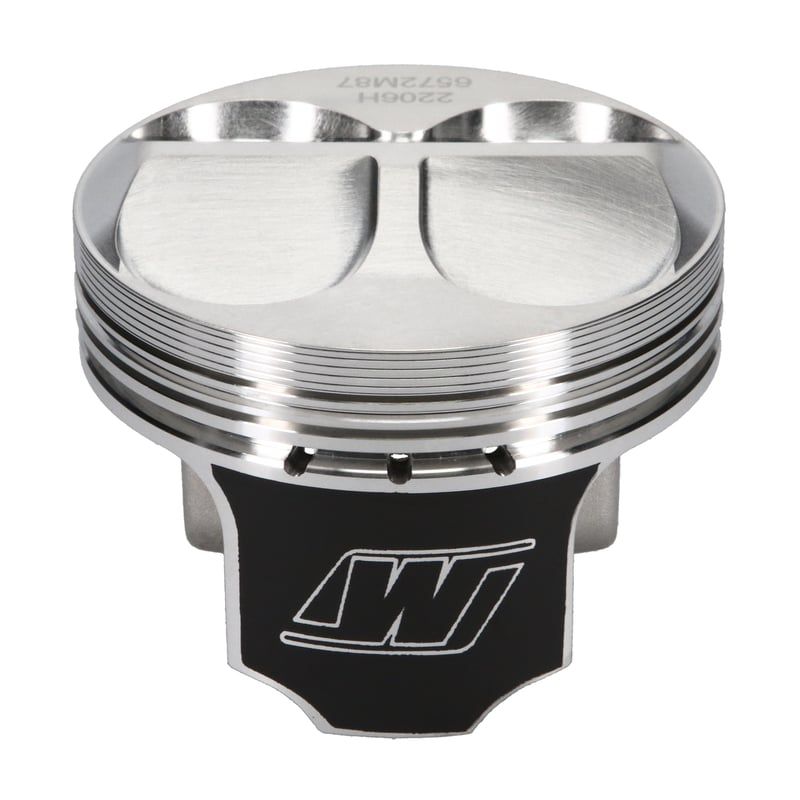

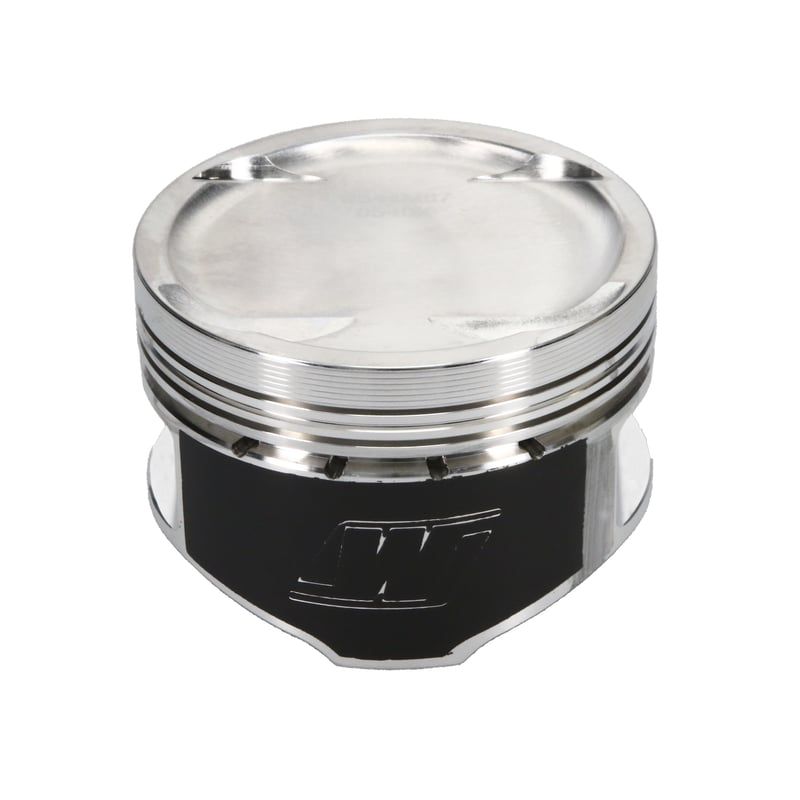

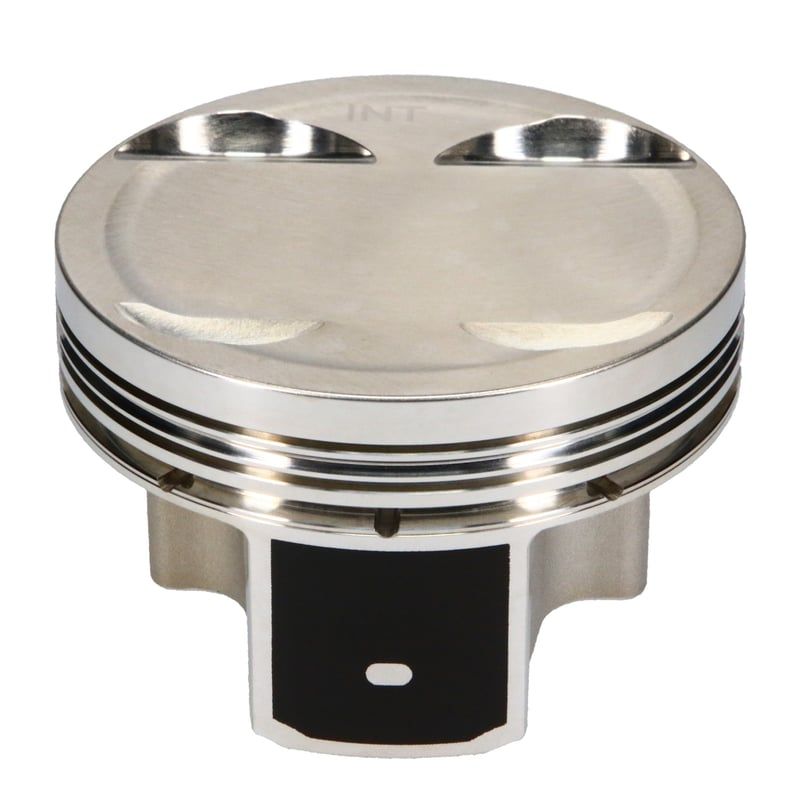

Round Forged Pistons | Wiseco for Honda H23 2.3 L 16v: O 87.89 mm, RV 9.11.5:1, axle 22 mm.
Specifications of the forged pistons for engines 2,3 L 16 v Honda H23 :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WK572M87 | 87 | 11,5 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | 7 | — | 8700XX |
| WK544M87 | 87 | 9,4 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | -14 | — | 8700XX |
| JE-208474 | 87,5 | 10 :1 | 22 | 30,58 | JE Round | — | 2618 | Round | -5,8 | 307 | — |
| JE-208472 | 87,5 | 9 :1 | 22 | 30,58 | JE Round | — | 2618 | Round | -12 | 328 | — |
| WK572M88 | 88 | 11,5 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | 7 | — | 8800XX |
| WK544M88 | 88 | 9,4 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | -14 | — | 8800XX |
| WK572M89 | 89 | 11,5 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | 7 | — | 8900XX |
| WK544M89 | 89 | 9,4 :1 | 22 | 31 | Wiseco | Skirt | 2618 | — | -14 | — | 8900XX |
Compatible vehicles:
| Brand | Model | Power | Years |
|---|---|---|---|
| Honda | Prelude (H23A1/H23A) | — | 1992 – 1996 |
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
