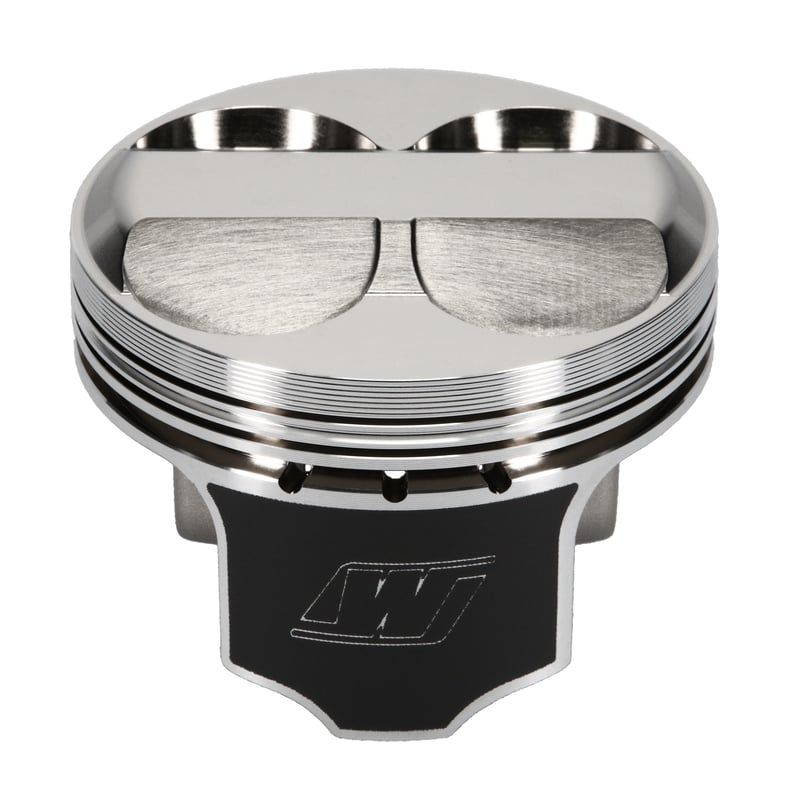

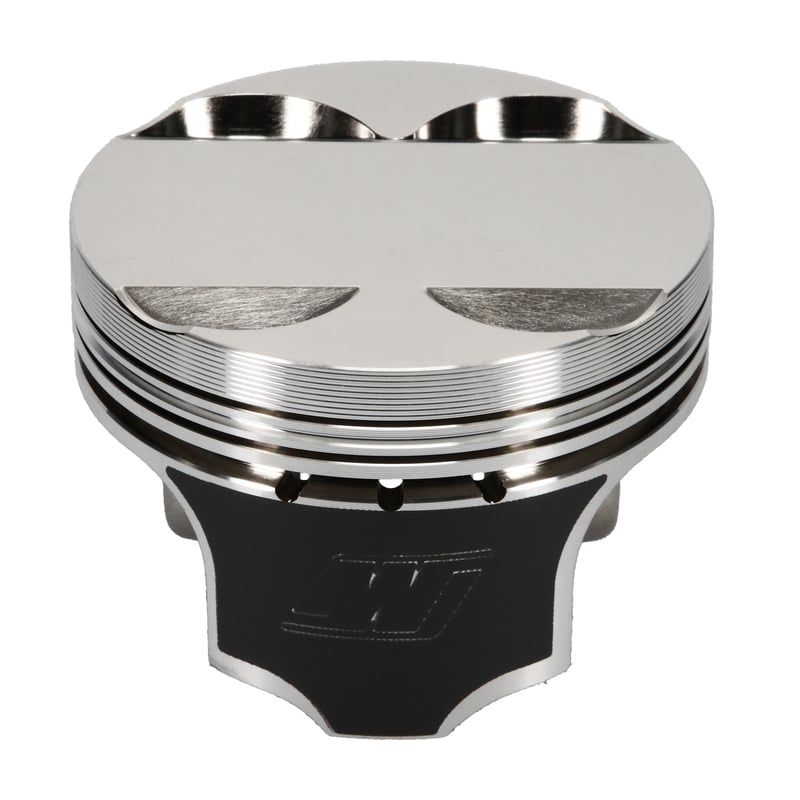

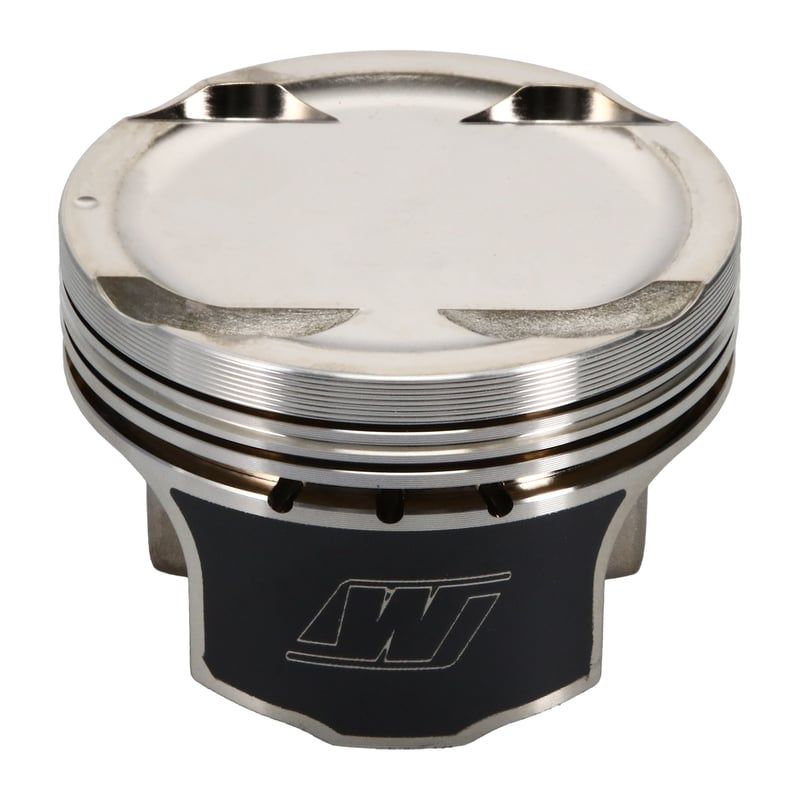

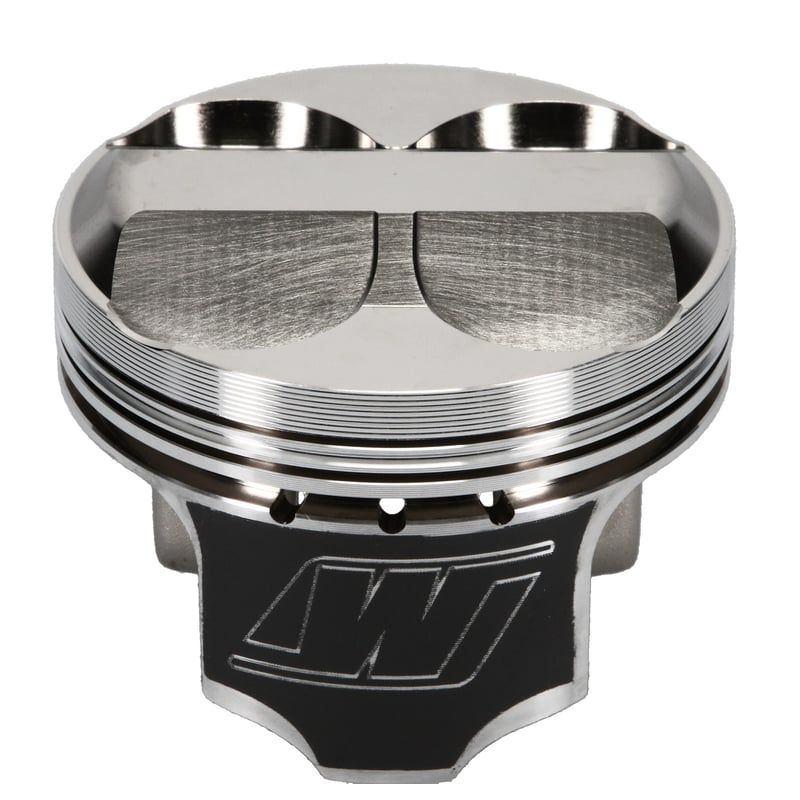

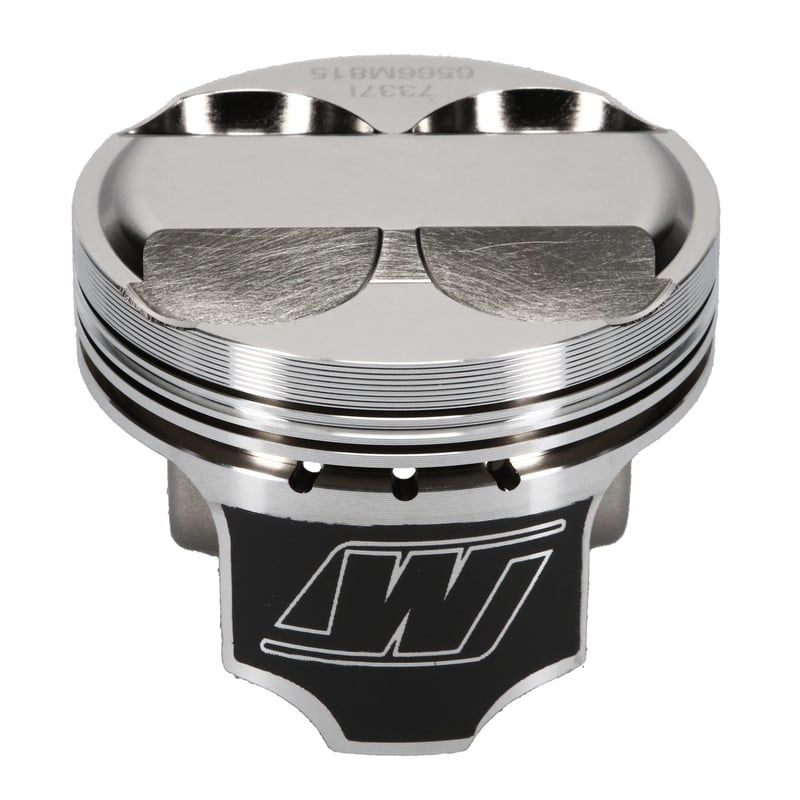

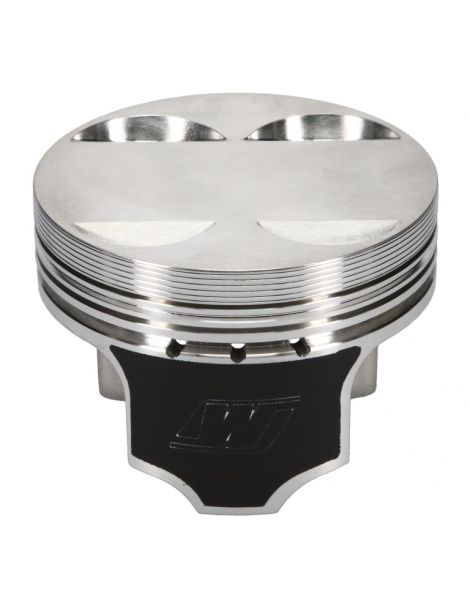

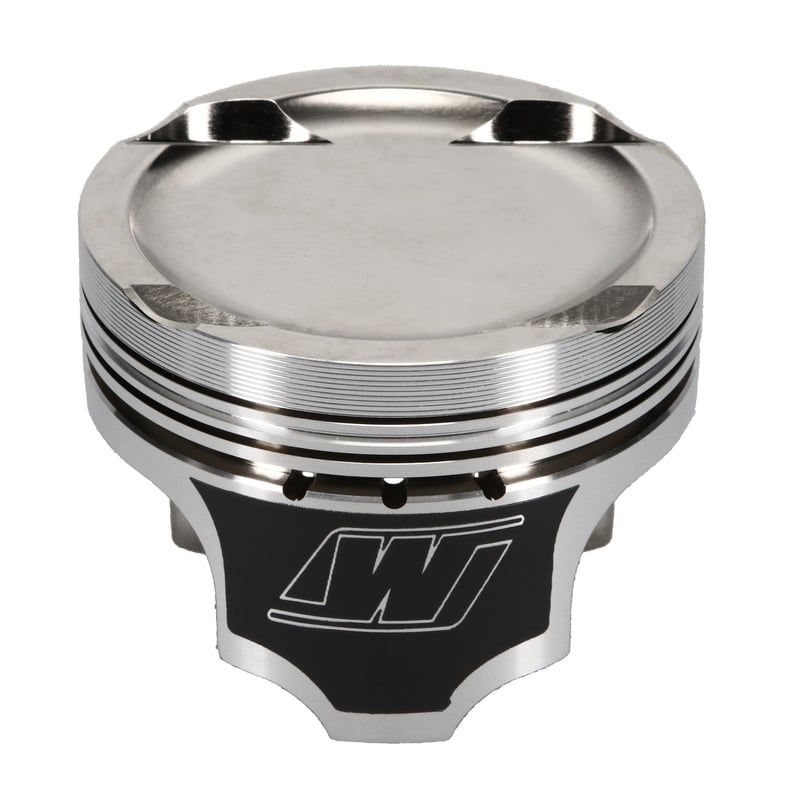

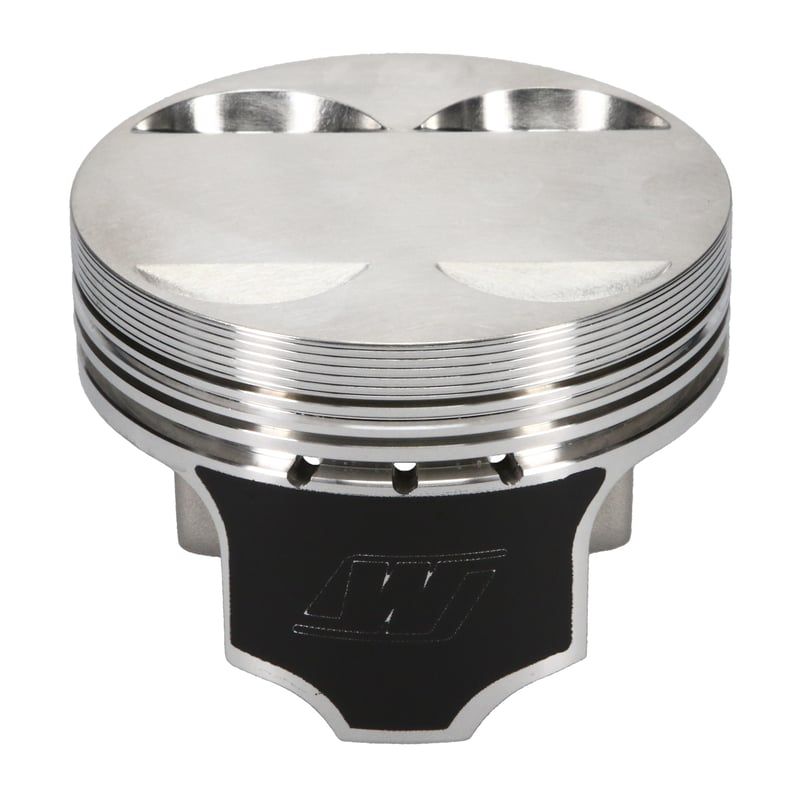

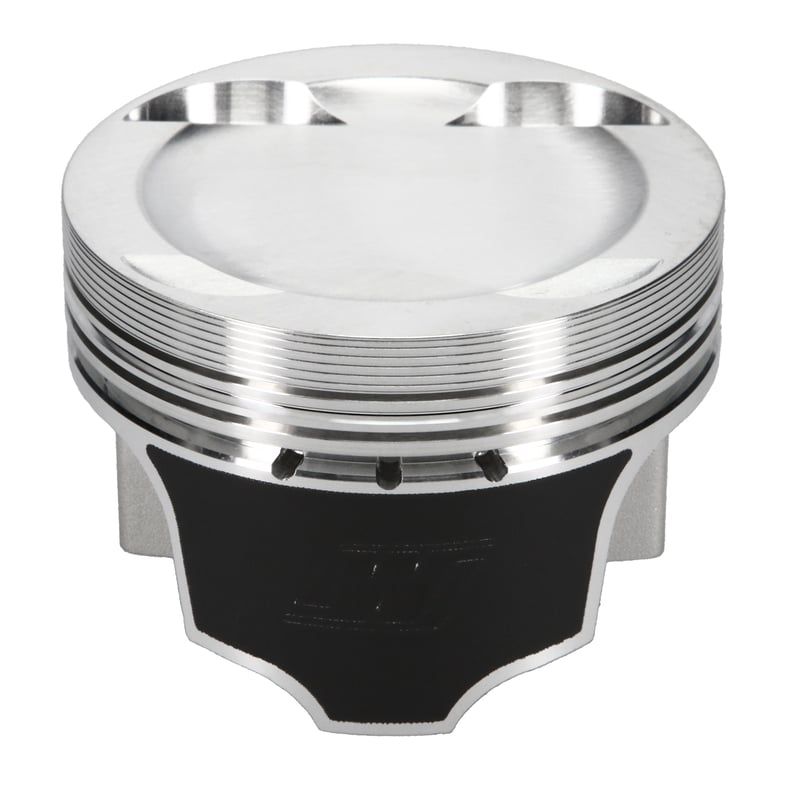

Forged Pistons 1.8L 16v B18A1 B18B1 Honda

Marque Forged Pistons

Condition: New product

Forged pistonsHonda B18A1/B18B1 Bores81 86mm, CR OEM8.1 13:1, Pin21mm. Ranges available:Supertech, Wiseco, Wiseco AP. Sorted technical sheet + compatibilities Integra 1990 2001 + Pistons referencesOEM.

More details

574,43 € tax incl.

-25%

765,91 € tax incl.

Bore | CR | Range

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

Quantity

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for 1.8 L 16 v Honda B18A1 / B18B1 :

Reference piston	Bore (mm)OEM 81	CROEM 10,5 :1	pin (mm)OEM 21	Height pin (mm)OEM 30	Range	Aluminium	Coating	Forging	Dome (cc)	Weight (g)	Rings
WK541M81	81	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8100XX
WK541M81AP	81	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8100XX
WK673M81	81	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8100XX
WK673M81AP	81	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8100XX
WK542M81	81	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8100XX
WK542M81AP	81	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8100XX
P4-H81-N2R-H13-4	81	9,6 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	302	W8100XX
WK566M81	81	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8100XX
WK566M81AP	81	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8100XX
WK593M81	81	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8100XX
WK593M81AP	81	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8100XX
P4-H81-P6-4	81	11,4 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	246	W8100XX
P4-H81-P7-4	81	12 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	241	W8100XX
WK541M8125	81,25	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8125XX
WK541M8125AP	81,25	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8125XX
WK542M8125	81,25	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8125XX
WK542M8125AP	81,25	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8125XX
WK566M8125	81,25	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8125XX
WK566M8125AP	81,25	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8125XX
WK593M8125	81,25	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8125XX
WK593M8125AP	81,25	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8125XX
WK541M815	81,5	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8150XX
WK541M815AP	81,5	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8150XX
WK673M815	81,5	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8150XX
WK673M815AP	81,5	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8150XX
WK542M815	81,5	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8150XX
WK542M815AP	81,5	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8150XX
P4-H815-N2R-4	81,5	9,6 :1	21	30	Supertech	NC	Crown + Skirt	NC	-2,5	NC	W8150XX
WK566M815	81,5	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8150XX
WK566M815AP	81,5	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8150XX
WK593M815	81,5	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8150XX
WK593M815AP	81,5	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8150XX
P4-H815-P6-4	81,5	11,4 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,7	261	W8150XX
P4-H815-P7-4	81,5	12,1 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	250	W8150XX
WK541M82	82	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8200XX
WK541M82AP	82	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8200XX
WK673M82	82	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8200XX
WK673M82AP	82	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8200XX
WK542M82	82	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8200XX
WK542M82AP	82	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8200XX
P4-H82-N2R-H13-4	82	9,6 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	250	W8200XX
WK566M82	82	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8200XX
WK566M82AP	82	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8200XX
WK593M82	82	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8200XX
WK593M82AP	82	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8200XX
P4-H82-P6-4	82	11,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	290	W8200XX
P4-H82-P7-4	82	12,2 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	257	W8200XX
P4-H83-P6-4	83	11,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	300	W8300XX
WK649M84	84	8,4 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8400XX
P4-H84-N10R-H13-4	84	9,1 :1	21	30	Supertech	4032	Crown + Skirt	NC	-10,3	295	W8400XX
WK623M84	84	9,4 :1	21	30	Wiseco	2618	Skirt	NC	-2.3FT	NC	8400XX
P4-H84-N2R-H13-4	84	10,3 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	295	W8400XX
P4-H84-P1-4	84	11 :1	21	30	Supertech	4032	Crown + Skirt	NC	1,4	285	W8400XX
WK594M84	84	11,5 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8400XX
WK594M84AP	84	11,5 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8400XX
P4-H84-P5-4	84	11,9 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	310	W8400XX
WK594M8425	84,25	11,6 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8425XX
WK594M8425AP	84,25	11,6 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8425XX
WK649M845	84,5	8,4 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8450XX
P4-H845-N10R-H13-4	84,5	9,2 :1	21	30	Supertech	NC	Crown + Skirt	NC	-10,3	NC	W8450XX
WK623M845	84,5	9,4 :1	21	30	Wiseco	2618	Skirt	NC	-2.3FT	NC	8450XX
P4-H845-N2R-4	84,5	10,4 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	290	W8450XX
P4-H845-P1-4	84,5	11,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	1,4	306	W8450XX
WK594M845	84,5	11,6 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8450XX
WK594M845AP	84,5	11,6 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8450XX
P4-H845-P5-4	84,5	12,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	310	W8450XX
WK649M85	85	8,5 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8500XX
P4-H85-N10R-H13-4	85	9,5 :1	21	30	Supertech	NC	Crown + Skirt	NC	-10,3	NC	NC
P4-H85-N2R-4	85	10,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	275	W8500XX
WK594M85	85	11,7 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8500XX
WK594M85AP	85	11,7 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8500XX
P4-H85-P5-4	85	12 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	318	W8500XX
P4-H85-P8-4	85	13 :1	21	30	Supertech	4032	Crown + Skirt	NC	8	322	W8500XX
WK594M855	85,5	11,8 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8550XX
WK594M855AP	85,5	11,8 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8550XX
WK594M86	86	12 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8600XX
WK594M86AP	86	12 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8600XX

Compatibility engine :

1.8L 16v - B18A1/B1

Brand	Model	Chassis	Engine code	Power (ch)	Years
Acura	Integra LS / GS (2e Gen.)	DA9 / DB1	B18A1	130	1990 – 1991
Acura	Integra LS / GS (2e Gen.)	DA9 / DB1	B18A1	140	1992 – 1993
Acura	Integra RS / LS (3e Gen.)	DC4	B18B1	142	1994 – 1995
Acura	Integra RS / LS / GS (3e Gen.)	DC4	B18B1	140	1996 – 2001

Manufacturer piston references (OEM):

Integra 1990–1993 (B18A1) — bare pistons (STD) : 13101‑PR4‑010 (remplace 13101‑PR4‑000) ; Oversize 0,25 : 13102‑PR4‑010 ; Oversize 0,50 : 13103‑PM7‑000.
Integra 1994–2001 (B18B1) — piston Set (STD) : 13010‑P54‑000 ; piston Set (O/S 0,25) : 13020‑P54‑000.

Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
