Set of tri-metal crankshaft half shells for the five main bearings of the Nissan SR20DET GTi-R four-cylinder engine.
The SR20DET GTi-R is the Nissan 2.0 litre four-cylinder with twin overhead camshafts, 16 valves and a turbocharger, fitted to the four-wheel-drive Nissan Sunny GTI-R (N14). ACL lists a main bearing set for it. Its crankshaft runs on five main bearings.

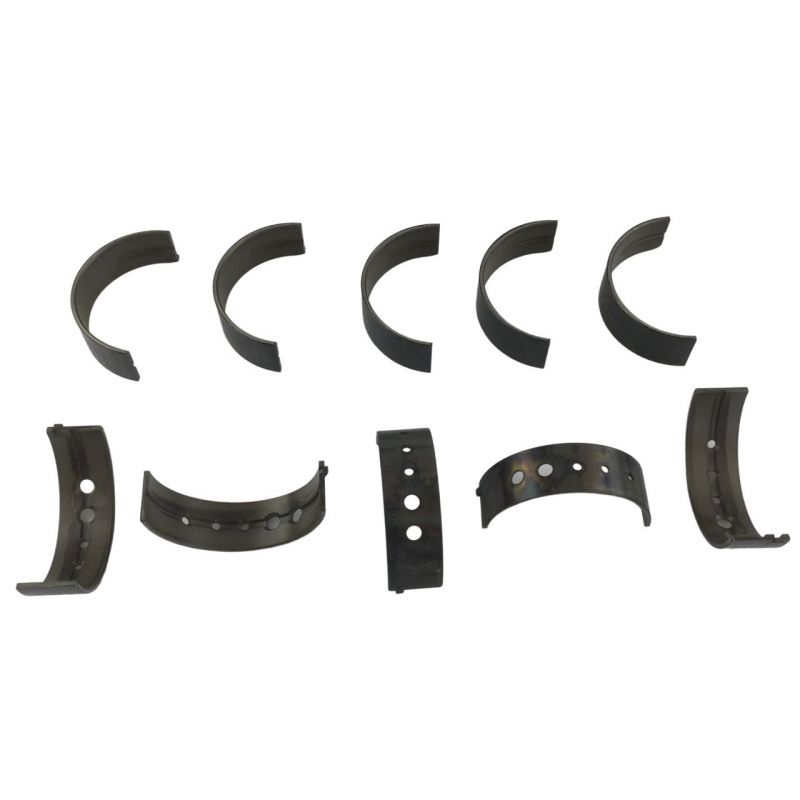

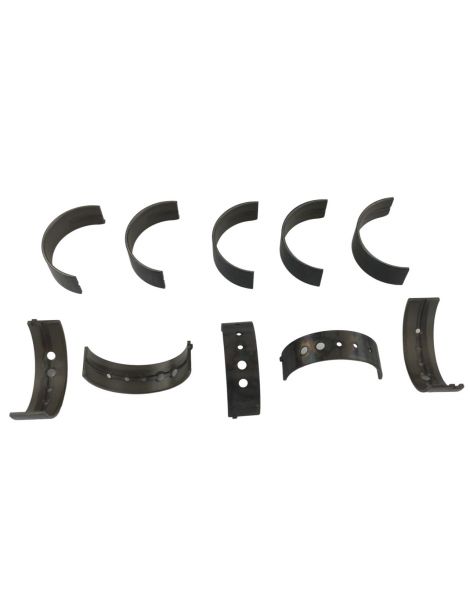

The crankshaft of this engine runs on five main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series tri-metal set shown here replaces them on built engines.
A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set covers the five main bearings of the crankshaft. The upper and lower half shells are different: each goes in its own position.
An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankshaft journal Ø 54.956 / 54.980 mm Housing bore Ø 58.944 / 58.968 mm Width 19.1 mm |
Manufacturer's note (ACL 5M2975H): suits GTiR engines.
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 5M2975H-STD | ACL Race - Untreated | Standard | 1.98 |
| 5M2975HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 1.967 |
| 5M2975H-.025 | ACL Race - Untreated | +0.025 | 1.9925 |
| 5M2975H-.25 | ACL Race - Untreated | +0.25 | 2.105 |
| 5M2975HC-STD | ACL Race - Calico | Standard | |
| 5M2975HXC-STD | ACL Race - Calico | Std, increased clearance (HX) |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series |
|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.057 to 0.068 mm |
| Increased clearance (HX) | Wider clearance: high oil flow, high rpm | 0.082 to 0.093 mm |
| +0.025 mm | Polished journal | 0.057 to 0.068 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.057 to 0.068 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the main cap to spec, then compare the crushed strip against the gauge to read the clearance.
The ACL main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. |
This main bearing set fits the Nissan SR20DET GTi-R four-cylinder engine of the following vehicle:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| NISSAN | SUNNY III Hatchback (N14) 2.0 GTI-R 4x4 | SR20DET | 220–230 hp | 1990–1995 |
