2.0 16v - K20C
Manufacturers
2.0 16v - K20C
Warning: Last items in stock!
New product

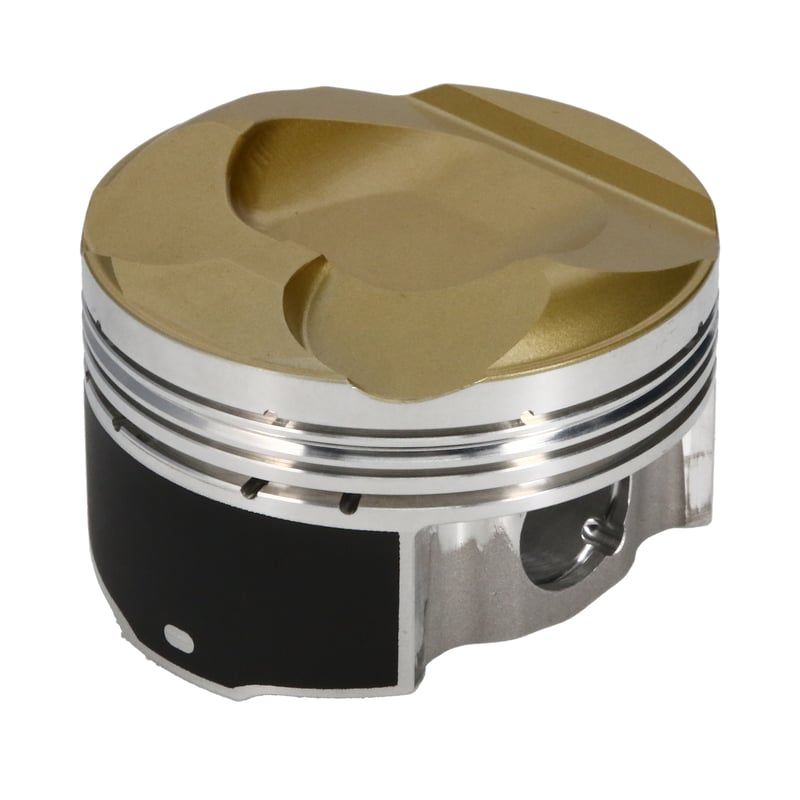

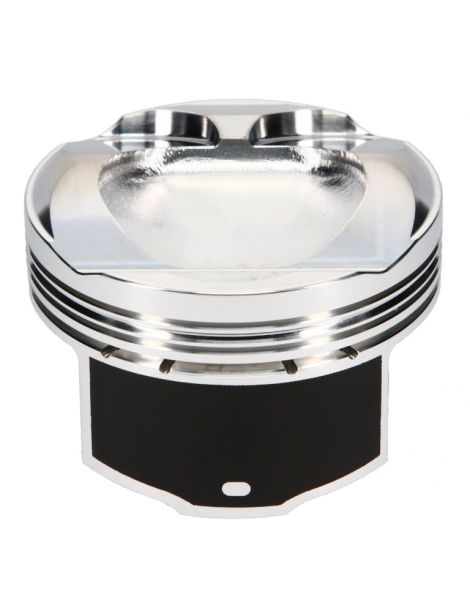

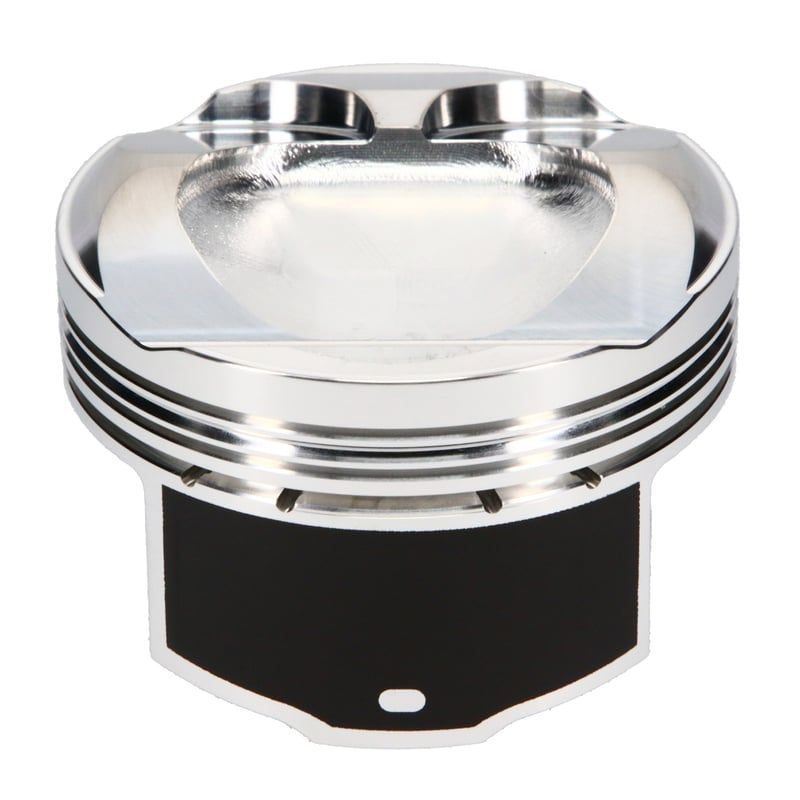

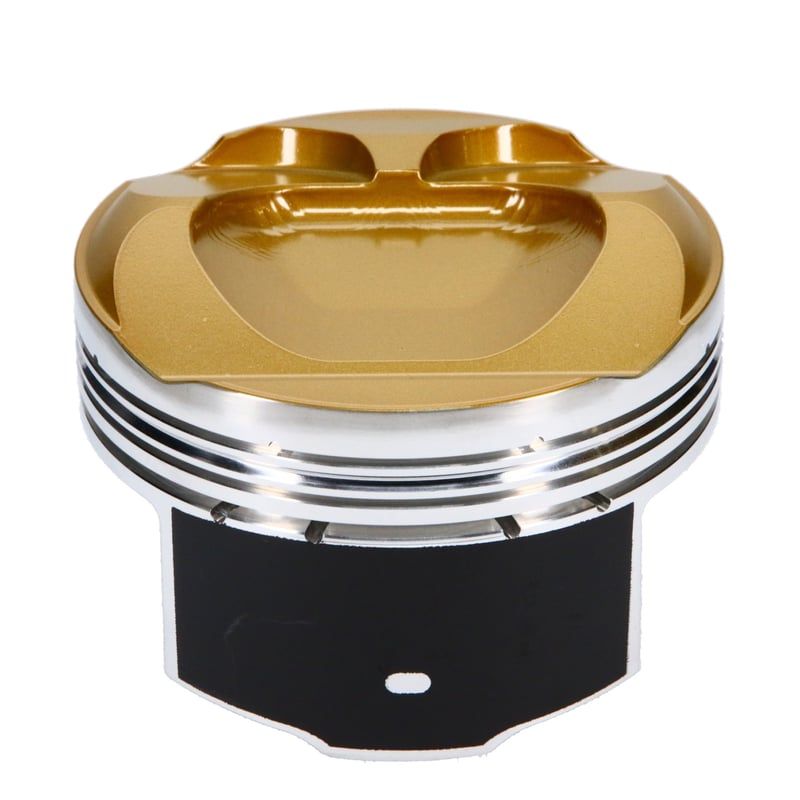

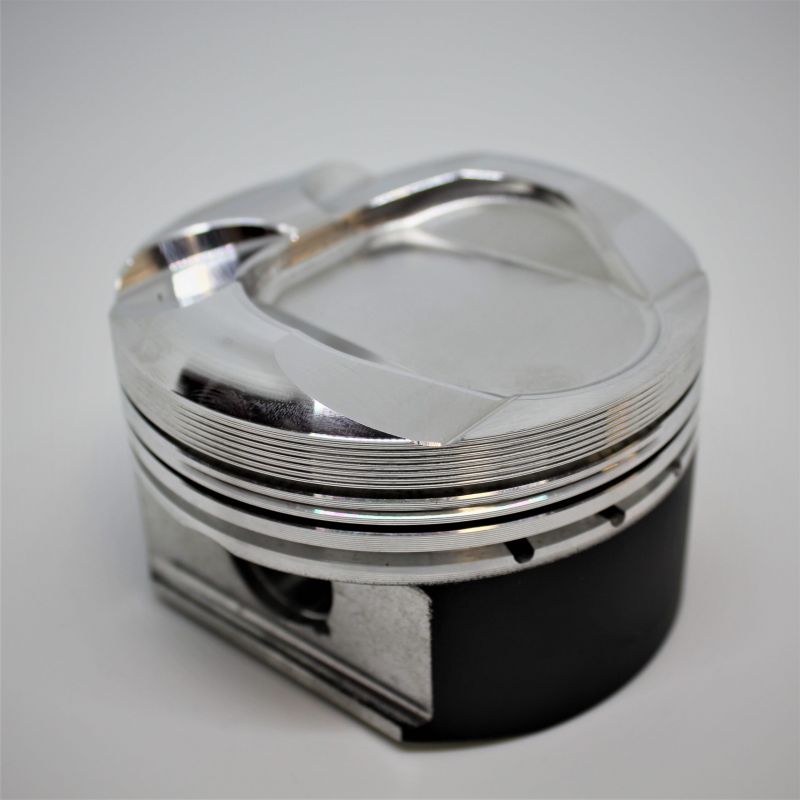

Forged pistons Honda K20C1(Civic Type R FK8/FL5) alloy 2618, Pines 22mm, heights 32mm, Bores 86 / 86.5mm, FSR/Ultra profiles. JE & Wossner, compatible Rings (860XPY/865XPY). Ideal road/track, strong resistance to overcharging.
Specifications of the forged pistons offered by NSB Concept for Honda 2.0 L 16 v K20C :
| Reference piston | Bore (mm)OEM 86 | CROEM 9,8:1 | pin (mm)OEM 22 | Height pin (mm)OEM 32 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-357423 | 86 | 9,8:1 | 22 | 32 | JE FSR | 2618 | NC | FSR | -1,5 | NC | NC |
| K9535DA | 86 | 9,8:1 | 22 | 32 | Wossner | NC | NC | NC | 4,56 | NC | 860XPY |
| JE-361278 | 86 | 10:1 | 22 | 32 | JE Ultra Series | 2618 | Crown + Skirt | FSR | 0 | NC | NC |
| JE-357425 | 86 | 10,5:1 | 22 | 32 | JE FSR | 2618 | NC | FSR | 2,6 | NC | NC |
| JE-357424 | 86,5 | 9,8:1 | 22 | 32 | JE FSR | 2618 | NC | FSR | -2,2 | NC | NC |
| K9535D050 | 86,5 | 9,9:1 | 22 | 32 | Wossner | NC | NC | NC | 4,56 | NC | 865XPY |
| JE-361279 | 86,5 | 10:1 | 22 | 32 | JE Ultra Series | 2618 | Crown + Skirt | FSR | -0,6 | NC | NC |
| JE-357426 | 86,5 | 10,5:1 | 22 | 32 | JE FSR | 2618 | NC | FSR | 2 | NC | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Honda | Civic Type R | FK8 | K20C1 | 320 | 2017 – 2021 |
| Honda | Civic Type R | FL5 | K20C1 | 329 | 2022 – 2025 |
Manufacturer piston references (OEM):
13010-RPY-G01 ; piston Set (B) STD 13020-RPY-G01 ; piston Set OS 0.25 13030-RPY-G01.13010-66V-A00 ; piston Set (B) STD 13020-66V-A00.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
