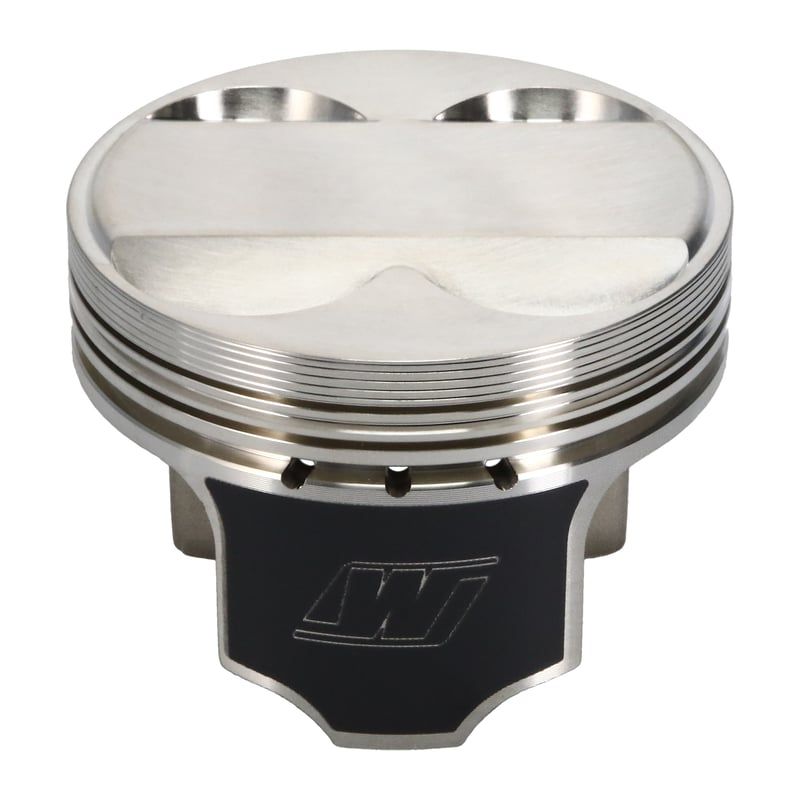

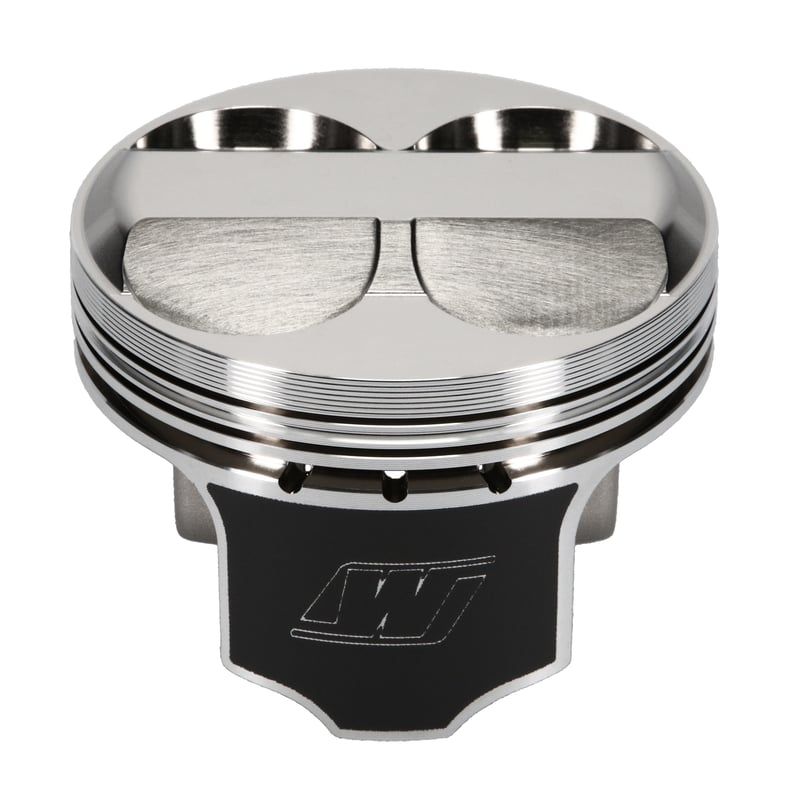

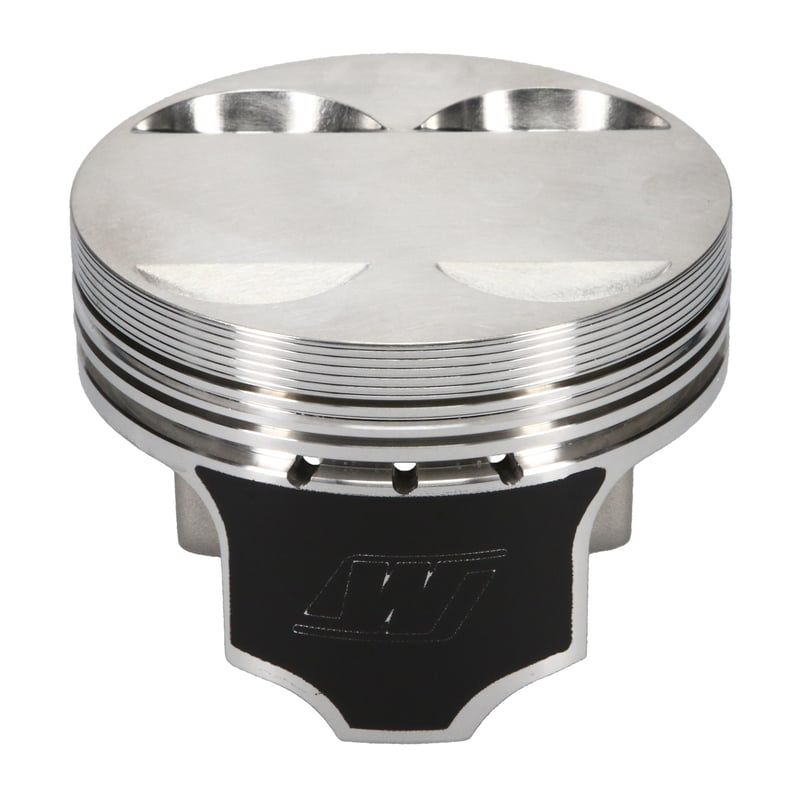

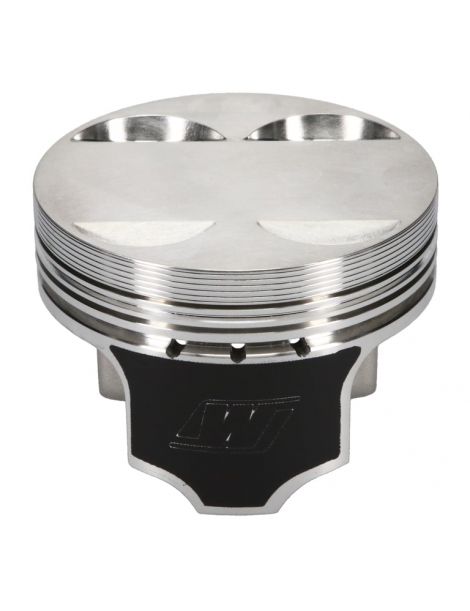

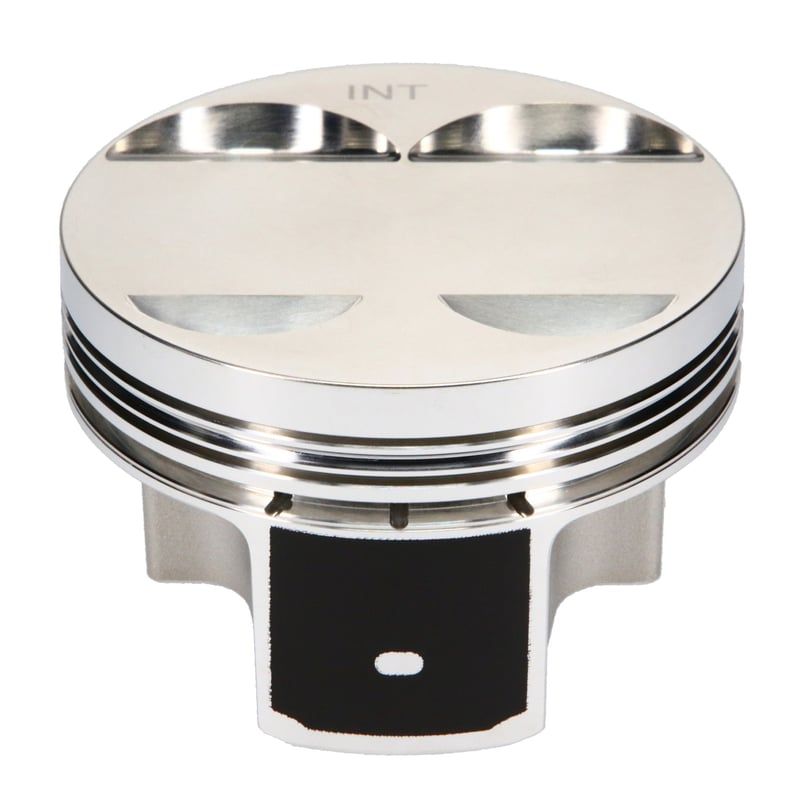

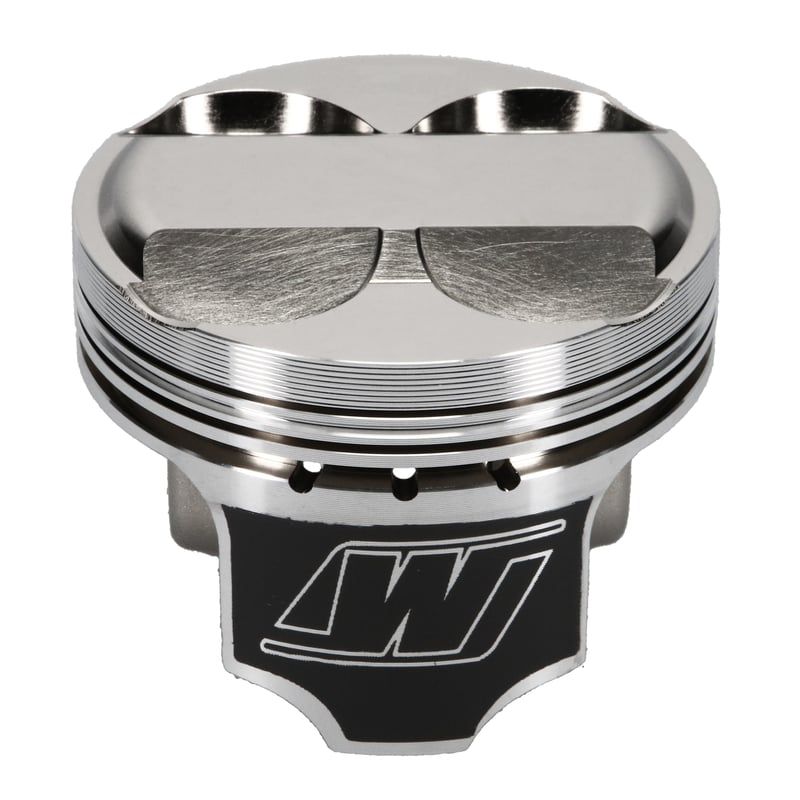

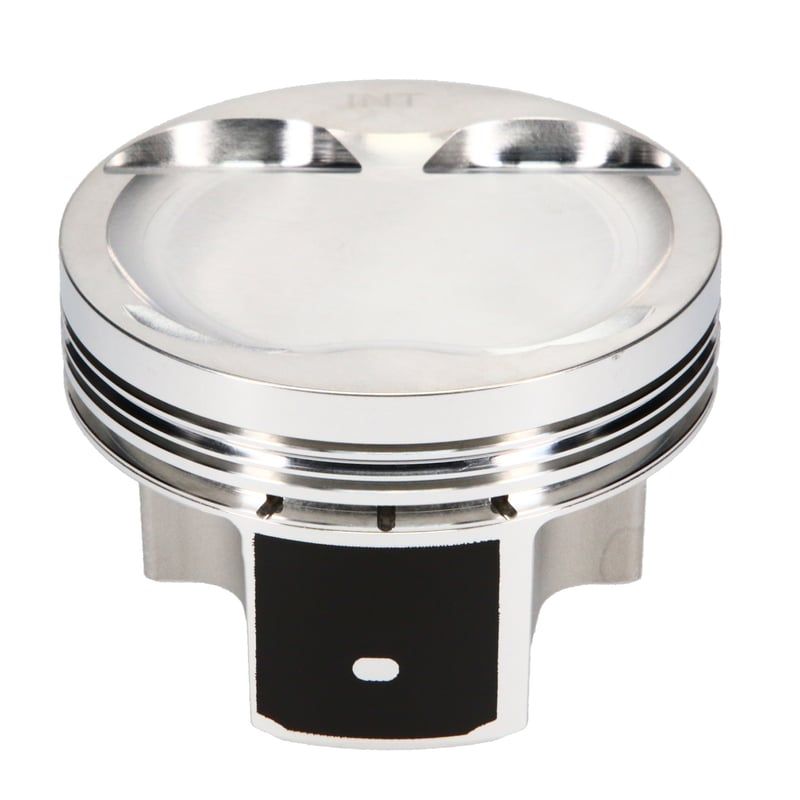

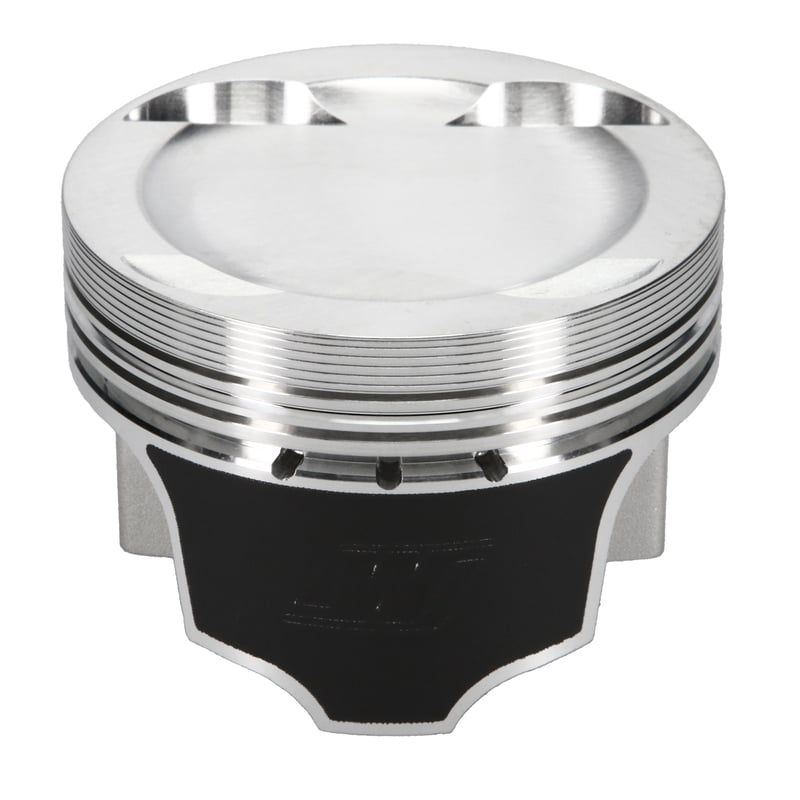

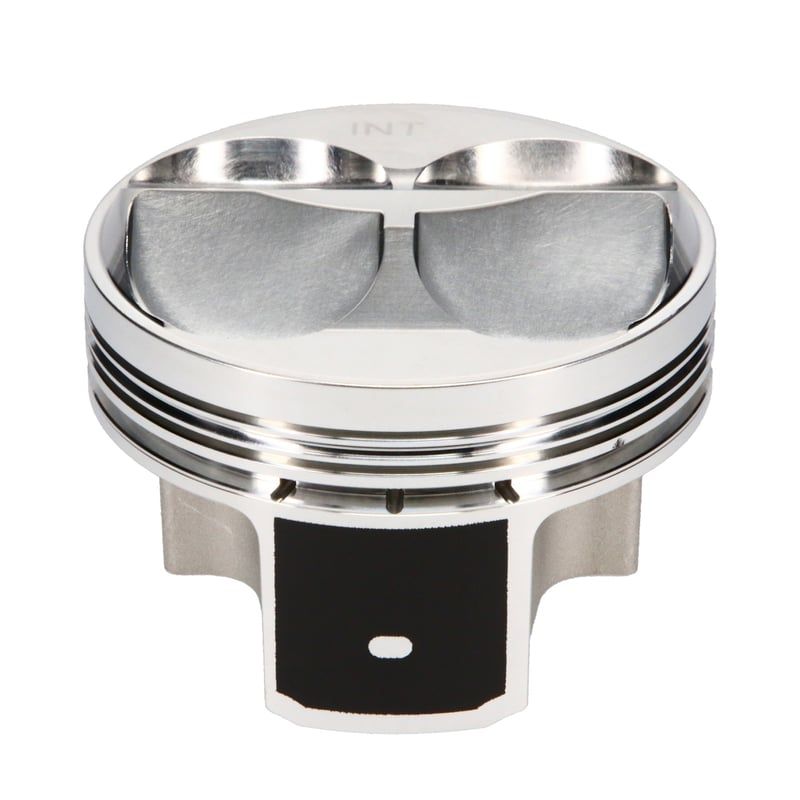

Forged pistonsHonda B20B 2.0L(CR-V RD1, Orthia) Bores84 86.5mm, CR OEM8.5 12.8:1depending on models, Pin21mm. Ranges available:JE, Manley, Supertech, Wiseco.
Specifications of the forged pistons offered by NSB Concept for Honda 2.0 L 16 v B20B :
| Reference piston | Bore (mm)OEM 84 | CROEM 11,6 :1 | pin (mm)OEM 21 | Height pin (mm)OEM 30 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-302410 | 84 | 8,3 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -11,4 | 300 | NC |
| WK545M84 | 84 | 8,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -18 | NC | 8400XX |
| WK649M84 | 84 | 8,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -10 | NC | 8400XX |
| JE-367843 | 84 | 9 :1 | 21 | 30 | JE Ultra Series | 2618 | Crown + Skirt | FSR | -4.5 FT | NC | NC |
| 602000-4 | 84 | 9 :1 | NC | 30 | Manley | 4032 | Skirt | NC | -11,9 | 299 | NC |
| JE-302411 | 84 | 9,2 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -4.5 FT | 316 | NC |
| WK623M84 | 84 | 9,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -2.3FT | NC | 8400XX |
| P4-H84-N10R-H13-4 | 84 | 9,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | -10,3 | 295 | W8400XX |
| WK567M84 | 84 | 10,1 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 2 | NC | 8400XX |
| WK567M84AP | 84 | 10,1 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 2 | NC | 8400XX |
| JE-302412 | 84 | 10,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 3,2 | 321 | NC |
| P4-H84-N2R-H13-4 | 84 | 10,8 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | -2,5 | 295 | W8400XX |
| P4-H84-P1-4 | 84 | 11,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 1,4 | 285 | W8400XX |
| WK594M84 | 84 | 11,5 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8400XX |
| WK594M84AP | 84 | 11,5 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8400XX |
| JE-302413 | 84 | 11,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 7,4 | 332 | NC |
| 602100-4 | 84 | 12,5 :1 | NC | 30 | Manley | 4032 | Skirt | NC | 4,8 | 318 | NC |
| P4-H84-P5-4 | 84 | 12,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 5,5 | 310 | W8400XX |
| WK567M8425 | 84,25 | 10,2 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 2 | NC | 8425XX |
| WK567M8425AP | 84,25 | 10,2 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 2 | NC | 8425XX |
| WK594M8425 | 84,25 | 11,6 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8425XX |
| WK594M8425AP | 84,25 | 11,6 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8425XX |
| WK545M845 | 84,5 | 8,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -18 | NC | 8450XX |
| WK649M845 | 84,5 | 8,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -10 | NC | 8450XX |
| JE-367844 | 84,5 | 9 :1 | 21 | 30 | JE Ultra Series | 2618 | Crown + Skirt | FSR | -5 FT | NC | NC |
| 602005-4 | 84,5 | 9 :1 | NC | 30 | Manley | 4032 | Skirt | NC | -11,9 | 312 | NC |
| JE-302415 | 84,5 | 9,2 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -5 FT | 318 | NC |
| P4-H845-N10R-H13-4 | 84,5 | 9,2 :1 | 21 | 30 | Supertech | NC | Crown + Skirt | NC | -10,3 | NC | W8450XX |
| WK623M845 | 84,5 | 9,4 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -2.3FT | NC | 8450XX |
| WK567M845 | 84,5 | 10,2 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 2 | NC | 8450XX |
| WK567M845AP | 84,5 | 10,2 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 2 | NC | 8450XX |
| JE-302416 | 84,5 | 10,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 2,8 | 326 | NC |
| P4-H845-N2R-4 | 84,5 | 10,9 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | -2,5 | 290 | W8450XX |
| P4-H845-P1-4 | 84,5 | 11,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 1,4 | 306 | W8450XX |
| JE-302417 | 84,5 | 11,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 6,9 | 335 | NC |
| WK594M845 | 84,5 | 11,6 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8450XX |
| WK594M845AP | 84,5 | 11,6 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8450XX |
| 602105-4 | 84,5 | 12,5 :1 | NC | 30 | Manley | 4032 | Skirt | NC | 4,8 | 331 | NC |
| P4-H845-P5-4 | 84,5 | 12,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 5,5 | 310 | W8450XX |
| JE-302414 | 85 | 8,3 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -12 | 305 | NC |
| JE-302418 | 85 | 8,3 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -12,7 | 309 | NC |
| WK649M85 | 85 | 8,5 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | -10 | NC | 8500XX |
| JE-367845 | 85 | 9 :1 | 21 | 30 | JE Ultra Series | 2618 | Crown + Skirt | FSR | -5.6 FT | NC | NC |
| 602010-4 | 85 | 9 :1 | NC | 30 | Manley | 4032 | Skirt | NC | -11,9 | 325 | NC |
| JE-302419 | 85 | 9,2 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | -5.6 FT | 324 | NC |
| P4-H85-N10R-H13-4 | 85 | 9,5 :1 | 21 | 30 | Supertech | NC | Crown + Skirt | NC | -10,3 | NC | NC |
| WK567M85 | 85 | 10,3 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 2 | NC | 8500XX |
| WK567M85AP | 85 | 10,3 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 2 | NC | 8500XX |
| JE-302420 | 85 | 10,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 2,3 | 328 | NC |
| P4-H85-N2R-4 | 85 | 11 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | -2,5 | 275 | W8500XX |
| JE-302421 | 85 | 11,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 6,6 | 338 | NC |
| WK594M85 | 85 | 11,7 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8500XX |
| WK594M85AP | 85 | 11,7 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8500XX |
| 602110-4 | 85 | 12,5 :1 | NC | 30 | Manley | 4032 | Skirt | NC | 4,8 | 344 | NC |
| P4-H85-P5-4 | 85 | 12,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 5,5 | 318 | W8500XX |
| P4-H85-P8-4 | 85 | 13,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 8 | 322 | W8500XX |
| WK594M855 | 85,5 | 11,8 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8550XX |
| WK594M855AP | 85,5 | 11,8 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8550XX |
| P4-H86-P1-4 | 86 | 11,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 1,4 | 318 | W8600XX |
| WK594M86 | 86 | 12 :1 | 21 | 30 | Wiseco | 2618 | Skirt | NC | 8,3 | NC | 8600XX |
| WK594M86AP | 86 | 12 :1 | 21 | 30 | Wiseco AP | 2618 | Skirt | NC | 8,3 | NC | 8600XX |
| JE-338093 | 86 | 12,6 :1 | 21 | 30 | JE FSR | 2618 | NC | FSR | 9 | NC | NC |
| P4-H86-P8-4 | 86 | 13,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 8 | 322 | W8600XX |
| P4-H8650-P8-4 | 86,5 | 13,5 :1 | 21 | 30 | Supertech | 4032 | Crown + Skirt | NC | 8 | 322 | W8650XX |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Honda | CR‑V I (US) | RD1 | B20B | 126 | 1997 – 1998 |
| Honda | Orthia (JP) | EL2/EL3 | B20B | 145 | 1996 – 2002 |
| Honda | Stepwgn (JP) | RF1 | B20B | 125 | 1996 – 1999 |
Manufacturer piston references (OEM):
13010‑P3F‑A00 ; piston set (O/S 0,25) : 13020‑P3F‑A00.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
