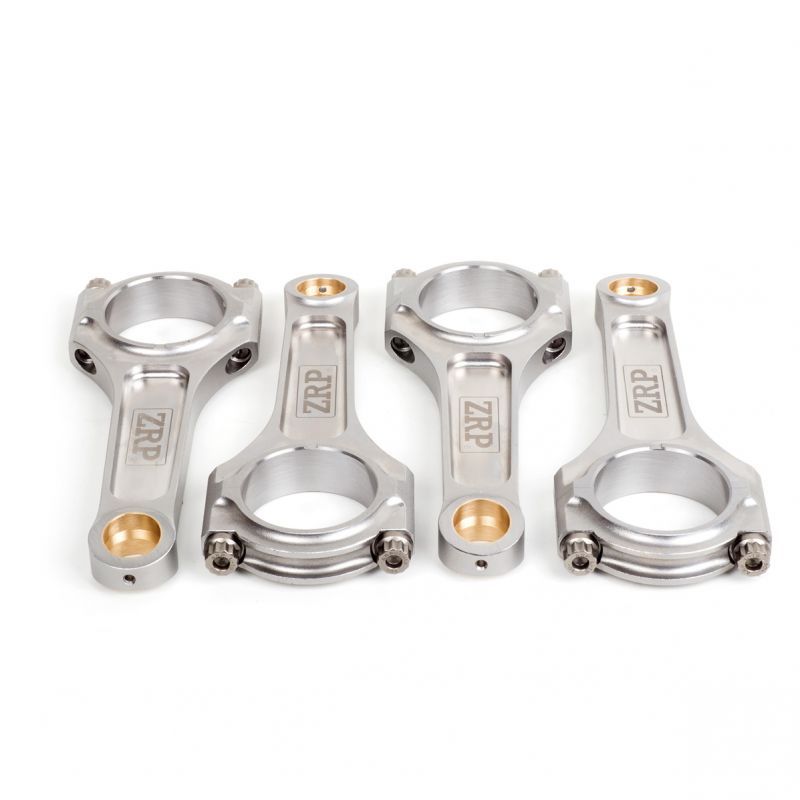

HONDA part number R-HON-003I kit of 4 forged I-beam ZRP connecting rods with ARP bolts

HONDA reference R-HON-003I kit of 4 forged I-beam ZRP connecting rods with ARP bolts with aluminum-bronze silicone bushing connecting rod foot

The ZRP brand is a subsidiary of DRAKOS ENGINEERING, renowned for its experience in the design of high-performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed R-HON-003I forged connecting rods for your HONDA B18C1, B18C2, B18C5, and B18C7 engines. These rods are made of high-strength 4340 steel and feature reinforced ARP connecting rod bolts to withstand the increased inertia associated with higher engine speeds. Available in three ranges: - ARP 2000: resistant up to 220,000 psi (15,000 bar) - ARP L19: resistant up to 260,000 psi (15,000 bar) 18000 bars)

- ARP 625+: resistant up to 280000 psi (or 19000 bars)

The ZRP R-HON-003I forged connecting rod head for HONDA B18C1, B18C2, B18C5, B18C7 engines is equipped with a machined aluminum-bronze silicon bushing before being ground to ensure oil film retention with your piston pin.

The design of this ZRP R-HON-003I forged I-beam connecting rod for HONDA B18C1, B18C2, B18C5, B18C7 engines gives it a Exceptional resistance to significant increases in power and torque due to high boost pressures, as well as extreme uses such as those encountered by our customers whom we equip for their forged Drift and Run Dragster engine preparation.

Specifications:

• Connecting rod profile: flat
• Center distance: 138.00mm
• Diameter of the rod: 48.00mm
• Width of the rod: 21.79mm
• Piston pin diameter: 21.00mm
• Connecting rod bolts supplied: ARP2000, ARP L1 or ARP 625+ (choose)
• Thread of the supplied bolts: 516g
• Maximum permissible power: 800hp



Glossary:

1) Connecting rod foot
2) Foot diameter
3) Connecting rod body
4) Connecting rod bolt
5) Connecting rod big end
6) Nut
7) Connecting rod cap
8) Big end diameter
9) Center distance

When you convert your HONDA engine B18C1, B18C2, B18C5, B18C7 to a Forged, it is recommended to install forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.
