Universal oil cooler kit
Manufacturers
Universal oil cooler kit
Warning: Last items in stock!
KR-M115L10AN10
New product

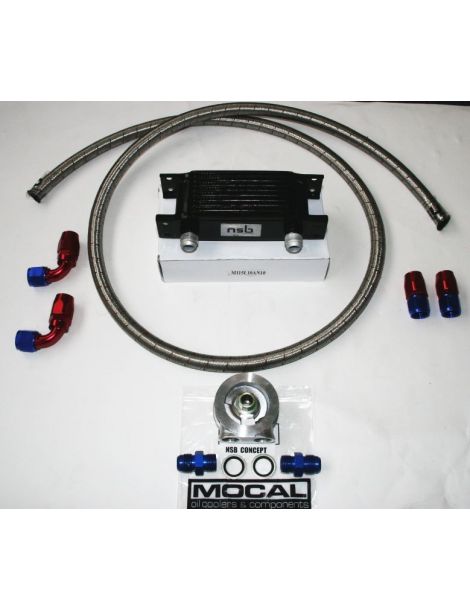

BREEZY 115mm 10-row matrix oil cooler kit, DASH10 male connections with MOCAL standard sandwich plate
PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:
ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.
To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: http://catalog.mann-filter.com/EU/fre/vehicle
Then click on your thread and add the nipple to your cart:
- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple
This kit fits all vehicles with a screw-on oil filter.
Thickness: 51mm | Matrix dimensions 115mm (in mm) | ||||
Number of rows | Height without connections | Input/output connections | Connection spacing | Fixing center distance | Total length |
7 | 51 | M12 x 150 thread | 128 | 188 | 210 |
10 | 77 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
13 | 99 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
16 | 123 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
19 | 147 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
25 | 193 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
34 | 262 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |
44 | 347 | UNF-JIC 7/8??-14 (DASH10) | 128 | 188 | 210 |

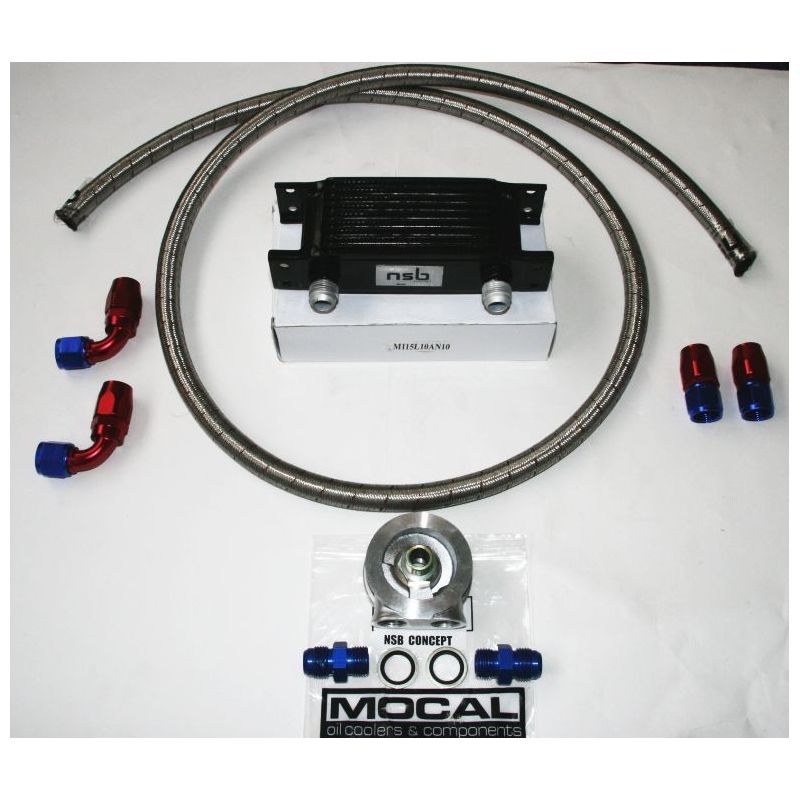

Please note: the hose shown with crimped fittings is for illustration only. The kit is supplied with 2 x 1 m DASH 10 stainless braided hoses, 2 straight DASH 10 blue/red fittings and 2 x 90° DASH 10 blue/red fittings, to be assembled yourself.
Fitting the ends onto DASH hose: cut the hose cleanly (wrap tape around it to limit fraying); slide the nut then the hose into the fitting body up to the stop and mark it; lubricate the nipple with engine oil; screw by hand then tighten with a wrench without letting the hose back out; pressure-test the line before fitting it to the vehicle.
Stainless-steel braided reinforced hose, DASH (AN) standard, sold per metre. Nitrile core suitable for fuel, oil and coolant. Assembles with reusable DASH (AN) fittings, no crimping or special tooling required.
Reusable straight hose end fitting for DASH (AN) braided hose. Blue and red anodised aluminium, swivel nut and metal-to-metal cone seal. Assembles without crimping and can be reused after disassembly.
Reusable 90° hose end fitting for DASH (AN) braided hose. Blue and red anodised aluminium, swivel nut and metal-to-metal cone seal. Assembles without crimping and can be reused after disassembly.
MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
MOCAL standard sandwich plate fitted between the engine block and the oil filter. Two 1/2 BSP outlets to connect an oil cooler. Non-thermostatic version.
