Dump valve TIAL Q with flange weld

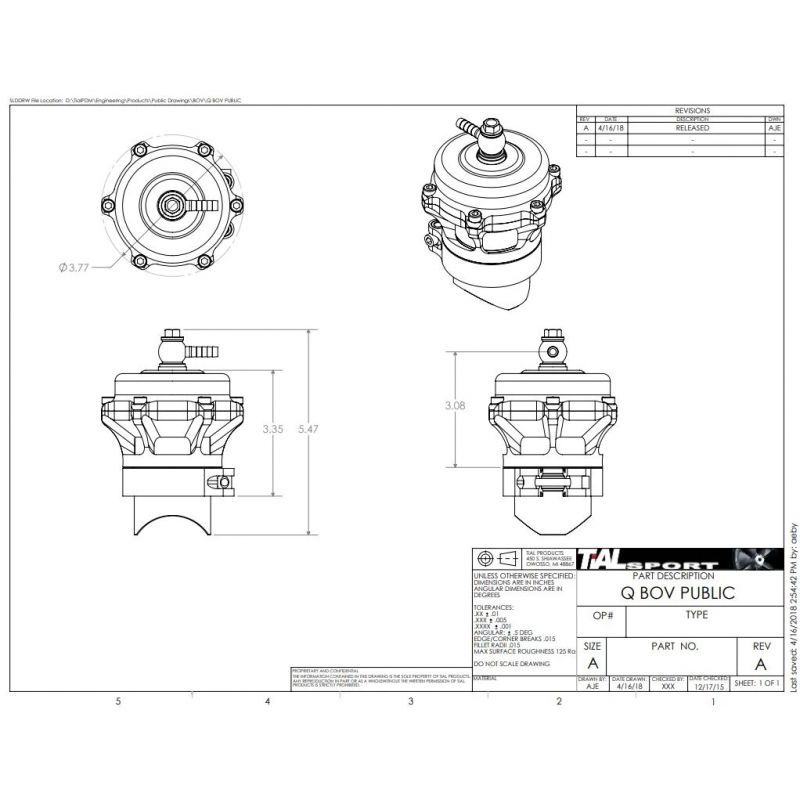

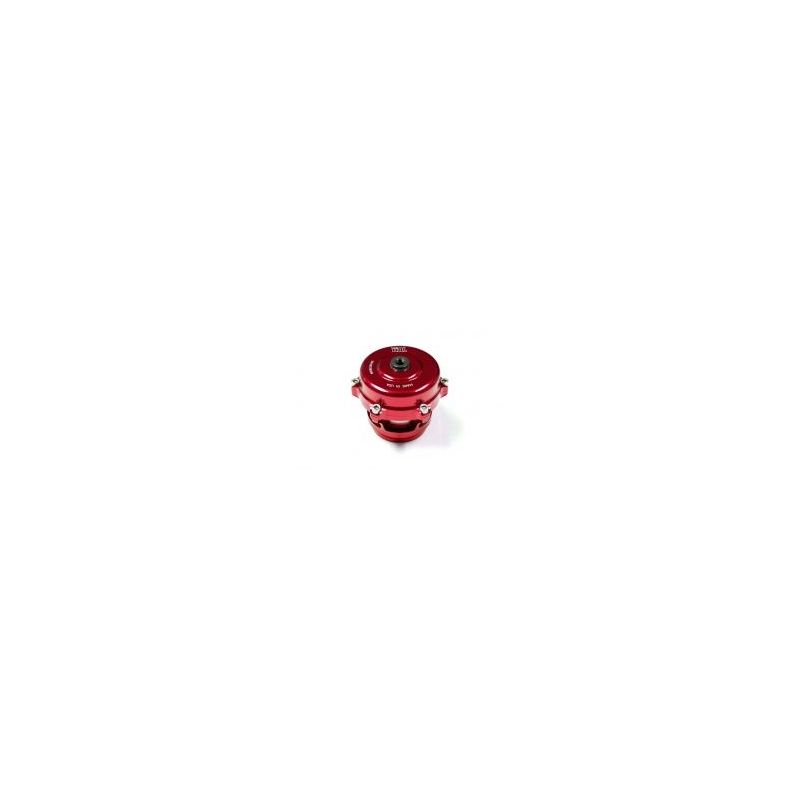

TIAL Q dump valve machined from 6061 aluminum, 50.5mm diameter piston.

Mount with clamp and V-band flange.
Piston fitted with a Viton seal to prevent seizing, and the other guides have self-lubricating Teflon bearings.
New design has increased air evacuation by 60%, making this dump valve the most efficient on the market.

We have chosen the 11PSI (0.76 bar) vacuum spring for your dump valve: This is the value indicated on your gauge when the throttle is released (vacuum in the pipe). (intake). This is the vacuum value; it has no connection to your turbo pressure. This vacuum value controls the opening of your dump valve.

A

This kit contains:

• 1 Q-type Dump Valve (50mm)

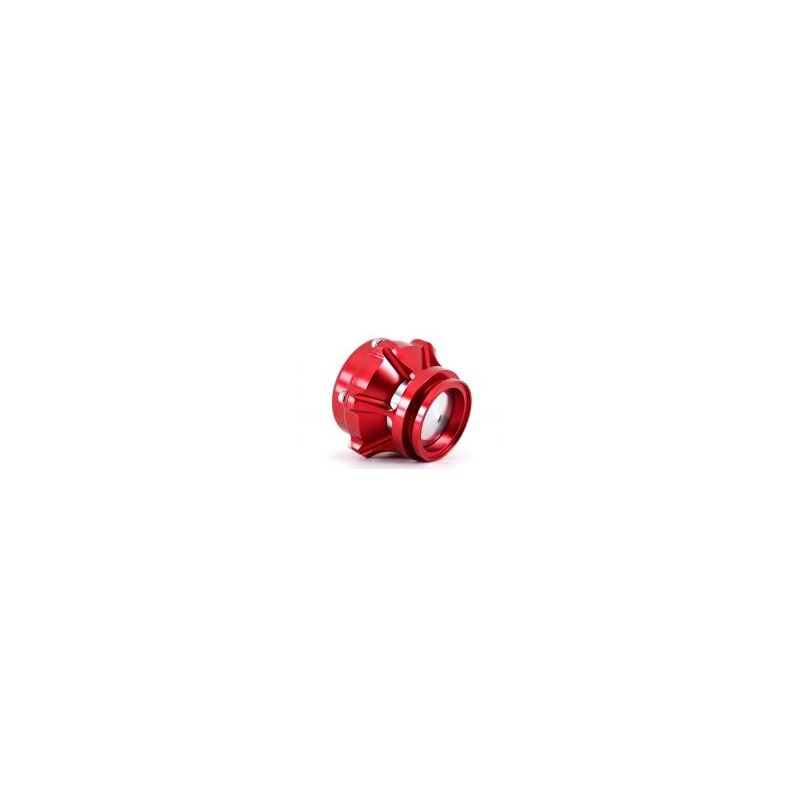

• 1 flange (material of your choice) with gasket
• 1 clamp
• 1 banjo kit
