Universal oil cooler kit
Manufacturers
Universal oil cooler kit
Warning: Last items in stock!
KR-M235L34AN10
New product

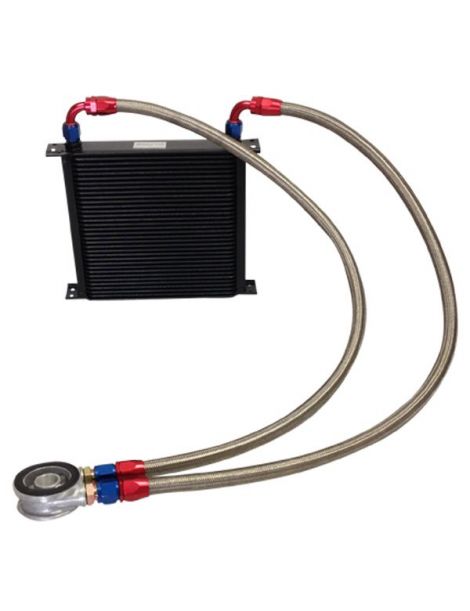

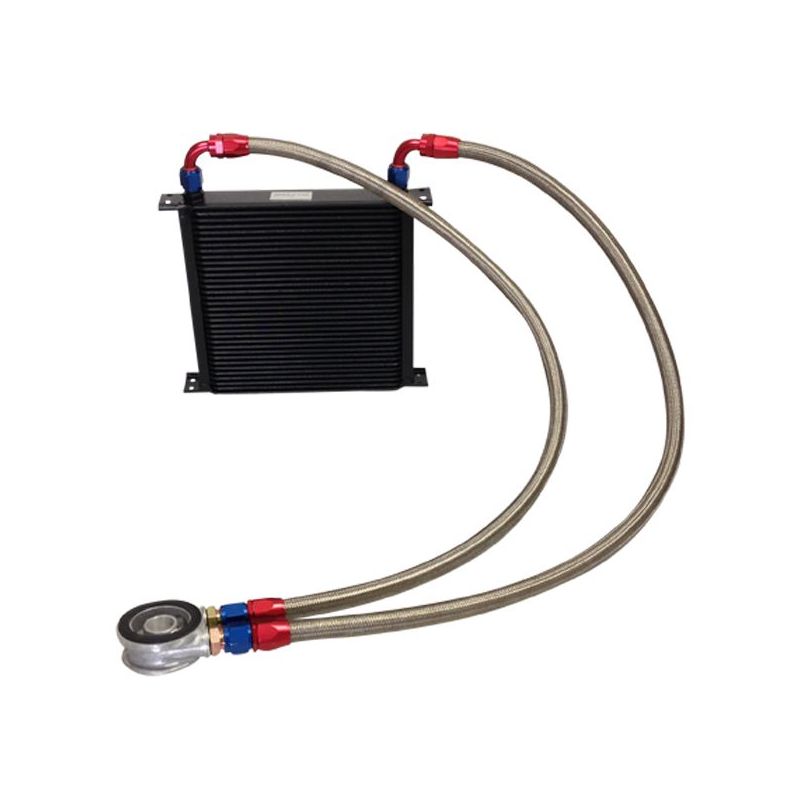

BREEZY 235mm 34-row matrix oil cooler kit, DASH10 male connections with MOCAL standard sandwich plate
PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:
ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.
To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: http://catalog.mann-filter.com/EU/fre/vehicle
Then click on your thread and add the nipple to your cart:
- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple
This kit fits all vehicles with a screw-on oil filter.
Thickness: 51mm | Matrix dimensions 235mm (in mm) | |||||
Number of rows | Height excluding connections | Input/output connections | Connection spacing | Fixing spacing | Total length | |
7 | 51 | M12 x 150 thread | ||||
10 | 77 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
13 | 99 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
16 | 123 width="56">19 | 147 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 |
25 | 193 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
34 | 262 | UNF-JIC 7/8-14 (DASH10) | 248 | 308 | 330 | |
44 | 347 | UNF-JIC 7/8??-14 (DASH10) | 248 | 308 | 330 | |
BREEZY oil cooler, 235 mm matrix, 34 rows, UNF-JIC 7/8"-14 (DASH10) fittings, black finish. Ref. M235L34AN10.
MOCAL aluminium straight adapter, 1/2 BSP male inlet to DASH (AN) 10 outlet. Connects a DASH 10 hose to a sandwich plate or oil cooler with 1/2 BSP thread.
Dowty-type sealing washer for 1/2 BSP threaded connections. Seals between the adapter and the sandwich plate or oil cooler.
MOCAL standard sandwich plate fitted between the engine block and the oil filter. Two 1/2 BSP outlets to connect an oil cooler. Non-thermostatic version.
