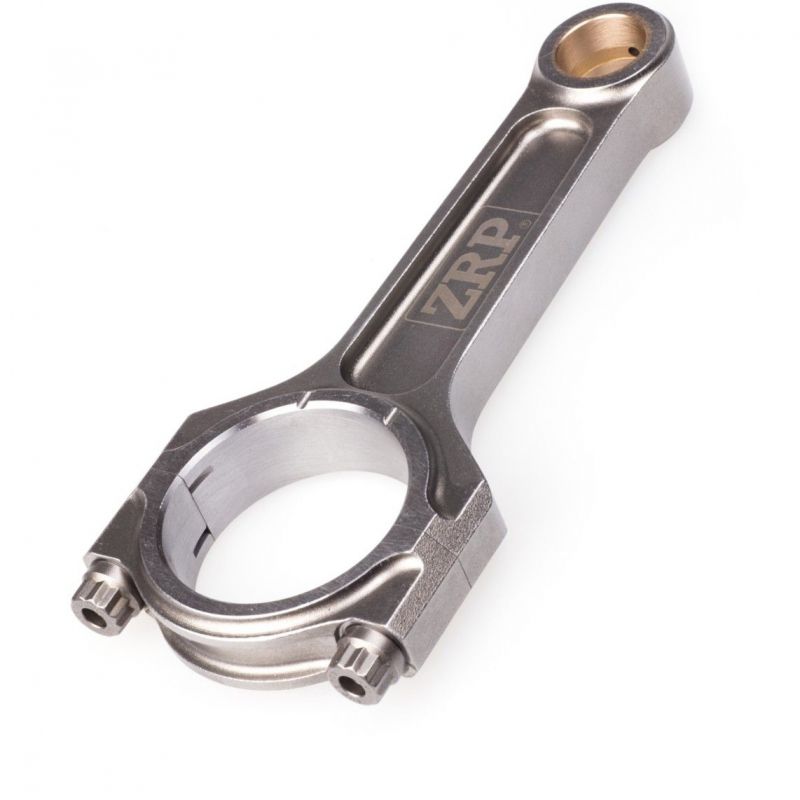

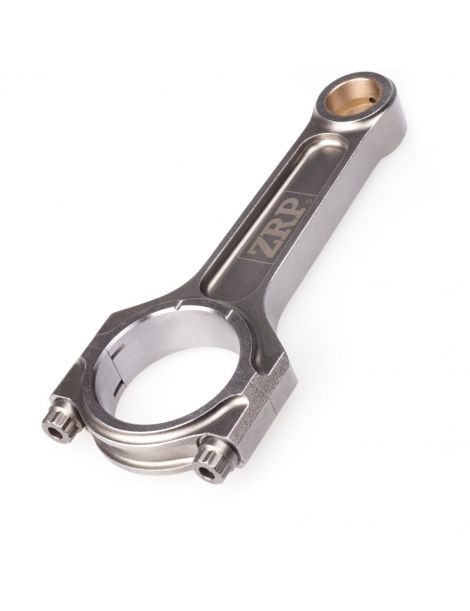

FORD Focus II 2.5 ST 225CV forged connecting rods

Forged connecting rod kits

ZRP

for N20B20 engine are composed of

5 connecting rods

and delivered with

ARP connecting rod bolts

.

Find the assembly instructions in the tab "

Download

"

above

.

Find below (click on the image) the tri-metal connecting rod bearings for engines

FORD

Focus II 2.5 ST 225CV 2005-2012

:

Technical characteristics

Connecting rod type: I

Center distance: 145.00mm

Diameter of

head

: 52.99mm

Width of

head

: 25.65mm

Piston pin diameter: 21.00mm

Connecting rod bolts: ARP2000 or L19

Screw thread: 3/8"

Weight: 553gr

Steel type: 4340

Maximum admissible power: 900hp (ARP2000), 1200hp (ARP L19)

Reference: R-FOR-010-I, R-FOR-010-I-L19

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its experience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed forged high strength 4340 steel connecting rods to accommodate high boosts on your engine and ARP2000 connecting rod bolts for large increases in engine speed.

The head of the ZRP forged connecting rods is equipped with a ring machined from hot extruded cupro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your piston pin. The design of this ZRP forged I-shaped connecting rod gives it exceptional resistance to significant increases in power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.
