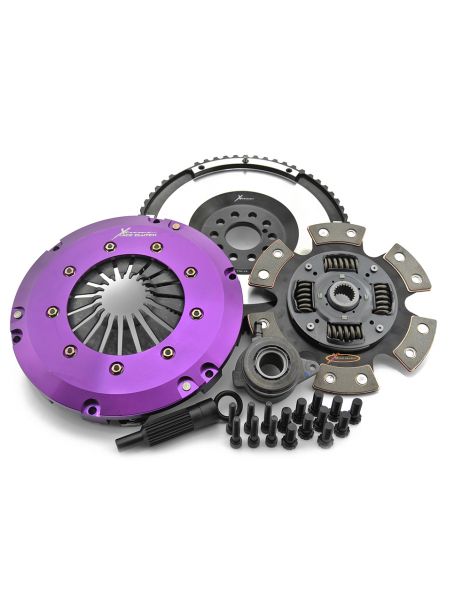

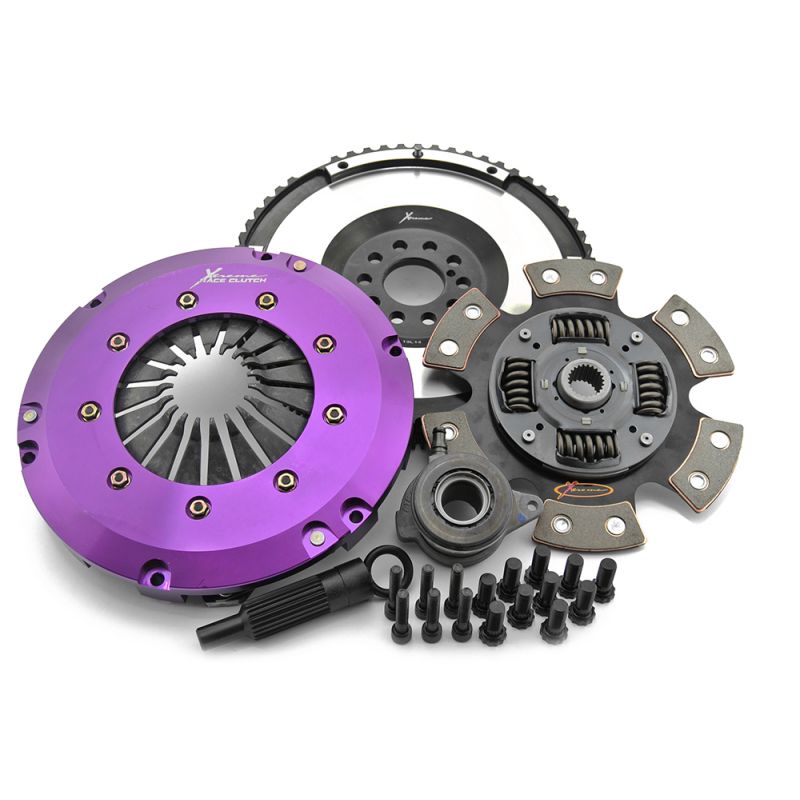

Clutch 910Nm XTREME CLUTCH FORD Focus II RS 2.5 2010-2012

Complete clutch kit 910Nm XTREME CLUTCH FORD Focus II RS 2.5 2010-2012

Clutch disc diameter (mm)

240

Number of clutch disc splines

23

Clutch disc spline diameter (mm)

26

Torque (Nm)

910

Steering wheel step

-9.53mm

Design

Single plate

Scene

Step 2R

Technical Bulletins

Clamping load

Recommended for

Racing Vehicles - Stage 2R

Number of ring gear teeth

Additional information

Conversion from dual-mass flywheel to single-mass flywheel

Weight (kg]:

14.1

Xtreme Performance - Heavy Duty Ceramic Spring/-1R

Recommended for: Motorsport applications

-1R kits feature a spring-loaded ceramic friction disc, but with an even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit racing, rallying, drift racing and drag racing.

Features:

Torque capacity 910Nm

Clamping load increased compared to standard

Spring loaded ceramic friction disc

Extra strong pressure plate

kit contains everything you need for a successful installation + accessories

The range of ceramic spring kits have been developed for motorsport applications where higher thermal and torque capacity is required. These discs use a sprung hub that helps reduce shock loads and are commonly used in track cars that retain the factory transmission.

Extreme performance

At Xtreme Clutch, we strive to offer a variety of clutch options for every vehicle to ensure that a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the box

Xtreme Performance Upgrade Kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the transmission is out of the vehicle.
