2.5L 20v - DAZA DNWA
Manufacturers
2.5L 20v - DAZA DNWA
Warning: Last items in stock!
New product
Forged pistons 2.5 TFSI EA855 EVODAZA DNWA DNWB DNWC DXHA: Rings included, Bores OEM/oversize, Pin OEM 23 mm, CH 29.60 mm. COMPatibilities Audi RS3/TT RS/RS Q3 and Cupra Formentor VZ5.
Characteristics of the forged pistons offered by NSB Concept for Audi 2.5 L 20 V EA855 EVO (RS3 / TT RS / RS Q3 / Formentor VZ5):
| Reference | Bore OEM 82.50mm | OEM CR OEM | Pin OEM 23mm | Original Pin Height 29.60mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

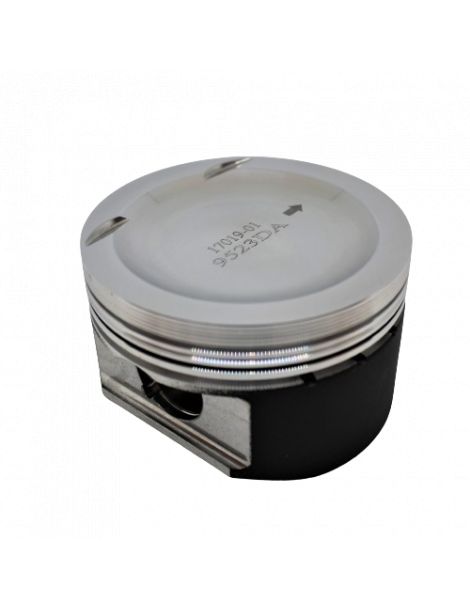

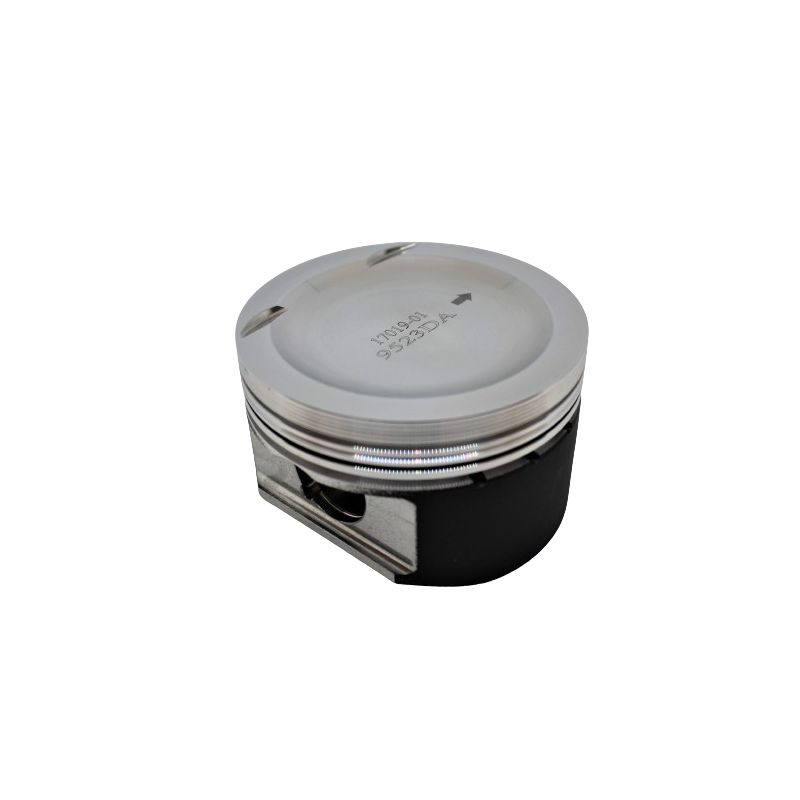

| K9523DA | 82.5 | 9:1 | 23 | 29.5 | Wossner | NC | NC | NC | -11.0 | NC | 825XPY |

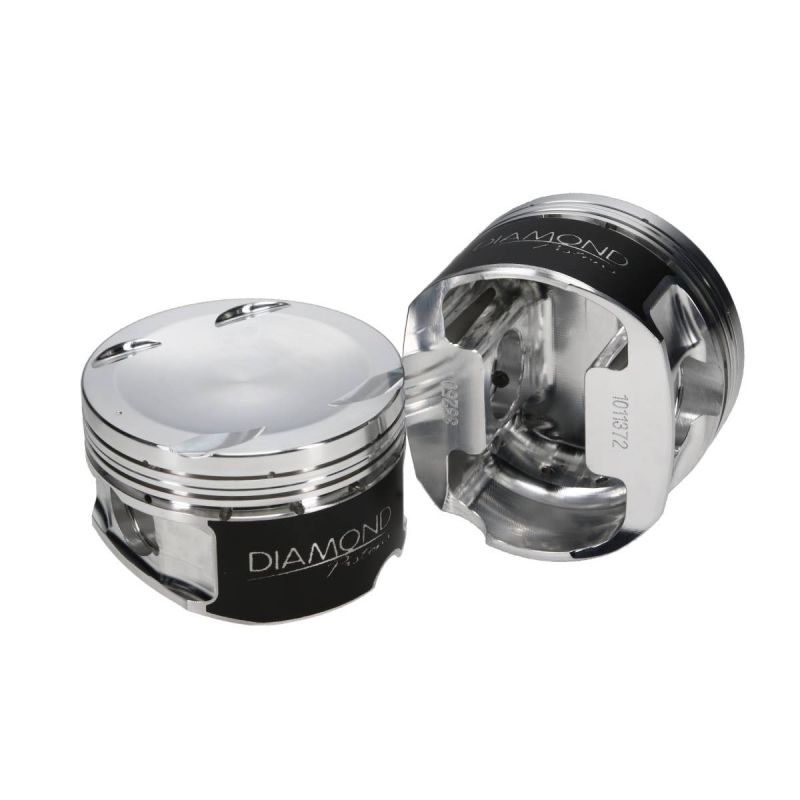

| DIA-38250-5 | 82.5 | 9.5:1 | 23 | 29.59 | Diamond | Skirt | 2618.0 | NC | -6.5 | NC | NC |
| DIA-38250-5-H | 82.5 | 9.5:1 | 23 | 29.59 | Diamond HD | Skirt | 2618.0 | NC | -6.5 | NC | NC |
| JE-380156 | 82.5 | 9.5:1 | 23 | 29.4 | JE Ultra Series | NC | NC | NC | -7.5 | NC | NC |
| JE-380152 | 82.5 | 10:1 | 23 | 29.4 | JE | NC | NC | NC | -4.2 | NC | NC |
| JE-380157 | 82.75 | 9.5:1 | 23 | 29.4 | JE Ultra Series | NC | NC | NC | -7.8 | NC | NC |
| JE-380153 | 82.75 | 10:1 | 23 | 29.4 | JE | NC | NC | NC | -4.6 | NC | NC |
| K9523D050 | 83.0 | 9.1:1 | 23 | 29.5 | Wossner | NC | NC | NC | -11.0 | NC | 830XPY |
| JE-380158 | 83.0 | 9.5:1 | 23 | 29.4 | JE Ultra Series | NC | NC | NC | -8.1 | NC | NC |
| DIA-38251-5 | 83.0 | 9.6:1 | 23 | 29.59 | Diamond | Skirt | 2618.0 | NC | -6.5 | NC | NC |
| DIA-38251-5-H | 83.0 | 9.6:1 | 23 | 29.59 | Diamond HD | Skirt | 2618.0 | NC | -6.5 | NC | NC |
| JE-380154 | 83.0 | 10:1 | 23 | 29.4 | JE | NC | NC | NC | -4.9 | NC | NC |
COMPatibilities (engine codes):
Original vehicles equipped with the 2.5 TFSI EA855 EVO:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Audi | RS Q3 F3 | DNWA/DNWC | 400 hp | 2019 here |
| Audi | RS3 8V (FL) Sportback/Sedan | DAZA | 400 hp | 2017 2018 |
| Audi | RS3 8V (FL) Sportback/Sedan | DNWA | 400 hp | 2019 2020 |
| Audi | RS3 8Y Sportback/Sedan | DNWB/DNWC/DXHA | 400 hp | 2021 here |
| Audi | TT RS 8S | DAZA | 400 hp | 2016 2018 |
| Audi | TT RS 8S | DNWA | 400 hp | 2019 2023 |
| Cupra | Formentor VZ5 | DNWB/DNWC | 390 hp | 2021 here |
Pistons manufacturer references (OEM):
Attention:before any assembly, please check the integrity and conformity of each component of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
Forged pistons 2.5 TFSI EA855 EVO: Rings included, Original Bores/oversize, Original Pin 23 mm, CH 29.60 mm. COMPatibilities Audi RS3/TT RS/RS Q3 and Cupra Formentor VZ5.
