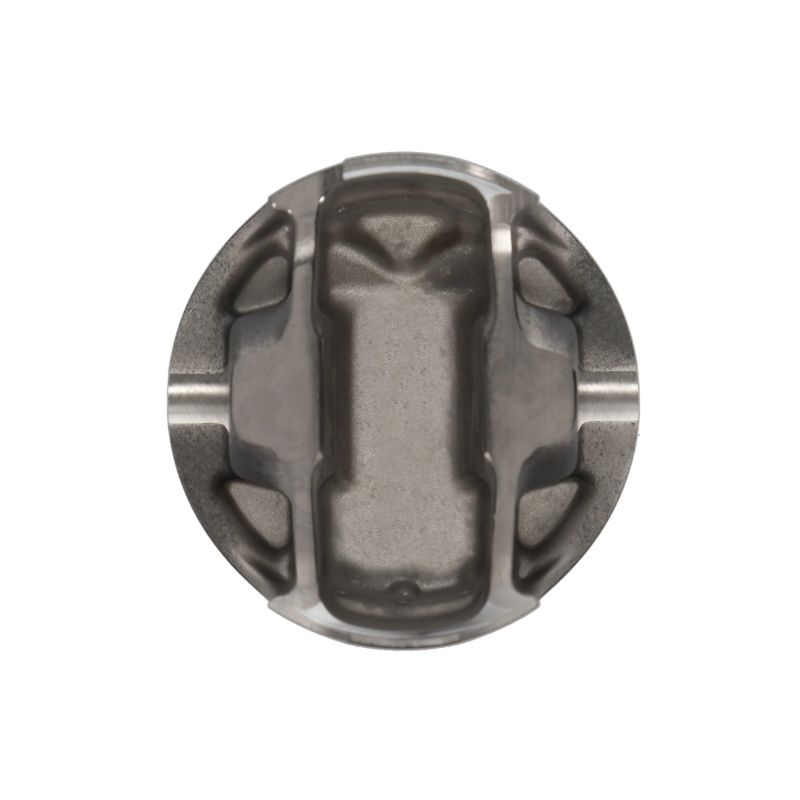

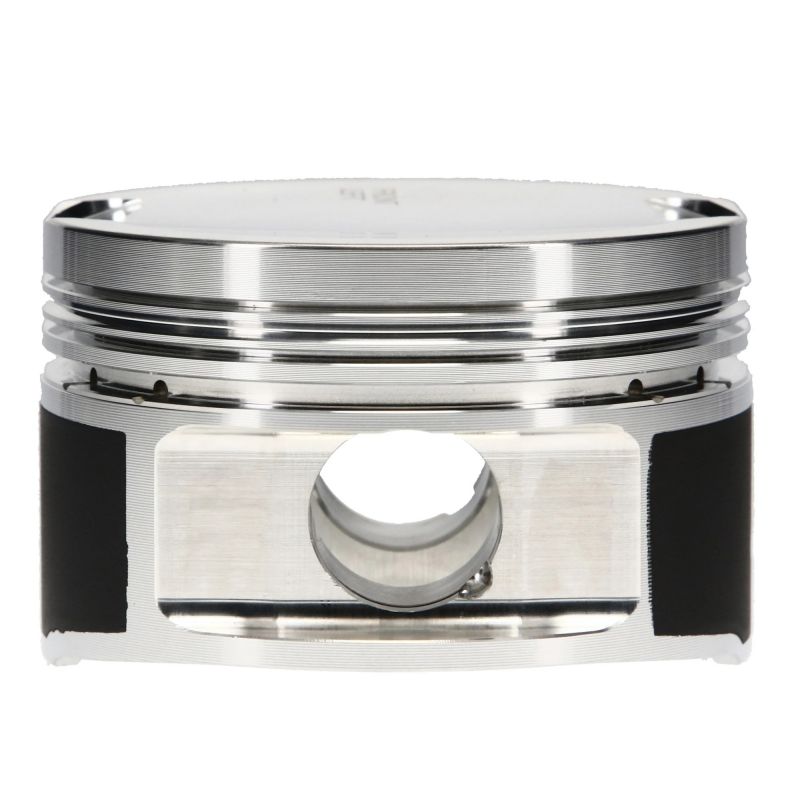

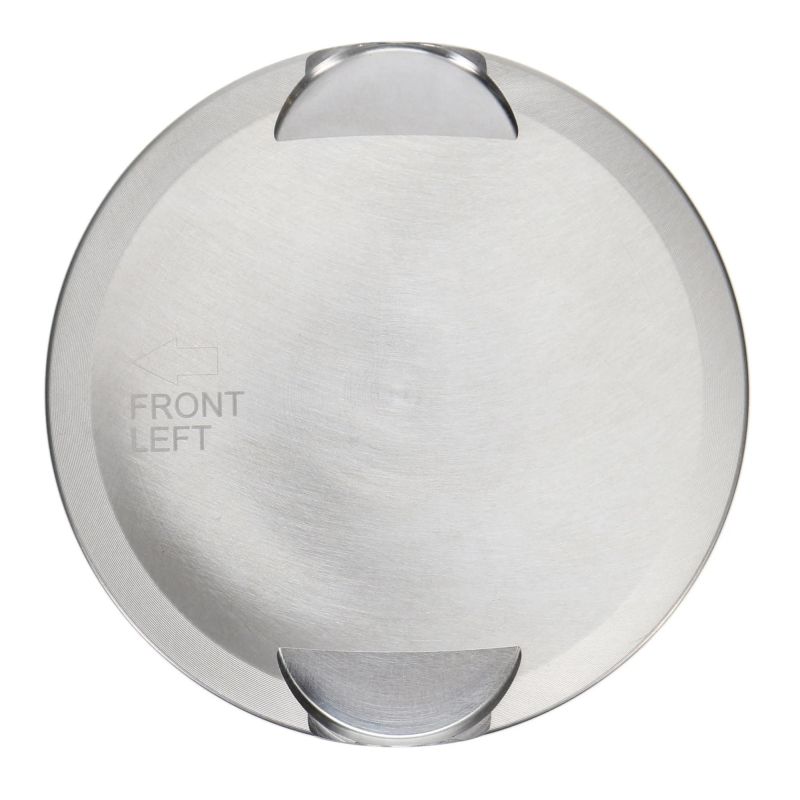

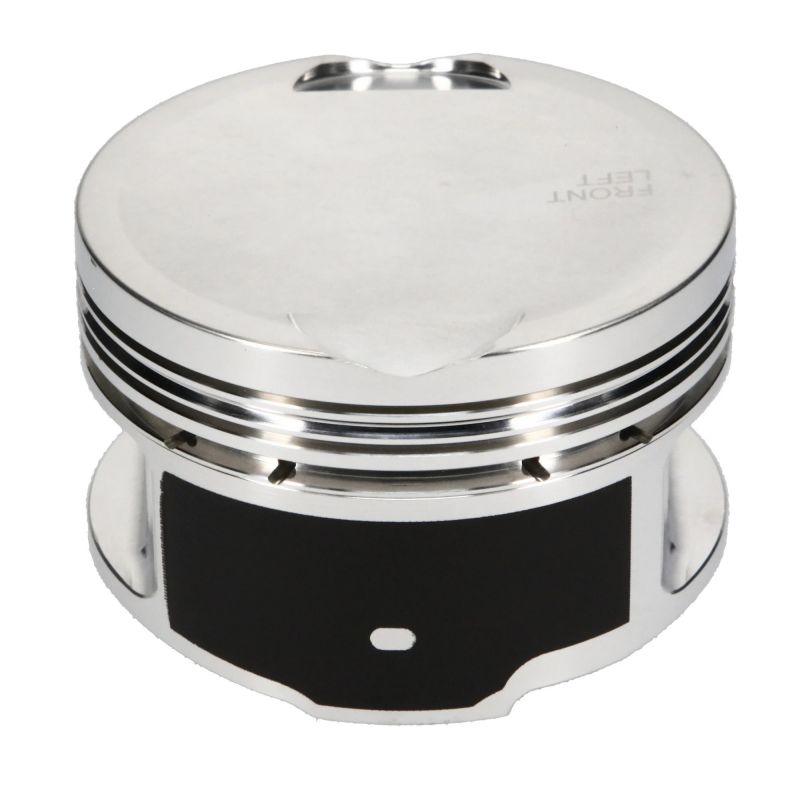

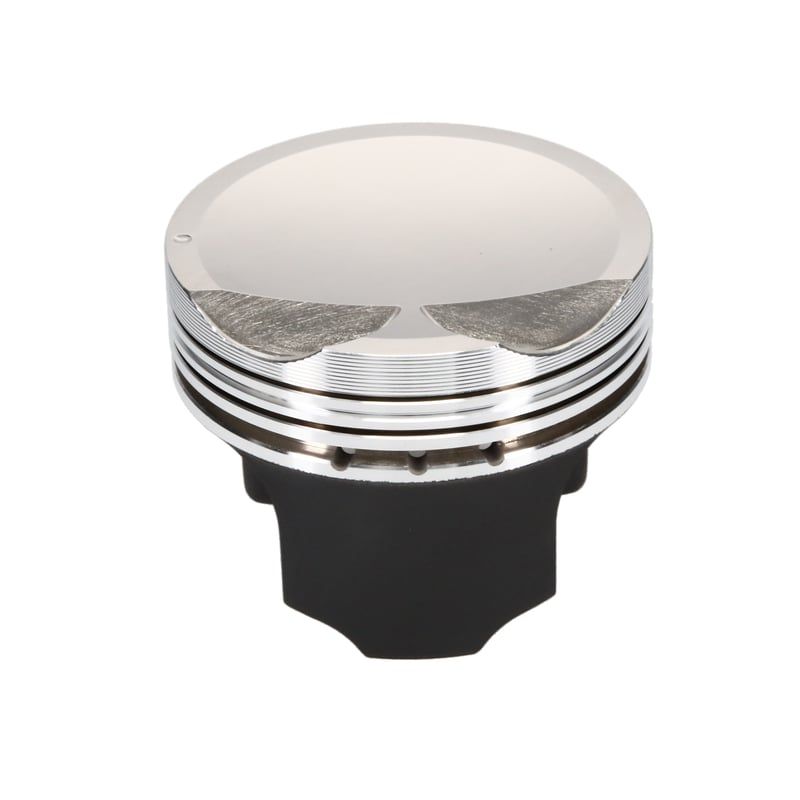

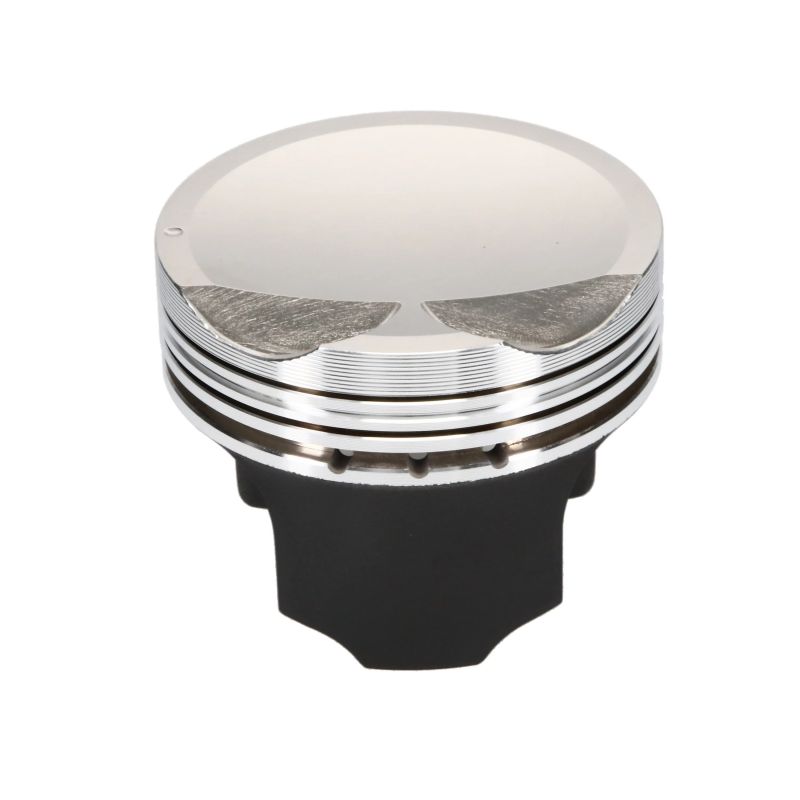

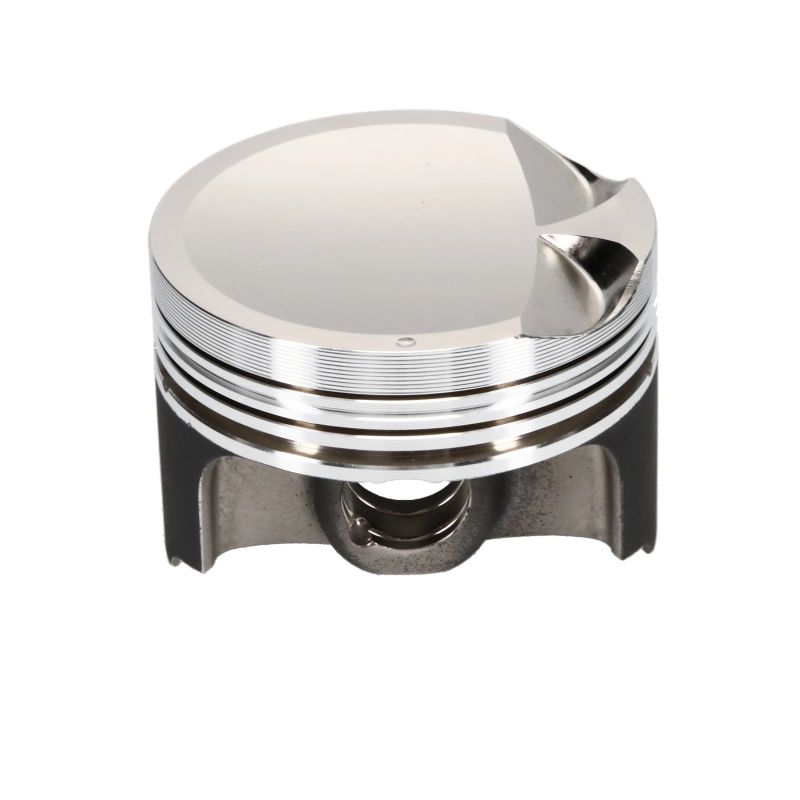

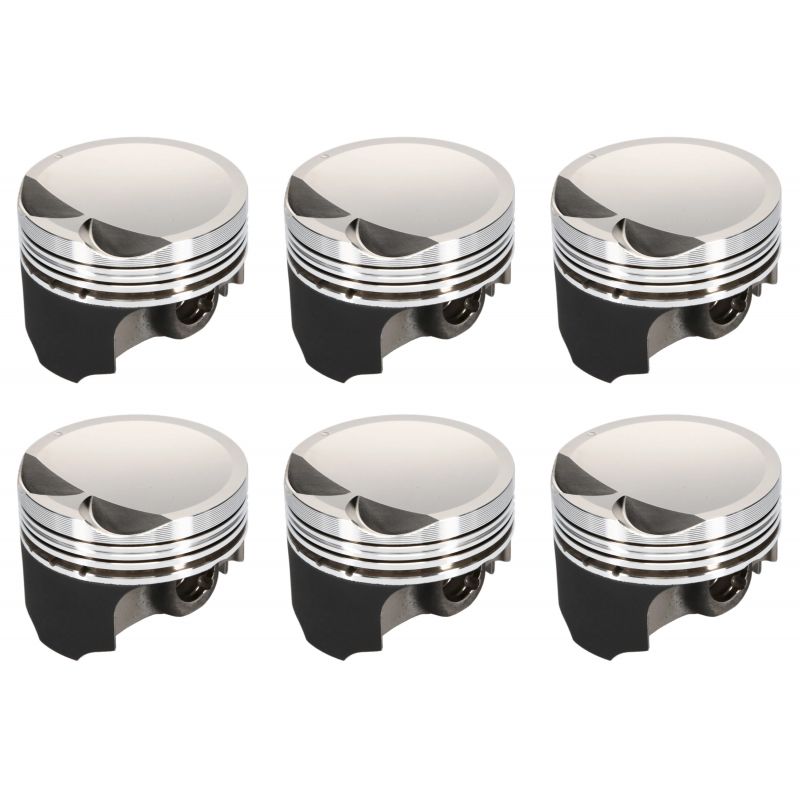

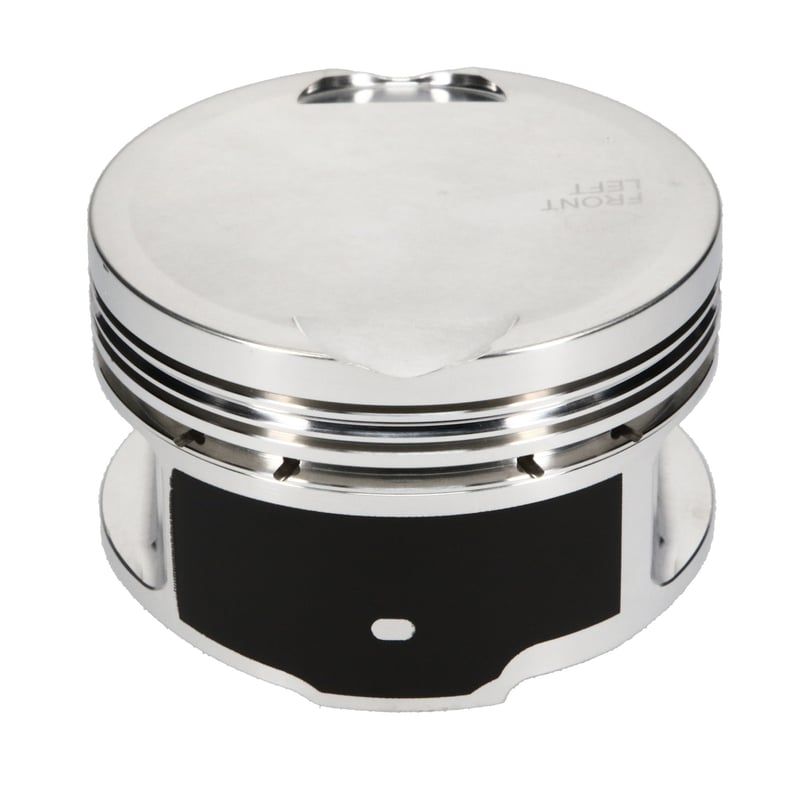

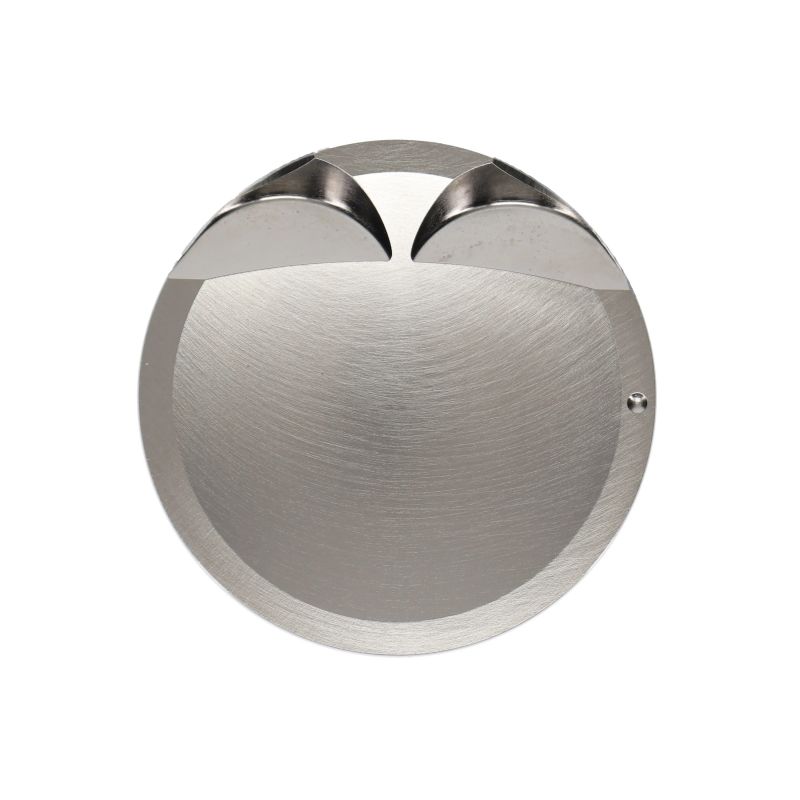

High-quality Forged pistons 2.7T 30V AGB ASJ AZB AZR Audi S4 RS4 B5 (Forged pistons 2.7T 30V AGB ASJ AZB AZR) for reliable fitment and performance.
Specifications of the forged pistons offered by NSB Concept for Audi 2.7 L 30 V biturbo (S4 B5 / RS4 B5) :
| Reference | OEM Bore 81,00 mm | OEM CR 9,0–9,3 :1 | OEM Pin 21 mm | Height OEM Pin 30,70 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9215DA | 81.0 | 8:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 810XPY |
| K9215DA | 81.0 | 8:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 810XPY |
| WKE212M81 | 81.0 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | 2618.0 | NC | -8.0 | NC | 8100XX |
| WKE212M81 | 81.0 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | 2618.0 | NC | -8.0 | NC | 8100XX |
| K9091DA | 81.0 | 8.5:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 810XPY |
| K9091DA | 81.0 | 8.5:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 810XPY |
| JE-314323 | 81.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -3.3 | 302.0 | NC |
| JE-314323 | 81.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -3.3 | 302.0 | NC |
| WKE212M8125 | 81.25 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | NC | NC | -8.0 | NC | 8125XX |
| WKE212M8125 | 81.25 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | NC | NC | -8.0 | NC | 8125XX |
| K9215D050 | 81.5 | 8.1:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 815XPY |
| K9215D050 | 81.5 | 8.1:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 815XPY |
| WKE212M815 | 81.5 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | 2618.0 | NC | -8.0 | NC | 8150XX |
| WKE212M815 | 81.5 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | 2618.0 | NC | -8.0 | NC | 8150XX |
| K9091D050 | 81.5 | 8.6:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 815XPY |
| K9091D050 | 81.5 | 8.6:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 815XPY |

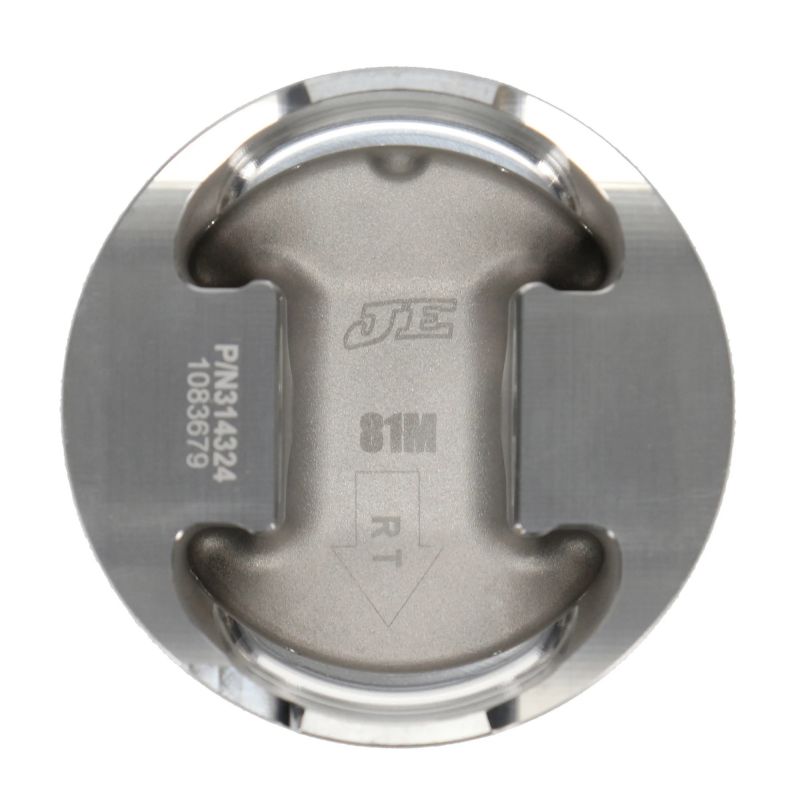

| JE-314324 | 81.5 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -3.9 | 298.0 | NC |
| JE-314324 | 81.5 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -3.9 | 298.0 | NC |
| K9215D100 | 82.0 | 8.2:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 820XPY |
| K9215D100 | 82.0 | 8.2:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 820XPY |
| WKE212M82 | 82.0 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | NC | NC | -8.0 | NC | 8200XX |
| WKE212M82 | 82.0 | 8.5:1 | 21 | 30.86 | Wiseco | Skirt | NC | NC | -8.0 | NC | 8200XX |
| K9091D100 | 82.0 | 8.7:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 820XPY |
| K9091D100 | 82.0 | 8.7:1 | 21 | 30.7 | Wossner | NC | NC | NC | -9.59 | NC | 820XPY |
| JE-314325 | 82.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -4.5 | 304.0 | NC |
| JE-314325 | 82.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -4.5 | 304.0 | NC |
| K9215D150 | 82.5 | 8.1:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 825XPY |
| K9215D150 | 82.5 | 8.1:1 | 21 | 30.7 | Wossner | NC | NC | Round | -15.0 | NC | 825XPY |
| JE-314326 | 82.5 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -5.7 | 302.0 | NC |
| JE-314326 | 82.5 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -5.7 | 302.0 | NC |
| JE-314327 | 83.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -6.4 | 315.0 | NC |
| JE-314327 | 83.0 | 9:1 | 21 | 30.7 | JE Round | NC | 2618.0 | Round | -6.4 | 315.0 | NC |
Compatibility (engine codes):
Original vehicles equipped with the 2.7 biturbo (B5) :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | RS4 Avant (B5) | ASJ/AZR | 380 hp | 2000 – 2001 |
| Audi | S4 (B5) Berline/Avant | AGB/AZB/APB | 265 hp | 1997 – 2001 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
