2.0L 16v - 4G63 6-bolt
Manufacturers
2.0L 16v - 4G63 6-bolt
Warning: Last items in stock!
New product

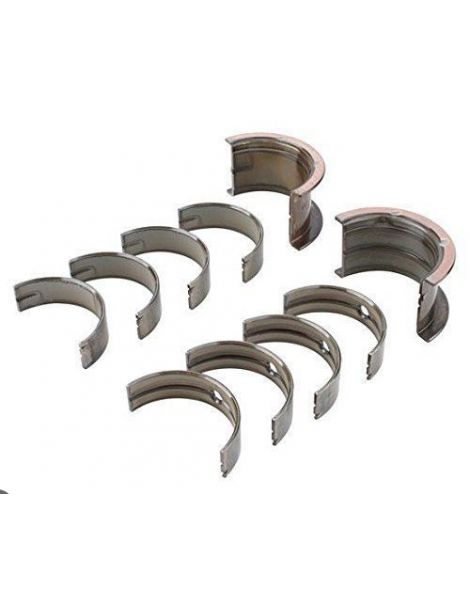

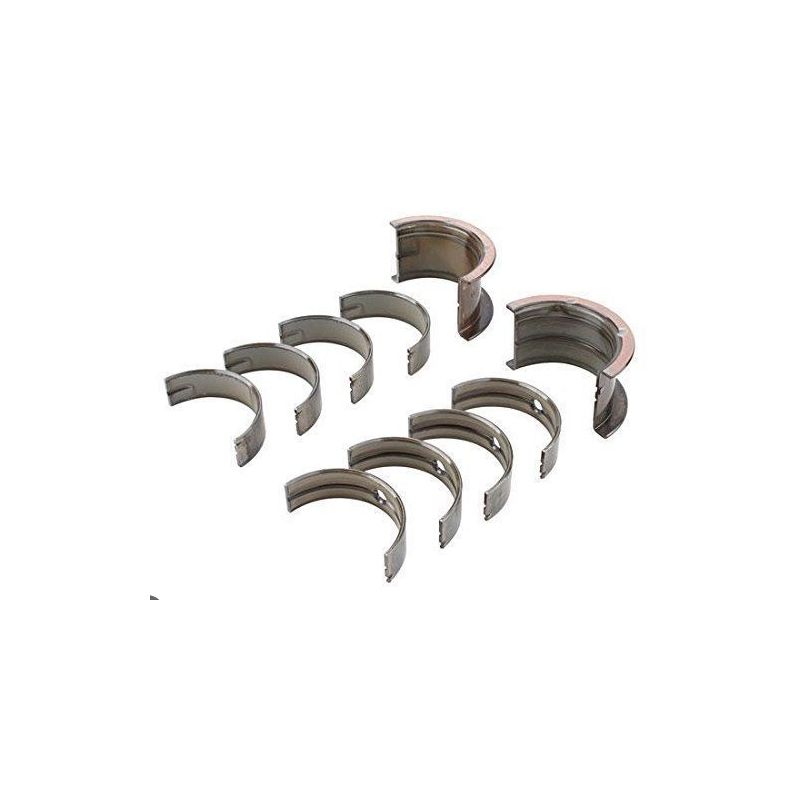

Set of 10 tri-metal crankshaft main bearing half shells for the five main bearings of the Mitsubishi 4G / Hyundai G4C engines (Ø 56.98 mm).
ACL lists main bearing set 5M1144H for the Mitsubishi 4G32, 4G33, 4G36, 4G37, 4G61, 4G61-T, 4G62, 4G63, 4G63-T, 4G64, G31B, G32B, G37B, G62B, G63B, G64B four-cylinder petrol engines and for the Hyundai G4CN, G4CR, G4CS. They share the same crankshaft journal diameter: a single main bearing set covers the whole family.
The crankshaft of these engines runs on five main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series tri-metal set shown here replaces them on built engines.
A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set covers the five main bearings of the crankshaft. The upper and lower half shells are different: each goes in its own position.
An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankshaft journal Ø 56.98 / 57.00 mm Housing bore Ø 61.00 / 61.02 mm Width 23 mm (28.95 mm at main bearing 3) |
Manufacturer's note: Half groove bearing set. Standard width flanges for all undersizes.
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 5M1144H-STD | ACL Race - Untreated | Standard | 1.99 |
| 5M1144HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 1.977 |
| 5M1144H-.025 | ACL Race - Untreated | +0.025 | 2.0025 |
| 5M1144H-.25 | ACL Race - Untreated | +0.25 | 2.115 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series |
|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.059 to 0.070 mm |
| Increased clearance (HX) | Wider clearance: high oil flow, high rpm | 0.084 to 0.095 mm |
| +0.025 mm | Polished journal | 0.059 to 0.070 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.059 to 0.070 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the main cap to spec, then compare the crushed strip against the gauge to read the clearance.
The ACL main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. |
This main bearing set fits the following vehicles, by engine code:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| Fiat | Fullback Pick-up (502_, 503_) | 4G64 | 132 hp | 2016– |
| Hyundai | Grandeur | G4CS | 123 hp | 1987–1992 |
| Hyundai | Grandeur | 4G64 | 130 hp | 1987–1990 |
| Hyundai | Grandeur (LX) | G4CS | 123 hp | 1992–1999 |
| Hyundai | Grandeur (TG) | G4CS | 144 hp | 2006–2011 |
| Hyundai | Lantra I (J-1) | G4CR | 106 hp | 1990–1995 |
| Hyundai | Lantra I (J-1) | G4CR | 114 hp | 1990–1995 |
| Hyundai | Lantra I (J-1) | G4CN | 127 hp | 1990–1995 |
| Hyundai | Lantra II (J-2) | G4CN | 132 hp | 1997–1998 |
| Hyundai | Marcia | G62B | 95 hp | 1993–1996 |
| Hyundai | Pony | 4G33 | 68 hp | 1977–1985 |
| Hyundai | Pony Wagon | 4G33 | 68 hp | 1978–1986 |
| Hyundai | Sonata II (Y-2) | G4CS | 113 hp | 1988–1991 |
| Hyundai | Sonata II (Y-2) | G4CS | 118 hp | 1988–1991 |
| Hyundai | Sonata III (Y-3) | G4CN | 135 hp | 1994–1998 |
| Hyundai | Sonata IV (EF) | G4CN | 133 hp | 1998–2001 |
| Hyundai | Stellar (F31_, SF2_) | G32B | 76 hp | 1983–1991 |
| Hyundai | Stellar (F31_, SF2_) | 4G33 | 68 hp | 1983–1986 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 83 hp | 1986–1989 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 90 hp | 1984–1986 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 101 hp | 1986–1989 |
| Hyundai | Stellar (F31_, SF2_) | 4G63 | 92 hp | 1986–1987 |
| Mitsubishi | Carisma Saloon (DA_) | 4G63-T/C (DOHC 16V) | 280 hp | 1999–2006 |
| Mitsubishi | Colt II (C1_A) | 4G33 | 73 hp | 1982–1986 |
| Mitsubishi | Colt II (C1_A) | 4G32 (SOHC 8V) | 80 hp | 1982–1986 |
| Mitsubishi | Colt III (C5_A) | 4G61 (DOHC 16V) | 124 hp | 1988–1990 |
| Mitsubishi | Colt III (C5_A) | 4G33 | 76 hp | 1986–1990 |
| Mitsubishi | Colt III (C5_A) | 4G32 (SOHC 8V) | 80 hp | 1986–1990 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G32 (SOHC 8V) | 75 hp | 1982–1986 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 90 hp | 1986–1989 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 95 hp | 1984–1989 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G63 (SOHC 8V) | 90 hp | 1984–1988 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G62 (SOHC 8V) | 83 hp | 1982–1983 |
| Mitsubishi | Cordia (A21_A, AB, AC) | 4G37 | 84 hp | 1984–1989 |
| Mitsubishi | Dion MPV (CR_W) | 4G63 (DOHC 16V) | 135 hp | 1999–2005 |
| Mitsubishi | Eclipse Convertible | 4G37 | 92 hp | 1989–1994 |
| Mitsubishi | Eclipse Convertible | 4G63-T/C (DOHC 16V) | 214 hp | 1995–1999 |
| Mitsubishi | Eclipse Convertible | 4G64 (SOHC 16V) | 143 hp | 1995–1999 |
| Mitsubishi | Eclipse Convertible | 4G63-T/C (DOHC 16V) | 208 hp | 1996–1999 |
| Mitsubishi | Eclipse Convertible (D5_A) | 4G64 (SOHC 16V) | 144 hp | 1999–2005 |
| Mitsubishi | Eclipse Convertible (D5_A) | 4G64 (SOHC 16V) | 150 hp | 1999–2005 |
| Mitsubishi | Eclipse I (D2_A) | 4G63 (DOHC 16V) | 150 hp | 1991–1995 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 200 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 214 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G37 | 92 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 182 hp | 1989–1992 |
| Mitsubishi | Eclipse I (D2_A) | 4G63 (DOHC 16V) | 136 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 192 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 197 hp | 1989–1994 |
| Mitsubishi | Eclipse I (D2_A) | 4G63-T/C (DOHC 16V) | 193 hp | 1992–1994 |
| Mitsubishi | Eclipse II (D3_A) | 4G63 (DOHC 16V) | 146 hp | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 214 hp | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 200 hp | 1994–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 208 hp | 1994–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G64 (SOHC 16V) | 143 hp | 1995–1999 |
| Mitsubishi | Eclipse II (D3_A) | 4G63-T/C (DOHC 16V) | 230 hp | 1995–1999 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 150 hp | 1999–2005 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 144 hp | 1999–2005 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 147 hp | 1999–2000 |
| Mitsubishi | Eclipse III (D5_A) | 4G64 (SOHC 16V) | 156 hp | 2000–2005 |
| Mitsubishi | Expo LRV Station Wagon | 4G64 (SOHC 16V) | 137 hp | 1992–1994 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 8V) | 118 hp | 1991–1992 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 16V) | 137 hp | 1992–1995 |
| Mitsubishi | Expo Station Wagon | 4G64 (SOHC 16V) | 158 hp | 1992–1996 |
| Mitsubishi | Freeca | 4G63 (SOHC 16V) | 114 hp | 1998–2010 |
| Mitsubishi | Galant III (A12_) | 4G32 (SOHC 8V) | 75 hp | 1977–1980 |
| Mitsubishi | Galant III Station Wagon (A12_V) | 4G32 (SOHC 8V) | 75 hp | 1979–1980 |
| Mitsubishi | Galant IV (A16_) | 4G32 (SOHC 8V) | 75 hp | 1980–1984 |
| Mitsubishi | Galant IV (A16_) | 4G63 (SOHC 8V) | 102 hp | 1980–1984 |
| Mitsubishi | Galant IV (A16_) | 4G63-T (SOHC 8V ECI) | 170 hp | 1982–1984 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 4G32 (SOHC 8V) | 75 hp | 1980–1984 |
| Mitsubishi | Galant IV Station Wagon (A16_V) | 4G63 (SOHC 8V) | 102 hp | 1980–1983 |
| Mitsubishi | Galant V (E1_A) | 4G32 (SOHC 8V) | 75 hp | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | G63B | 90 hp | 1986–1990 |
| Mitsubishi | Galant V (E1_A) | 4G63 (SOHC 8V) | 102 hp | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | 4G63-T (SOHC 8V) | 150 hp | 1984–1990 |
| Mitsubishi | Galant V (E1_A) | G64B | 112 hp | 1985–1990 |
| Mitsubishi | Galant V (E1_A) | 4G64 (SOHC 8V) | 125 hp | 1985–1990 |
| Mitsubishi | Galant V (E1_A) | 4G64 (SOHC 8V) | 102 hp | 1984–1985 |
| Mitsubishi | Galant V (E1_A) | 4G37 | 86 hp | 1984–1990 |
| Mitsubishi | Galant VI (E3_A) | 4G37 | 90 hp | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (SOHC 8V) | 109 hp | 1989–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 144 hp | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 146 hp | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (SOHC 8V) | 105 hp | 1989–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G37 | 86 hp | 1988–1992 |
| Mitsubishi | Galant VI (E3_A) | 4G63 (DOHC 16V) | 145 hp | 1988–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G37 | 86 hp | 1987–1990 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (DOHC 16V) | 144 hp | 1987–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G37 | 90 hp | 1987–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (SOHC 8V) | 109 hp | 1987–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (DOHC 16V) | 150 hp | 1991–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (DOHC 16V) | 145 hp | 1988–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G32 (SOHC 8V) | 75 hp | 1988–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (SOHC 8V) | 105 hp | 1989–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63-T/C (DOHC 16V) | 201 hp | 1990–1993 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (SOHC 8V) | 103 hp | 1988–1993 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63-T/C (DOHC 16V) | 137 hp | 1988–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G63 (DOHC 16V) | 170 hp | 1988–1992 |
| Mitsubishi | Galant VI Saloon (E3_A) | 4G37 | 94 hp | 1987–1993 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 137 hp | 1992–1996 |
| Mitsubishi | Galant VII (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 122 hp | 1993–1995 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 137 hp | 1992–1996 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 4G63 (SOHC 16V) | 136 hp | 1992–1996 |
| Mitsubishi | Galant VII Saloon (E5_A, E7_A, E8_A) | 4G64 (SOHC 16V) | 143 hp | 1993–1998 |
| Mitsubishi | Galant VIII (EA_) | 4G63 (SOHC 16V) | 136 hp | 1996–2000 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 150 hp | 1999–2000 |
| Mitsubishi | Galant VIII (EA_) | 4G63 (SOHC 16V) | 133 hp | 2000–2004 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 144 hp | 2000–2004 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (SOHC 16V) | 147 hp | 1998–2001 |
| Mitsubishi | Galant VIII (EA_) | 4G64 (DOHC 16V GDI) | 165 hp | 1998–2004 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 4G63 (SOHC 16V) | 136 hp | 1996–2000 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 4G64 (DOHC 16V GDI) | 150 hp | 1999–2003 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 4G63 (SOHC 16V) | 133 hp | 2000–2003 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 4G64 (DOHC 16V GDI) | 144 hp | 2000–2003 |
| Mitsubishi | Galant VIII Estate (EA_, EC_) | 4G64 (DOHC 16V GDI) | 165 hp | 1998–2002 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 150 hp | 1997–2000 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 147 hp | 2000–2003 |
| Mitsubishi | Grandis (N9_, N8_) | 4G64 (DOHC 16V GDI) | 165 hp | 1997–2000 |
| Mitsubishi | L200 | 4G32 (SOHC 8V) | 82 hp | 1980–1986 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 102 hp | 1986–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G32 (SOHC 8V) | 82 hp | 1987–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G64 (SOHC 8V) | 124 hp | 1986–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 94 hp | 1987–1990 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 91 hp | 1986–1994 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G64 (SOHC 8V) | 117 hp | 1989–1996 |
| Mitsubishi | L200 (K3_T, K2_T, K1_T, K0_T) | 4G63 (SOHC 8V) | 86 hp | 1987–1994 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 4G63 (SOHC 16V) | 122 hp | 1996–2007 |
| Mitsubishi | L200 (K7_T, K6_T, K5_T) | 4G64 (SOHC 16V) | 132 hp | 1996–2007 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 128 hp | 2005–2015 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 132 hp | 2007–2015 |
| Mitsubishi | L200 / Triton (KA_T, KB_T) | 4G64 (SOHC 16V) | 142 hp | 2013–2018 |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 128 hp | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 131 hp | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 132 hp | 2014– |
| Mitsubishi | L200 / Triton (KJ_, KK_, KL_) | 4G64 (SOHC 16V) | 126 hp | 2014– |
| Mitsubishi | L200 / Triton Pick-up | 4G64 (SOHC 16V) | 128 hp | 2023– |
| Mitsubishi | Lancer Celeste Coupe (A7_) | 4G32 (SOHC 8V) | 73 hp | 1977–1981 |
| Mitsubishi | Lancer F (A15_) | 4G33 | 73 hp | 1984–1986 |
| Mitsubishi | Lancer F (A15_) | 4G32 (SOHC 8V) | 80 hp | 1984–1986 |
| Mitsubishi | Lancer I (A7_) | 4G36 | 55 hp | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G33 | 68 hp | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G32 (SOHC 8V) | 82 hp | 1978–1979 |
| Mitsubishi | Lancer I (A7_) | 4G36 | 58 hp | 1975–1977 |
| Mitsubishi | Lancer I Station Wagon (A7_V) | 4G33 | 68 hp | 1978–1979 |
| Mitsubishi | Lancer II (A17_) | 4G32 (SOHC 8V) | 82 hp | 1979–1983 |
| Mitsubishi | Lancer II (A17_) | 4G32 (SOHC 8V) | 84 hp | 1981–1983 |
| Mitsubishi | Lancer II (A17_) | 4G63-T (SOHC 8V) | 170 hp | 1981–1983 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 4G33 | 76 hp | 1986–1990 |
| Mitsubishi | Lancer III (C1_A, C6_A) | 4G32 (SOHC 8V) | 80 hp | 1986–1990 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | G37B | 83 hp | 1987–1989 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 90 hp | 1987 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 86 hp | 1989–1990 |
| Mitsubishi | Lancer III Station Wagon (C1_V, C3_V) | 4G37 | 94 hp | 1990–1992 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G61 (DOHC 16V) | 124 hp | 1988–1992 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G61-T (DOHC 16V) | 146 hp | 1988–1991 |
| Mitsubishi | Lancer IV (C6_A, C7_A) | 4G63-T/C (DOHC 16V) | 280 hp | 1996–1997 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G37 | 97 hp | 1989–1992 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G61 (DOHC 16V) | 124 hp | 1988–1990 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G37 | 95 hp | 1992–1993 |
| Mitsubishi | Lancer IV Hatchback (C6_A, C7_A) | 4G61 (DOHC 16V) | 122 hp | 1990–1992 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G37 | 95 hp | 1992–1993 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 250 hp | 1992–1993 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 269 hp | 1995–1996 |
| Mitsubishi | Lancer V (CB_A, CD_A, CE_A) | 4G63-T/C (DOHC 16V) | 261 hp | 1994–1995 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G63-T/C (DOHC 16V) | 280 hp | 1998–2001 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G64 (DOHC 16V GDI) | 147 hp | 1995–2003 |
| Mitsubishi | Lancer VI (CJ_, CP_, CK_) | 4G63-T/C (DOHC 16V) | 456 hp | 1998 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 265 hp | 2004–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63 (DOHC 16V) | 135 hp | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 280 hp | 2001–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 290 hp | 2005–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63 (DOHC 16V) | 116 hp | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G64 (DOHC 16V GDI) | 147 hp | 2003–2013 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 275 hp | 2003–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 272 hp | 2001–2003 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 305 hp | 2003–2004 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 309 hp | 2003–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 330 hp | 2004–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 334 hp | 2003–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 347 hp | 2004–2005 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 411 hp | 2004–2006 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 350 hp | 2005–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 371 hp | 2006–2007 |
| Mitsubishi | Lancer VII (CS_A, CT_A) | 4G63-T/C (DOHC 16V) | 366 hp | 2006–2008 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 4G63 (DOHC 16V) | 135 hp | 2003–2007 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 4G64 (DOHC 16V GDI) | 133 hp | 2003–2008 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 4G63-T/C (DOHC 16V) | 272 hp | 2005–2007 |
| Mitsubishi | Lancer VII Estate (CS_W, CT_W) | 4G63-T/C (DOHC 16V) | 280 hp | 2005–2007 |
| Mitsubishi | Magna Saloon (TE) | 4G64 (SOHC 16V) | 143 hp | 1996–1997 |
| Mitsubishi | Magna Saloon (TF) | 4G64 (SOHC 16V) | 143 hp | 1997–1999 |
| Mitsubishi | Magna Estate (TE) | 4G64 (SOHC 16V) | 143 hp | 1996–1997 |
| Mitsubishi | Magna Estate (TF) | 4G64 (SOHC 16V) | 143 hp | 1997–1999 |
| Mitsubishi | Mirage I Saloon (A15_) | G32B, 4G32 (SOHC 8V) | 88 hp | 1979–1983 |
| Mitsubishi | Mirage II Saloon (C10) | G31B | 71 hp | 1986–1988 |
| Mitsubishi | Mirage II Hatchback (C10) | G31B | 71 hp | 1986–1988 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61 (DOHC 16V) | 125 hp | 1988–1991 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61-T (DOHC 16V) | 145 hp | 1988–1991 |
| Mitsubishi | Mirage III Hatchback (C5_ - C8_) | 4G61-T (DOHC 16V) | 137 hp | 1988–1989 |
| Mitsubishi | Mirage III Station Wagon | G37B | 90 hp | 1986–1988 |
| Mitsubishi | Mirage III Station Wagon | G31B | 71 hp | 1986–1988 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (DOHC 16V) | 136 hp | 2003–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G63-T/C (DOHC 16V) | 201 hp | 2004–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G63-T/C (DOHC 16V) | 241 hp | 2002–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 139 hp | 2003–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 147 hp | 2002–2003 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (SOHC 16V) | 126 hp | 2001–2006 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (DOHC 16V GDI) | 139 hp | 2001–2004 |
| Mitsubishi | Outlander I (CU_W) | 4G64 (SOHC 16V) | 133 hp | 2001–2004 |
| Mitsubishi | Outlander I (CU_W) | 4G63 (DOHC 16V) | 126 hp | 2001–2005 |
| Mitsubishi | Pajero I (L04_G, L14_G) | G63B | 110 hp | 1983–1991 |
| Mitsubishi | Pajero I (L04_G, L14_G) | 4G63-T (SOHC 8V) | 145 hp | 1984–1991 |
| Mitsubishi | Pajero II (V3_W) | 4G64 (SOHC 12V) | 112 hp | 2001–2007 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 4G64 (SOHC 8V) | 112 hp | 1991–1999 |
| Mitsubishi | Pajero II (V3_W, V2_W, V4_W, V5_W) | 4G64 (SOHC 16V) | 145 hp | 1996–1999 |
| Mitsubishi | Pajero II Canvas Top (V2_C, V4_C) | 4G64 (SOHC 8V) | 112 hp | 1991–2000 |
| Mitsubishi | Pajero Sport I (K7_, K9_) | 4G64 (SOHC 12V) | 118 hp | 1999–2001 |
| Mitsubishi | Pajero Sport I (K7_, K9_) | 4G64 (SOHC 16V) | 135 hp | 1996–1998 |
| Mitsubishi | Pajero Sport II (KH_, KG_) | 4G64 (SOHC 16V) | 128 hp | 2008–2015 |
| Mitsubishi | Santamo (UG) | 4G63 (DOHC 16V) | 139 hp | 1999–2004 |
| Mitsubishi | Sapporo I (A12_) | 4G32 (SOHC 8V) | 75 hp | 1978–1980 |
| Mitsubishi | Sapporo II (A16_A) | 4G32 (SOHC 8V) | 75 hp | 1980–1984 |
| Mitsubishi | Sapporo II (A16_A) | 4G63 (SOHC 8V) | 102 hp | 1980–1983 |
| Mitsubishi | Sapporo II (A16_A) | 4G63 (SOHC 8V) | 112 hp | 1980–1984 |
| Mitsubishi | Sapporo II (A16_A) | 4G63-T (SOHC 8V ECI) | 170 hp | 1982–1983 |
| Mitsubishi | Sapporo III (E16A) | 4G64 (SOHC 8V) | 124 hp | 1987–1990 |
| Mitsubishi | Sigma (GE) | 4G32 (SOHC 8V) | 76 hp | 1977–1980 |
| Mitsubishi | Sigma (GJ, GK, GN) | 4G32 (SOHC 8V) | 82 hp | 1982–1985 |
| Mitsubishi | Sigma Estate (GJ, GK, GN) | 4G32 (SOHC 8V) | 82 hp | 1982–1985 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 150 hp | 1999–2003 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (SOHC 16V) | 136 hp | 1999–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (SOHC 16V) | 133 hp | 2000–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 147 hp | 1999–2002 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G64 (DOHC 16V GDI) | 165 hp | 1997–2003 |
| Mitsubishi | Space Runner (N6_W, N7_W) | 4G63 (DOHC 16V) | 230 hp | 1997–2002 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 4G63 (DOHC 16V) | 133 hp | 1993–1997 |
| Mitsubishi | Space Runner MPV (N1_W, N2_W) | 4G63 (DOHC 16V) | 160 hp | 1992–1999 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G37 | 90 hp | 1984–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | G63B | 84 hp | 1986–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 101 hp | 1988–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 102 hp | 1985–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | G37B | 84 hp | 1988–1991 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 110 hp | 1985–1988 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G63 (SOHC 8V) | 95 hp | 1987–1992 |
| Mitsubishi | Space Wagon (D0_V/W) | 4G37 | 95 hp | 1984–1985 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G63 (SOHC 16V) | 133 hp | 1992–1998 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 139 hp | 1992–1998 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 120 hp | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 117 hp | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 16V) | 116 hp | 1992–1995 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G63 (SOHC 8V) | 105 hp | 1991–1997 |
| Mitsubishi | Space Wagon (N3_W, N4_W) | 4G64 (SOHC 8V) | 117 hp | 1991–1992 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (DOHC 16V GDI) | 150 hp | 1998–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (DOHC 16V GDI) | 147 hp | 2000–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G63 (SOHC 16V) | 133 hp | 1998–2004 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G63 (SOHC 16V) | 109 hp | 1998–2002 |
| Mitsubishi | Space Wagon (N9_W, N8_W) | 4G64 (SOHC 16V) | 131 hp | 1998–2004 |
| Mitsubishi | Starion (A18_A) | 4G63-T (SOHC 8V ECI) | 170 hp | 1982–1985 |
| Mitsubishi | Starion (A18_A) | 4G63-T/C (SOHC 8V) | 180 hp | 1985–1987 |
| Mitsubishi | Starion (A18_A) | 4G63-T (SOHC 8V) | 150 hp | 1985–1987 |
| Mitsubishi | Tredia (A21_) | 4G32 (SOHC 8V) | 75 hp | 1982–1987 |
| Mitsubishi | Tredia (A21_) | 4G37 | 90 hp | 1984–1986 |
| Mitsubishi | Tredia (A21_) | G62B | 136 hp | 1984–1986 |
| Mitsubishi | Tredia (A21_) | G62B | 118 hp | 1984–1988 |
| Mitsubishi | Tredia (A21_) | G63B | 90 hp | 1983–1988 |
| Mitsubishi | Tredia (A21_) | 4G62 (SOHC 8V) | 83 hp | 1983–1986 |
| Mitsubishi | Tredia (A21_) | 4G63 (SOHC 8V) | 101 hp | 1986–1988 |
| Mitsubishi | Zinger MPV (KB0_A) | 4G64 (SOHC 16V) | 128 hp | 2005– |
| Mitsubishi | Zinger MPV (KB0_A) | 4G64 (SOHC 16V) | 136 hp | 2005– |
