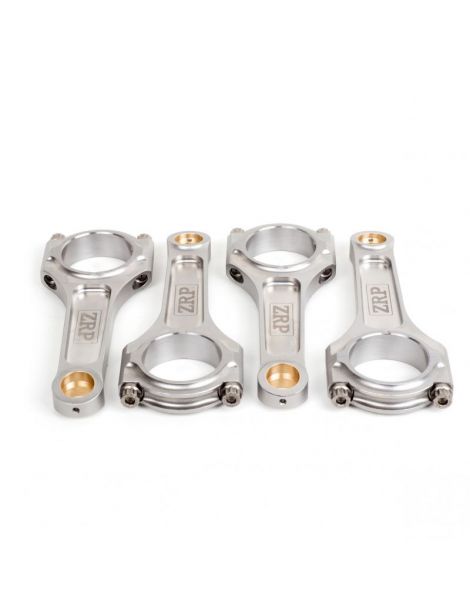

Reduced price! TOYOTA référence R-TOY-005-I Kit 4 bielles forgées en I ZRP avec vis ARP View larger

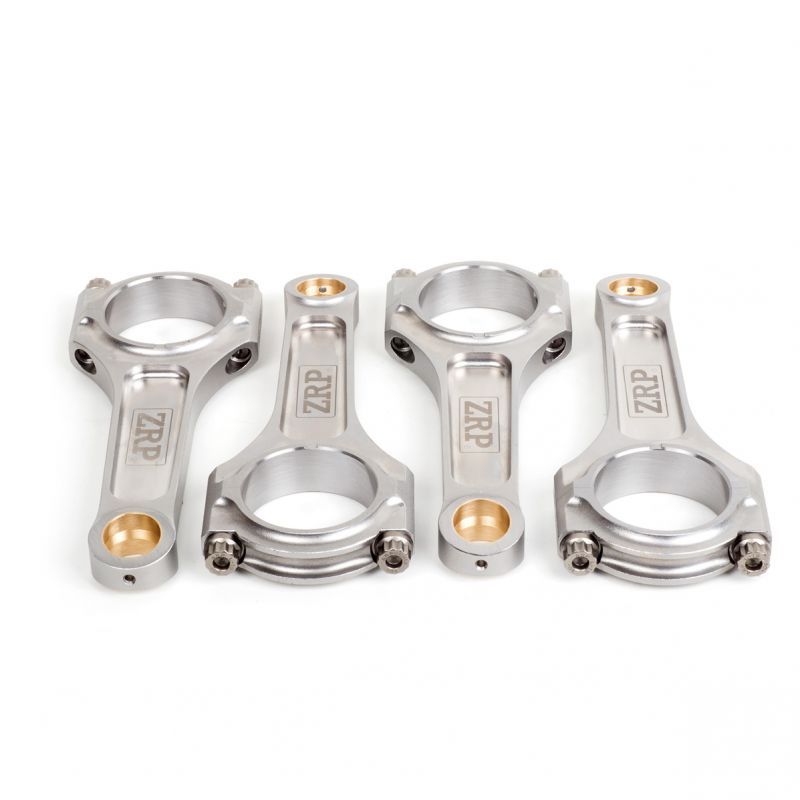

Connecting rods forged I-shaped ZRP Heavy Duty TOYOTA MR2 II 2.0 16V 3SGE 170 hp

R-TOY-005-I (147904)

New product

High-quality Connecting rods forged I-shaped ZRP Heavy Duty TOYOTA MR2 II 2.0 16V 3SGE 170 hp (Connecting rods forged I-shaped ZRP Heavy Duty TOYOTA) for reliable fitment and performance.

More details

504,84 € tax incl.

-30%

721,20 € tax incl.

  • The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel for your TOYOTA MR2 II 2.0 16V 3SGE in order to accept high boosts on your 3SGE engine and Rod bolts ARP2000 for significant increases in engine speed.

    The head of the ZRP forged Connecting rods for TOYOTA MR2 II 2.0 16V 3SGE is equipped with a ring machined from hot extruded cuPro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your Piston pin / Gudgeon pin.

    This Connecting rod is reinforced which allows it to withstand an increase in engine compression rates.

    The design of this ZRP forged I-shaped Connecting rod for TOYOTA MR2 II 2.0 3SGE gives it exceptional resistance to significant increases in power and torque through high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

    Features:

    • Input Pin: 138.00mm
    • Foot diameter: 51.00mm
    • Foot width: 26.70mm
    • Piston pin / Gudgeon pin diameter: 22.00mm
    • Rod bolts supplied: ARP2000
    • Thread of screws provided: 3/8"
    • Weight: 588gr
    • Maximum admissible power: 800hp

    Lexicon:

    1)Small End
    2) Foot diameter
    3) Connecting rod CoRPS
    4) Rod bolt
    5) Big End
    6) Nut
    7) Connecting rod cap
    8) Head diameter
    9) EntrPin

    When you upgrade your 3SGE engine to a forged engine, it is recommended to fit forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your original Pistons with forged Pistons.

    Find the Forged Pistons for your TOYOTA MR2 II 2.0 16V 3SGE (if your engine has more than 50,000km, it is recommended to take an extra cost and carry out a repair of the cylinders followed by honing of the barrels):

    Forged pistons

    Find the Connecting rods Bearings for your ZRP forged Connecting rods for your TOYOTA MR2 II 2.0 16V 3SGE:

    BearingS of Connecting rodS

    Find this kit with reinforced rod bolts ARP L19 and ARP 625+ for your TOYOTA MR2 II 2.0 16V 3SGE:

    Connecting rodS ForgeES ZRP WITH SCREWS ARP L19 OR 625+

Pack content
