ARP Pro Series ARP2000 head stud kit, BMW 1.8L 318i/318iS M40/M42

Technical specification

Complete high performance ARP Pro Series head stud kit for the BMW M40 and M42 1.8L four cylinder engines. Replaces the single use OEM torque to yield (TTY) bolts with reusable high strength studs.

Stud specification:

• Manufacturer reference: ARP 117-4226
• Material: ARP2000 alloy steel
• Nominal tensile strength: 220,000 psi (1517 MPa)
• Strength increase over OEM: +40%
• Manufacturing process: centreless ground, thread rolled after heat treatment
• Finish: black oxide, anti-corrosion
• Standard: Mil-S-8879

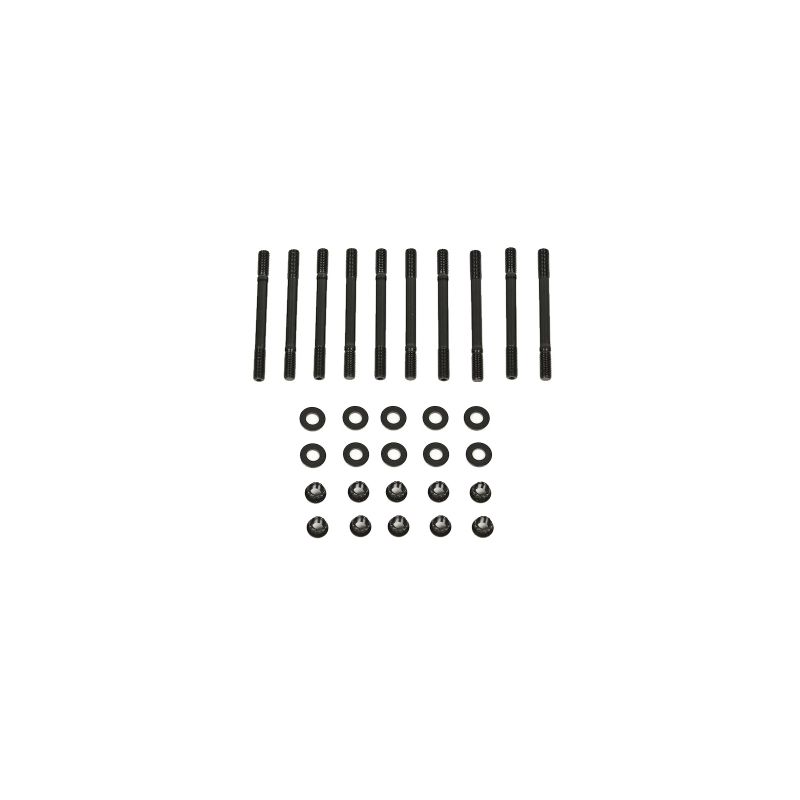

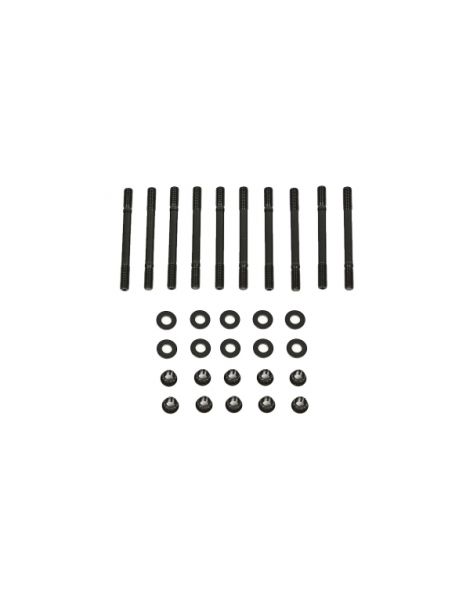

Kit contents:

• Quantity: one complete kit for a four cylinder engine
• ARP2000 high strength studs
• 12 point nuts for accurate torque
• Hardened parallel washers

Benefits:

• Reusable after removing the cylinder head, unlike single use TTY bolts
• Withstands 35+ bar of turbo boost
• Accurate and repeatable torque with the 12 point nuts
• Uniform clamping load on the MLS head gasket
• Suited to high power turbo and supercharged builds

Engine fitment

BMW M40 engines (SOHC 8V) - 1987-1994

M40B16 - 1.6L (98hp):

• BMW E30 316i (1988-1994) - saloon, Touring
• BMW E36 316i (1991-1994) - saloon, coupé, convertible

M40B18 - 1.8L (113hp):

• BMW E30 318i (1987-1991) - saloon, Touring, convertible
• BMW E36 318i (1991-1994) - saloon, coupé, convertible, Touring

BMW M42 engines (DOHC 16V) - 1989-1996

M42B18 - 1.8L (140hp):

• BMW E30 318iS (1989-1991) - two door coupé (Europe/Asia)
• BMW E30 318i (1989-1991) - saloon, coupé (USA)
• BMW E36 318i (1991-1996) - saloon, coupé, convertible, Touring
• BMW E36 318iS (1992-1996) - coupé (Europe)
• BMW E36 318ti Compact (1994-1996) - three door hatchback
• BMW Z3 1.8 Roadster (1995-1999)

BMW M44 engines (DOHC 16V) - 1996-2000

M44B19 - 1.9L (140hp):

• BMW E36 318i (1996-2000) - saloon, coupé, convertible, Touring
• BMW E36 318ti Compact (1996-2000) - hatchback
• BMW Z3 1.9 Roadster (1996-2002)
