Forged pistons 1.6L 16v X16XE Opel

Condition: New product

JE/Wiseco/Wossner forged pistons for Opel X16XE (79-80 mm). Axle 18 mm, axle height 28.2 mm. Corsa B & Tigra A compatible. OEM refs 90570661-76. Table sorted by bore/RV.

More details

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Opel 1.6 L 16 V X16XE :

Reference	OEM Bore 79,00 mm	OEM CR 10,5 :1	OEM Pin 18 mm	Height OEM Pin 28,2 mm	Range	Coating	Aluminium	Forging	Dome	Weight	Rings
WKE159M79	79	8.8:1	18	28.2	Wiseco	Skirt	2618	NC	-15.0 cc	NC	7900XX
JE-312426	79	11.5:1	18	28.2	JE Round	NC	2618	Round	3.2 cc	253	NC
WKE161M79	79	11.5:1	18	28.2	Wiseco	Skirt	2618	NC	2.5 cc	NC	7900XX

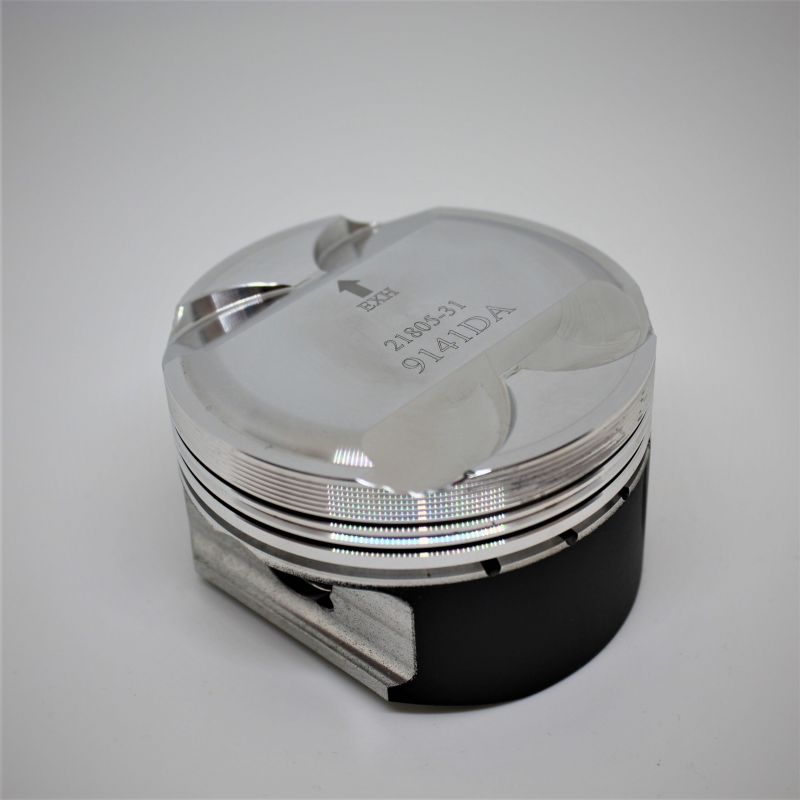

K9141DA	79	11.5:1	18	28.2	Wossner	NC	NC	Round	3.45 cc	NC	790XDS
WKE159M795	79.5	8.8:1	18	28.2	Wiseco	Skirt	2618	NC	-15.0 cc	NC	7950XX
JE-312427	79.5	11.5:1	18	28.2	JE Round	NC	2618	Round	2.9 cc	258	NC
WKE161M795	79.5	11.5:1	18	28.2	Wiseco	Skirt	2618	NC	2.5 cc	NC	7950XX
K9141D050	79.5	11.6:1	18	28.2	Wossner	NC	NC	Round	3.45 cc	NC	795XDS
WKE159M80	80	8.8:1	18	28.2	Wiseco	Skirt	2618	NC	-15.0 cc	NC	8000XX
JE-312428	80	11.5:1	18	28.2	JE Round	NC	2618	Round	2.5 cc	260	NC
WKE161M80	80	11.5:1	18	28.2	Wiseco	Skirt	2618	NC	2.5 cc	NC	8000XX
K9141D100	80	11.8:1	18	28.2	Wossner	NC	NC	Round	3.45 cc	NC	800XDS

Compatibility (engine codes):

X16XE

Original vehicles equipped with the engine Opel X16XE :

Brand	Model	Engine code	Power	Years
Opel	Corsa B	X16XE	106 hp	1994 – 1997
Opel	Corsa B (facelift)	X16XE	106 hp	1997 – 1999
Opel	Tigra A	X16XE	106 hp	1994 – 2000

OEM piston references for X16XE :

90570661 (56 23 025) – STD, bore 78,95 mm (ident 5)
90570662 (56 23 026) – STD, bore 78,96 mm (ident 6)
90570663 (56 23 027) – STD, bore 78,97 mm (ident 7)
90570664 (56 23 028) – STD, bore 78,98 mm (ident 8)
90570665 (56 23 029) – STD, bore 78,99 mm (ident 99)
90570666 (56 23 030) – STD, bore 79,00 mm (ident 00)
90570667 (56 23 031) – STD, bore 79,01 mm (ident 01)
90570668 (56 23 032) – STD, bore 79,02 mm (ident 02)
90570669 (56 23 033) – STD, bore 79,03 mm (ident 03)
90570670 (56 23 034) – STD, bore 79,04 mm (ident 04)
90570671 (56 23 035) – STD, bore 79,05 mm (ident 05)
90570672 (56 23 036) – STD, bore 79,06 mm (ident 06)
90570673 (56 23 037) – STD, bore 79,07 mm (ident 07)
90570674 (56 23 038) – STD, bore 79,08 mm (ident 08)
90570675 (56 23 039) – STD, bore 79,09 mm (ident 09)
90570676 (56 23 040) – STD, bore 79,10 mm (ident 10)

Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
