1.6L 16v - N16B16
Manufacturers
1.6L 16v - N16B16
Warning: Last items in stock!
New product

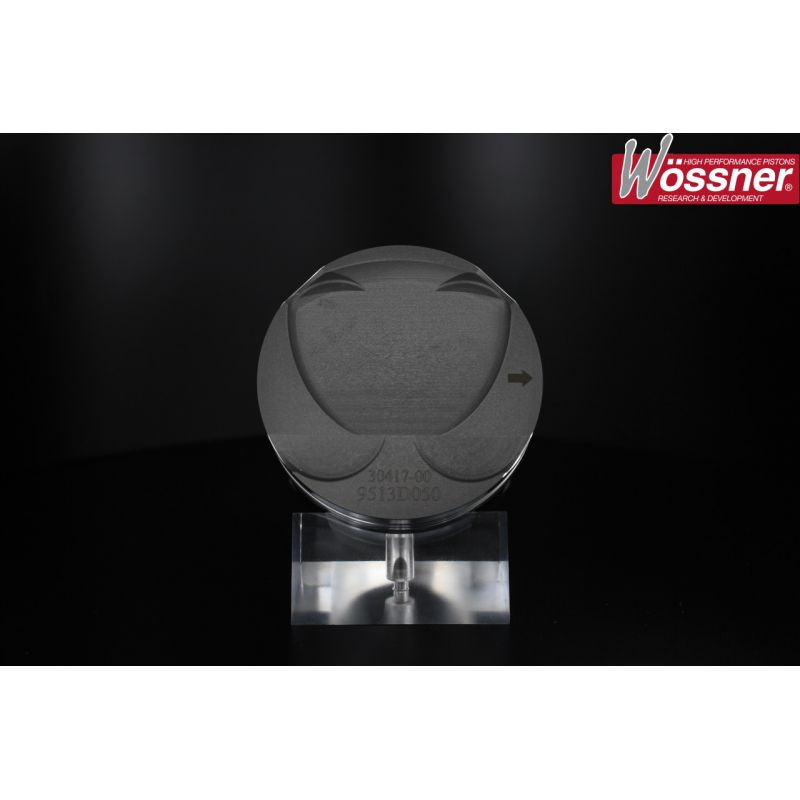

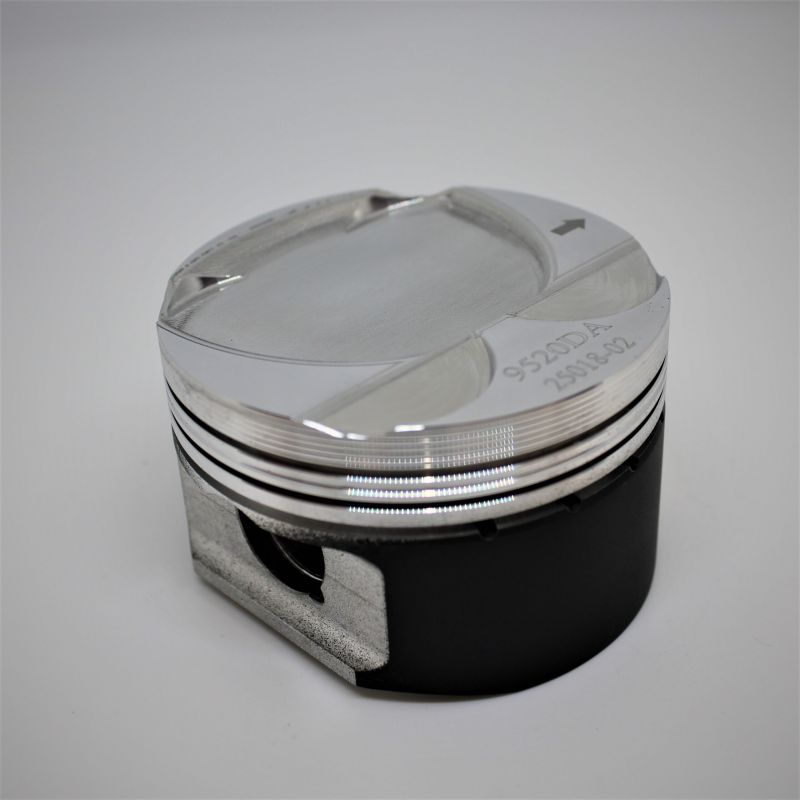

Wossner forged pistons for Mini 1.6 N16B16A. Bore 77.00-77.50 mm, CR 10:1, pin 20 mm, pin height 28.5 mm, dome -6.9 cc.
Specifications of the forged pistons offered by NSB Concept for 1,6 L 16 v EP6C / EP6F (PSA) and N13B16 / N18B16 (BMW/MINI) :
| Reference piston | Bore (mm)OEM 77 | CROEM 10,5 :1 | pin (mm)OEM 20 | Height pin (mm)OEM 28,5 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P4-MIN56-N18-77-CR10-4 | 77 | 10 :1 | 20 | 27,5 | Supertech | 4032 | Crown + Skirt | NC | STD. | 262 | W7700XX |
| K9552DA | 77 | 10,2 :1 | 20 | 28,5 | Wossner | NC | NC | NC | -1,13 | NC | 770XPZ |
| P4-MIN56-N18-77-CR10.5-4 | 77 | 10,5 :1 | 20 | 28,7 | Supertech | 4032 | Crown + Skirt | NC | STD. | 262 | W7700XX |
| WKE359M77 | 77 | 10,5 :1 | 20 | 28,5 | Wiseco | NC | Skirt | NC | -1,15 | NC | 7700XX |
| K1750DA | 77 | 12 :1 | 20 | 27,6 | Wossner | NC | NC | NC | -2,15 | NC | 770XPZ |
| JE-357663C*4 | 77,5 | 9,3 :1 | 20 | 28,45 | JE | NC | NC | NC | -3,8 | NC | NC |
| P4-MIN56-N18-77.5-CR10-4 | 77,5 | 10 :1 | 20 | 27,5 | Supertech | 4032 | Crown + Skirt | NC | STD. | 267 | W7750XX |
| P4-MIN56-N18-77.5-CR10.5-4 | 77,5 | 10,5 :1 | 20 | 28,7 | Supertech | 4032 | Crown + Skirt | NC | STD. | 267 | W7750XX |
| WKE359M775 | 77,5 | 10,5 :1 | 20 | 28,5 | Wiseco | NC | Skirt | NC | -1,15 | NC | 7750XX |
| K1750D050 | 77,5 | 12 :1 | 20 | 27,6 | Wossner | NC | NC | NC | -2,15 | NC | 775XPZ |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| BMW | 114i | F20/F21 | N13B16 | 102 | 2012 – 2015 |
| BMW | 116i | F20/F21 | N13B16 | 136 | 2011 – 2015 |
| BMW | 118i | F20/F21 | N13B16 | 170 | 2011 – 2015 |
| BMW | 316i | F30/F31 | N13B16 | 136 | 2012 – 2015 |
| Citroën | C3 1.6 VTi | A51 | EP6C | 120 | 2009 – 2016 |
| Citroën | C3 Picasso 1.6 VTi | A58 | EP6 | 120 | 2009 – 2017 |
| Citroën | DS3 1.6 VTi | A55 | EP6C | 120 | 2010 – 2016 |
| Citroën | DS3 Performance | A55 | EP6FADTX | 208 | 2016 – 2019 |
| Citroën | DS3 Racing | A55 | EP6CDTS | 200–202 | 2010 – 2013 |
| Citroën | DS3 THP | A55 | EP6DT / EP6CDT | 150–156 | 2010 – 2016 |
| MINI | Clubman Cooper S | R55 | N18B16 | 184 | 2010 – 2014 |
| MINI | Clubman John Cooper Works | R55 | N18B16 | 211 | 2012 – 2014 |
| MINI | Cooper S (Hatch 3p) | R56 | N18B16 | 184 | 2010 – 2013 |
| MINI | John Cooper Works (Hatch) | R56 | N18B16 | 211 | 2012 – 2013 |
| MINI | Convertible Cooper S | R57 | N18B16 | 184 | 2010 – 2015 |
| MINI | Convertible John Cooper Works | R57 | N18B16 | 211 | 2012 – 2015 |
| MINI | Coupé Cooper S | R58 | N18B16 | 184 | 2011 – 2015 |
| MINI | Coupé John Cooper Works | R58 | N18B16 | 211 | 2011 – 2015 |
| MINI | Roadster Cooper S | R59 | N18B16 | 184 | 2012 – 2015 |
| MINI | Roadster John Cooper Works | R59 | N18B16 | 211 | 2012 – 2015 |
| MINI | Countryman Cooper S | R60 | N18B16 | 184 | 2010 – 2016 |
| MINI | Countryman John Cooper Works | R60 | N18B16 | 218 | 2012 – 2016 |
| MINI | Paceman Cooper S | R61 | N18B16 | 184 | 2013 – 2016 |
| MINI | Paceman John Cooper Works | R61 | N18B16 | 218 | 2013 – 2016 |
| Peugeot | 207 1.6 VTi | A7 | EP6C | 120 | 2006 – 2014 |
| Peugeot | 207 CC 1.6 VTi | A7 | EP6C | 120 | 2007 – 2014 |
| Peugeot | 207 SW 1.6 VTi | A7 | EP6C | 120 | 2007 – 2013 |
| Peugeot | 208 1.6 VTi | A9 | EP6C | 120 | 2012 – 2015 |
| Peugeot | 208 GTi | A9 | EP6FDTX | 200–208 | 2013 – 2018 |
| Peugeot | 3008 1.6 VTi | T84 | EP6 | 120 | 2009 – 2016 |
| Peugeot | 308 CC 1.6 VTi | T7 | EP6C | 120 | 2009 – 2015 |
| Peugeot | 308 GTi | T7 | EP6CDTX | 200 | 2010 – 2013 |
| Peugeot | 308 GTi | T9 | EP6FADTX | 250–270 | 2015 – 2020 |
| Peugeot | 308 I 1.6 VTi | T7 | EP6C | 120 | 2007 – 2013 |
| Peugeot | 5008 1.6 VTi | T87 | EP6 | 120 | 2009 – 2016 |
Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
