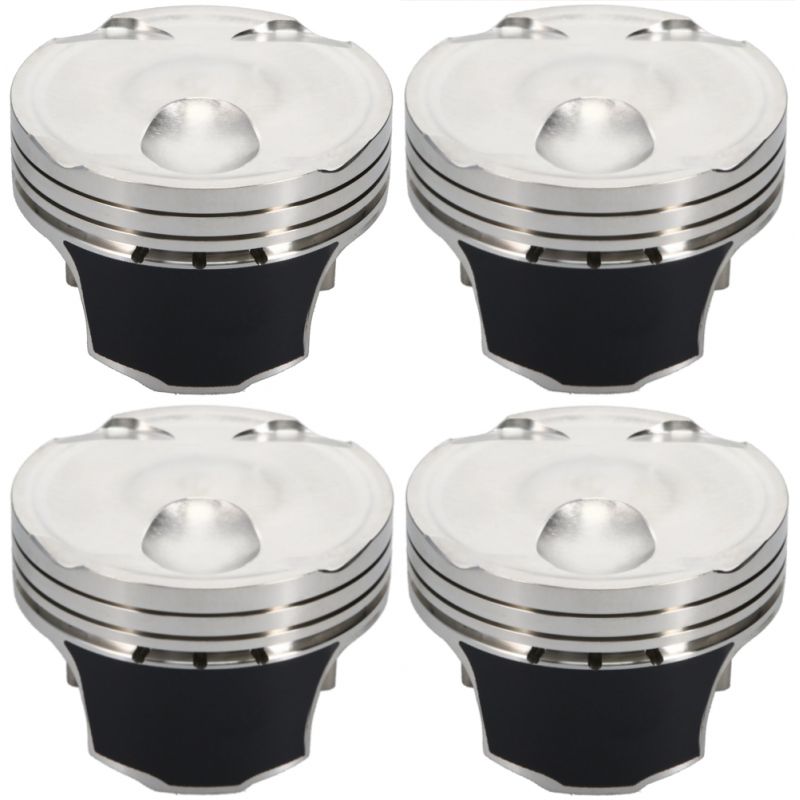

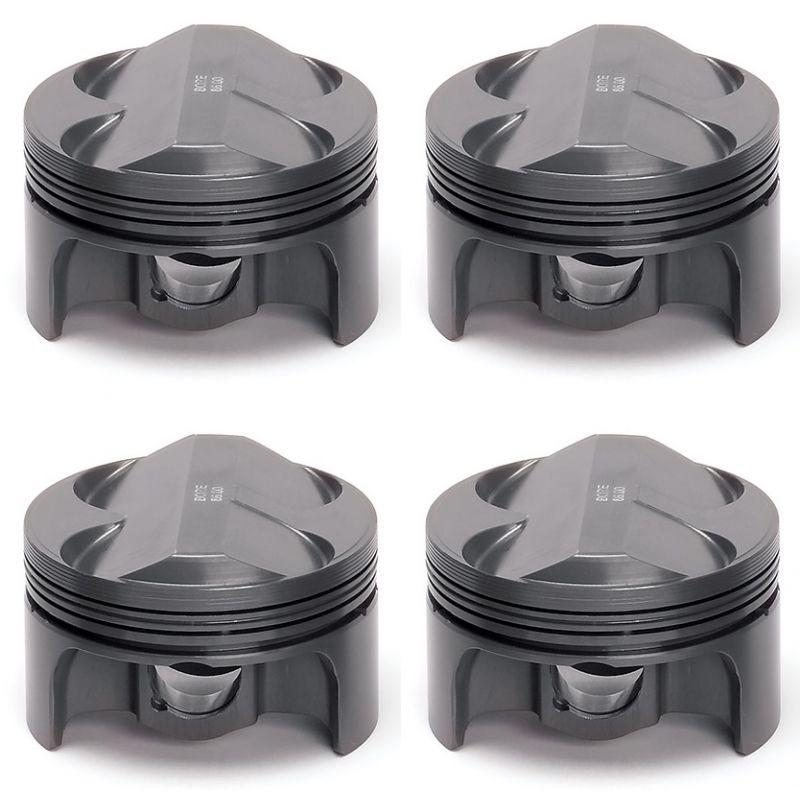

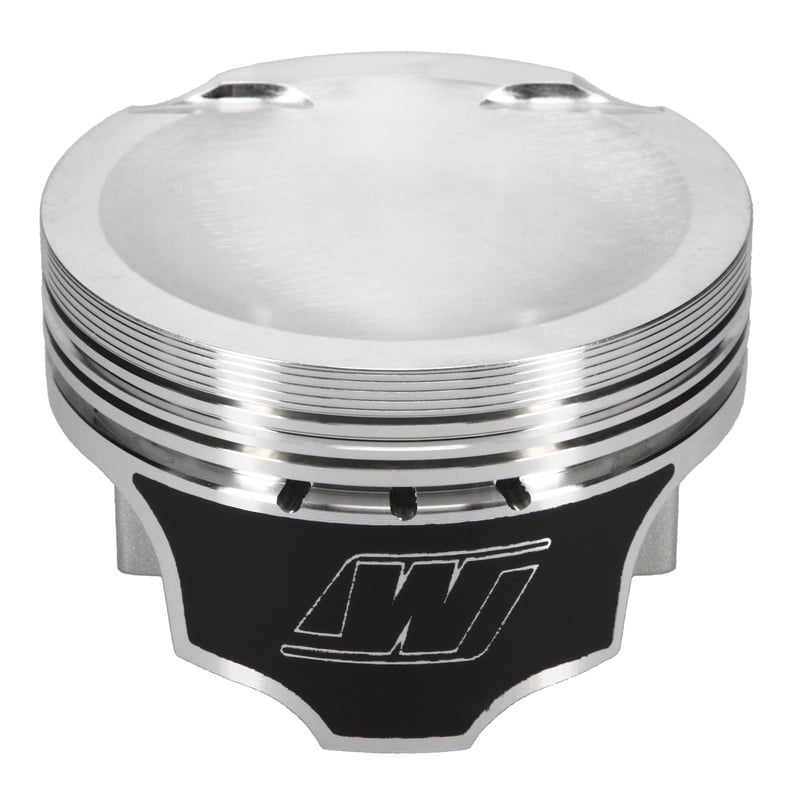

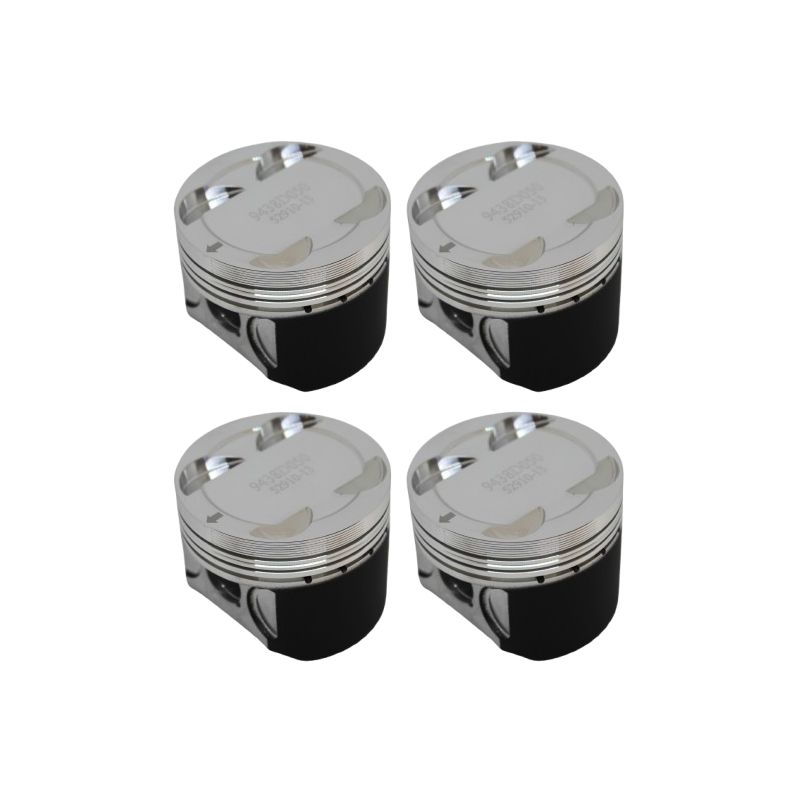

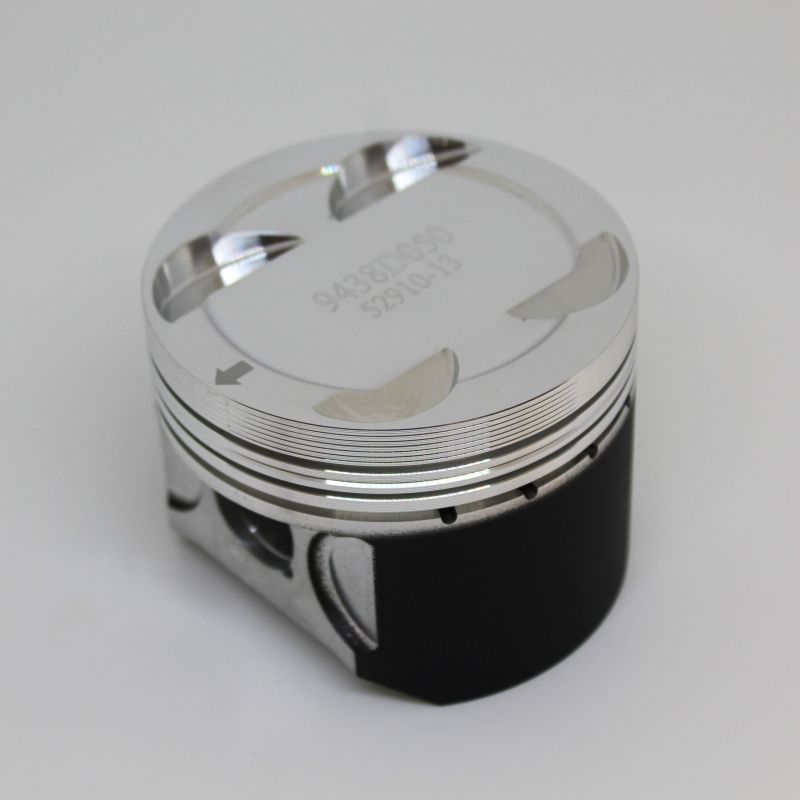

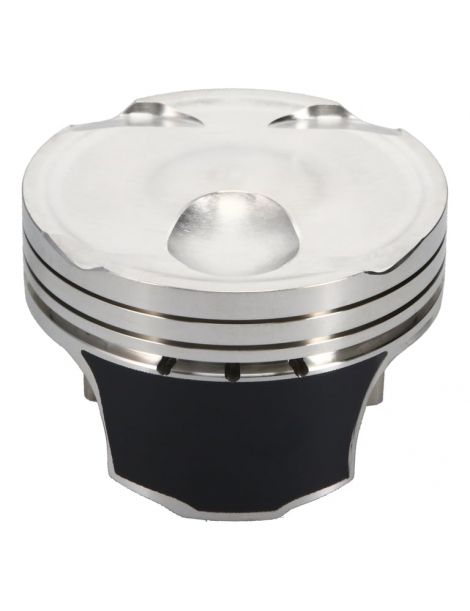

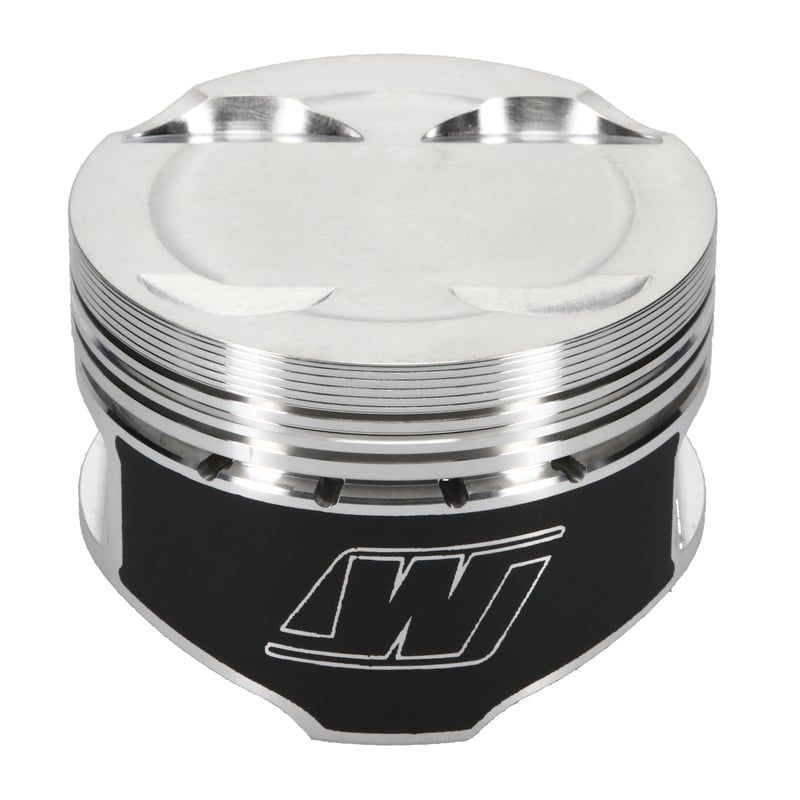

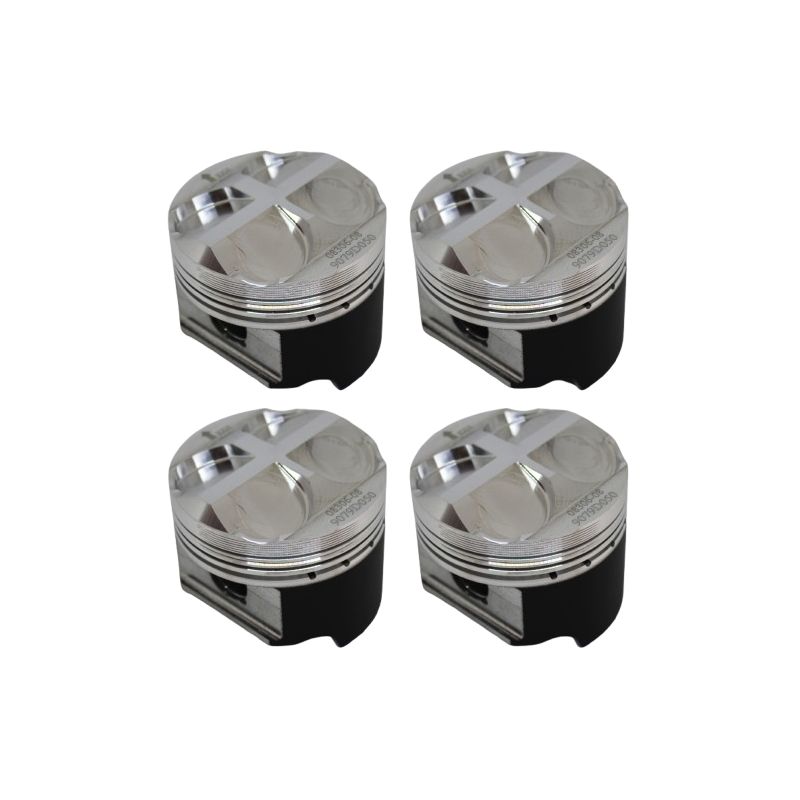

Forged Pistons Mazda 1.6L 16V B6 (Miata/323): bores 78-79.50 mm, CR 8.5-11.3:1, pin 20 mm, CH 32 mm. Compatibility table B6ZE/B6D.
Specifications of the forged pistons offered by NSB Concept for Mazda 1.6 L 16 V B6 (B6ZE/B6D) :
| Reference | OEM Bore 78,00 mm | OEM CR 9,4 :1 | OEM Pin 20 mm | Height OEM Pin 32,00 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9079DA | 78.00 | 11:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | -3.7 cc | 260.0 | 7800WZ |
| K9438DA | 78.50 | 8.5:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | 10.5 cc | 260.0 | 7850WZ |
| K9079D025 | 78.50 | 9:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | 10.5 cc | 260.0 | 7850WZ |
| K9079D025-10.5 | 78.50 | 10.5:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | -3.7 cc | 260.0 | 7850WZ |
| WK554M785 | 78.50 | 8.6:1 | 20.00 | 31.95 | Wiseco | NC | 2618 | Slipper | -13 cc | NC | 7850WX |
| WK554M79 | 79.00 | 8.6:1 | 20.00 | 31.95 | Wiseco | NC | 2618 | Slipper | -13 cc | NC | 7900WX |
| P4-MA790-N10 | 79.00 | 8.8:1 | 20.00 | 32.00 | Supertech | NC | NC | Slipper | 10.5 cc | 258.0 | 7900ST |
| P4-MA790-N1 | 79.00 | 10.5:1 | 20.00 | 32.00 | Supertech | NC | NC | Slipper | -3.7 cc | 258.0 | 7900ST |
| P4-MA780-N1 | 78.00 | 10.6:1 | 20.00 | 32.00 | Supertech | NC | NC | Slipper | -3.7 cc | 258.0 | 7800ST |
| P4-MA790-N1-10.6 | 79.00 | 10.6:1 | 20.00 | 32.00 | Supertech | NC | NC | Slipper | -3.7 cc | 258.0 | 7900ST |
| K9079D050-10.5 | 79.00 | 10.5:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | -3.7 cc | 260.0 | 7900WZ |
| K9079D050 | 79.00 | 9:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | 10.5 cc | 260.0 | 7900WZ |
| K9079D100 | 79.50 | 9:1 | 20.00 | 32.40 | Wössner | Skirt | 4032 | Slipper | 10.5 cc | 260.0 | 7950WZ |
Compatibility (engine codes):
Original vehicles equipped with the 1.6 B6 DOHC 16 V :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Mazda | 323F IV (BG) | B6D | 88 hp | 1991 – 1995 |
| Mazda | Familia Sedan 4WD (JP) | B6ZE (RS) | 115 hp | 1994 – 1998 |
| Mazda | MX-5 (NA) | B6ZE (RS) | 115 hp | 1989 – 1993 |
| Mazda | MX-5 (NB) | B6-ZE | 110 hp | 1998 – 2005 |
references piston manufacturer (OEM) recorded :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
