2.0L 8v - M10B20 with 121 series cylinder head
Manufacturers
2.0L 8v - M10B20 with 121 series cylinder head
Warning: Last items in stock!
New product

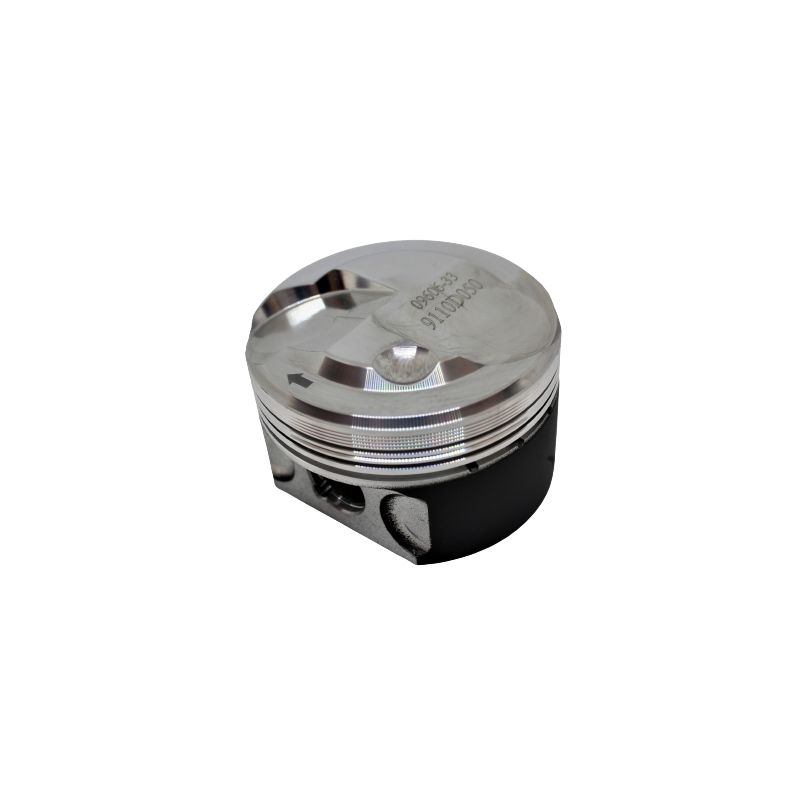

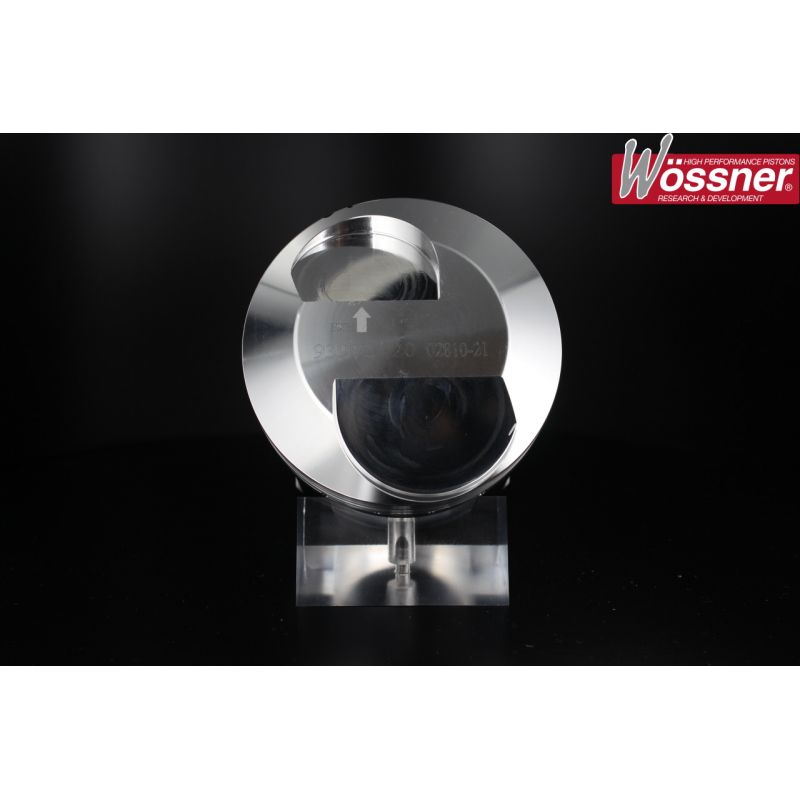

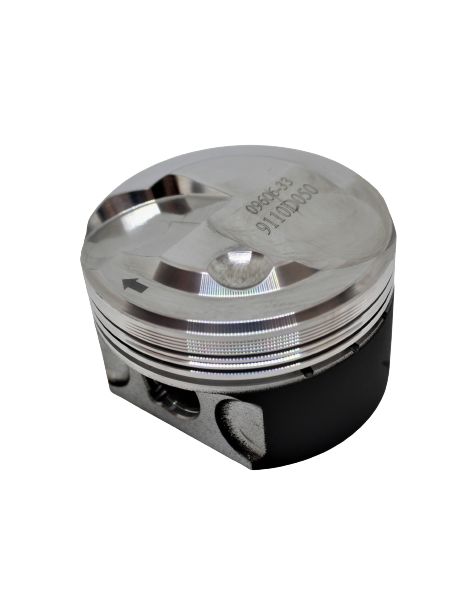

Wiseco & Wossner forged piston kit for BMW M10B20: bore 89-90.25 mm, RV 10 or 11.8-12:1, pin 22 mm, dome 10.4/28.8 cc, rings included.
Specifications of the forged pistons offered by NSB Concept for BMW 2.0 L 8 V M10B20 (121 Head) :
| Reference | OEM Bore 89,00 mm | CR OEM 9,5 :1 | pin OEM 22 mm | Height pin OEM 42,2 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE316M89 | 89.00 | 10:1 | 22 | 42.44 | Wiseco | Skirt | NC | NC | 10.4 cc | NC | 8900XX |
| K9399DA | 89.00 | 11.8:1 | 22 | 43.50 | Wössner | NC | NC | Round | 28.8 cc | NC | 890XSY |
| K9399D020 | 89.20 | 11.9:1 | 22 | 43.50 | Wössner | NC | NC | Round | 28.8 cc | NC | 892XSY |
| WKE316M895 | 89.50 | 10:1 | 22 | 42.44 | Wiseco | Skirt | NC | NC | 10.4 cc | NC | 8950XX |
| K9399D050 | 89.50 | 11.9:1 | 22 | 43.50 | Wössner | NC | NC | Round | 28.8 cc | NC | 895XSY |
| K9399D075 | 89.75 | 12:1 | 22 | 43.50 | Wössner | NC | NC | Round | 28.8 cc | NC | 897XSY |
| WKE316M90 | 90.00 | 10:1 | 22 | 42.44 | Wiseco | Skirt | NC | NC | 10.4 cc | NC | 9000XX |
| K9399D100 | 90.00 | 12:1 | 22 | 43.50 | Wössner | NC | NC | Round | 28.8 cc | NC | 900XSY |
| WKE316M9025 | 90.25 | 10:1 | 22 | 42.44 | Wiseco | Skirt | NC | NC | 10.4 cc | NC | 9025XX |
Compatibility engines :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | 2002 Tii (E10) | M10B20 | 130 hp | 1971 – 1975 |
| BMW | 2002 (E10) | M10B20 | 115 hp | 1968 – 1975 |
| BMW | 320i (E21) | M10B20 | 109-125 hp | 1975 – 1983 |
| BMW | 520 (E12) | M10B20 | 115 hp | 1972 – 1976 |
Manufacturer piston references (OEM):
