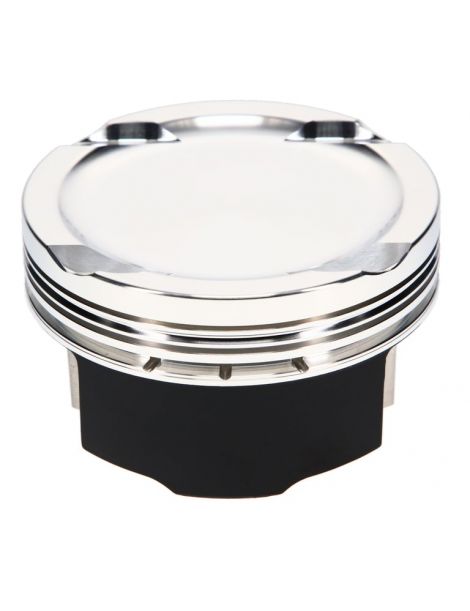

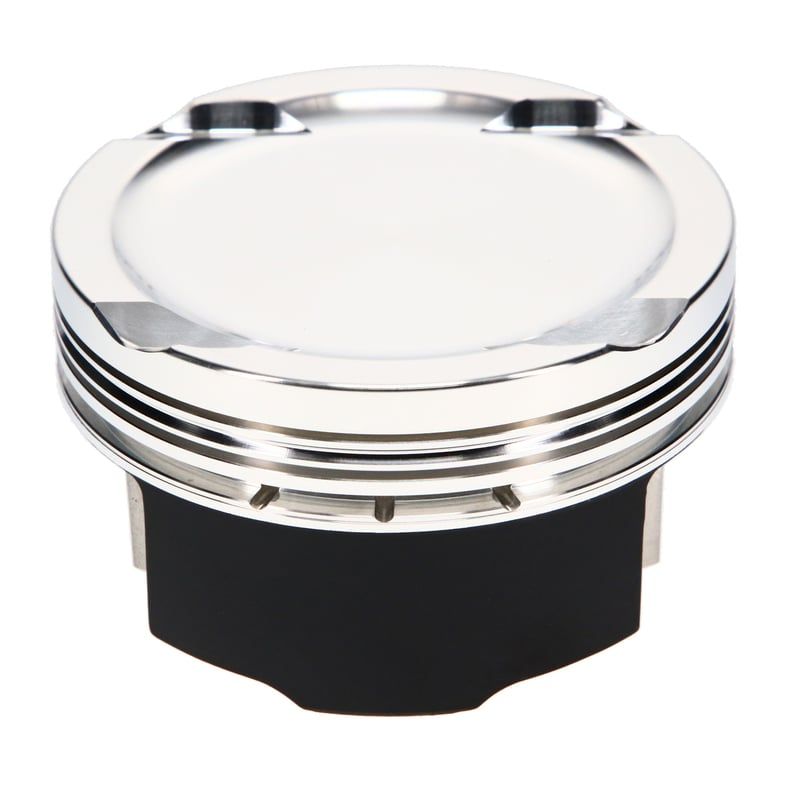

Forged pistons Lamborghini V10 5.0 L, 82.5 to 83 mm Forged pistons Lamborghini V10 5.0 L, 82.5 to 83 mm

Forged pistons 5.0L 40v V10 FSI Lamborghini

€2,242.52 (tax incl.)
€3,203.60 (tax incl.) -30%

Forged pistons Lamborghini V10 5.0 L (Gallardo): Bores 82.5-83 mm, CR 9-11:1, pin 20 mm. Brands: JE, JE FSR.

JE-308177
On order, 15 to 30 days lead time

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

Pay in installments

Specifications of the forged pistons offered by NSB Concept for Lamborghini 5.0 L 40 v V10 FSI :

Reference
piston		 Bore (mm)OEM 82,5 CROEM 9 :1 pin (mm)OEM 20 Height pin (mm)OEM 27 Range Aluminium Coating Forging Dome (cc) Weight (g) Rings
JE-308177 82,5 9 :1 20 27,6 JE FSR 2618 NC FSR -11,2 271 NC
JE-341695C*10 83 11 :1 20 27 JE NC NC NC 1,2 NC NC

Compatibility engine :

  • 5.0L 40v - V10 FSI
Brand Model Chassis Engine code Power (ch) Years
Lamborghini Gallardo Coupé L140 V10 5,0 FSI 510 2003 – 2005
Lamborghini Gallardo SE L140 V10 5,0 FSI 520 2005
Lamborghini Gallardo Spyder (1re Gen.) L140 V10 5,0 FSI 520 2006 – 2008
Lamborghini Gallardo Superleggera (1re Gen.) L140 V10 5,0 FSI 530 2007 – 2008

Manufacturer piston references (OEM):

  • Gallardo Coupé 2003–2005 — complete piston cyl. 1–5 : 07L107100AQ ; cyl. 6–10 : 07L107100AP.
  • Gallardo SE 2005 — complete piston cyl. 1–5 : 07L107100AQ ; cyl. 6–10 : 07L107100AP.
  • Gallardo Spyder 2006–2008 — complete piston cyl. 1–5 : 07L107100AQ ; cyl. 6–10 : 07L107100AP.
  • Gallardo Superleggera 2007–2008 — complete piston cyl. 1–5 : 07L107100AQ ; cyl. 6–10 : 07L107100AP.

Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
