Reduced price! Pistons forgés 3.4L 24v M96 Porsche View larger

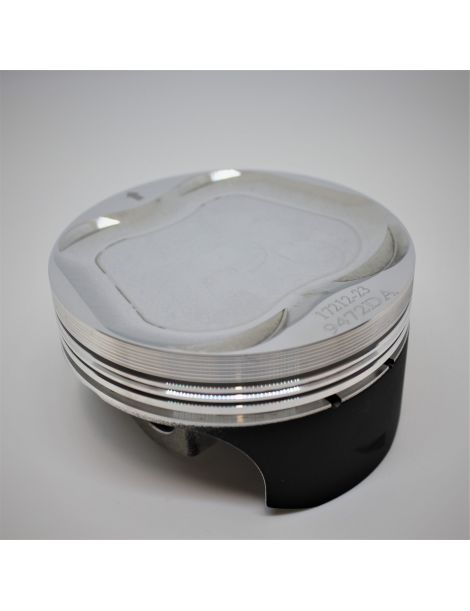

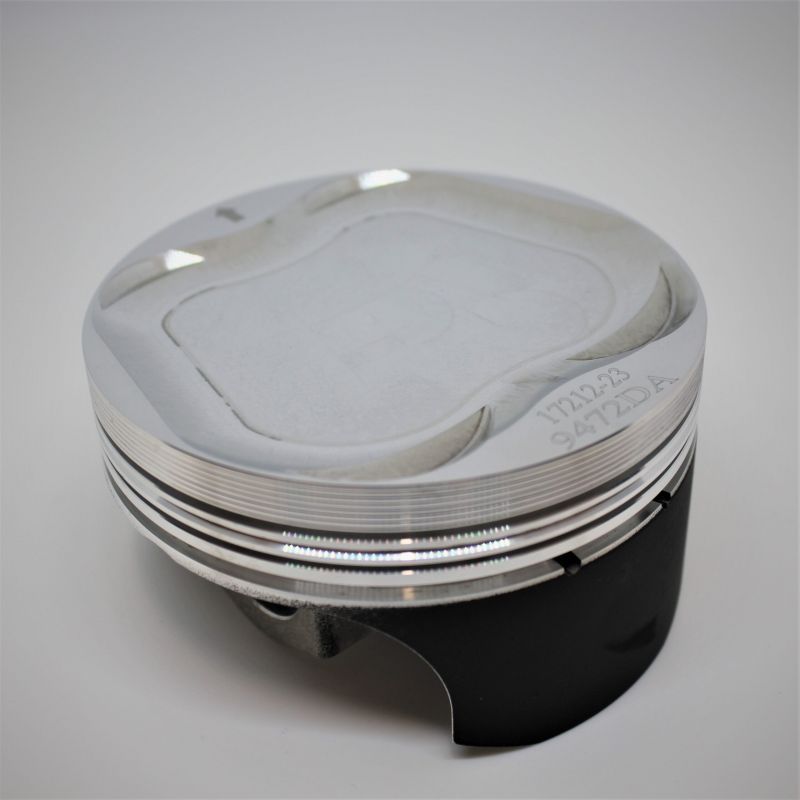

Forged pistons 3.4L 24v M96 Porsche

New product

Forged pistons Porsche 996 3.4 (M96.01/M96.02/M96.04): bore 96.0 mm, CR 11.3:1, pin 22 mm, Pin Height 32.28 mm. Complete table + compatibilities, vehicles & OEM references.

More details

1 408,40 € tax incl.

-25%

1 877,87 € tax incl.

ORDER TODAY, WE SHIP IN 2 - 5 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Porsche 3.4 L 24 V M96 (911 Carrera 996.1, engines M96.01 / M96.02 / M96.04) :

    ReferenceOEM Bore
    96,00 mm    		OEM CR 11,3 :1OEM Pin
    22 mm    		Height OEM Pin
    32,28 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    JE-328524C*696.011.3:12232.28JENCNCNC-16.0NCNC
    K9472DA96.011.3:12232.3WossnerNCNCSlipper-15.0NC960XPY
    K9468DA96.011.3:12232.3WossnerNCNCNC-15.0NC960XSY
    K9472D05096.511.4:12232.3WossnerNCNCSlipper-15.0NC965XPY
    K9468D05096.511.4:12232.3WossnerNCNCNC-15.0NC965XSY
    K9472D10097.011.5:12232.3WossnerNCNCSlipper-15.0NC970XPY


    Compatibility (engine codes):

    • M96.01 — 3,4 L Carrera (RWD, 1997–2001 EU ; 1999–2001 US)
    • M96.02 — 3,4 L Carrera 4 (AWD, 1999–2001)
    • M96.04 — 3,4 L (C2/C4, compliances emissions 2000–2001)


    Original vehicles equipped with the 3.4 M96 (996.1) :

    BrandModelEngine codePowerYears
    Porsche911 Carrera 4 996.1 Coupe/CabrioM96.02300 hp1999 – 2001
    Porsche911 Carrera 996.1 Cabrio (EU)M96.01300 hp1998 – 2001
    Porsche911 Carrera 996.1 Coupe (EU)M96.01300 hp1997 – 2001
    Porsche911 Carrera 996.1 Coupe (US)M96.01296 hp1999 – 2001


    OEM piston references :

    • 911 Carrera 996 3.4 (1999–2001) : 996 103 051 19 — piston 96,0 mm (incl. pin + rings)
    • 911 Carrera 996 3.4 (1999–2001) : 996 103 051 18 — piston 96,0 mm (previous ref./markets)

    * indicative references taken from catalogues / distributors: check by VIN and tolerance group.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
