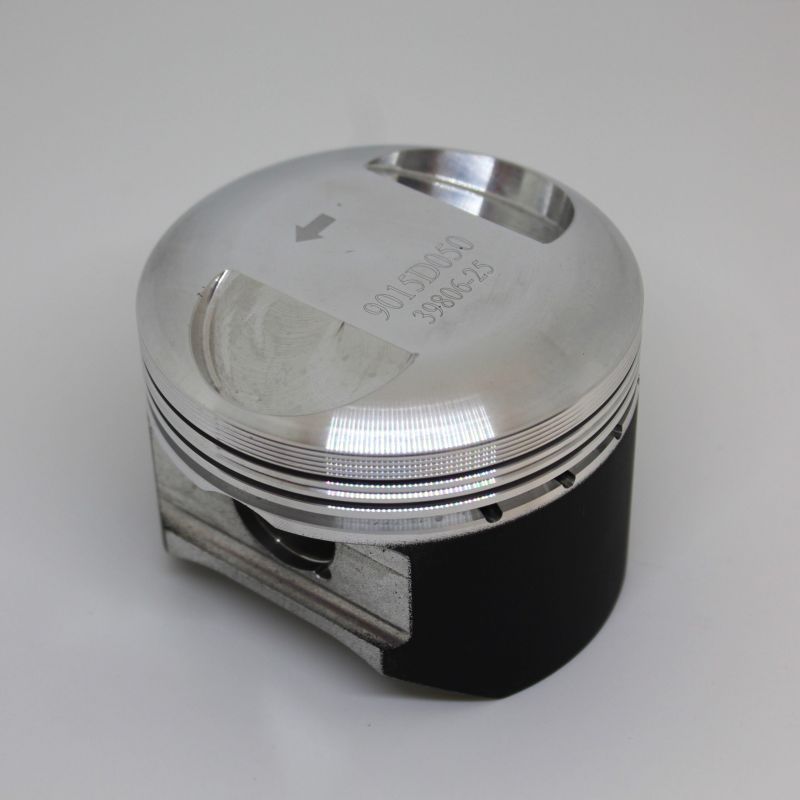

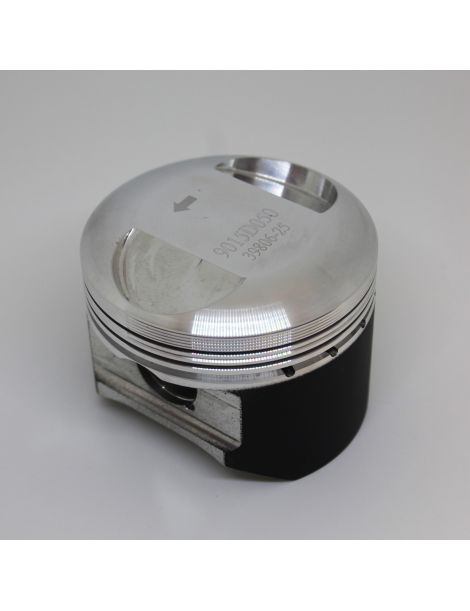

Forged pistons Porsche 356 SC 616/16: bore 82.5-83.5 mm, pin 22 mm, CR 9.5:1. Sorted table, compatibilities, vehicles (Coupe/convertible) and OEM references 616.103.906.xx & 616.103.904.xx.
Specifications of the forged pistons offered by NSB Concept for Porsche 1.6 L 8V Type 616/16 (356 SC) :
| Reference | OEM Bore 82,50 mm | OEM CR 9,5 :1 | OEM Pin 22 mm | Height OEM Pin 27,10 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9015DA | 82.5 | 9.5:1 | 22 | 27 | Wossner | NC | NC | Round | 19.33 | NC | 825XSY |
| K9015D050 | 83.0 | 9.6:1 | 22 | 27 | Wossner | NC | NC | Round | 19.33 | NC | 830XSY |
| K9015D100 | 83.5 | 9.7:1 | 22 | 27 | Wossner | NC | NC | Round | 19.33 | NC | 835XSY |
Compatibility (engine codes):
Original vehicles equipped with the 616/16 (356 SC) :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Porsche | 356 SC Cabrio | 616/16 | 95 hp | 1964 – 1965 |
| Porsche | 356 SC Coupe | 616/16 | 95 hp | 1964 – 1965 |
OEM piston references :
Porsche 356 SC (616/16) — Cylinder/piston sets (Ø82.5): 616.103.906.00 / 616.103.906.01 (set 4 cyls. + pistons, cast iron gray).
Porsche 356 SC / 912 — MAHLE Nikasil kit (Ø82.5, 9.3:1): 616.103.904.04 / 616.103.904.06 (depending on revision).
piston only Ø82.5: 616.103.035.00 (piston reference listed in the catalog B/C).
ring set (Ø82.5): 616.103.907.05.
Warning: references variables depending on model year, crown angle (22°/30°), compression ratio and selection. Verification by VIN/Type mandatory (Catalog / Classic Genuine Parts).
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
