2.0L 16v - Zetec-E Blacktop US 1998-2004
Manufacturers
2.0L 16v - Zetec-E Blacktop US 1998-2004
Warning: Last items in stock!
New product

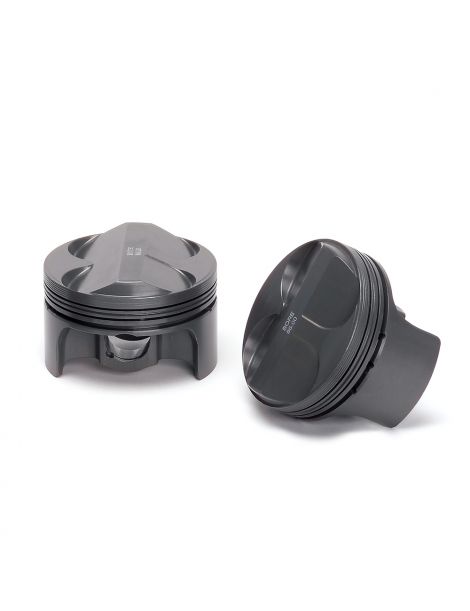

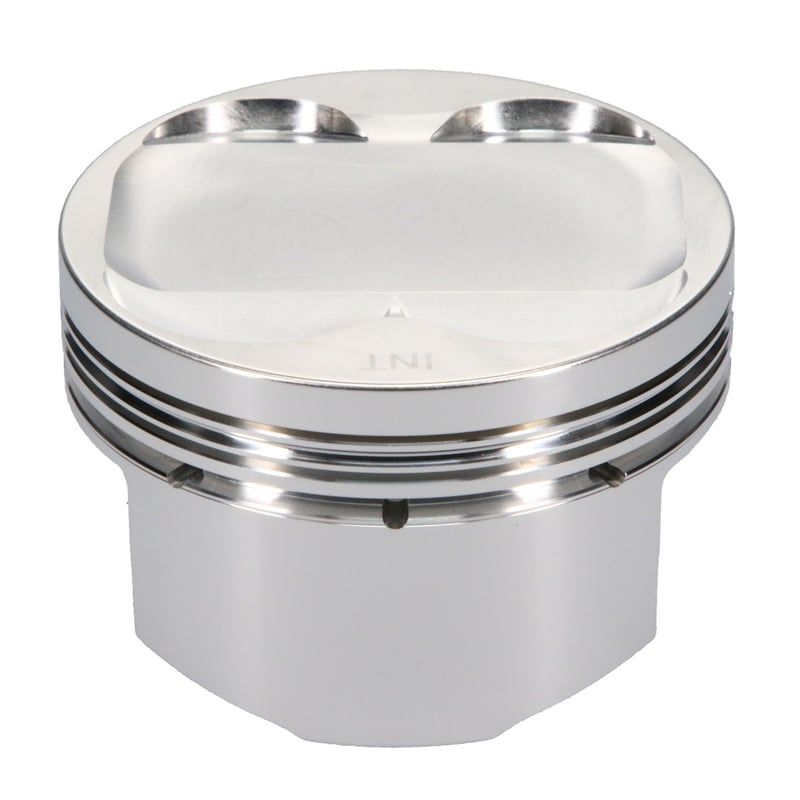

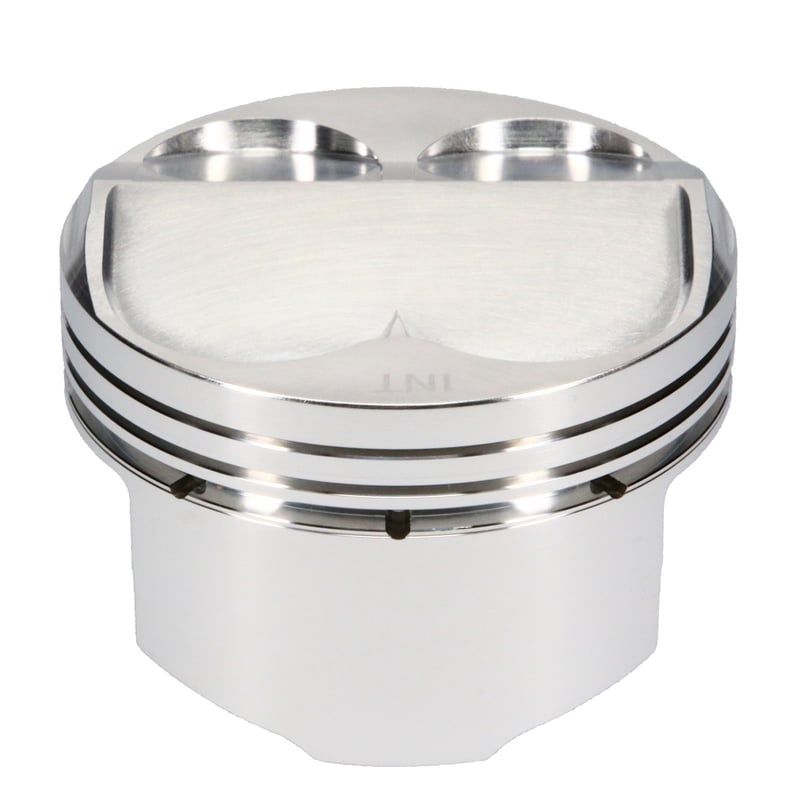

Ford 2.0 Zetec-E Blacktop (US) forged pistons bores 85-85.5 mm, RV 8.7-11:1, axle 20 mm. Applications: Focus Mk1, Escort ZX2, Contour, Mystique, Cougar. JE FSR, Supertech.
Specifications of the forged pistons offered by NSB Concept for Ford 2.0 L 16 v Zandec-E Blacktop (US 1998–2004) :
| Reference piston | Bore (mm)OEM 85 | CROEM 8,7 :1 | pin (mm)OEM 20 | Height pin (mm)OEM 29,75 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P4-FZ85-N9-4 | 85 | 8,7 :1 | 20 | 29,49 | Supertech | 4032 | Crown + Skirt | NC | -9 | 302 | W8500XX |
| JE-298715 | 85 | 9 :1 | 20 | 29,74 | JE FSR | 2618 | Skirt | FSR | -6,6 | 324 | W8500XX |
| P4-FZ85-P3-4 | 85 | 10,6 :1 | 20 | 29,49 | Supertech | 4032 | Crown + Skirt | NC | -2,5 | 302 | W8500XX |
| JE-298717 | 85 | 11 :1 | 20 | 29,75 | JE FSR | 2618 | Skirt | FSR | -2,6 | 324 | W8500XX |
| P4-FZ85.5-N9-4 | 85,5 | 8,7 :1 | 20 | 29,49 | Supertech | 4032 | Crown + Skirt | NC | -9 | 302 | W8550XX |
| P4-FZ85.5-P3-4 | 85,5 | 10,6 :1 | 20 | 29,49 | Supertech | 4032 | Crown + Skirt | NC | -2,5 | 302 | W8550XX |
| JE-298716 | 85,5 | 11 :1 | 20 | 29,75 | JE FSR | 2618 | Skirt | FSR | -2,6 | 324 | NC |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (hp) | Years |
|---|---|---|---|---|---|
| Ford | Contour | CDW27 | Zandec-E 2.0 | 125 | 1998–2000 |
| Ford | Escort ZX2 | NC | Zandec-E 2.0 | 130 | 1998–2003 |
| Ford | Focus Mk1 | C170 | Zandec-E 2.0 | 130 | 2000–2004 |
| Mercury | Cougar | CDW27 | Zandec-E 2.0 | 125 | 1999–2002 |
| Mercury | Mystique | CDW27 | Zandec-E 2.0 | 125 | 1998–2000 |
Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
