Reduced price! MERCEDES référence R-MER-001-I Kit 4 bielles forgées en I ZRP avec vis ARP View larger

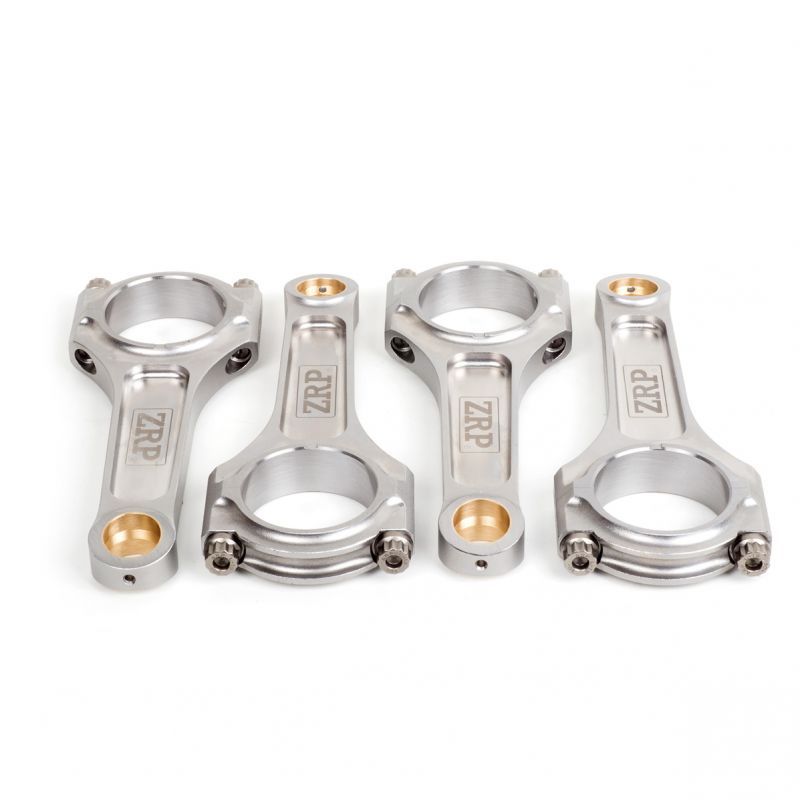

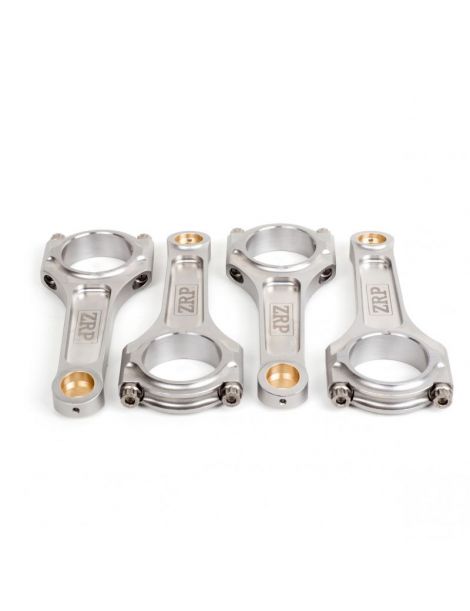

Connecting rods forged I-shaped ZRP MERCEDES 2.0L 16v M133 M139 Mercedes

R-MER-001-I (147939)

New product

High-quality Connecting rods forged I-shaped ZRP MERCEDES 2.0L 16v M133 M139 Mercedes (Connecting rods forged I-shaped ZRP MERCEDES 2.0L 16v) for reliable fitment and performance.

More details

451,92 € tax incl.

-30%

645,60 € tax incl.

  • The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed for your MERCEDES A45 AMG 2.0 16V 133980 Connecting rods forged in 4340 High Tensile Steel in order to accept strong boosts on your 133980 engine and Rod bolts ARP2000 for large increases in engine speed.

    The head of the ZRP forged Connecting rods for MERCEDES A45 AMG 2.0 16V 133980 is equipped with a ring machined from hot extruded cuPro-aluminum alloy patented AMPCO 18 before being ground to ensure maintenance of the oil film with your Piston pin / Gudgeon pin.

    The design of this ZRP forged I-shaped Connecting rod for MERCEDES A45 AMG 2.0 133980 gives it exceptional resistance to significant increases in power and torque by high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

    Features:

    • Pin: 138.70mm
    • Foot diameter: 51.60mm
    • Foot width: 20.00mm
    • Piston pin / Gudgeon pin diameter: 22.00mm
    • Rod bolts supplied: ARP2000
    • Thread of screws provided: 3/8"
    • Weight: 602gr
    • Maximum admissible power: 800hp

    Lexicon:

    1)Small End
    2) Foot diameter
    3) Connecting rod CoRPS
    4) Rod bolt
    5) Big End
    6) Nut
    7) Connecting rod cap
    8) Head diameter
    9) EntrPin

    When you upgrade your 133980 engine to a forged engine, it is recommended to mount forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your original Pistons with forged Pistons.

    Find the Forged Pistons for your MERCEDES A45 AMG 2.0 16V 133980 (if your engine has more than 50,000km, it is recommended to take an extra cost and carry out a repair of the cylinders followed by honing of the barrels):

    Forged pistons

    Find the Connecting rods Bearings for your ZRP forged Connecting rods for your MERCEDES A45 AMG 2.0 16V 133980:

    BearingS of Connecting rodS

    Find this kit with reinforced rod bolts ARP L19 and ARP 625+ for your MERCEDES A45 AMG 2.0 16V 133980:

    Connecting rodS ForgeES ZRP WITH SCREWS ARP L19 OR 625+

Pack content
