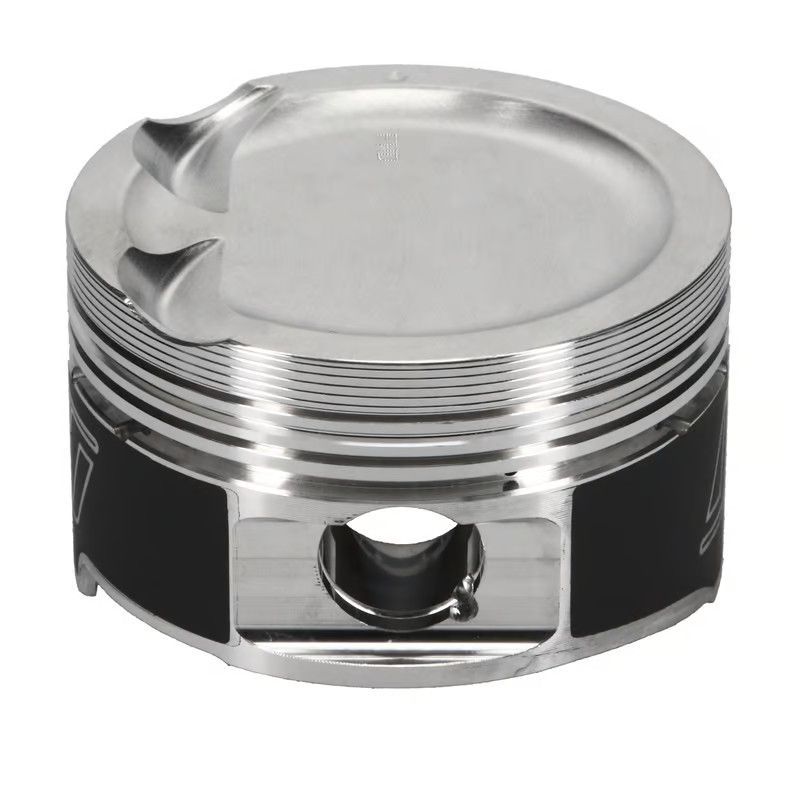

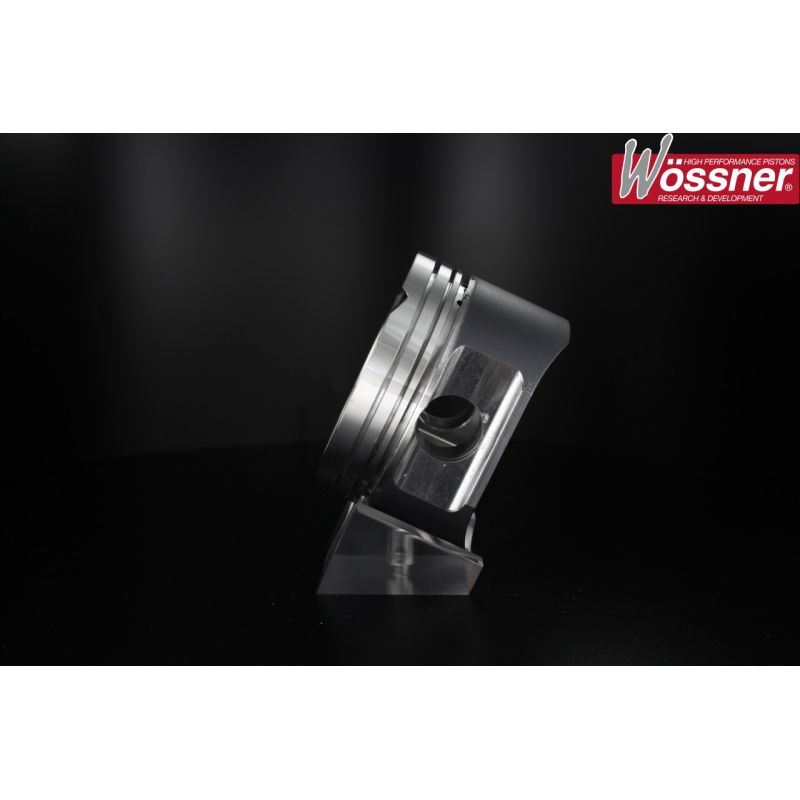

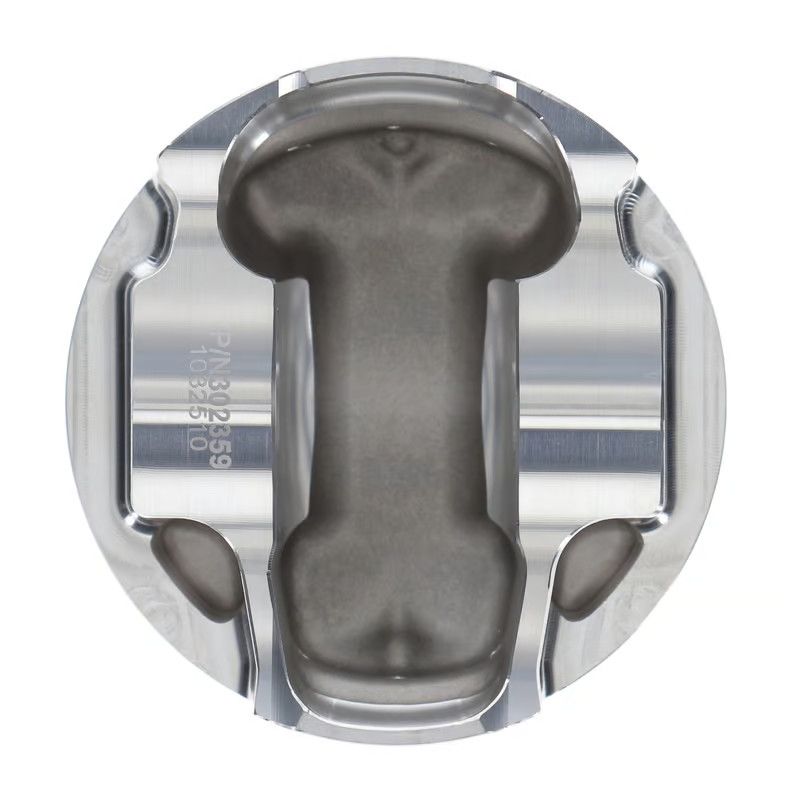

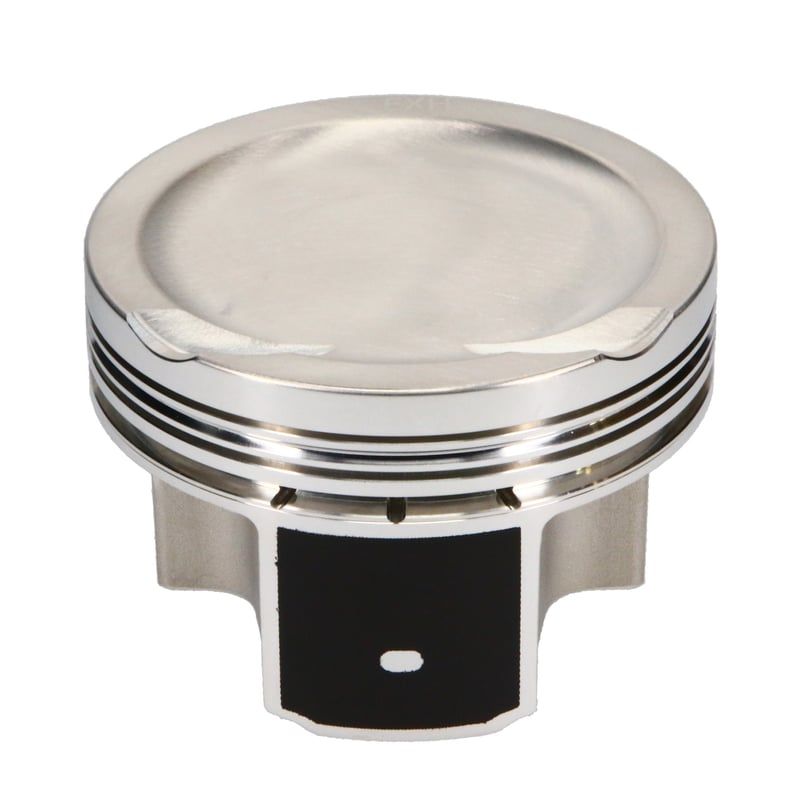

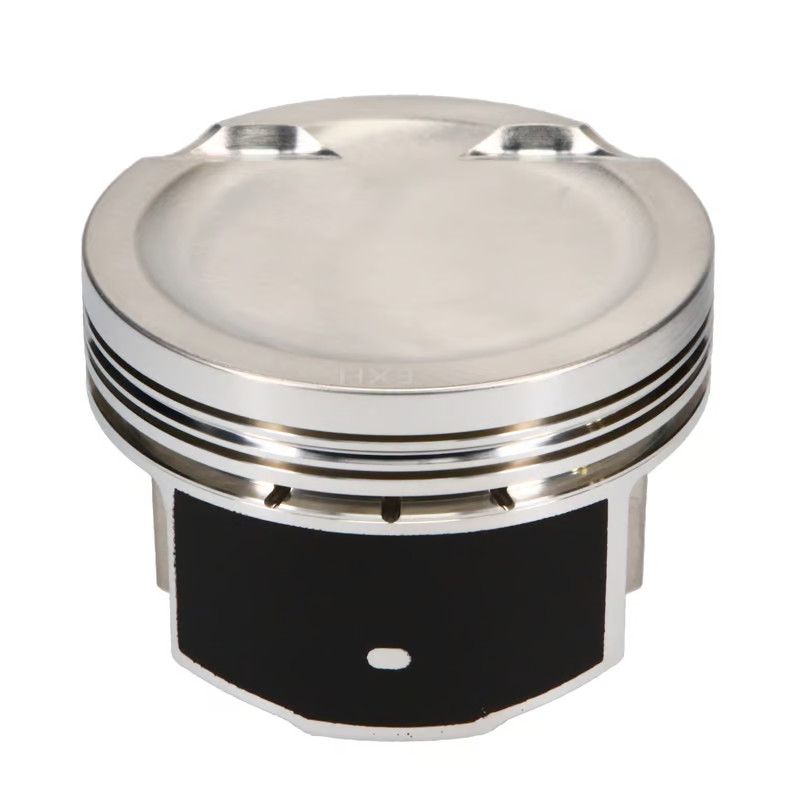

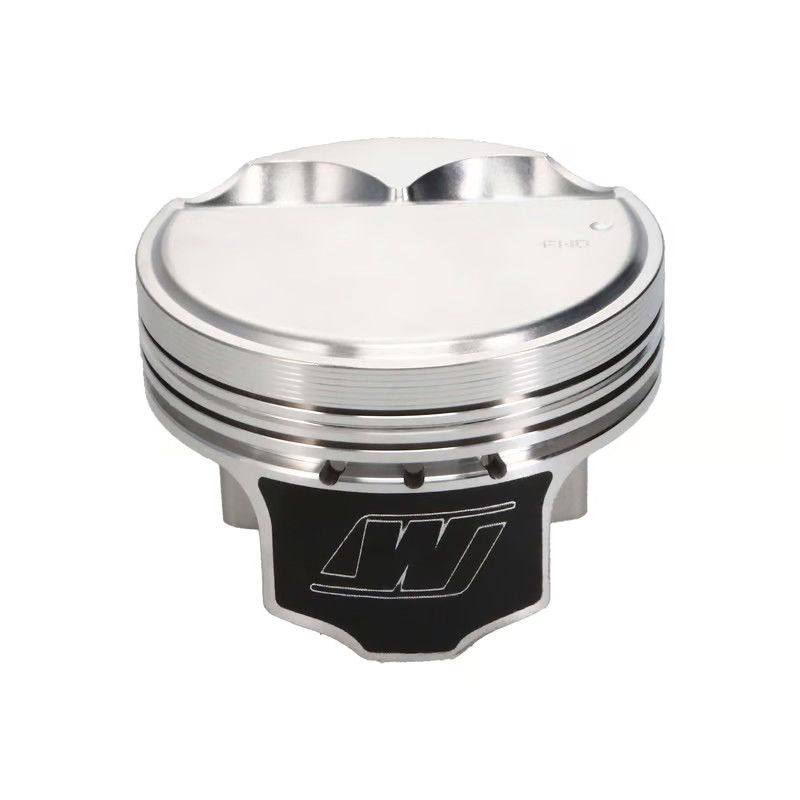

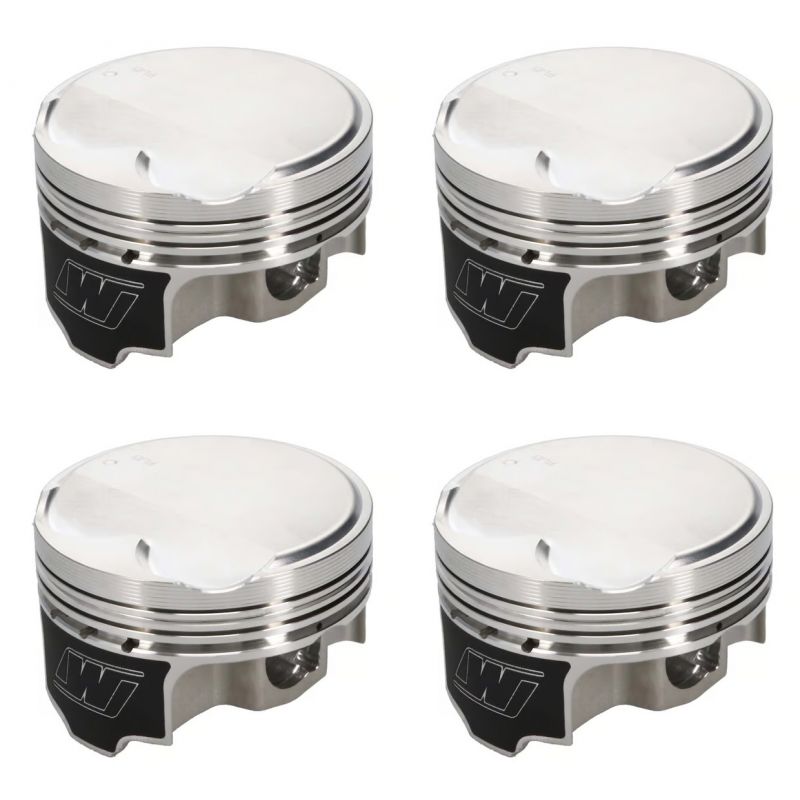

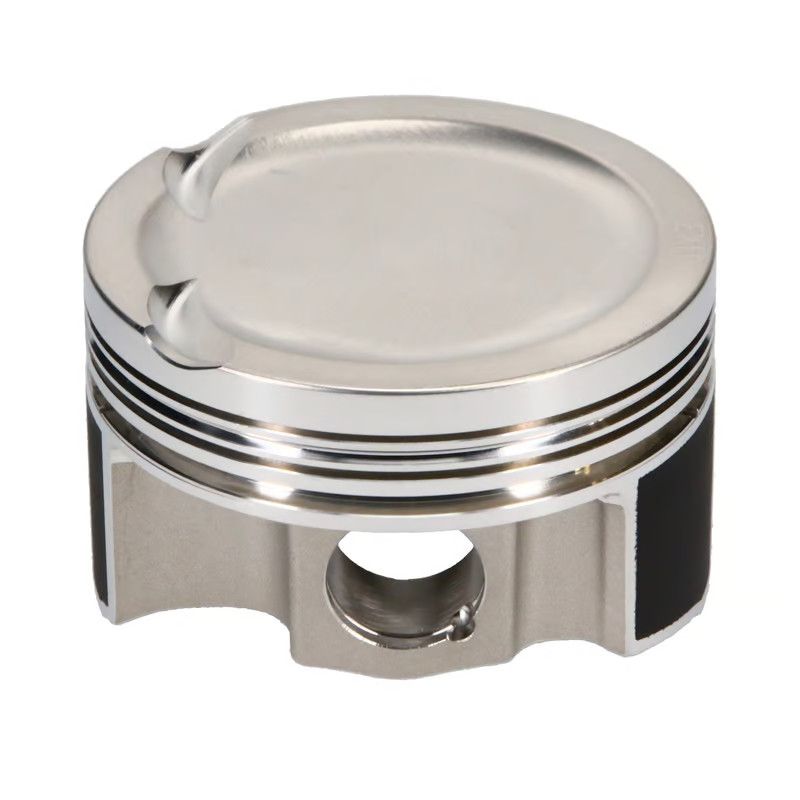

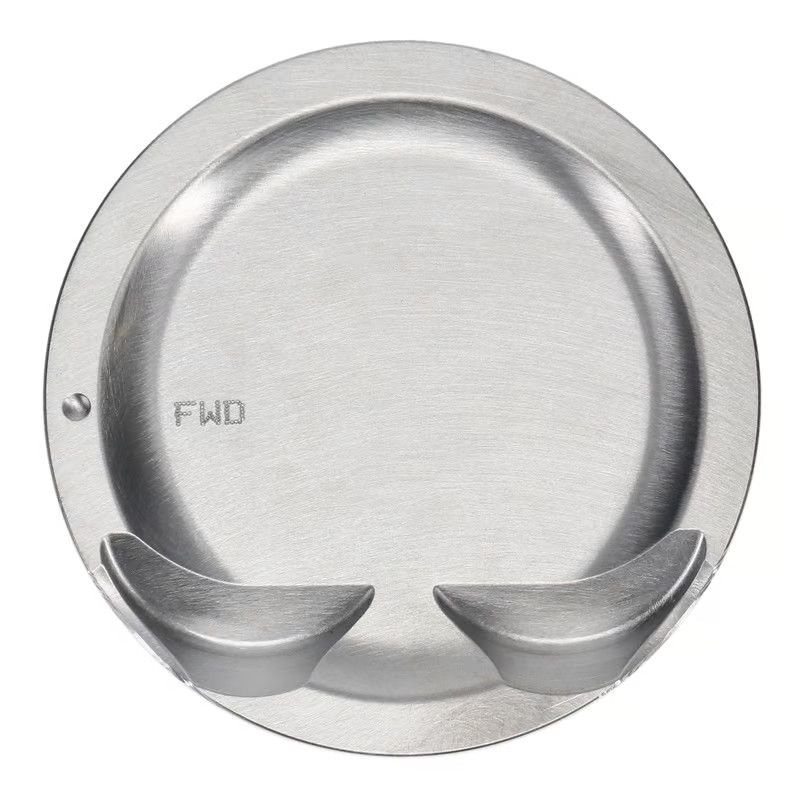

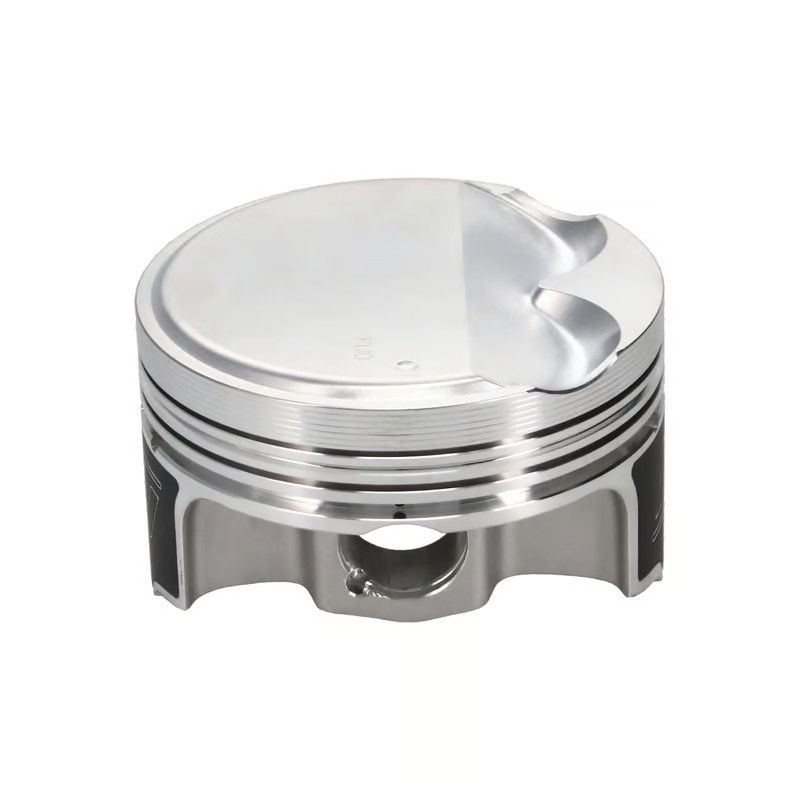

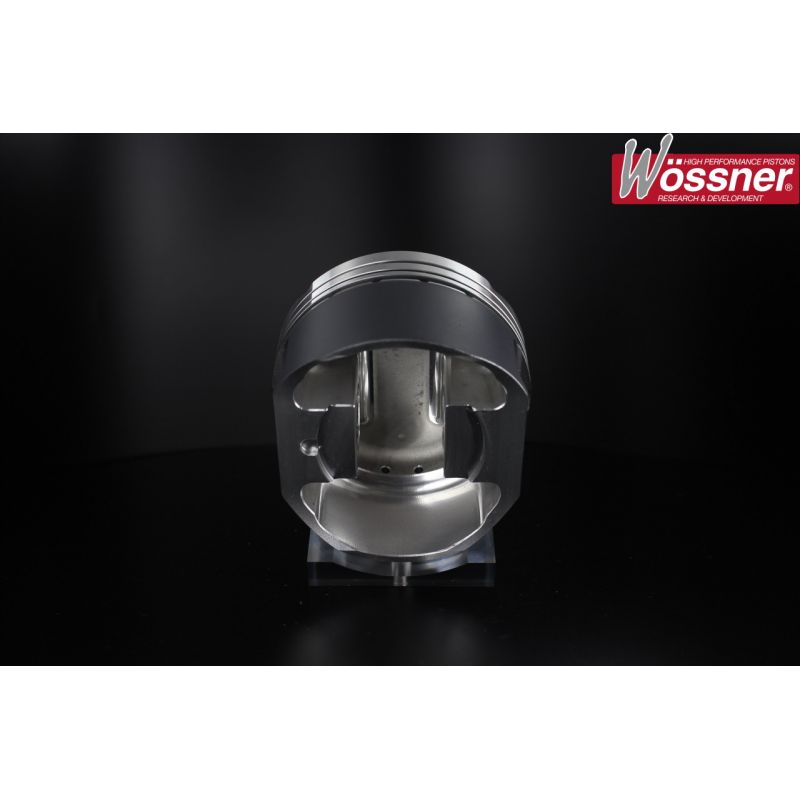

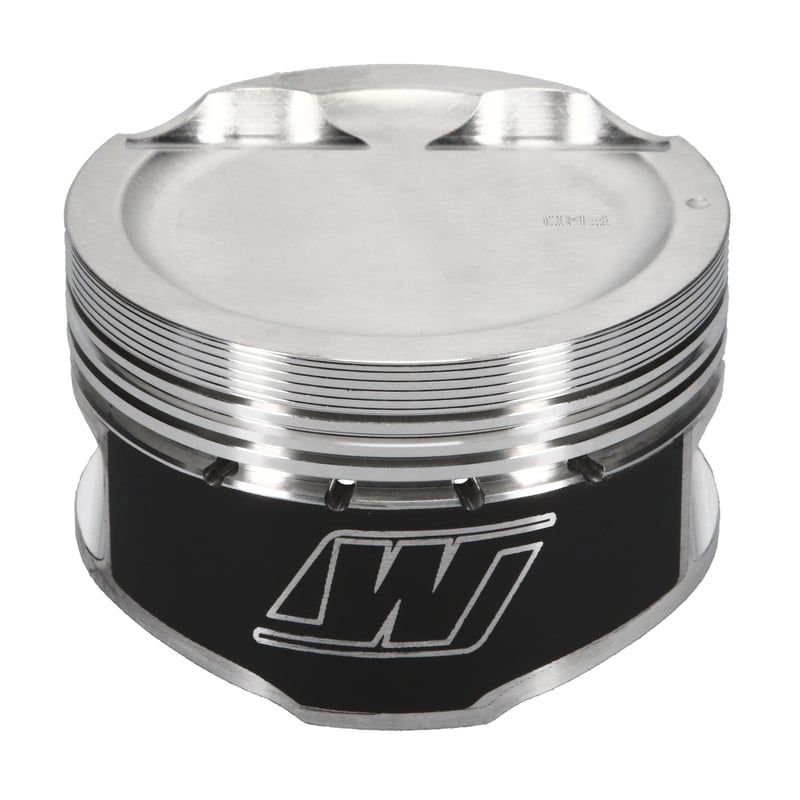

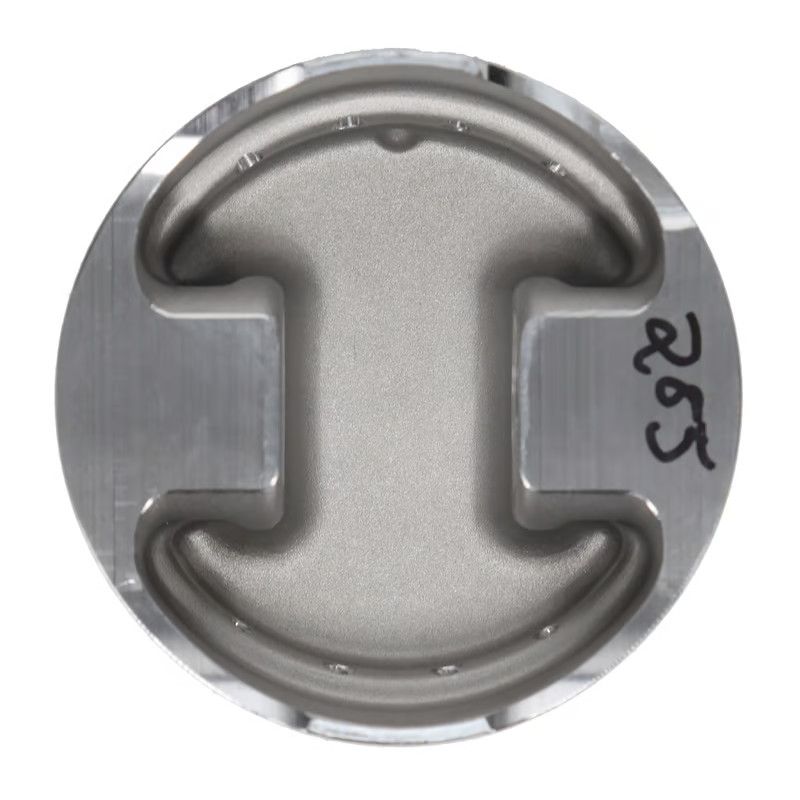

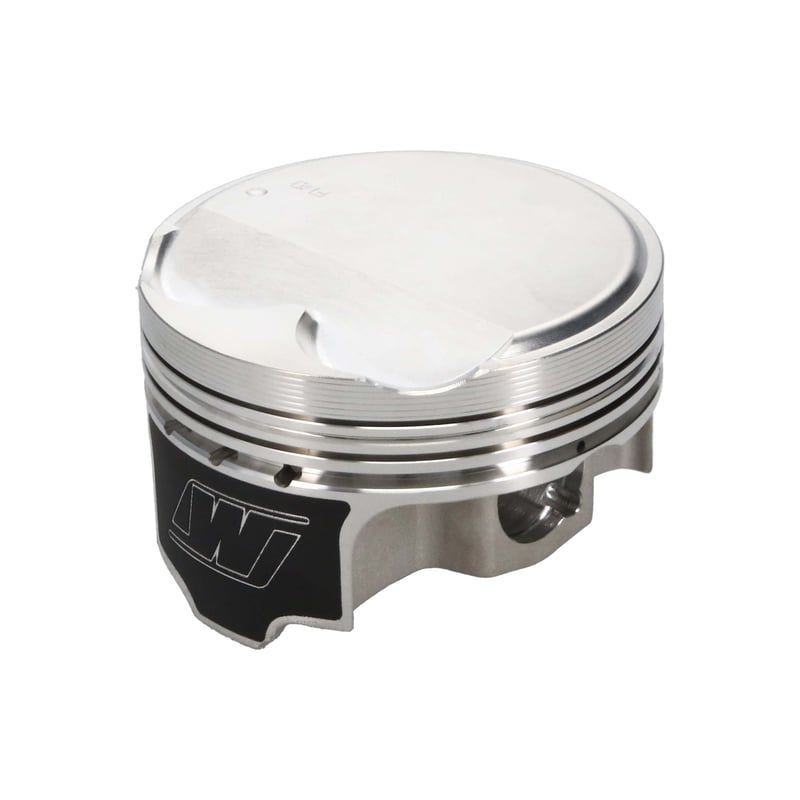

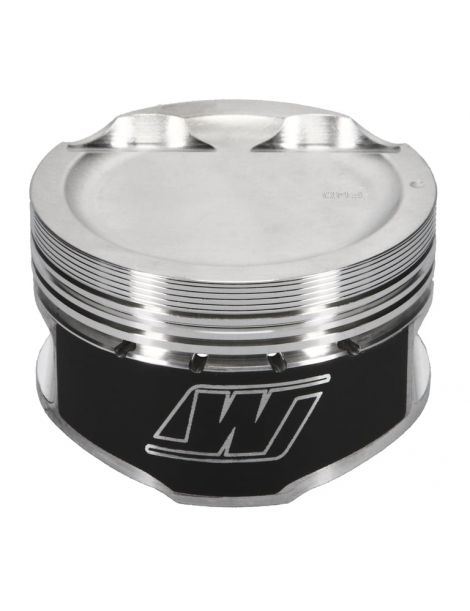

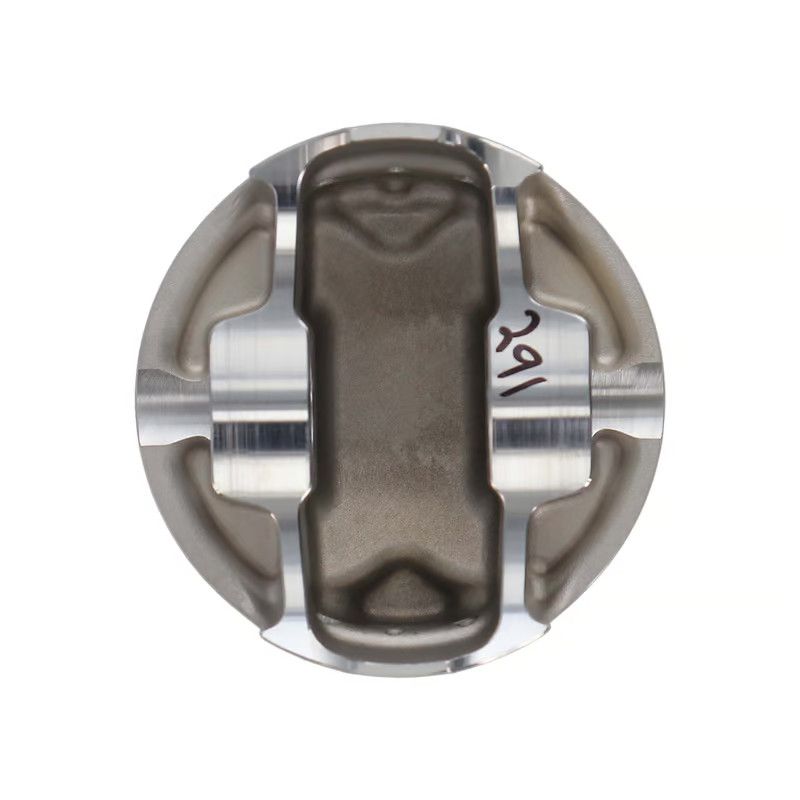

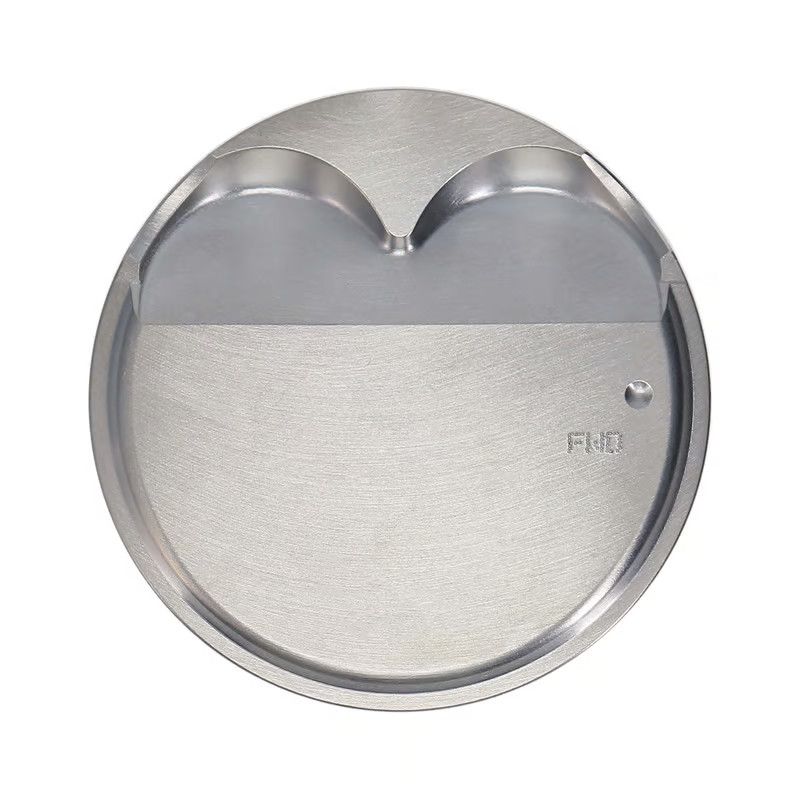

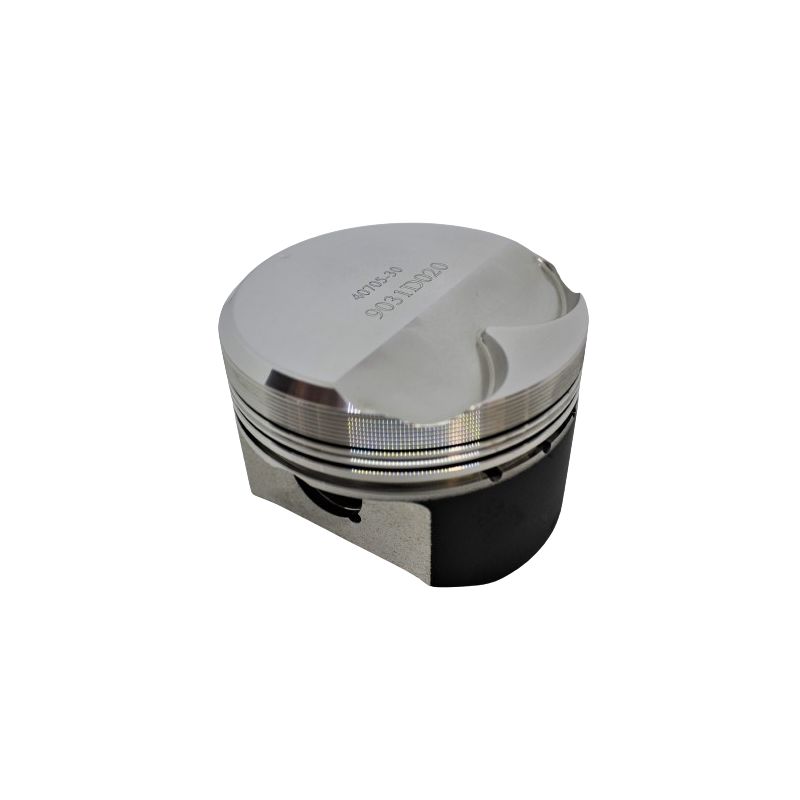

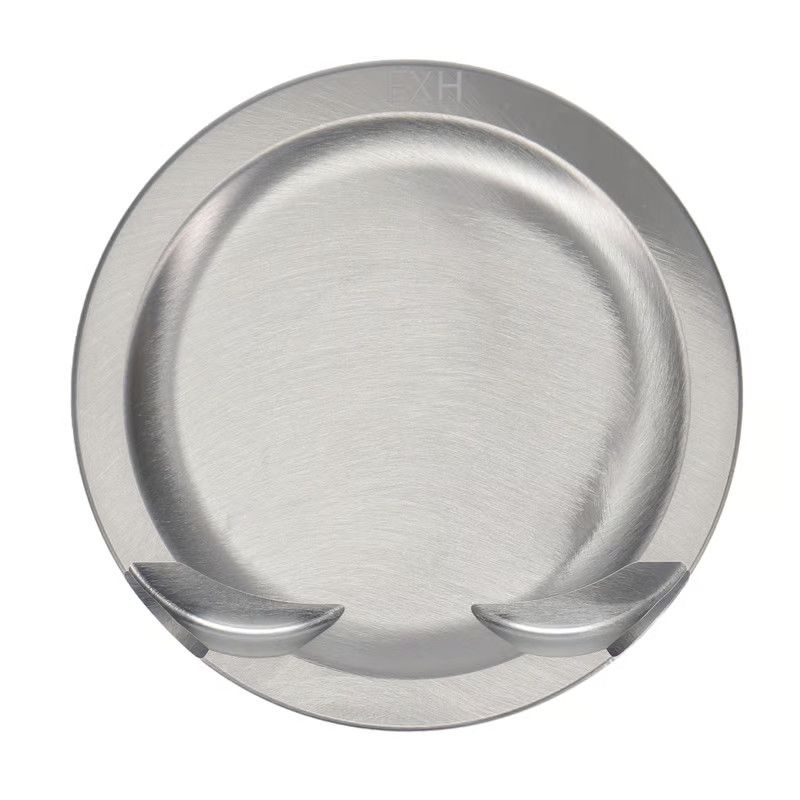

Forged pistons VW 2.0 16V 9A (EA827), Bores 82.5 83.5 mm, Pin 20 mm, Dome/Weight according to ref. compatible with Passat B3 2.0 16V, Corrado 2.0 16V, Golf 2 GTI 16V (NA),
Characteristics of the forged pistons offered by NSB Concept for Volkswagen 2.0 L 16 V (9A, EA827 engine):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9205DA | 82.5 | 8:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | -20.1 cc | N/A | 825XPY |
| WK612M825 | 82.5 | 9:1 | 3.248 | 29.77 | Wiseco | Skirt | 2618.0 | N/A | -11.0 cc | N/A | 8250XX |
| K9031DA | 82.5 | 12.5:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | 7.8 cc | N/A | 825XSY |

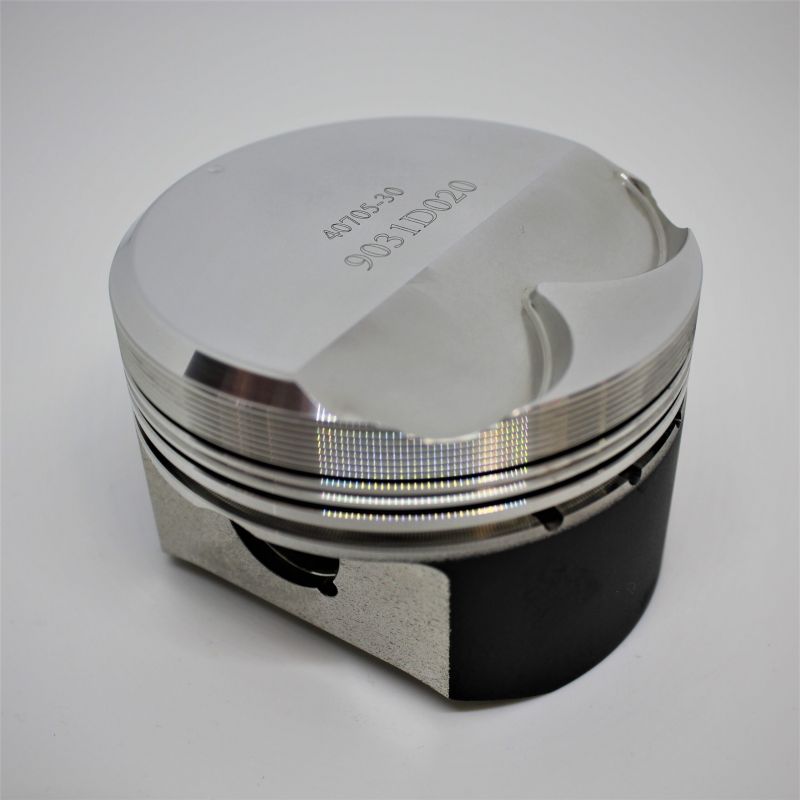

| K9031D020 | 82.7 | 12.6:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | 7.8 cc | N/A | 827XSY |
| K9205D050 | 83.0 | 8.1:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | -20.1 cc | N/A | 830XPY |
| JE-301937 | 83.0 | 8.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | -15.0 cc | 276 | N/A |
| WK612M83 | 83.0 | 9:1 | 0.02 | 29.77 | Wiseco | Skirt | 2618.0 | N/A | -11.0 cc | N/A | 8300XX |
| JE-301938 | 83.0 | 9.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | -7.0 cc | 281 | N/A |
| P4-VW16-9A-83F-4 | 83.0 | 10:1 | 20.0 | 29.9 | Supertech | Head + Skirt | N/A | N/A | FT | N/A | W8300XX |
| WK611M83 | 83.0 | 11:1 | 0.02 | 29.77 | Wiseco | Skirt | 2618.0 | N/A | 4.0 cc | N/A | 8300XX |
| JE-301939 | 83.0 | 11.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | 4.1 cc | 292 | N/A |
| K9031D050 | 83.0 | 12.6:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | 7.8 cc | N/A | 830XSY |

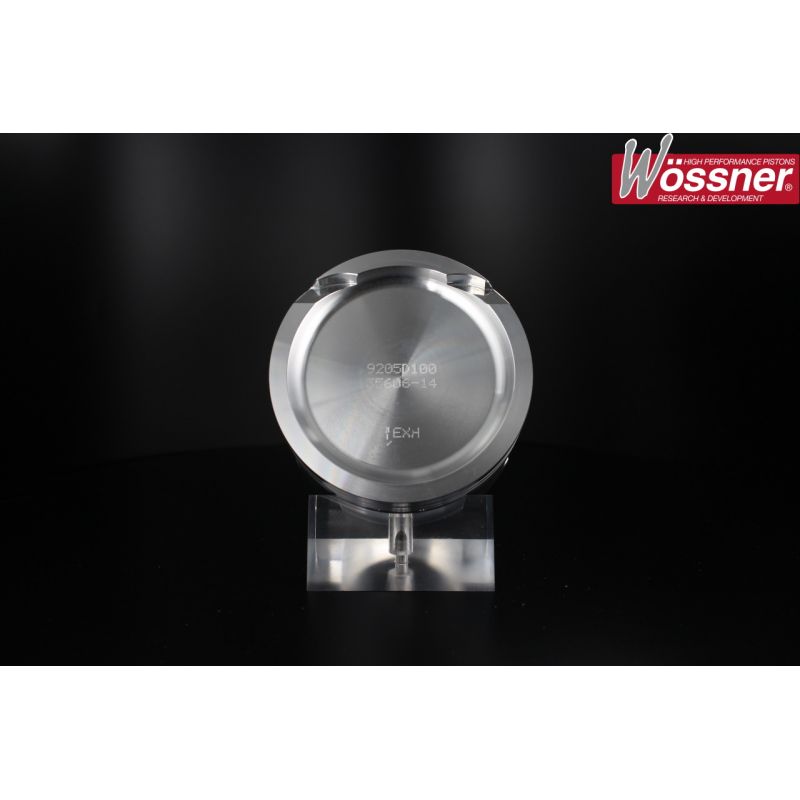

| K9205D100 | 83.5 | 8.2:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | -20.1 cc | N/A | 835XPY |
| JE-301940 | 83.5 | 8.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | -15.7 cc | 281 | N/A |
| WK612M835 | 83.5 | 9:1 | 0.04 | 29.77 | Wiseco | Skirt | 2618.0 | N/A | -11.0 cc | N/A | 8350XX |
| JE-301941 | 83.5 | 9.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | -7.4 cc | 286 | N/A |
| P4-VW16-9A-83.5F-4 | 83.5 | 10:1 | 20.0 | 29.9 | Supertech | Head + Skirt | N/A | N/A | FT | N/A | W8350XX |
| WK611M835 | 83.5 | 11:1 | 0.04 | 29.77 | Wiseco | Skirt | 2618.0 | N/A | 4.0 cc | N/A | 8350XX |
| JE-301942 | 83.5 | 11.5:1 | 20.0 | 29.59 | JE FSR | N/A | 2618.0 | FSR | 3.7 cc | 295 | N/A |
| K9031D100 | 83.5 | 12.8:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | 7.8 cc | N/A | 835XSY |
| K9031D150 | 84.0 | 12.9:1 | 20.0 | 30.2 | Wossner | N/A | N/A | Round | 7.8 cc | N/A | 840XSY |
Compatibilities (engine codes):
9A 2.0 16V DOHC (EA827)
Original vehicles equipped with 2.0 16V (9A engine):
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| Volkswagen | Corrado 2.0 16V | 9A | 136 hp | 1992 1995 |
| Volkswagen | Golf 2 GTI 16V (NA) | 9A | 134 hp | 1990 1992 |
| Volkswagen | Jetta 2 GLI 16V (NA) | 9A | 134 hp | 1990 1992 |
| Volkswagen | Passat B3 2.0 16V | 9A | 136 hp | 1989 1993 |
Piston manufacturer references (OEM):
Volkswagen 2.0 16V (9A / 6A / ACE EA827 family, depending on models)
:
053 107 065 F
,
053 107 065 H
,
053 107 065 B
,
053 107 103 B
(depending on vintages and markets).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
