2.0L 16v - 4G63 7-bolt
Fabricants
2.0L 16v - 4G63 7-bolt
Attention : dernières pièces disponibles !
Neuf

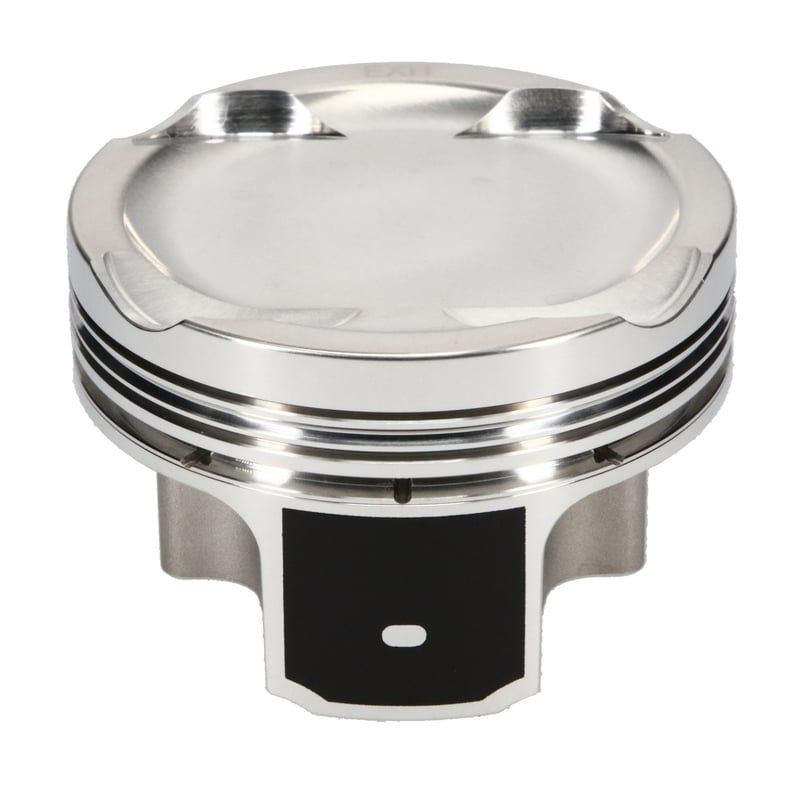

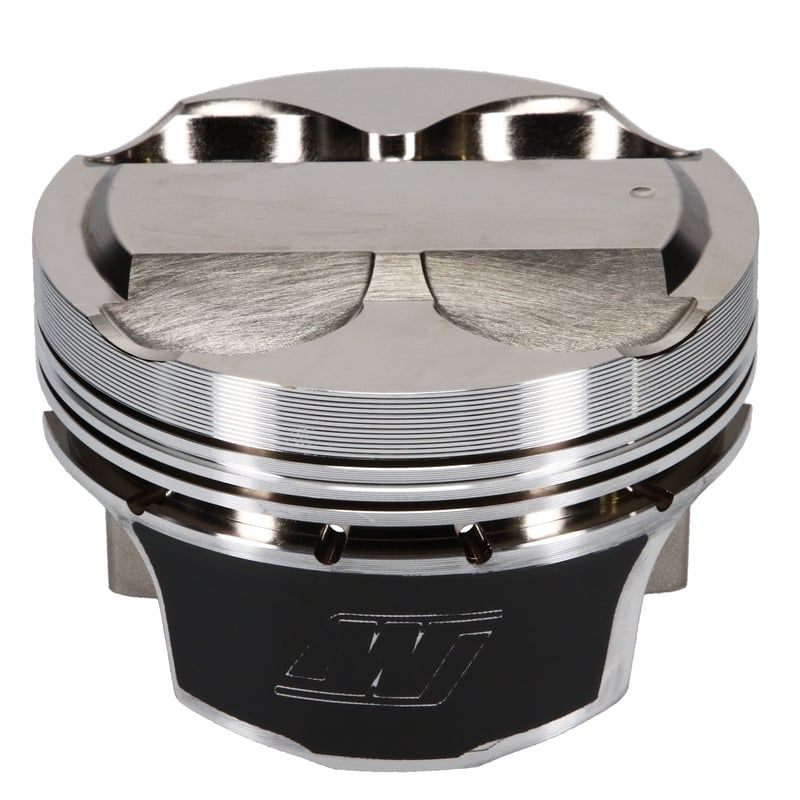

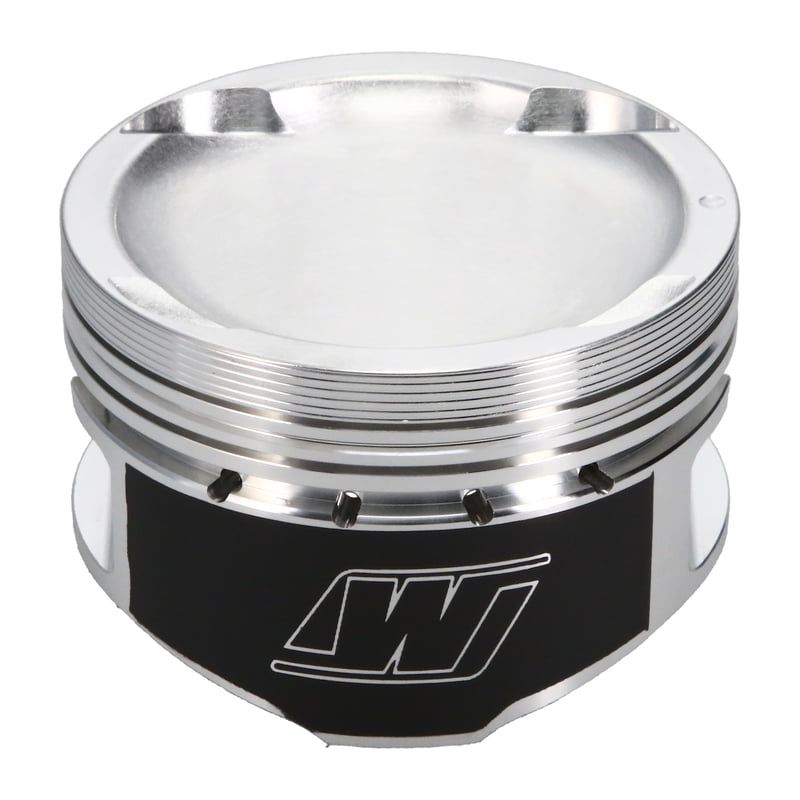

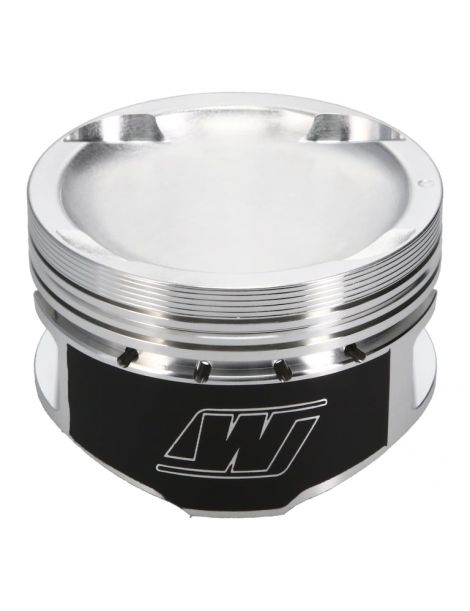

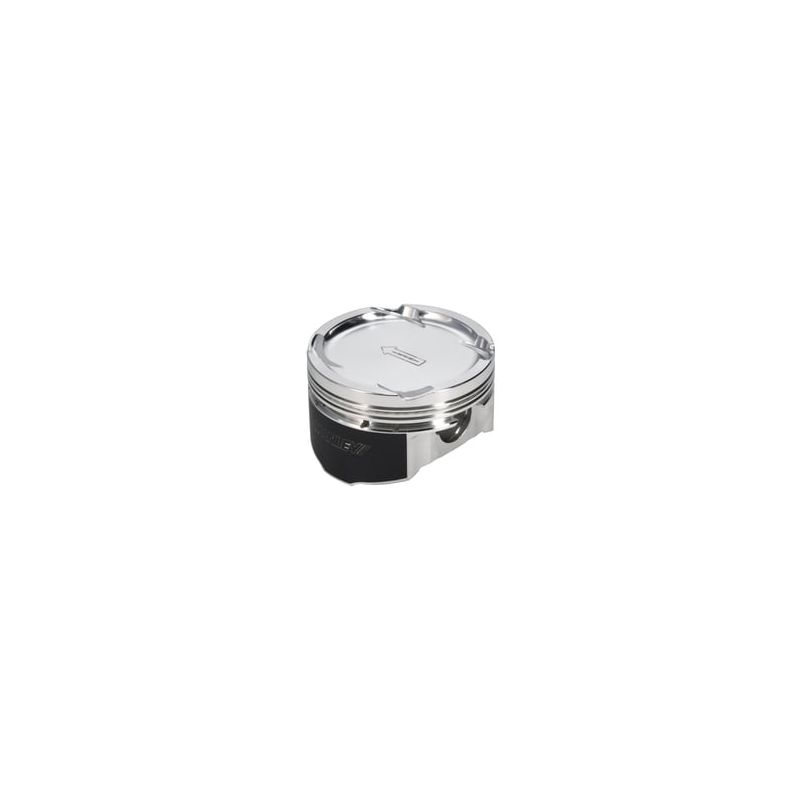

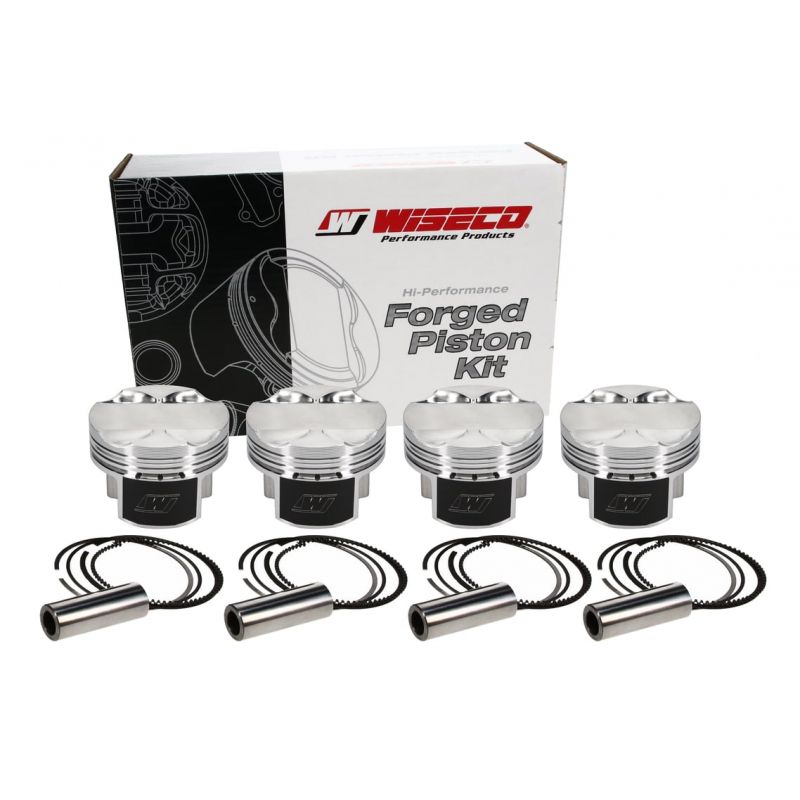

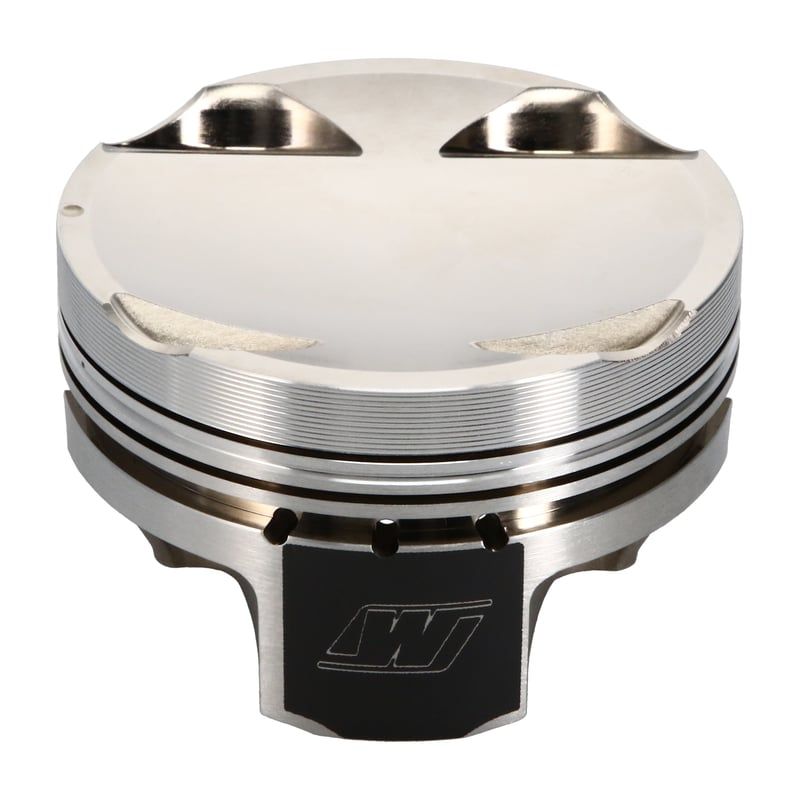

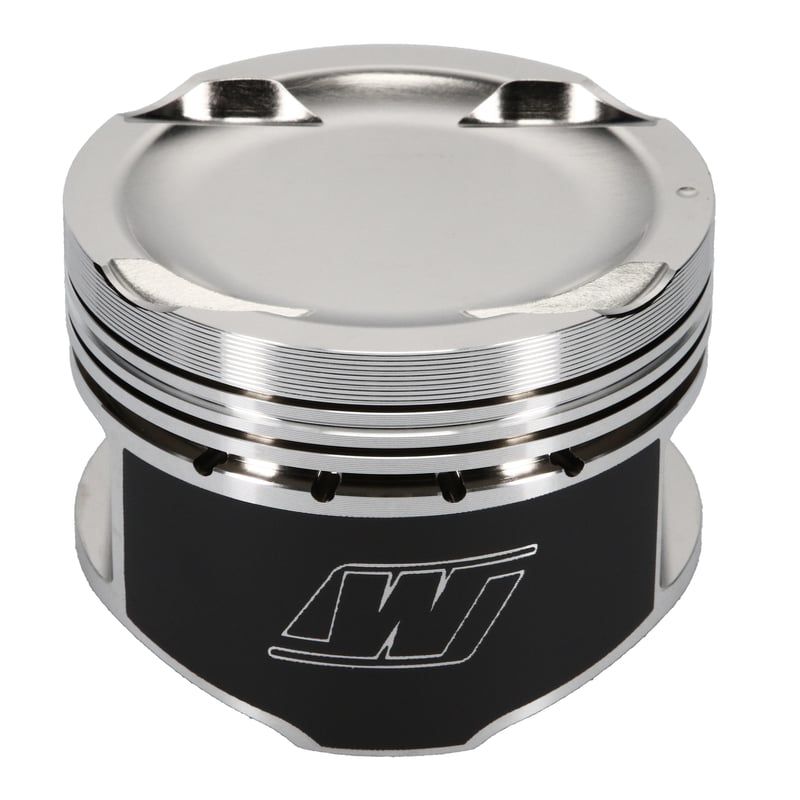

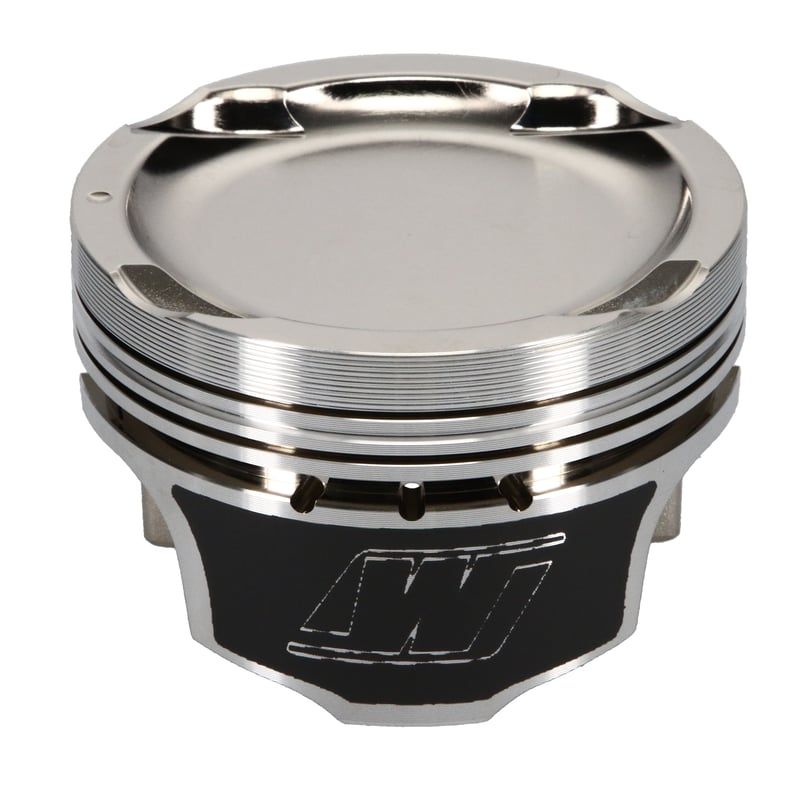

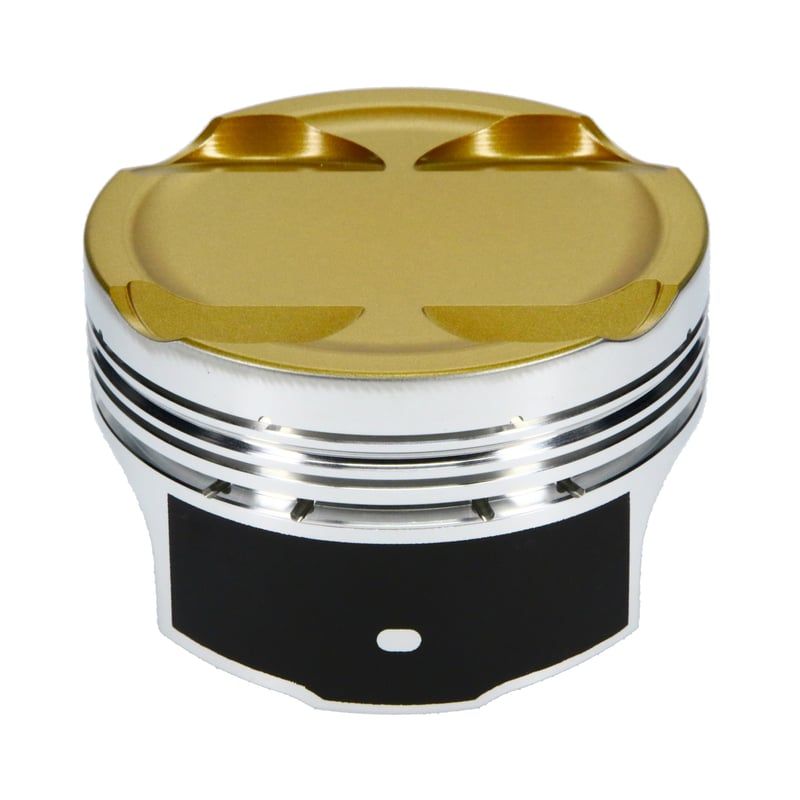

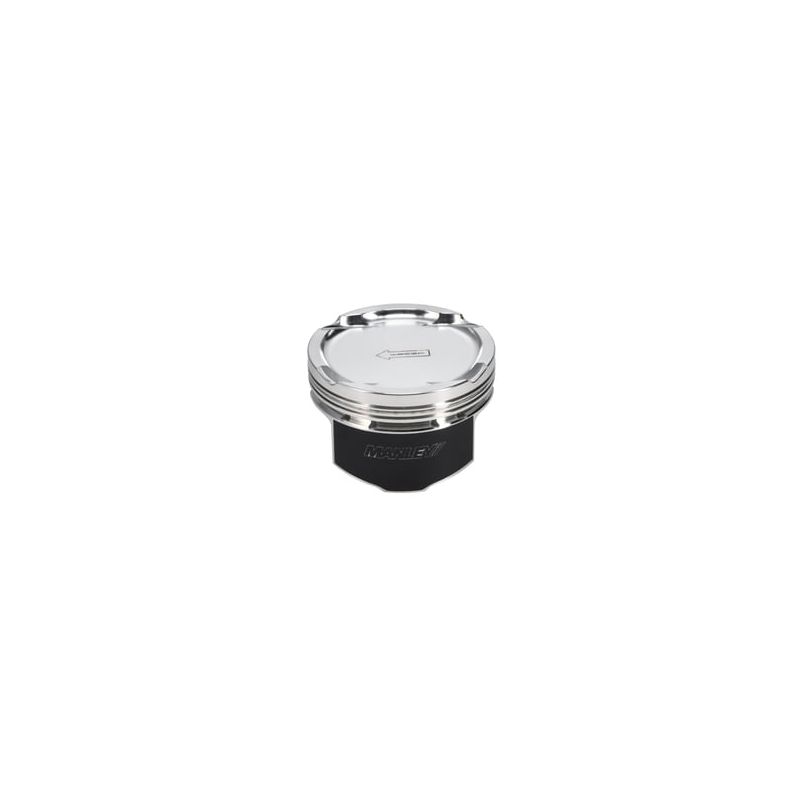

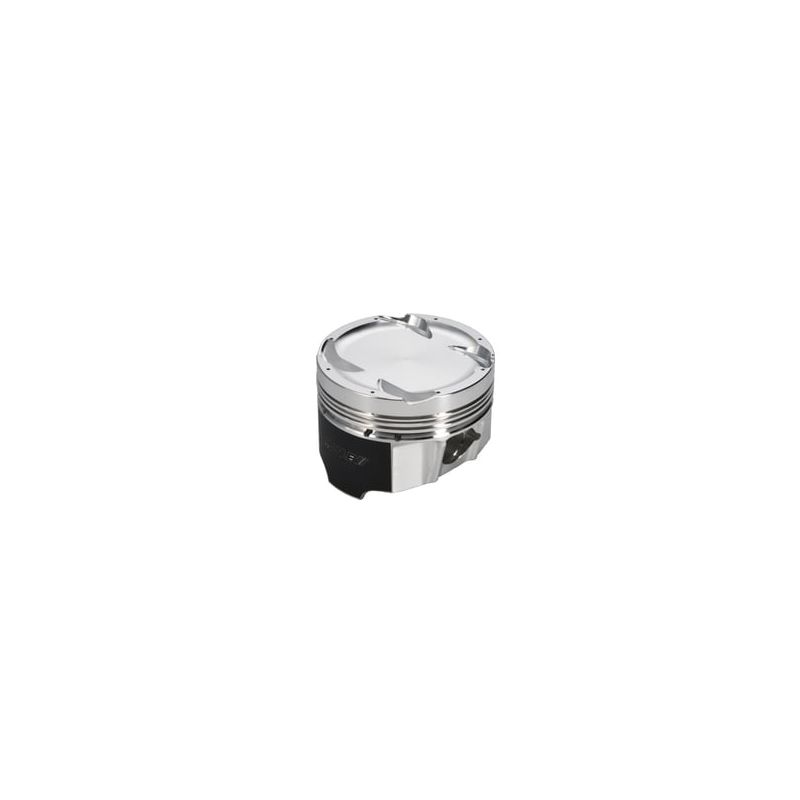

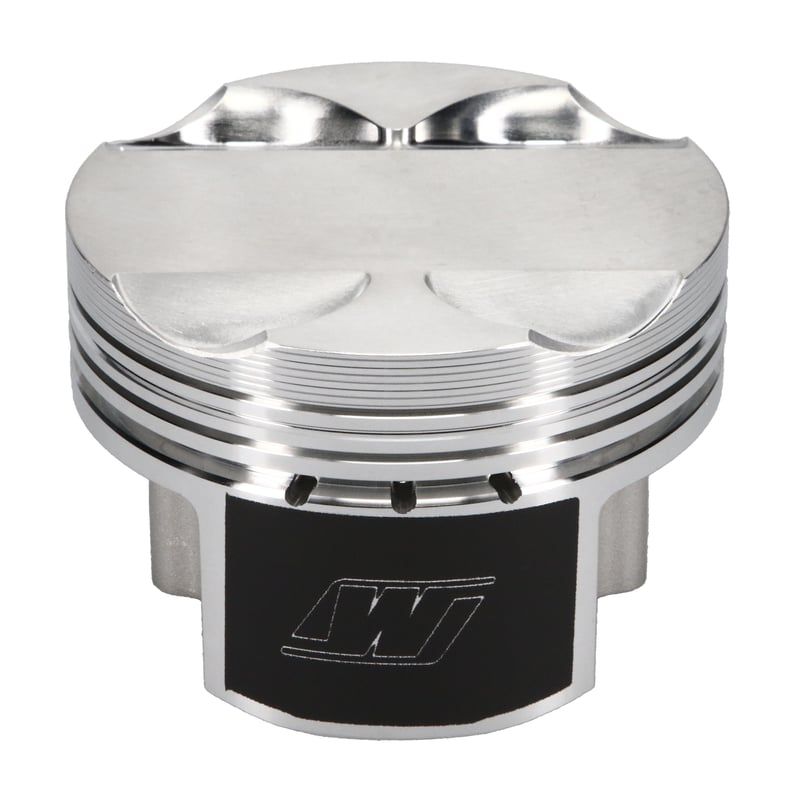

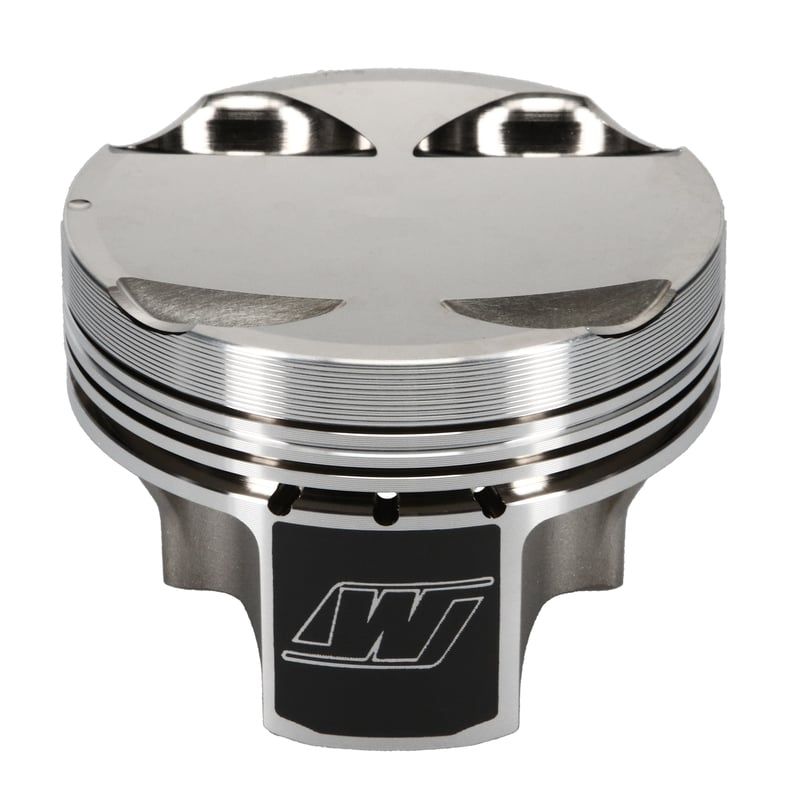

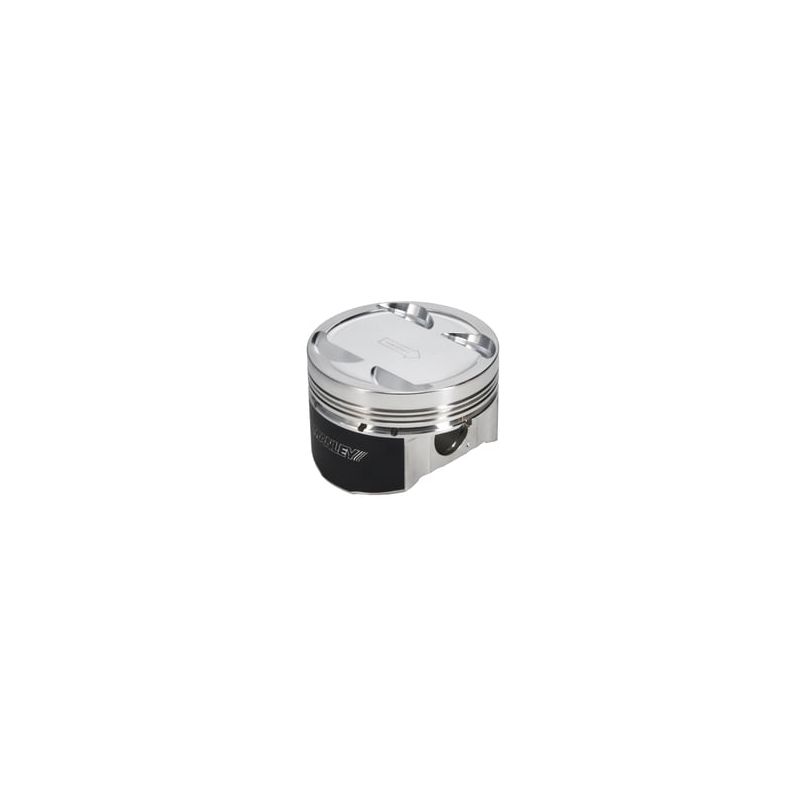

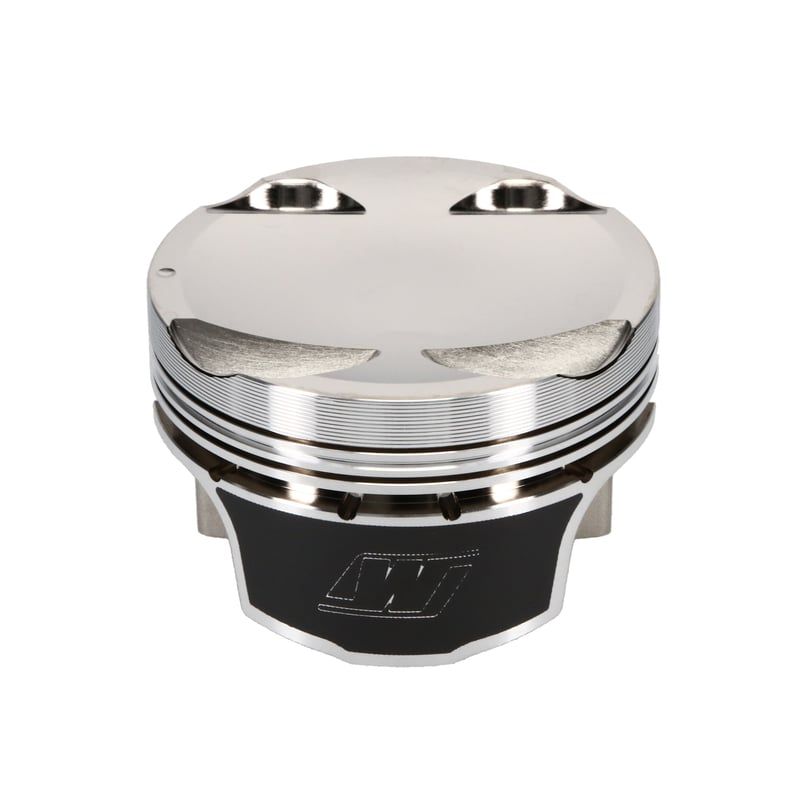

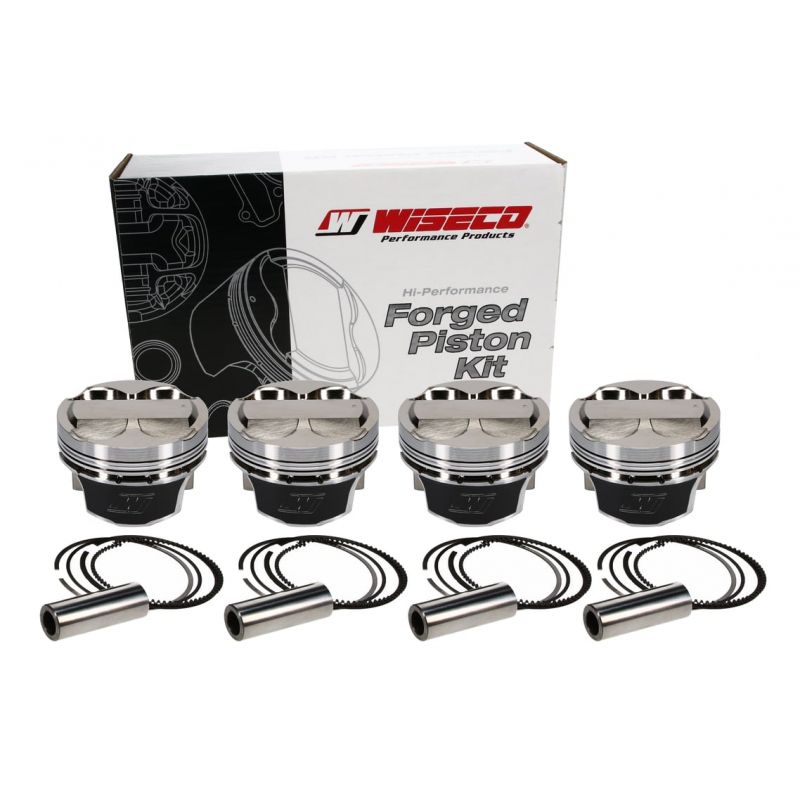

Pistons forgés 2,3–2,4 L (stroker) pour 4G63 7-bolt avec vilebrequin 4G64 : Ø et RV selon toutes vos déclinaisons du tableau, Référence copiée mot pour mot depuis votre Excel. Réfs OEM Evo 8/9 intégrées (Evo 8 : 1110A223 / 1110A227 ; Evo 9 : 1110B073 / MD375690
Caractéristiques des pistons forgés pour moteurs 2,3–2,4 L (stroker) 4G63 7‑bolt avec vilebrequin 4G64 :
| Référence | Alésage (mm) | RV | Axe (mm) | Hauteur axe (mm) | Gamme | Traitement | Aluminium | Forging | Volume dôme (cc) | Poids (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-361290 | 85 | 10 :1 | 22 | 28,70 | JE Ultra Series | Tête + Jupe | 2618.0 | FSR | -12,50 | 287 | — |
| WK675M85 | 85 | 10 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -4 | — | 8500XX+GLS22 |
| WK675M85AP | 85 | 10 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -4 | — | 8500XX+GLS22 |
| 617200CE-4 | 85 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -2,50 | 331 | — |
| WK676M85 | 85 | 11 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | 1,90 | — | 8500XX+GLS22 |
| WK676M85AP | 85 | 11 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | 1,90 | — | 8500XX+GLS22 |
| WK667M85 | 85 | 8,2 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -17 | — | 8500XX+GLS22 |
| WK667M85AP | 85 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -17 | — | 8500XX+GLS22 |
| JE-297047 | 85 | 8,5 :1 | 22 | 28,70 | JE FSR | — | 2618.0 | FSR | -21,70 | 272 | — |
| WK627M85 | 85 | 8,5 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8500XX+GLS32 |
| WK627M85AP | 85 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8500XX+GLS32 |
| 608000C-4 | 85 | 9 :1 | — | 28,70 | Manley | Jupe | 4032.0 | — | -22 | 291 | — |
| 617000C-4 | 85 | 9 :1 | — | 28,70 | Manley | Jupe | 4032.0 | — | -12 | 309 | — |
| 608000CE-4 | 85 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -22 | 291 | — |
| 617000CE-4 | 85 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 309 | — |
| 617100CE-4 | 85 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 327 | — |
| WK596M85 | 85 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8500XX+GLS22 |
| WK674M85 | 85 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -12 | — | 8500XX+GLS22 |
| WK669M85 | 85 | 9 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -10 | — | 8500XX+GLS22 |
| WK596M85AP | 85 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8500XX+GLS22 |
| WK674M85AP | 85 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -12 | — | 8500XX+GLS22 |
| WK669M85AP | 85 | 9 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -10 | — | 8500XX+GLS22 |
| K9503DA | 85 | 9 :1 | 22 | 28,30 | Wossner | — | — | — | -5,20 | — | 850XPY |
| K9241DA | 85 | 9 :1 | 22 | 28,30 | Wossner | — | — | Round | -14 | — | 850XTY |
| WK675M8525 | 85,25 | 10 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -4 | — | 8525XX+GLS22 |
| WK675M8525AP | 85,25 | 10 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -4 | — | 8525XX+GLS22 |
| 617202CE-4 | 85,25 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -2,50 | 335 | — |
| WK676M8525 | 85,25 | 11 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | 1,90 | — | 8525XX+GLS22 |
| WK676M8525AP | 85,25 | 11 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | 1,90 | — | 8525XX+GLS22 |
| WK667M8525 | 85,25 | 8,2 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -17,30 | — | 8525XX+GLS22 |
| WK667M8525AP | 85,25 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -17,30 | — | 8525XX+GLS22 |
| WK627M8525 | 85,25 | 8,5 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8525XX+GLS32 |
| WK627M8525AP | 85,25 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8525XX+GLS32 |
| 617102CE-4 | 85,25 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 329 | — |
| WK596M8525 | 85,25 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8525XX+GLS22 |
| WK674M8525 | 85,25 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -12 | — | 8525XX+GLS22 |
| WK669M8525 | 85,25 | 9 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -10,30 | — | 8525XX+GLS22 |
| WK596M8525AP | 85,25 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8525XX+GLS22 |
| WK674M8525AP | 85,25 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -12 | — | 8525XX+GLS22 |
| WK669M8525AP | 85,25 | 9 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -10,30 | — | 8525XX+GLS22 |
| JE-361291 | 85,50 | 10 :1 | 22 | 28,70 | JE Ultra Series | Tête + Jupe | 2618.0 | FSR | -13,20 | 289 | — |
| WK675M855 | 85,50 | 10 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -4 | — | 8550XX+GLS22 |
| WK675M855AP | 85,50 | 10 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -4 | — | 8550XX+GLS22 |
| 617005C-4 | 85,50 | 10,5 :1 | — | 28,70 | Manley | Jupe | 4032.0 | — | -12 | 314 | — |
| 617005CE-4 | 85,50 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 314 | — |
| 617205CE-4 | 85,50 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -2,50 | 335 | — |
| WK676M855 | 85,50 | 11 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | 1,90 | — | 8550XX+GLS22 |
| WK676M855AP | 85,50 | 11 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | 1,90 | — | 8550XX+GLS22 |
| WK667M855 | 85,50 | 8,2 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -17,70 | — | 8550XX+GLS22 |
| WK667M855AP | 85,50 | 8,2 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -17,70 | — | 8550XX+GLS22 |
| JE-297048 | 85,50 | 8,5 :1 | 22 | 28,70 | JE FSR | — | 2618.0 | FSR | -22 | 277 | — |
| JE-297506 | 85,50 | 8,5 :1 | 22 | 28,70 | JE FSR | — | 2618.0 | FSR | -22 | 276 | — |
| JE-270666 | 85,50 | 8,5 :1 | 22 | 28,70 | JE Round | — | 2618.0 | Round | -22 | 276 | — |
| WK627M855 | 85,50 | 8,5 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8550XX+GLS33 |
| WK627M855AP | 85,50 | 8,5 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8550XX+GLS33 |
| 608005C-4 | 85,50 | 9 :1 | — | 28,70 | Manley | Jupe | 4032.0 | — | -22 | 295 | — |
| 608005CE-4 | 85,50 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -22 | 295 | — |
| 617105CE-4 | 85,50 | 9 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 329 | — |
| WK596M855 | 85,50 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -21 | — | 8550XX+GLS22 |
| WK674M855 | 85,50 | 9 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -12 | — | 8550XX+GLS22 |
| WK669M855 | 85,50 | 9 :1 | 22 | 28,87 | Wiseco | Jupe | 2618.0 | — | -10,50 | — | 8550XX+GLS22 |
| WK596M855AP | 85,50 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -21 | — | 8550XX+GLS22 |
| WK674M855AP | 85,50 | 9 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -12 | — | 8550XX+GLS22 |
| WK669M855AP | 85,50 | 9 :1 | 22 | 28,87 | Wiseco AP | Jupe | 2618.0 | — | -10,50 | — | 8550XX+GLS22 |
| K9503D050 | 85,50 | 9 :1 | 22 | 28,30 | Wossner | — | — | — | -5,20 | — | 855XPY |
| K9241D050 | 85,50 | 9,1 :1 | 22 | 28,30 | Wossner | — | — | Round | -14 | — | 855XTY |
| JE-361292 | 86 | 10 :1 | 22 | 28,70 | JE Ultra Series | Tête + Jupe | 2618.0 | FSR | -13,90 | 293 | — |
| WK675M86 | 86 | 10 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | -4 | — | 8600XX+GLS33 |
| WK675M86AP | 86 | 10 :1 | 22 | 28,70 | Wiseco AP | Jupe | 2618.0 | — | -4 | — | 8600XX+GLS33 |
| 617010C-4 | 86 | 10,5 :1 | — | 28,70 | Manley | Jupe | 4032.0 | — | -12 | 322 | — |
| 617010CE-4 | 86 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -12 | 322 | — |
| 617210CE-4 | 86 | 10,5 :1 | — | 28,70 | Manley HD | Jupe | 2618.0 | — | -2,50 | 339 | — |
| WK676M86 | 86 | 11 :1 | 22 | 28,70 | Wiseco | Jupe | 2618.0 | — | 1,90 | — | 8600XX+GLS33 |
          |
