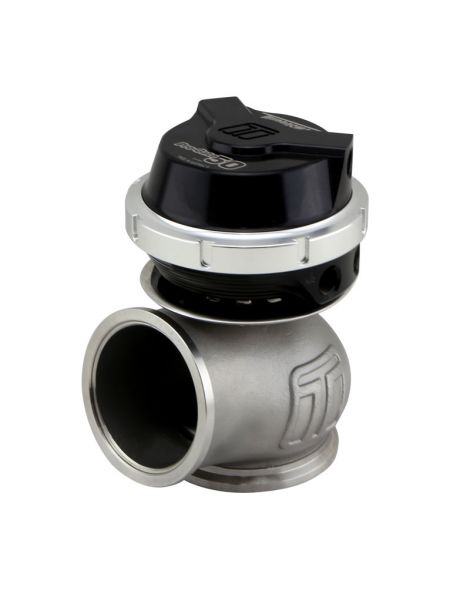

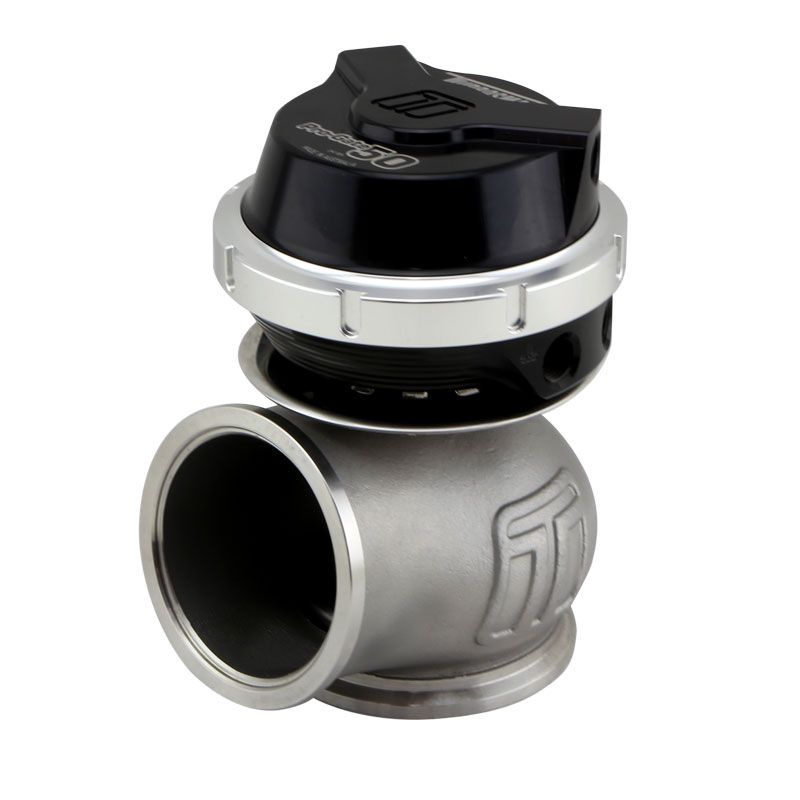

TURBOSMART Gen 5 Progate 50 14psi wastegate, black

The Pro-Gate50 Gen-V WG50 external relief valve is a cost-effective, high-performance 50 mm external relief valve.

The Gen-V offers extensive user configurability, industry-leading extended thermal performance, fatigue resistance, and best-in-class flow performance for optimal control and longevity.

A direct upgrade over all 4th generation Turbosmart relief valves, it includes our unique collar locking system, variable actuator cap and base, strap-type V-band clamps, liquid cooling, and 1/8" NPT ports.

Available in compressed gas configuration

Product Features Summary:
? Liquid cooling arrangement
? Strap-type V-band clamps
? User-adjustable actuator position
? Modular actuator design
? Available compressed gas configurations

Included in the box:
? Wastegate unit (pre-assembled with spring as ordered)
? SS316 valve seat
? Inlet V-band
? SS304 inlet weld flange
? V-band socket
? SS304 outlet weld flange
? Clamp tool (master/slave)
? 17/7 PH spring kit 3, 5, 7, 14 psi (1x spring installed)
? 4x 1/8" NPT plugs (1x installed) / 2x 1/8" NPT end fittings
? Sticker
? Instruction card
