Forged connecting rods Suzuki - 1.3L Hayabusa Gen.1 - I-beam - 20 mm pin for forged pistons

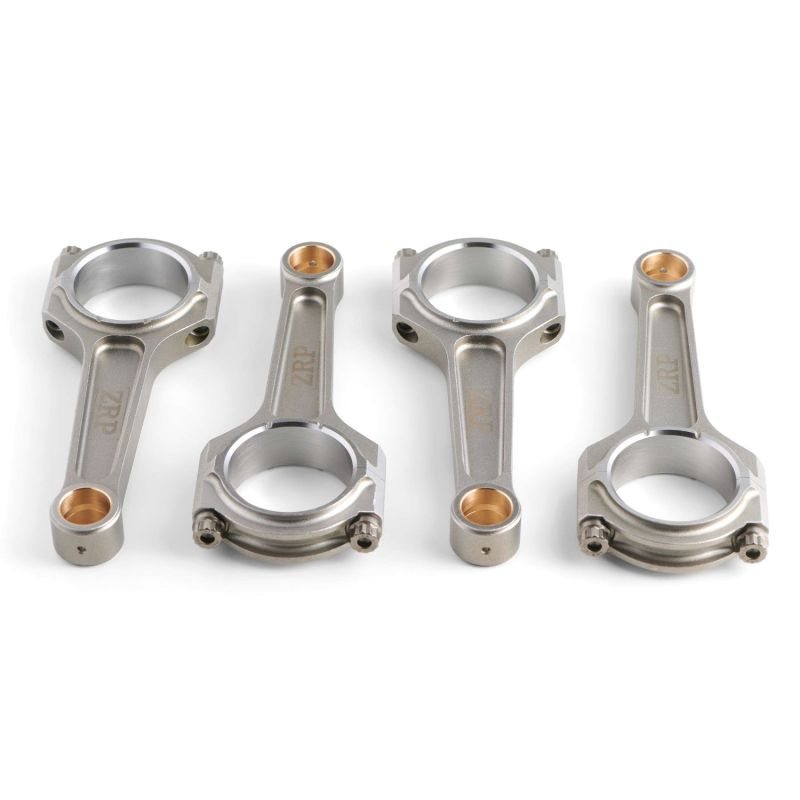

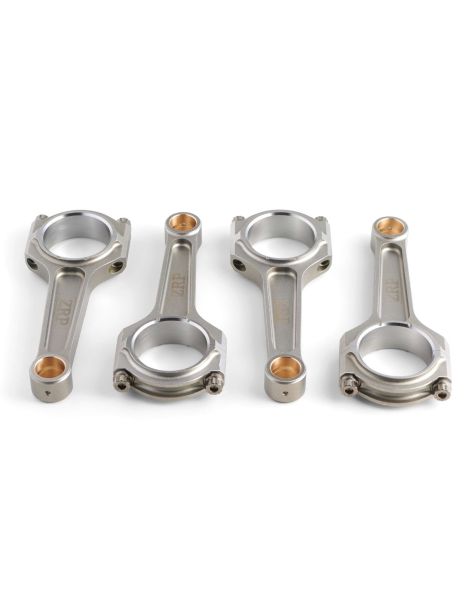

Set of 4 ZRP forged connecting rods in 4340 steel for Suzuki 1.3L Hayabusa Gen.1 (1999-2007), I-beam, 20 mm piston pin.

The manufacturer rates this rod for forced induction use. The I-beam profile provides the stiffness needed to handle boost pressure without unnecessary weight, a coherent choice for a block run in turbo builds.

Specifications

+ Brand: ZRP
+ Beam profile: I
+ Material: 4340 forged steel
+ Bolts: ARP 2000 or ARP L19 (tensile strength of approximately 260,000 psi, or ~1,793 MPa)
+ Center-to-center length: 119.50 mm

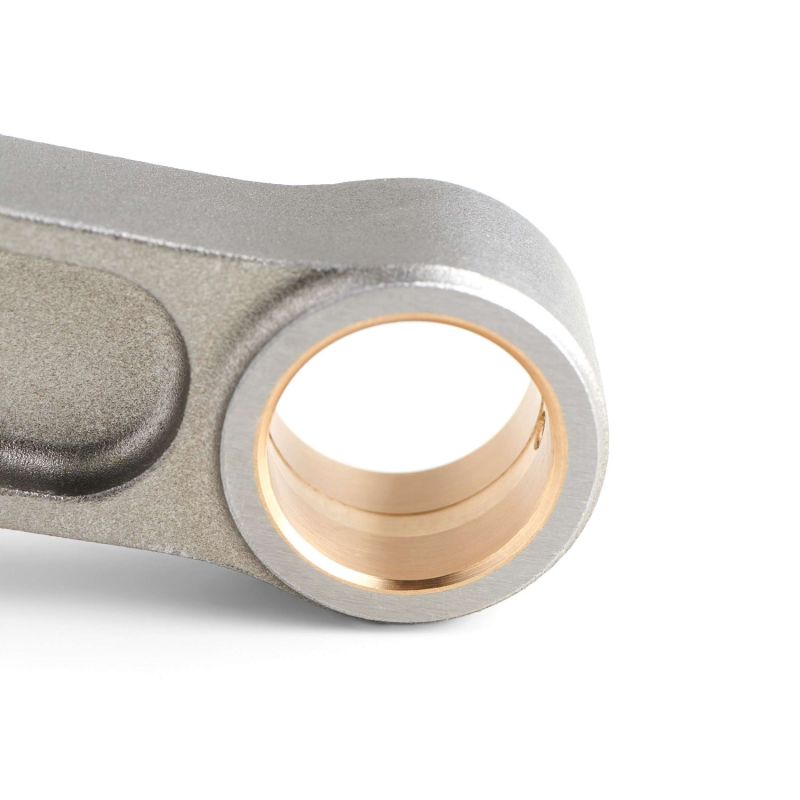

+ Piston pin diameter: 20 mm
+ Big end bore: 41.00 mm
+ Big end width: 20.90 mm
+ Weight: 355 g

ZRP: Recommended for forced induction engines; 1999 to 2007 model.

Torque and bolt stretch

ARP 2000 bolts are tightened to 61 Nm, or by stretch control between 0.140 and 0.152 mm. The optional ARP L19 bolts are tightened to 67.8 Nm, or by stretch control between 0.152 and 0.165 mm. These bolts are 3/8": ARP 2000 suits builds up to 200 hp per cylinder and 8,500 rpm, ARP L19 up to 250 hp per cylinder and 10,000 rpm. Measuring stretch with a dial indicator remains the most reliable method: it reflects the real tension in the bolt, whereas torque depends on thread friction.

Kit supplied complete with bolts, for all four cylinders of the Hayabusa Gen.1 engine. Check the manufacturer's intended use before fitting: this reference is built for forced induction.
