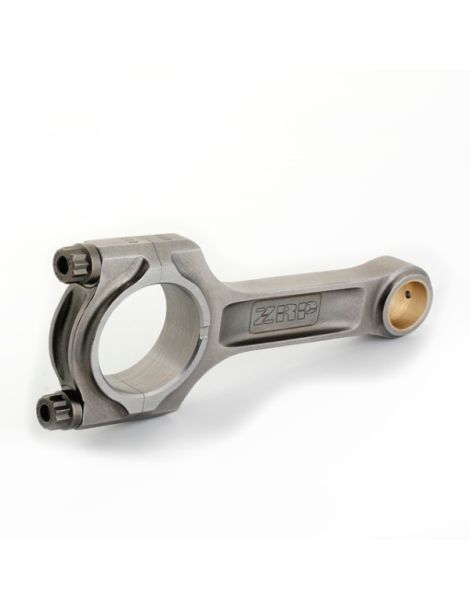

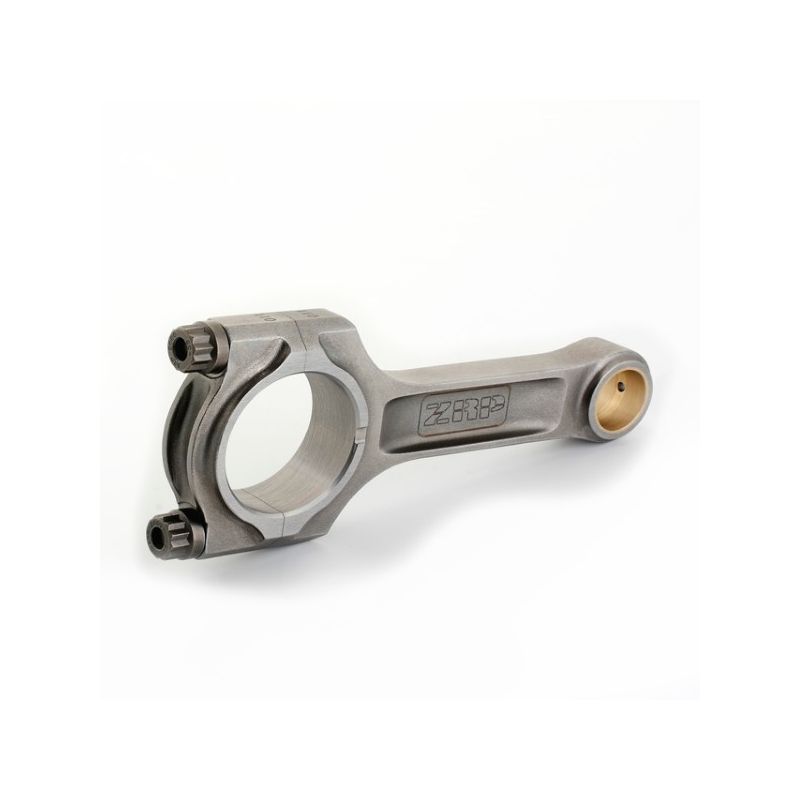

Forged connecting rods Suzuki - I-beam - 119.50 mm center-to-center for forged pistons

SUZUKI reference R-SUZ-EN24-003 Kit of 4 forged I-beam ZRP connecting rods with ARP bolts with connecting rod small end in aluminum-bronze silicone bushing

The ZRP brand is a subsidiary of Drakos Engineering, renowned for its experience in designing high performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed for your Suzuki engine the R-SUZ-EN24-003 forged connecting rods, made of high strength 4340 steel and fitted with reinforced ARP connecting rod bolts to withstand the increased inertia linked to higher engine speeds, available in 2 ranges:

- ARP 2000: resistant up to 220,000 psi (or 15,000 bar)

- ARP L19: resistant up to 260,000 psi (or 18,000 bar)

The big end of the ZRP R-SUZ-EN24-003 forged connecting rods for Suzuki engines is fitted with a machined aluminum-bronze silicone bushing before being ground to ensure the oil film is maintained with your piston pin.

The design of this ZRP R-SUZ-EN24-003 I-beam forged connecting rod for Suzuki engines gives it exceptional resistance to significant increases in power and torque from high boost pressures, as well as to extreme uses such as we see with our customers whom we equip for their forged Drift engine builds and forged Run Dragster engine builds.

Specifications:

• Small end profile: flat
• Center to center distance: 119.50 mm
• Big end bore: 41.00 mm
• Big end width: 18.00 mm
• Connecting rod bolts supplied: ARP 2000 or ARP L19 (to choose)

Glossary:

1) Connecting rod small end
2) Small end diameter
3) Rod shank
4) Rod bolt
5) Connecting rod big end
6) Nut
7) Rod cap
8) Big end bore
9) Center to center distance

When converting your Suzuki engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal rod bearings, in addition to replacing your original pistons with forged pistons.
