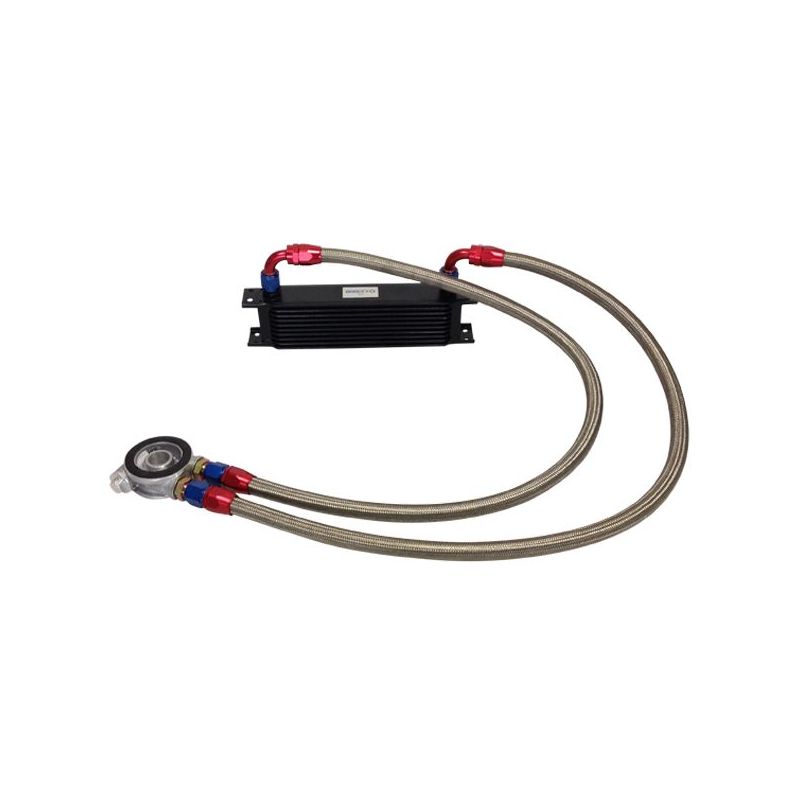

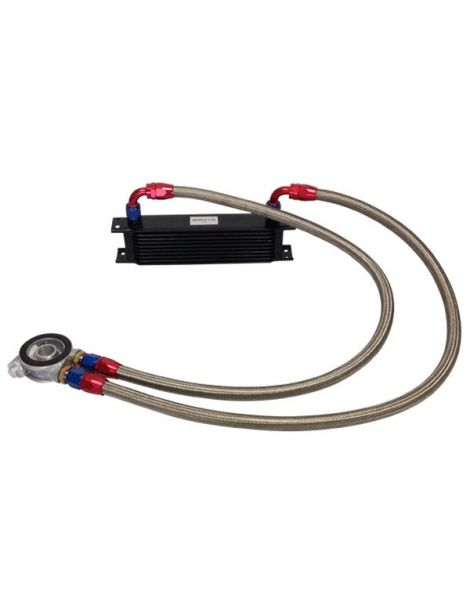

BREEZY DASH10 235mm 10-row matrix oil cooler kit, MOCAL standard plate, black hose fittings

PRO kit with fittings and BLACK DASH hose (required for oil circuit homologation in competition), including:

• 1 x 10-row matrix 235mm oil cooler, male connections: UNF-JIC 7/8"-14 (DASH10)
• 1 x standard MOCAL sandwich plate with O-ring + 2 sealing gaskets
• 2 x UNF-JIC 7/8"-14 DASH10 male-to-male adapters (sandwich plate inlet and outlet)
• 2 x 1-meter lengths of BLACK DASH10 stainless steel braided hose with 1 straight fitting and 1 x 90A elbow fitting UNF-JIC 7/8"-14 (DASH10)

BLACK

ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.

To determine your thread, we invite you to select your car's oil filter on this filter manufacturer's website: https://catalog.mann-filter.com/EU/fre/vehicle

Then click on your thread and add the nipple to your cart:

- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- Nipple M16x150
- Nipple 13/16"
- 5/8" Nipple
- 5/8" INVERTED Nipple

This kit fits all vehicles with a screw-on oil filter.

Thickness: 51mm			Matrix dimensions 235mm (in mm)
Number of rows	Height without connections	Input/Output Connections	Connection spacing	Fixing center distance	Length total
7	51	M12 x 150 thread
10	77	UNF-JIC 7/8??-14 (DASH10)	248	308	330
13	99	UNF-JIC 7/8??-14 (DASH10)	248	308	330
16	123	UNF-JIC 7/8??-14 (DASH10)	248	308	330
19	147	UNF-JIC 7/8??-14 (DASH10)	248	308	330
25	193	UNF-JIC 7/8??-14 (DASH10)	248	308	330
34	262	UNF-JIC 7/8??-14 (DASH10)	248	308	330
44	347	UNF-JIC 7/8??-14 (DASH10)	248	308	330
