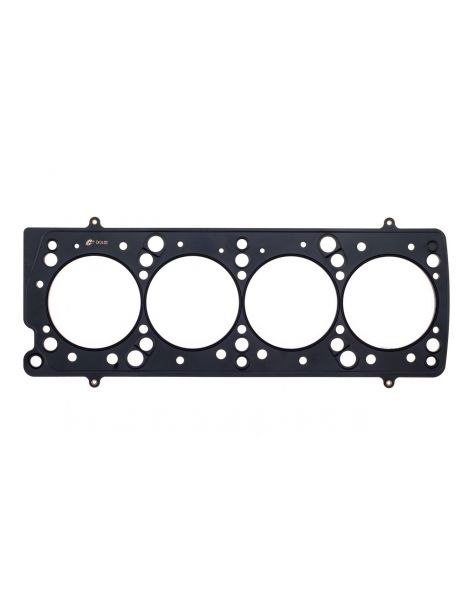

Here we offer several reinforced head gaskets for the FIAT 2.0 16V 836A3 engine, from ATHENA and COMETIC, whose technical specification is given below.
The gasket is chosen from the drop-down menus located just below the price, by simply selecting the thickness and the type of gasket you want.
For your information, here is the technical specification of the OEM gasket
- Engine bore: 84mm
- Compressed thickness: 1.80mm
Technical specification
- Engine bore: up to 87mm
- Available thickness: 1.85mm
- Gasket type: MLS
- Part numbers: 338397R

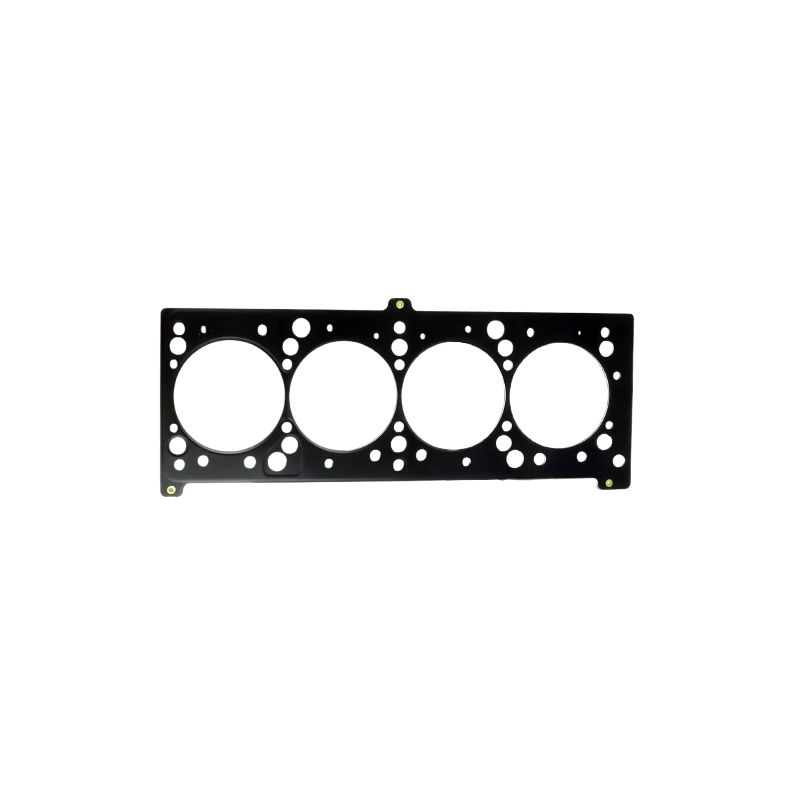

Designed and manufactured in Italy, ATHENA reinforced head gaskets come in two forms:
- MLS: these gaskets are made up of several layers of stainless steel stacked and riveted together. The stainless steel layers are laser cut for greater accuracy and are given an elastomer-based surface treatment (NBR or FKM). To achieve optimum sealing, the cylinder outlines and the water and oil passages are embossed. For the most extreme applications, additional reinforcement is added around the cylinders.
- O-ring: these gaskets consist of a steel layer covered with asbestos-free aramid fibre and an AISI 304 stainless steel ring (around the cylinders). A bead of silicone applied at the critical points (water and oil passages) guarantees maximum sealing of the head gasket. This type of gasket is essential on heavily boosted engines.
Technical specification
- Engine bore: up to 78mm
- Gasket type: MLX
- Available thicknesses: 0.81, 0.91, 1.02, 1.12, 1.22, 1.27, 1.32mm
- Part numbers: C4124, C4124-030, C4124-036, C4124-040, C4124-045, C4124-051, C4124-056, C4124-060, C4124-066, C4124-070, C4124-075, C4124-080, C4124-084, C4124-086, C4124-092, C4124-098, C4124-120, C4124-140

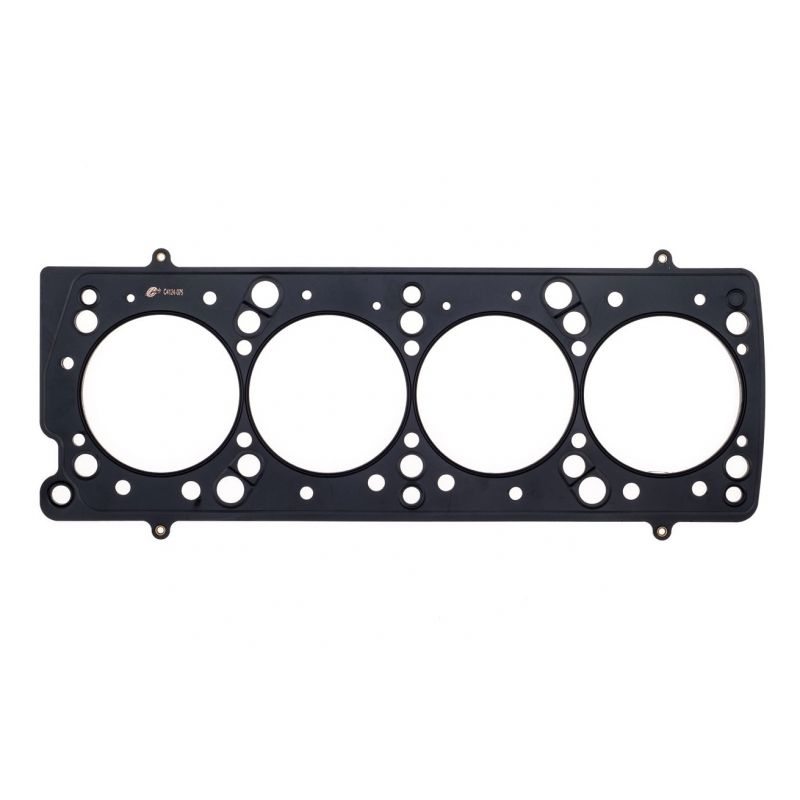

Founded by Bob Gorman in 1989, COMETIC is recognised worldwide as a leader in the design and manufacture of reinforced head gaskets. These, like all of the brand's products, are made in the United States. COMETIC reinforced head gaskets are made up of several embossed stainless steel layers held together by rivets. There are three types of COMETIC head gasket:
MLS: the equivalent of the ATHENA MLS gaskets, these multi-layer gaskets (between 3 and 5 stainless steel layers depending on the thickness of the gasket) have embossing around the cylinders and the fluid passages.
- MLX: this gasket has the same base as the MLS gasket, with the addition of reinforcement (a folded layer) around the cylinders and a special high-temperature coating.
- HP: this is an MLX gasket to which an additional layer has been added in order to reinforce the sealing of the cylinders (see below)
Fits:
- ALFA ROMEO 155 (167_) 2.0 16V Turbo Q4 (167.A2B, 167.A2C, 167.A2E), 137kw, 186cv, 01/1992 - 12/1997
- ALFA ROMEO 155 (167_) 2.0 16V Turbo Q4 (167.A2B, 167.A2C, 167.A2E), 140kw, 190cv, 03/1992 - 12/1997
- ALFA ROMEO 164 (164_) 2.0 Turbo (164A2B), 128kw, 174cv, 10/1987 - 09/1998
- ALFA ROMEO 164 (164_) 2.0 Turbo (164A2B), 129kw, 175cv, 02/1988 - 10/1992
- ALFA ROMEO AR 06476 128kw, 174cv
- ALFA ROMEO AR 67203 137kw, 186cv
- FIAT 149 C2.000 66kw, 90cv
- FIAT 154 A1.000 66kw, 90cv
- FIAT 154 A2.000 114kw, 155cv
- FIAT 154 C3.000 88kw, 120cv
- FIAT 154 C3.046 85kw, 116cv
- FIAT 154 C4.046 110kw, 150cv
- FIAT 154 C5.000 66kw, 90cv
- FIAT 154 E1.000 93kw, 126cv
- FIAT 159 A4.000 74kw, 101cv
- FIAT 159 A4.046 77kw, 105cv
- FIAT 159 A5.046 80kw, 109cv
- FIAT 159 A6.046 76kw, 103cv
- FIAT 160 A5.000 100kw, 136cv
- FIAT 160 A8.046 107kw, 146cv
- FIAT 175 A1.000 140kw, 190cv
- FIAT 183 A1.000 92kw, 125cv
- FIAT 834 B.000 88kw, 120cv
- FIAT 834 B.048 83kw, 113cv
- FIAT 834 B.146 85kw, 116cv
- FIAT 834 C.146 110kw, 150cv
- FIAT 835 C2.000 76kw, 103cv
- FIAT 835 C4.000 66kw, 90cv
- FIAT 836 A3.000 102kw, 139cv
- FIAT 836 A5.000 71kw, 97cv
- FIAT COUPE (175_) 1.8 16V, 96kw, 131cv, 03/1996 - 08/2000
- FIAT COUPE (175_) 2.0 16V, 102kw, 139cv, 11/1993 - 08/1996
- FIAT COUPE (175_) 2.0 16V Turbo, 140kw, 190cv, 11/1993 - 08/1996
- FIAT CROMA (154_) 2000 16V, 101kw, 137cv, 08/1992 - 08/1996
- FIAT CROMA (154_) 2000 CHT (154.AC), 66kw, 90cv, 12/1985 - 02/1989
- FIAT CROMA (154_) 2000 CHT, 74kw, 100cv, 01/1991 - 09/1992
- FIAT CROMA (154_) 2000 i.e. (154.AD), 88kw, 120cv, 03/1987 - 09/1992
- FIAT CROMA (154_) 2000 i.e. (154.AM, 154.LM), 85kw, 116cv, 10/1987 - 08/1996
- FIAT CROMA (154_) 2000 i.e. (154.AM), 83kw, 113cv, 03/1986 - 09/1990
- FIAT CROMA (154_) 2000 i.e. Turbo, 111kw, 151cv, 11/1986 - 11/1988
- FIAT CROMA (154_) 2000 i.e. Turbo (154.AM), 114kw, 155cv, 12/1985 - 06/1990
- FIAT CROMA (154_) 2000 i.e. Turbo (154.AM, 154.LM), 110kw, 150cv, 06/1987 - 08/1996
- FIAT REGATA (138_) 90 i.e. 1.6, 66kw, 90cv, 01/1987 - 07/1989
- FIAT REGATA Weekend (138_) 90 i.e. 1.6, 66kw, 90cv, 01/1987 - 07/1989
- FIAT TEMPRA (159_) 1.8 i.e. (159.AN), 77kw, 105cv, 03/1992 - 08/1996
- FIAT TEMPRA (159_) 1.8 i.e. (159.AN), 81kw, 110cv, 03/1990 - 08/1996
- FIAT TEMPRA (159_) 1.8 i.e. (159.AV), 76kw, 103cv, 09/1993 - 08/1996
- FIAT TEMPRA (159_) 1.8 i.e. (159.AZ), 66kw, 90cv, 09/1993 - 08/1996
- FIAT TEMPRA (159_) 1.8 i.e. (159.BY), 74kw, 101cv, 10/1994 - 08/1996
- FIAT TEMPRA (159_) 2.0, 80kw, 109cv, 04/1990 - 06/1993
- FIAT TEMPRA (159_) 2.0 i.e. (159.AP), 83kw, 113cv, 10/1990 - 09/1996
- FIAT TEMPRA S.W. (159_) 1.8 i.e. (159.AM), 81kw, 110cv, 03/1990 - 08/1996
- FIAT TEMPRA S.W. (159_) 1.8 i.e. (159.AN), 77kw, 105cv, 03/1992 - 12/1993
- FIAT TEMPRA S.W. (159_) 1.8 i.e. (159.AV), 76kw, 103cv, 09/1993 - 08/1996
- FIAT TEMPRA S.W. (159_) 1.8 i.e. (159.AZ), 66kw, 90cv, 09/1993 - 08/1996
- FIAT TEMPRA S.W. (159_) 1.8 i.e. (159.BY), 74kw, 101cv, 10/1994 - 08/1996
- FIAT TEMPRA S.W. (159_) 2.0, 80kw, 109cv, 04/1991 - 06/1993
- FIAT TEMPRA S.W. (159_) 2.0 i.e. (159.AP), 83kw, 113cv, 01/1991 - 03/1995
- FIAT TEMPRA S.W. (159_) 2.0 i.e. 4x4 (159.AP), 83kw, 113cv, 03/1992 - 03/1995
- FIAT TIPO (160_) 1.8 i.e. (160.AY), 77kw, 105cv, 10/1990 - 06/1993
- FIAT TIPO (160_) 1.8 i.e. (160.ED), 76kw, 103cv, 04/1993 - 04/1995
- FIAT TIPO (160_) 1.8 i.e. (160.EQ, 160.AM), 74kw, 101cv, 10/1994 - 10/1995
- FIAT TIPO (160_) 1.8 i.e.16V Sport, 100kw, 136cv, 11/1989 - 06/1992
- FIAT TIPO (160_) 1.8 i.e., 66kw, 90cv, 09/1993 - 04/1995
- FIAT TIPO (160_) 1.8 i.e, 71kw, 97cv, 03/1993 - 04/1995
- FIAT TIPO (160_) 1.8 i.e., 81kw, 110cv, 10/1990 - 06/1993
- FIAT TIPO (160_) 2.0 16V (160.AV), 107kw, 146cv, 07/1991 - 04/1995
- FIAT TIPO (160_) 2.0, 85kw, 116cv, 10/1990 - 10/1992
- FIAT TIPO (160_) 2.0 i.e. (160.AJ, 1607571), 80kw, 109cv, 06/1990 - 03/1992
- FIAT TIPO (160_) 2.0 i.e. (160.AT, 160.AJ), 83kw, 113cv, 03/1990 - 04/1995
- FIAT TIPO (160_) 2.0 i.e. 16V Sport (160.EF), 102kw, 139cv, 03/1993 - 04/1995
- LANCIA 149 C2.000 66kw, 90cv
- LANCIA 175 A4.000 142kw, 193cv
- LANCIA 831 B3.000 103kw, 140cv
- LANCIA 831 B4.000 85kw, 115cv
- LANCIA 831 B6.000 71kw, 97cv
- LANCIA 831 B7.000 80kw, 109cv
- LANCIA 831 B7.046 97kw, 132cv
- LANCIA 831 C5.000 133kw, 181cv
- LANCIA 831 C5.046 130kw, 177cv
- LANCIA 831 D5.000 144kw, 196cv
- LANCIA 831 E5.000 151kw, 205cv
- LANCIA 831 E5.046 155kw, 211cv
- LANCIA 834 B.000 88kw, 120cv
- LANCIA 834 B.048 83kw, 112cv
- LANCIA 834 B1.000 86kw, 117cv
- LANCIA 834 B.146 85kw, 116cv
- LANCIA 834 B2.000 108kw, 147cv
- LANCIA 834 B2.246 104kw, 141cv
- LANCIA 834 C1.000 133kw, 181cv
- LANCIA 834 C1.246 130kw, 177cv
- LANCIA 834 C.146 110kw, 150cv
- LANCIA 834 F1.000 110kw, 150cv
- LANCIA 834 F2.000 148kw, 202cv
- LANCIA 835 A2.000 80kw, 108cv
- LANCIA 835 A2.046 74kw, 101cv
- LANCIA 835 A5.000 86kw, 117cv
- LANCIA 835 A5.046 82kw, 112cv
- LANCIA 835 A7.000 121kw, 165cv
- LANCIA 835 A7.046 124kw, 169cv
- LANCIA 835 A8.000 130kw, 177cv
- LANCIA 835 A8.046 119kw, 162cv
- LANCIA 835 C2.000 76kw, 103cv
- LANCIA 835 C4.000 66kw, 90cv
- LANCIA 835 C5.000 66kw, 90cv
- LANCIA 836 A2.000 137kw, 186cv
- LANCIA 836 A3.000 102kw, 139cv
- LANCIA 836 A5.000 74kw, 101cv
- LANCIA 836 A6.000 66kw, 90cv
- LANCIA 836 C4.000 66kw, 90cv
- LANCIA 838 A4.000 151kw, 205cv
- LANCIA DEDRA (835_) 1.8 i.e. (835AC, 835BC), 80kw, 109cv, 09/1989 - 06/1994
- LANCIA DEDRA (835_) 1.8 i.e. (835AT), 66kw, 90cv, 08/1993 - 07/1999
- LANCIA DEDRA (835_) 1.8 i.e. (835BD, 835AD), 77kw, 105cv, 09/1989 - 07/1999
- LANCIA DEDRA (835_) 1.8 i.e. (835FA), 74kw, 101cv, 07/1994 - 07/1999
- LANCIA DEDRA (835_) 2.0 16V (835ED), 102kw, 139cv, 07/1994 - 07/1999
- LANCIA DEDRA (835_) 2.0 HF Integrale (835AP), 124kw, 169cv, 11/1990 - 07/1994
- LANCIA DEDRA (835_) 2.0 i.e. (835AI), 86kw, 117cv, 09/1989 - 07/1992
- LANCIA DEDRA (835_) 2.0 i.e. (835AL), 83kw, 113cv, 09/1989 - 07/1999
- LANCIA DEDRA (835_) 2.0 i.e. Turbo (835AR), 119kw, 162cv, 04/1991 - 07/1999
- LANCIA DEDRA (835_) 2.0 i.e. Turbo Integrale (835AO), 121kw, 165cv, 04/1990 - 08/1991
- LANCIA DEDRA (835_) 2.0 Turbo (835AQ), 130kw, 177cv, 11/1990 - 06/1994
- LANCIA DEDRA SW (835_) 1.8 i.e. (835FA), 74kw, 101cv, 07/1994 - 07/1999
- LANCIA DEDRA SW (835_) 2.0 16V (835ED), 102kw, 139cv, 07/1994 - 07/1999
- LANCIA DEDRA SW (835_) 2.0 Integrale (835ED), 102kw, 139cv, 07/1994 - 07/1999
- LANCIA DELTA I (831_) 1.6 GT i.e. (831AB.010), 66kw, 90cv, 05/1987 - 08/1992
- LANCIA DELTA I (831_) 1.6 GT i.e. (831AB.016), 80kw, 109cv, 08/1986 - 08/1988
- LANCIA DELTA I (831_) 1.6 HF Turbo (831AB.020), 103kw, 140cv, 08/1986 - 08/1988
- LANCIA DELTA I (831_) 1.6 HF Turbo (831AB.020S), 97kw, 132cv, 04/1987 - 03/1989
- LANCIA DELTA I (831_) 2.0 16V HF Evo II Integrale (831.AB), 158kw, 215cv, 06/1993 - 01/1994
- LANCIA DELTA I (831_) 2.0 16V HF Evo I Integrale (831.AB), 154kw, 209cv, 09/1991 - 12/1992
- LANCIA DELTA I (831_) 2.0 16V HF Evo Integrale (831AB.000), 151kw, 205cv, 06/1991 - 01/1994
- LANCIA DELTA I (831_) 2.0 16V HF Evo Integrale (831AB.027), 155kw, 211cv, 06/1993 - 01/1994
- LANCIA DELTA I (831_) 2.0 16V HF Integrale (831AB.026), 144kw, 196cv, 03/1989 - 09/1991
- LANCIA DELTA I (831_) 2.0 HF Integrale (831AB.024), 133kw, 181cv, 10/1987 - 12/1991
- LANCIA DELTA I (831_) 2.0 HF Integrale (831AB.024S, 831AB.028), 130kw, 177cv, 12/1986 - 12/1992
- LANCIA DELTA II (836_) 1.8 i.e. (836AE), 76kw, 103cv, 06/1993 - 08/1999
- LANCIA DELTA II (836_) 1.8 i.e. (836AG, 836AL), 66kw, 90cv, 07/1994 - 08/1999
- LANCIA DELTA II (836_) 2.0 16V (836AA, 836CA), 102kw, 139cv, 06/1993 - 08/1999
- LANCIA DELTA II (836_) 2.0 16V Turbo (836AB), 137kw, 186cv, 06/1993 - 08/1999
- LANCIA DELTA II (836_) 2.0 16V Turbo (836AS), 142kw, 193cv, 07/1996 - 08/1999
- LANCIA KAPPA (838_) 2.0 16V Turbo (838AB1AA), 151kw, 205cv, 02/1995 - 10/2001
- LANCIA KAPPA Coupe (838_) 2.0 16V Turbo (838CB), 151kw, 205cv, 11/1996 - 03/2001
- LANCIA KAPPA SW (838_) 2.0 16V Turbo (838BB1AA), 151kw, 205cv, 07/1996 - 10/2001
- LANCIA PRISMA (831_) 1.6 (831AB), 73kw, 99cv, 08/1986 - 02/1992
- LANCIA PRISMA (831_) 1.6 i.e. (831AB), 80kw, 109cv, 05/1986 - 12/1989
- LANCIA PRISMA (831_) 1.6 i.e. Super (831AB), 66kw, 90cv, 05/1987 - 12/1989
- LANCIA PRISMA (831_) 2.0 i.e. All-wheel Drive (831AB), 85kw, 115cv, 04/1986 - 12/1989
- LANCIA THEMA (834_) 2000 16V (834FA), 112kw, 152cv, 08/1992 - 12/1993
- LANCIA THEMA (834_) 2000 16V Turbo (834AC), 133kw, 181cv, 12/1988 - 06/1990
- LANCIA THEMA (834_) 2000 16V Turbo (834GC, 834FC), 148kw, 201cv, 10/1992 - 07/1994
- LANCIA THEMA (834_) 2000 i.e. 16V (834AA), 108kw, 147cv, 05/1988 - 08/1992
- LANCIA THEMA (834_) 2000 i.e. 16V (834AI), 104kw, 141cv, 02/1989 - 05/1992
- LANCIA THEMA (834_) 2000 i.e. 16V Turbo (834AL), 130kw, 177cv, 04/1989 - 05/1992
- LANCIA THEMA (834_) 2000 i.e. (834AB), 83kw, 113cv, 03/1986 - 09/1988
- LANCIA THEMA (834_) 2000 i.e (834AB), 86kw, 117cv, 09/1988 - 05/1992
- LANCIA THEMA (834_) 2000 i.e. (834B), 88kw, 120cv, 11/1984 - 09/1988
- LANCIA THEMA (834_) 2000 i.e. (834BV), 85kw, 115cv, 09/1987 - 05/1992
- LANCIA THEMA (834_) 2000 i.e.Turbo (834CV), 110kw, 150cv, 07/1986 - 05/1990
- LANCIA THEMA SW (834_) 2000 16V (834FA), 112kw, 152cv, 05/1992 - 07/1994
- LANCIA THEMA SW (834_) 2000 i.e. 16V (834AA), 108kw, 147cv, 05/1989 - 08/1992
- LANCIA THEMA SW (834_) 2000 i.e. 16V (834AI), 104kw, 141cv, 02/1989 - 05/1992
- LANCIA THEMA SW (834_) 2000 i.e. 16V Turbo (834AC), 133kw, 181cv, 12/1988 - 06/1990
- LANCIA THEMA SW (834_) 2000 i.e. 16V Turbo (834AL), 130kw, 177cv, 04/1989 - 03/1993
- LANCIA THEMA SW (834_) 2000 Turbo 16V (834GC, 834FC), 148kw, 201cv, 11/1992 - 07/1994
- LANCIA THEMA SW (834_) 2000 Turbo (834.FA, 834.BV, 834.CV), 110kw, 150cv, 12/1988 - 03/1992
