MISHIMOTO SPAL type 285mm 1800m3/h 12V extra-flat fan

MISHIMOTO SPAL-Type 285mm 1800m³/h 12V Extra-Slim Fan

Improve your engine cooling by installing this competition fan on your water and oil radiator. Compact and with a significantly higher flow rate than the original, this SPAL-type fan is ideal for modified engines or engine swaps. This high-flow fan can also be installed on an intercooler/heat exchanger to further cool the air entering the engine and thus improve cylinder filling.

For successful optimization, it is necessary to cover the largest possible surface area of __the radiator/heat exchanger.

It is therefore advisable to use 2 small 12V fans when the heat exchanger/radiator core is rectangular. This flat fan is reversible: it is possible to quickly and easily switch from an intake fan to a blowing fan. To do this, you will need to reverse the electrical connection (see below) and the propeller (by unscrewing the central nut in reverse, using an 8mm wrench).

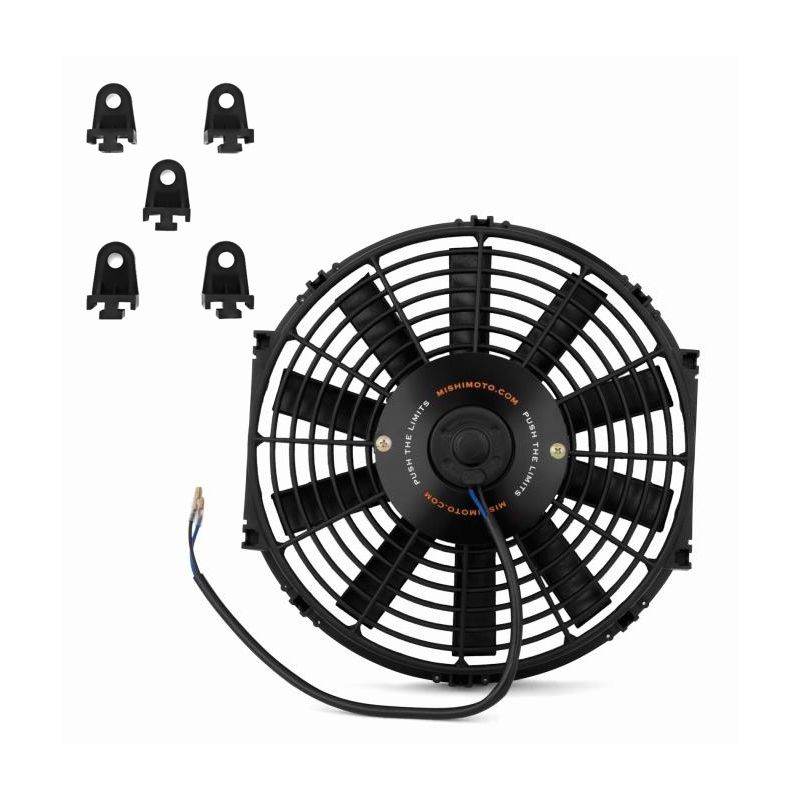

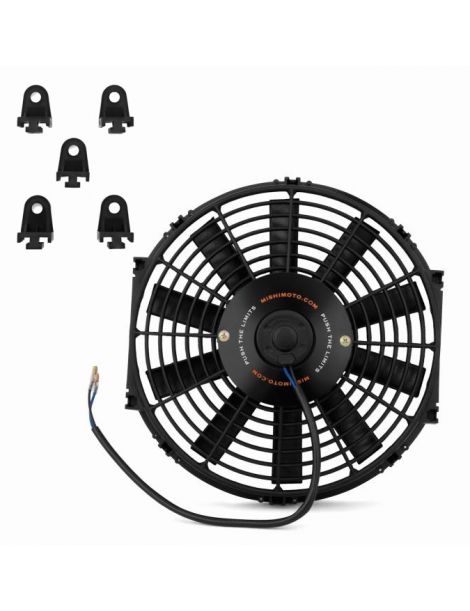

Fan supplied with 4 brackets.

compatible with all types of cooling applications: automotive, quad, karting, motorcycle, kart cross, prototype.

Specifications:

• Overall diameter (casing): 285mm
• Propeller diameter: 270mm
• Thickness: 66mm at the center then 55mm
• Power: 160 Watts
• Voltage: 12 Volts

Motor Polarity:

• INTAKE: Positive = blue wire / Negative = black wire
• BLOWER: Positive = black wire / Negative = blue wire
