210mm 1020m3/h 12V extra-flat SPAL type fan

210mm 1020m³/h 12V Extra-Slim Fan SPAL Type

Improve engine performance and cooling by installing this competition fan on your intercooler and on your water and oil radiators. In the first case, this high-flow fan will cool the air entering the engine, allowing for better cylinder filling, and in the second case, this 210mm SPAL-type fan will improve the cooling of the oil and water radiators. This ultra-thin 12V fan offers a compact design, making it ideal for engine swaps. For optimal cooling when the cooling area is rectangular, we recommend installing two smaller, flat fans rather than one large one to maximize surface area coverage. This ultra-thin fan is reversible: you can quickly change its direction by reversing the electrical connection (see below) and the impeller (unscrew the left-hand threaded central nut) to switch from an intake fan to a blowing fan. This reversible fan is originally designed for suction.

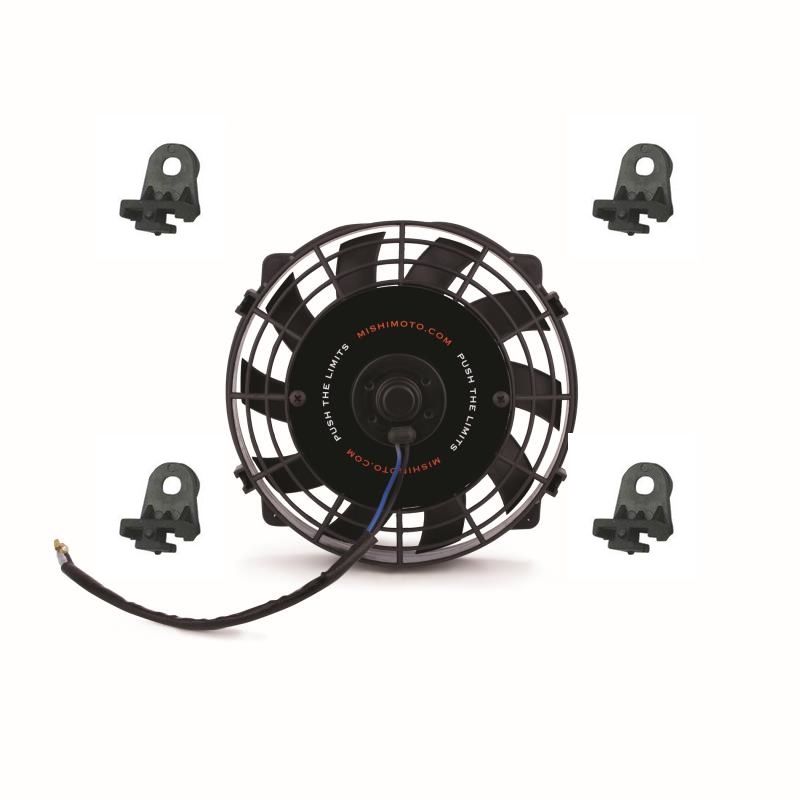

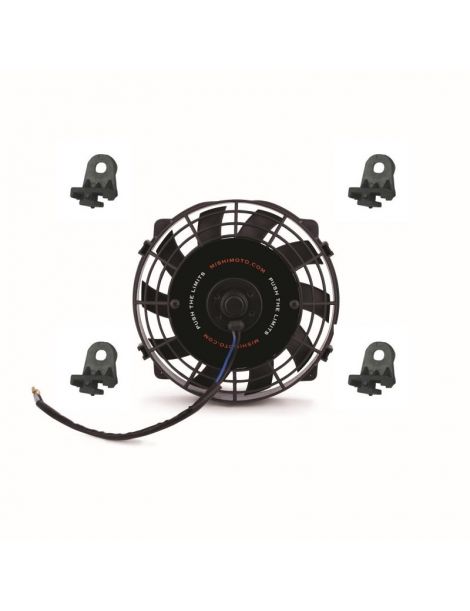

Supplied with mounting brackets and compatible with all types of cooling applications: cars, karts, go-karts, quads, motorcycles.

Specifications:

• Overall diameter (casing): 210mm
• Fan diameter: 190mm
• Thickness: 66mm at the center (including motor nipple) then 55mm
• Voltage: 12V

Motor connection:

• SUPPLY = Blue wire: + / Black wire: -
• BLOWER = Blue wire: - / Black wire: +
