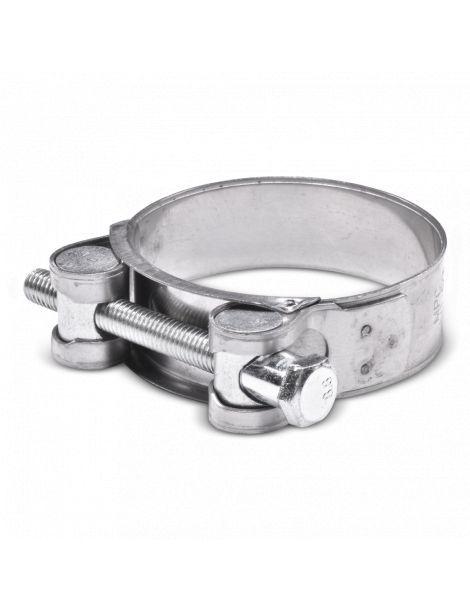

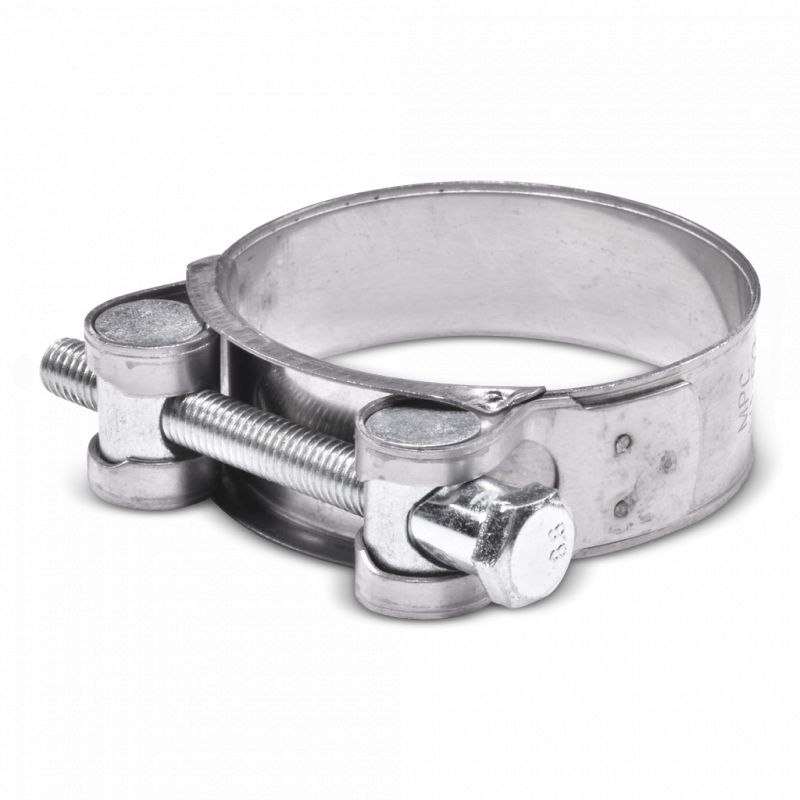

60-63mm - Reinforced chrome-plated steel collar, zinc-plated screws

Reinforced clamp diameter 60-63mm in chrome steel and zinc-plated steel screws

This clamp is suitable for silicone hoses, braided hoses, DASH hoses, original type hoses. For Exhausts we recommend the stainless steel range: Reinforced stainless steel clamps

Although this retaining clamp is most often used with silicone hoses, it can also be used as an Exhaust clamp. Indeed, its wide band, 6 weld points, and screws allow for powerful and even tightening.

The raised edges of this clamp prevent permanent marking of the silicone hose.

This reinforced clamp has a 304 stainless steel band and a zinc-plated steel screw system, as well as a surface treatment for corrosion protection, thus improving its longevity.

Dimensions:

• d: minimum collar diameter: 60mm
• D: maximum collar diameter: 63mm
• B1: collar width: 22mm
• S1: collar thickness: 0.8mm
• L2: screw head width: 13mm
• M: screw diameter: 8mm
• Recommended tightening torque: 18Nm
• Maximum tightening torque: 25Nm

Materials:

• Mark 1 and 2: chrome steel (AISI 430)
• Mark 3 to 5: steel zinc plated
• Reference 6: zinc plated steel 8.8
• Quality: W2
