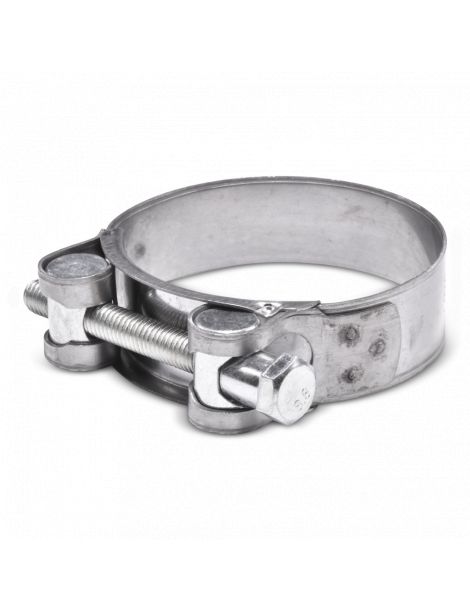

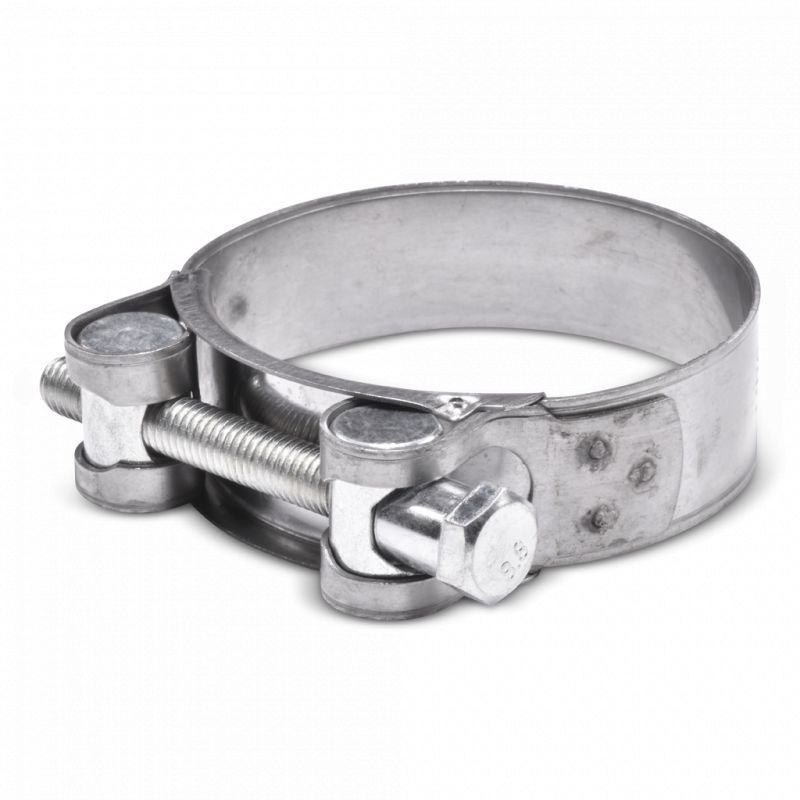

65-70mm - Reinforced collar in AISI 304 stainless steel

Reinforced hose clamp, diameter 65-70mm, in AISI 304 stainless steel

This clamp is suitable for silicone hoses, braided hoses, DASH hoses, OEM-type hoses, and exhausts.

Dimensions:

• d: minimum clamp diameter: 65mm
• D: maximum clamp diameter: 70mm
• B1: clamp width: 24mm
• S1: Collar thickness: 0.8mm
• L2: screw head width: 13mm
• M: screw diameter: 8mm
• Recommended tightening torque: 18Nm
• Maximum tightening torque: 25Nm

Materials:

• Reference 1 to 6: AISI 304 stainless steel
• Quality: W4

Characteristics:

• Join by weld 4 points
• Tightening by screw
