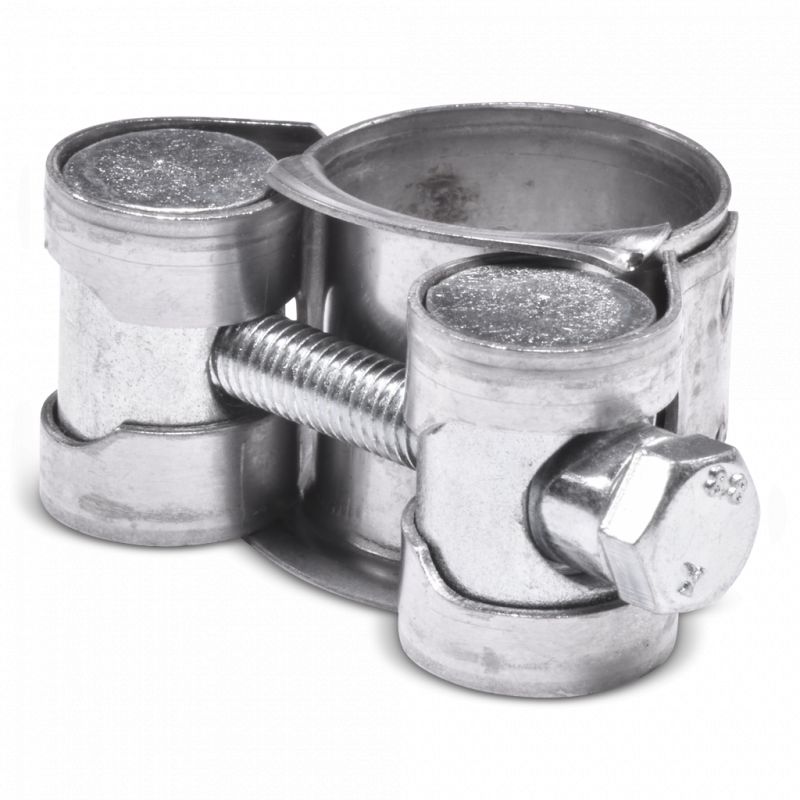

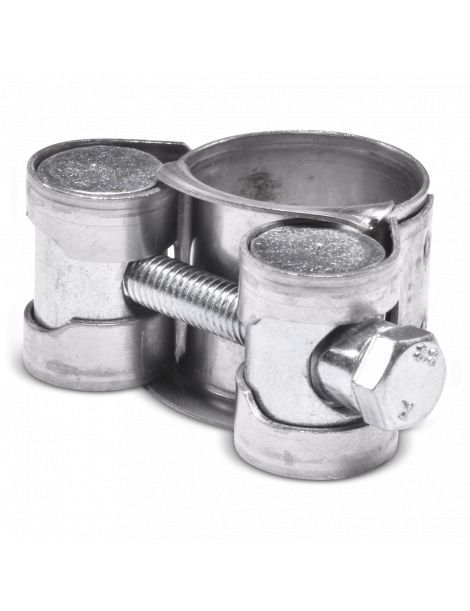

17-19mm - Reinforced collar in AISI 304 stainless steel

Reinforced hose clamp, diameter 17-19mm, in AISI 304 stainless steel

This clamp is suitable for silicone hoses, braided hoses, DASH hoses, OEM-type hoses, and exhausts.

Dimensions:

• d: minimum clamp diameter: 17mm
• D: maximum clamp diameter: 19mm
• B1: clamp width: 18mm
• S1: Collar thickness: 0.6mm
• L2: screw head width: 8mm
• M: screw diameter: 5mm
• Recommended tightening torque: 3.24Nm
• Maximum tightening torque: 4.5Nm

Materials:

• Reference 1 to 6: AISI 304 stainless steel
• Quality: W4

Characteristics:

• 4-point weld connection
• Tightening by screw
