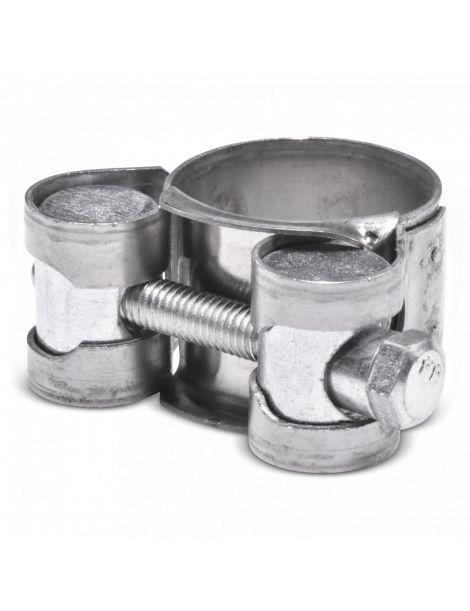

Reduced price! 20-22mm - Collier renforcé en inox AISI 304 View larger

20-22mm - Reinforced collar in AISI 304 stainless steel

S4020

MPC

New product

Reinforced collar diameter 20 to 22mm in AISI 304 stainless steel

More details

2,35 € tax incl.

-20%

2,94 € tax incl.

IN STOCK

Stock NSB France : 70 Items

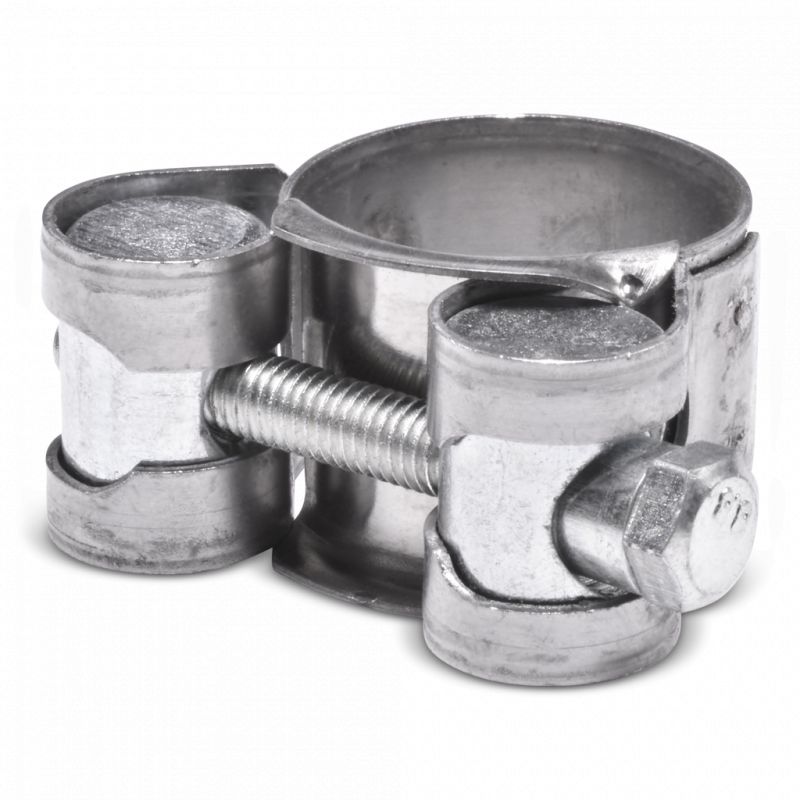

  • Reinforced hose clamp, 20-22mm diameter, AISI 304 stainless steel

    This clamp is suitable for silicone hoses, braided hoses, DASH hoses, OEM-type hoses, and exhausts.

    Technical drawing of reinforced hose clamp

    Dimensions:

    • d: minimum clamp diameter: 20mm
    • D: maximum clamp diameter: 22mm
    • B1: clamp width: 18mm
    • S1: Collar thickness: 0.6mm
    • L2: screw head width: 8mm
    • M: screw diameter: 5mm
    • Recommended tightening torque: 3.24Nm
    • Maximum tightening torque: 4.5Nm

    Materials:

    • Reference 1 to 6: AISI 304 stainless steel
    • Quality: W4

    Characteristics:

    • 4-point weld connection
    • Tightening by screw
