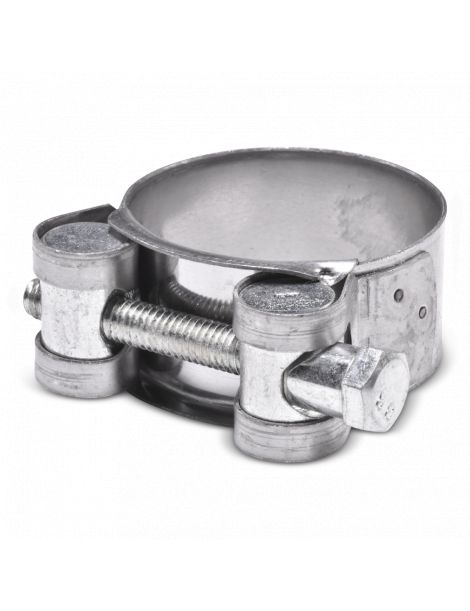

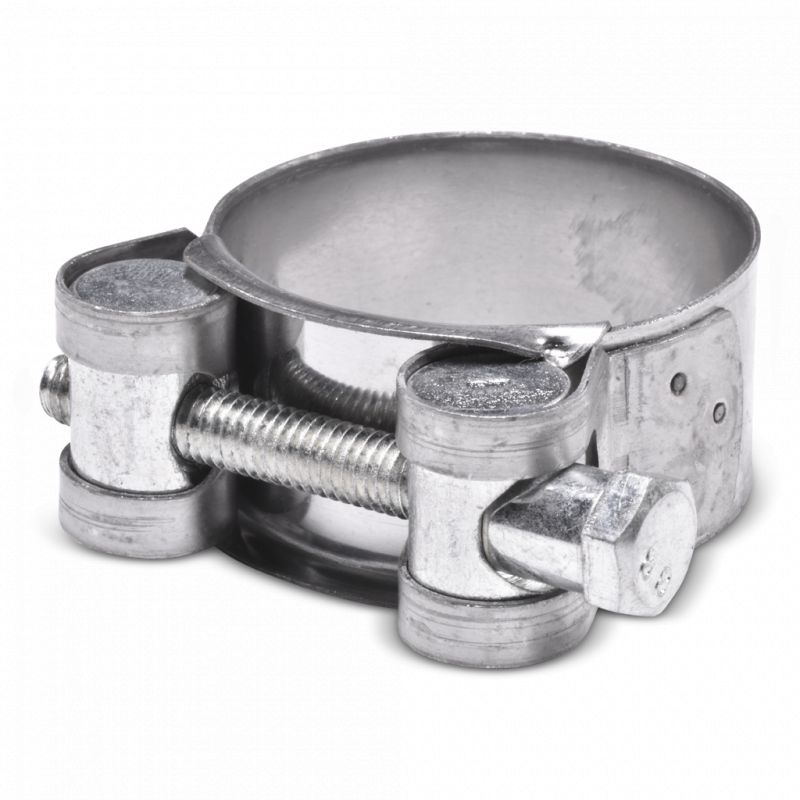

36-39mm - Reinforced collar in AISI 304 stainless steel

Reinforced hose clamp, diameter 36-39mm, in AISI 304 stainless steel

This clamp is suitable for silicone hoses, braided hoses, DASH hoses, OEM-type hoses, and exhausts.

Dimensions:

• d: minimum clamp diameter: 36mm
• D: maximum clamp diameter: 39mm
• B1: clamp width: 20mm
• S1: Collar thickness: 0.6mm
• L2: screw head width: 10mm
• M: screw diameter: 6mm
• Recommended tightening torque: 5.76Nm
• Maximum tightening torque: 8Nm

Materials:

• Reference 1 to 6: AISI 304 stainless steel
• Quality: W4

Characteristics:

• Join by weld 4 points
• Tightening by screw
