Reinforced Crankshaft bearing studs ARP HONDA 1.7 B17 1.8 B18

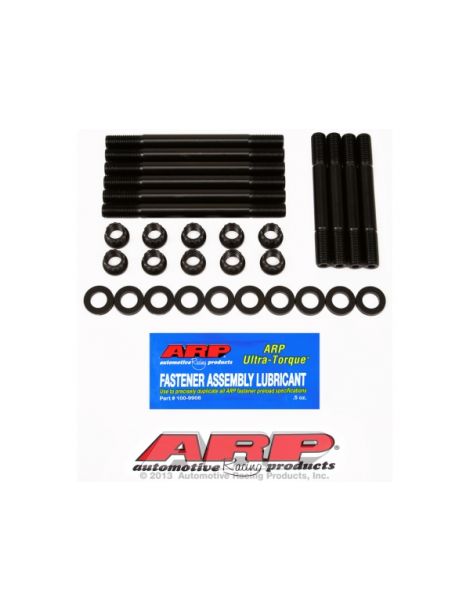

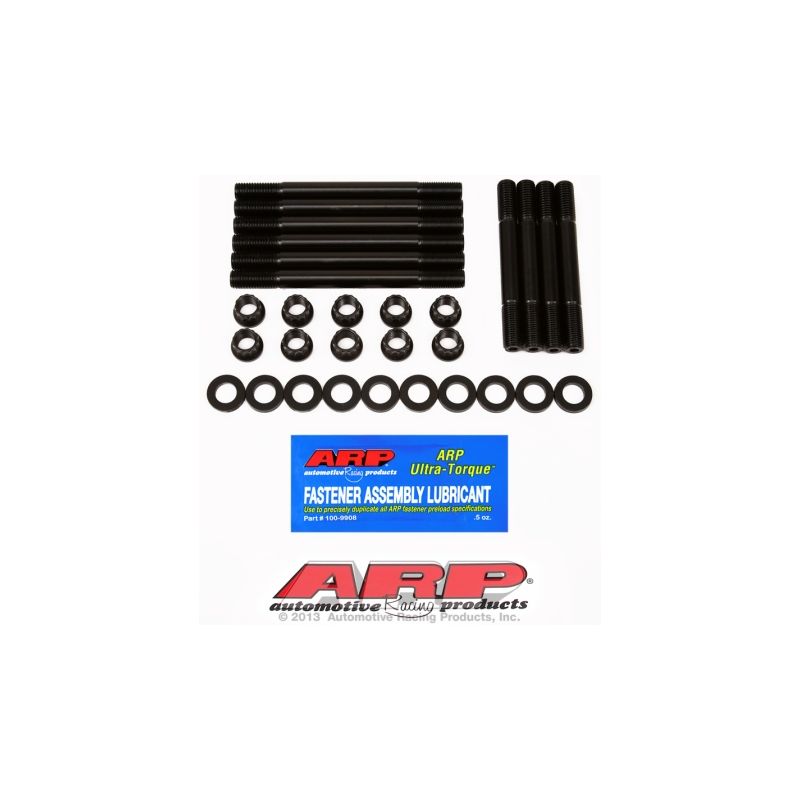

This kit of reinforced Crankshaft bearing studs for HONDA 1.7 B17 1.8 B18 engine is made up of10 studs ARP, 10 ARP washers and 10 ARP nuts.

Find the assembly instructions in the tab "Download" ci-top.

List of compatible vehicles:

• HONDA CIVIC IV 1.6 i 16V Vtec (EE9) 150hp B16A1
• HONDA CIVIC V 1.6 VTi 16V (EG6) 160hp B16A2
• HONDA CIVIC VI 1.6 VTi (EK4) 160hp B16A2
• HONDA CRX II 1.6 i 16V Vtec (EE8) 150hp B16A1
• HONDA CRX III 1.6 i VTi (EG2) 160hp B16A2 B16A3
• HONDA Integra 1.6 Vtec (DA6) 170hp B16A
• HONDA INTEGRA Coupe 1.8 (DC2) 146hp B18B2
• HONDA Integra 1.8 (DA9) 131hp B18A1
• HONDA Integra 1.8 ESI (DB) 145hp B18B2
• HONDA INTEGRA Coupe 1.8 (DC2) 137hp B18B1

Coming from the aerospace industry, Gary Holzapfel created the brand At the time there was no manufacturer capable of meeting these needs. Today ARP Offers thousands of references in different ranges and types of Products such as Cylinder head screws, Crankshaft bearing screws, Rod bolts. Depending on the application, ARP Offers different ranges (materials) of screws:

• 8740:It is a chrome-molybdenum steel which has standard resistance properties that are entirely suitable for prepared engines. This steel offers a tensile strength of between 1240 and 1447 N/mm2.

• ARP2000:More resistant than 8740, the ARP2000 alloy is capable of mounting clamping / tensile loads that can reach 1516 N/mm2. This range of screws is frequently used on track and drag cars and can be used with hydrogen.

• L19:This is a high quality treated steel offering significantly higher tensile and fatigue resistance properties than the 8740 and ARP2000 ranges. Its tensile strength can go up to 1792 N/mm2. This material is more susceptible to corrosion and must therefore remain oiled and not exposed to humidity. It is not recommended to use hydrogen with this range.

• CA625+ (Custom Age 625 More):this "super-alloy" has significantly superior technical properties while being resistant to corrosion and oxidation. Its tensile strength can reach 1930 N/mm2.

All ARP hardware is designed and manufactured in the United States. The manufacturing of ARP screws begins with cold or hot forging then a heat treatment (different depending on the range) is applied and shot peening is then carried out to eliminate irregularities. Next comes precise grinding to obtain perfect concentricity and then the thread is made. And finally the finishing during which a Coating is applied such as black chrome-molybene oxide or stainless steel polishing depending on the Product range.

Each kit is delivered with an Assembly Lube and instructions in which it is indicated:

• Installation steps
• The Torque Spec
• The Tightening Procedure



List of compatible engines:
