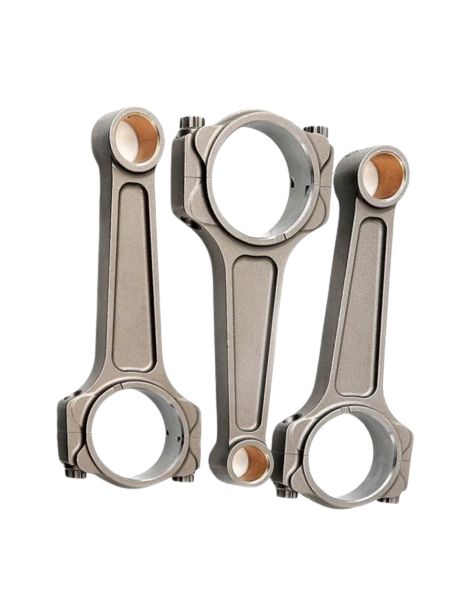

Connecting rods forged TOYOTA G16E-GTS Yaris GR

Connecting rods forged kitsMANLEY, CARRILLOfor motorTOYOTA G16E-GTS Yaris GRare composed of3 Connecting rodsand delivered with theRod bolts ARP.

Find below (click on the image) the forged pistons and bearings of tri-metal Connecting rods for enginesTOYOTA G16E-GTS Yaris GRA:

OEM technical characteristics of the engine:

• Pin: 143.75mm
• Head diameter: 51.00mm
• Big End Width: 22.35mm
• Foot width: 22.35mm
• Piston pin / Gudgeon pin diameter: 22.00mm

Technical characteristics screw ARP:

• ARP2000: up to 150HP per cylinder or 8500rpm
• ARP L19: up to 200HP per cylinder or 10000rpm
• ARP Custom Age CA625+: up to 250HP per cylinder or beyond 10,000rpm

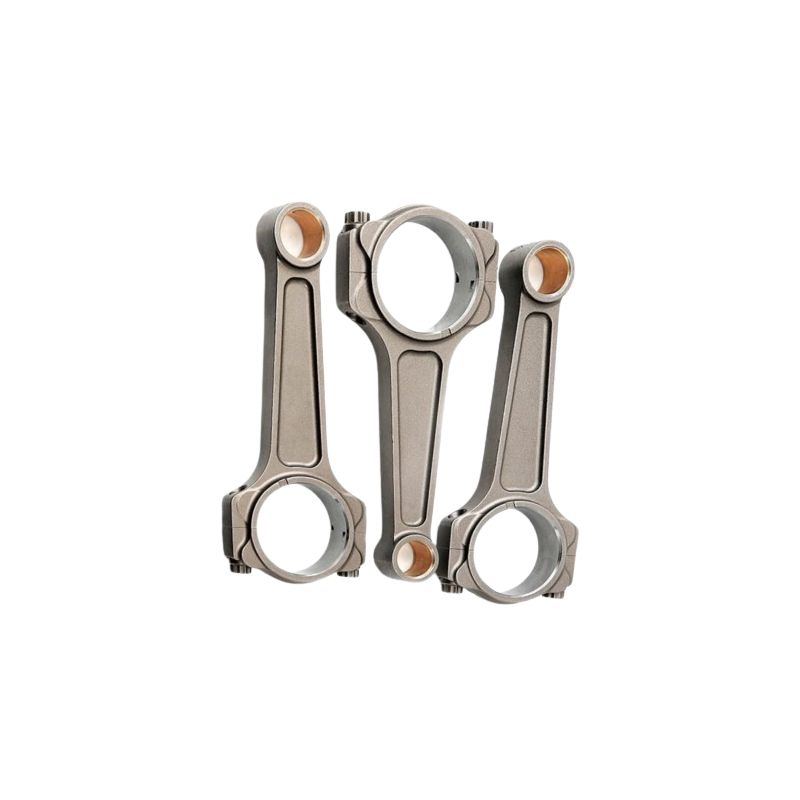

Technical characteristics

• Range: Manley
• Connecting rod type: I
• Rod bolts: CA625+
• Pin: 143.75mm (ORIGINAL), 147.75mm (+3.00mm)
• Screw thread: N.C.
• Weight: N.C.
• Steel type: 4340
• References: 14RWB300-3, 14RWB201-3

Created in 1966, the company Manley Performance Products offers a wide range of internal engine parts for performance, such as forged pistons, forged connecting rods and even forged crankshafts. Whether H or I, the Manley forged Connecting rods are made from 4340 aircraft grade steel and are delivered with ARP Rod bolts.

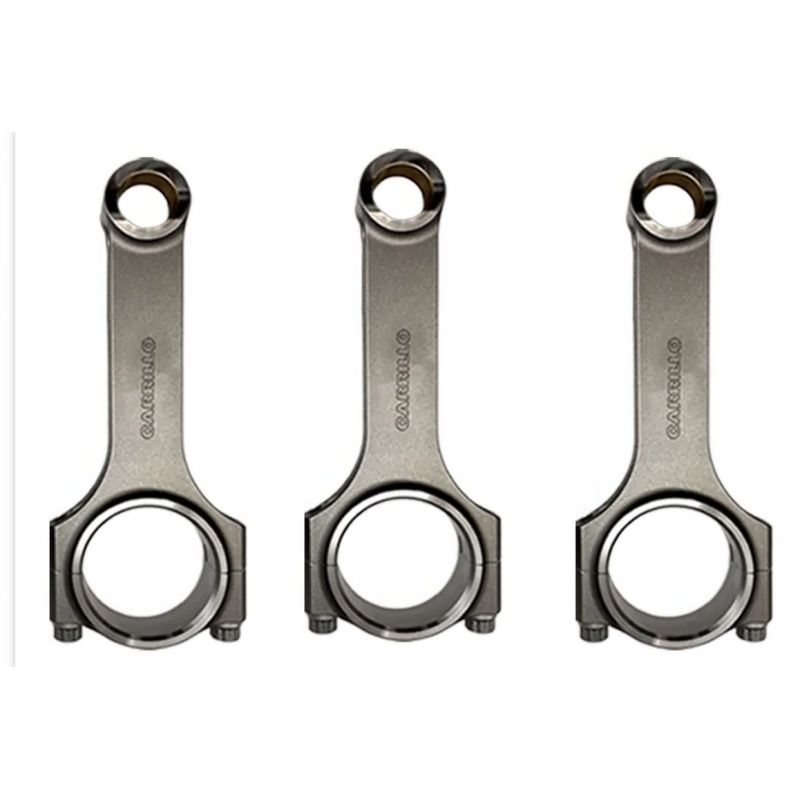

Technical characteristics

• Connecting rod type: H
• Rod bolts: WMC, CARR
• Screw thread: 3/8"
• Weight: N.C.
• Steel type: 4340
• References: TO_BG16E_1HS_5660B6M-03, TO_BG16E_1HS_5660B6W-03, TO_BG16E_2HS_5817B6M-03, TO_BG16E_2HS_5817B6W-03

.
