Connecting rods forged HONDA 1.6 B16A B16A1 B16A2 B16A3

Connecting rods forged kitsZRP, MANLEY, SUPERTECH for motorHONDA 1.6 B16A B16A1 B16A2 B16A3are composed of4 Connecting rodsand delivered with theRod bolts ARP.

Find the assembly instructions in the tab "Download" ci-dessus.

Find below (click on the image) the forged pistons and bearings of tri-metal Connecting rods for enginesHONDA 1.6 B16A B16A1 B16A2 B16A3:

Original technical characteristics of the engine:

• Pin: 134.40mm
• Head diameter: 48.00mm
• Big End Width: 24.00mm
• Foot width: 23.00mm
• Piston pin / Gudgeon pin diameter: 21.00mm

Technical characteristics screw ARP:

• ARP2000: up to 150HP per cylinder or 8500rpm
• ARP L19: up to 200HP per cylinder or 10000rpm
• ARP Custom Age CA625+: up to 250HP per cylinder or beyond 10,000rpm

Technical characteristics

• Connecting rod type: I
• Rod bolts: ARP2000, ARP L19
• Screw thread: 3/8"
• Weight: 534g
• Steel type: 4340
• References: R-HON-001-I,R-HON-001-JE-L19

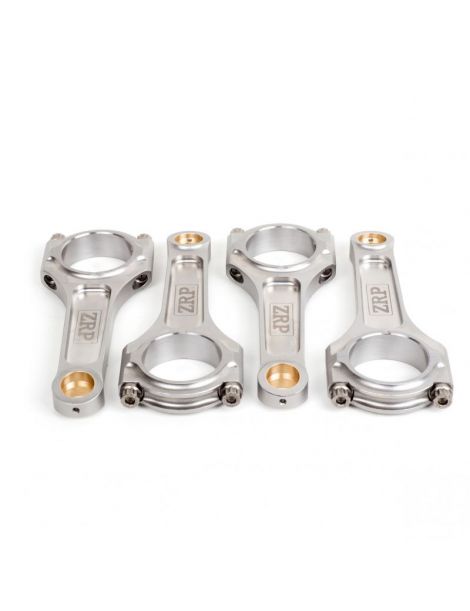

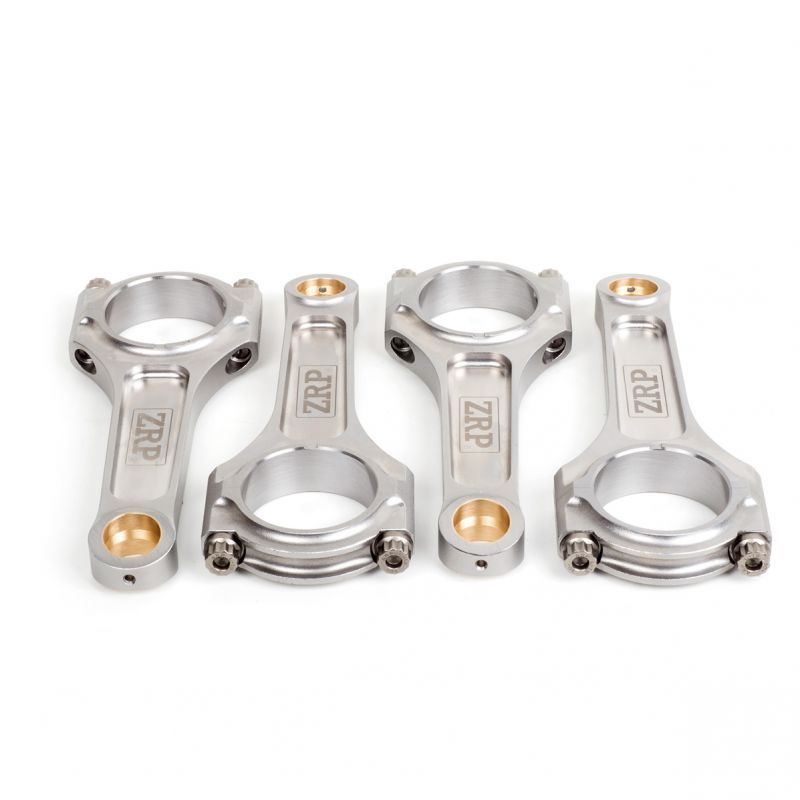

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel to accept high boosts on your engine and ARP2000 Rod bolts for large increases in engine speed.

The head of the ZRP forged Connecting rods is equipped with a ring machined from hot extruded cuPro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your Piston pin / Gudgeon pin. The design of this ZRP forged I-shaped Connecting rod gives it exceptional resistance to significant increases in power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines..

Technical characteristics

• Range: Manley, Manley Pro SERIES
• Connecting rod type: H, I
• Rod bolts: ARP 2000
• Screw thread: 3/8"
• Weight: 535gr (in H), 580gr (in I Pro SERIES)
• Steel type: 4340
• Maximum admissible power in I Pro SERIES: 1000HP
• References: 14012-4, 14415-4

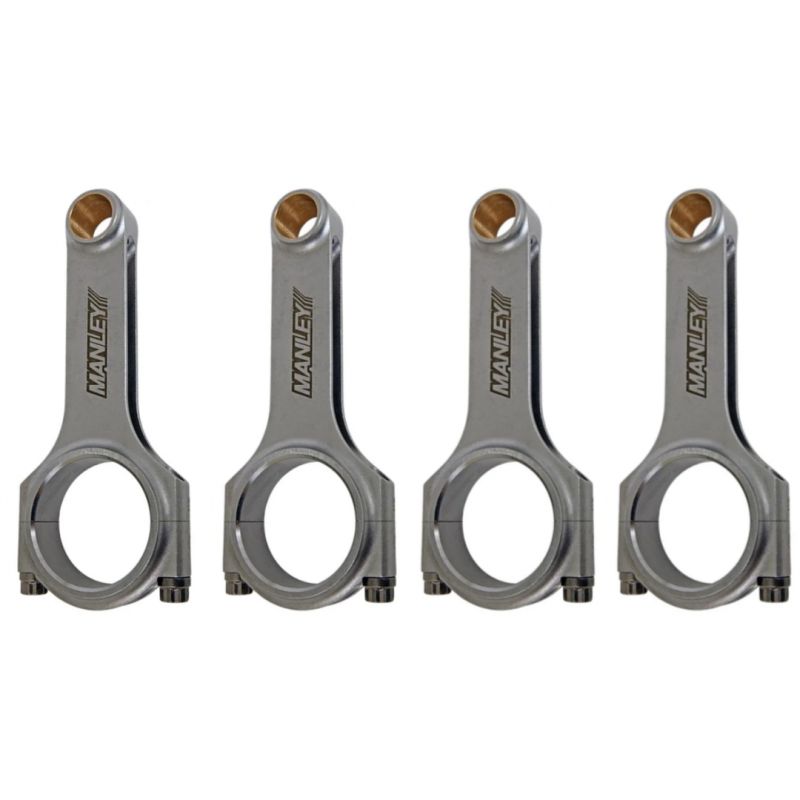

Created in 1966, the company Manley Performance Products offers a wide range of internal engine parts for performance, such as forged pistons, forged connecting rods and even forged crankshafts. Whether H or I, the Manley forged Connecting rods are made from 4340 aircraft grade steel and are delivered with ARP Rod bolts.

Technical characteristics

• Connecting rod type: H
• Rod bolts: ARP 2000
• Screw thread: 3/8"
• Weight: 533gr
• Steel type: 4340
• References: CR-HB16A-H134.4-4

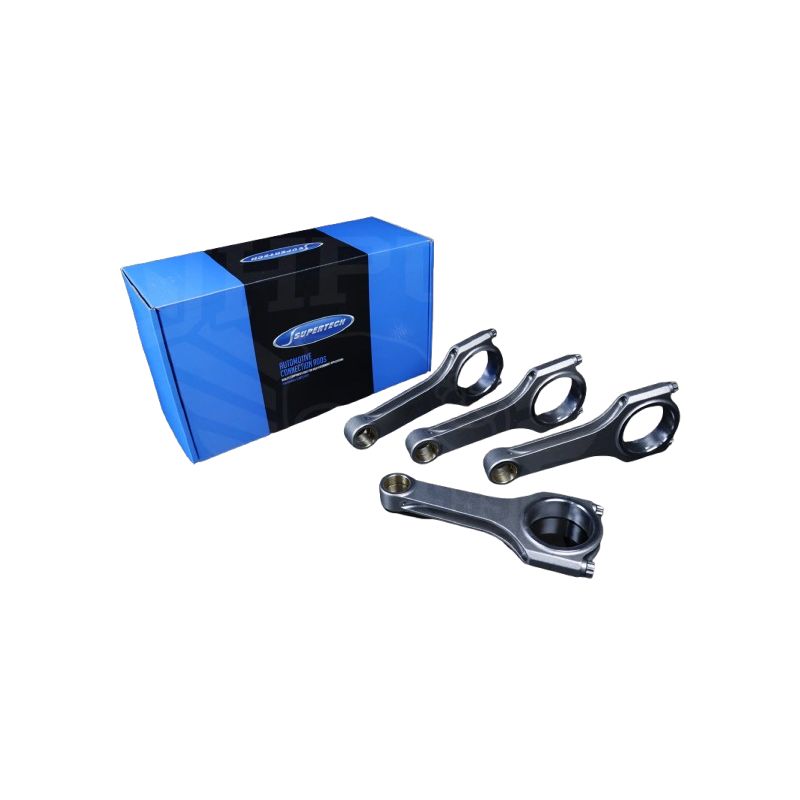

Founded in the 1980s, the American company Supertech (created by Italians) designs forged Valves, Springs, Pistons, Connecting rods in CAD and FAE.
Their forged Connecting rods are designed only in H-profile with 4340 steel alloy.
