5.2L 40v - V10 FSI

Reduced price! Soupapes échappement renforcées SUPERTECH AUDI R8 V10 5.2 40V View larger

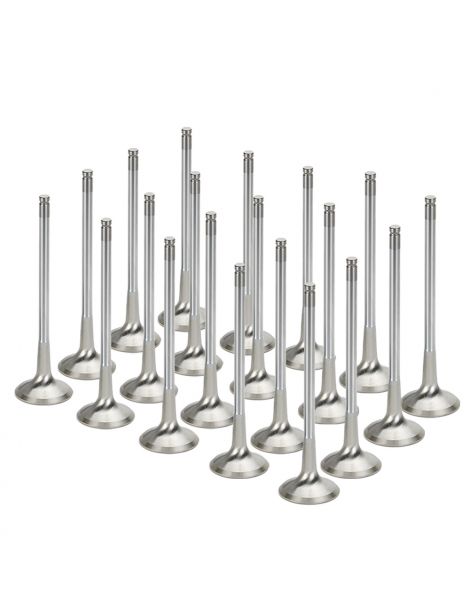

Performance exhaust valve kit AUDI R8 V10 5.2 40V

New product

Set of 20 SUPERTECH or FERREA exhaust valves for the AUDI 5.2 40V engine (BUJ, CMPA, CSPA, CSPB, CTPA, CTPB, CTYA, DKAA, DKAB, DKAC, DMWA, DMWC):

  • AUDI R8 V10 2009 -

More details

938,20 € tax incl.

-20%

1 172,75 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

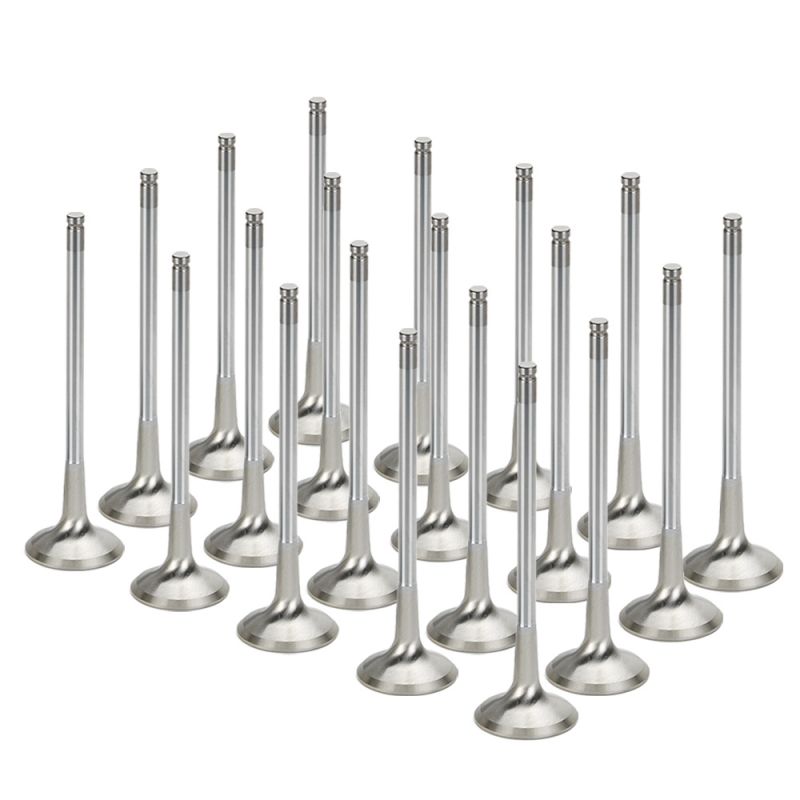

  • The SUPERTECH and FERREA performance exhaust valve kits for the AUDI R8 V10 are made up of 20 valves.

    Below you will find (click on the images) the accessories for the AUDI R8 V10 engine:

    Technical specification

    • Head diameter: 28.00mm (OEM), 29.00mm (+1mm) or 30.00mm (+2mm)
    • Stem diameter: 5.96mm
    • Length: 101.80mm
    • Materials: Inconel or sodium-filled Inconel
    • Keeper grooves: 1
    • References: VWEVI-1002S, VWEVI-1004S, VWEVI-1006S, VWEVI-1002S-HS

    SUPERTECH valves start life as a forging, which is then CNC machined for optimum accuracy. They are heat treated, the treatment varying with the intended use of the valve, then ground again in a super-finishing process. SUPERTECH valves are inspected by several methods, including ultrasound, X-ray and laser measurement.

    For more than three decades SUPERTECH has worked to identify the most suitable material for each valve and each application in order to improve reliability. Several valve materials are therefore available, such as stainless steel, Inconel, titanium and sodium, the latter being contained in the valve stem to improve heat dissipation.

    Technical specification Ferrea.jpg

    • Head diameter: 28.00mm (OEM) or 29.00mm (+1mm)
    • Stem diameter: 5.97mm
    • Length: 102.00mm
    • Materials: stainless steel
    • Keeper grooves: 3
    • References: F2177P, F2178P

    The manufacturing processes used by FERREA Racing Components are similar to those of SUPERTECH: slow two-stage forging, heat treatment with 48 hours of stress relieving, and CNC machining. These valves are designed for greater reliability in all conditions and also improve flow thanks to a thinner stem where it meets the valve head (Superflow Valve). FERREA develops several valve ranges and materials in order to match the demands of each engine and each application as closely as possible, from naturally aspirated builds to turbo and nitrous applications.
