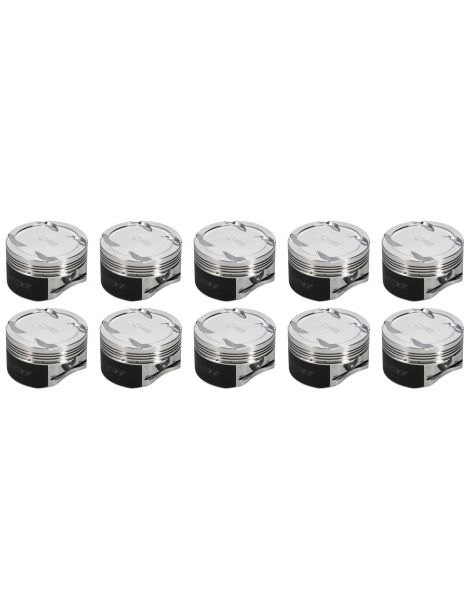

Reduced price! Pistons forgés AUDI R8 V10 5.2 40V View larger
Previous Next

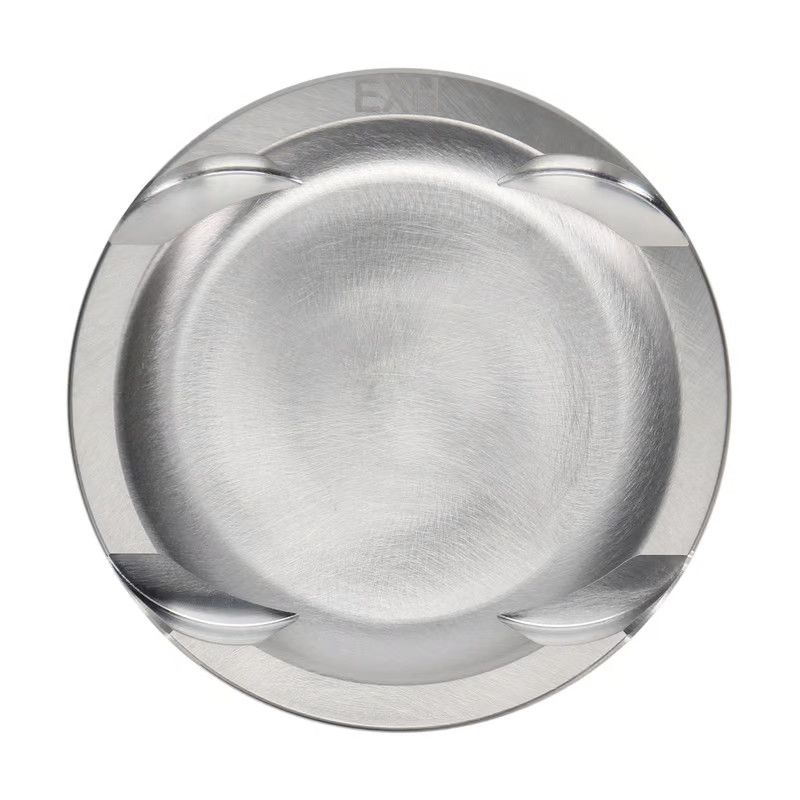

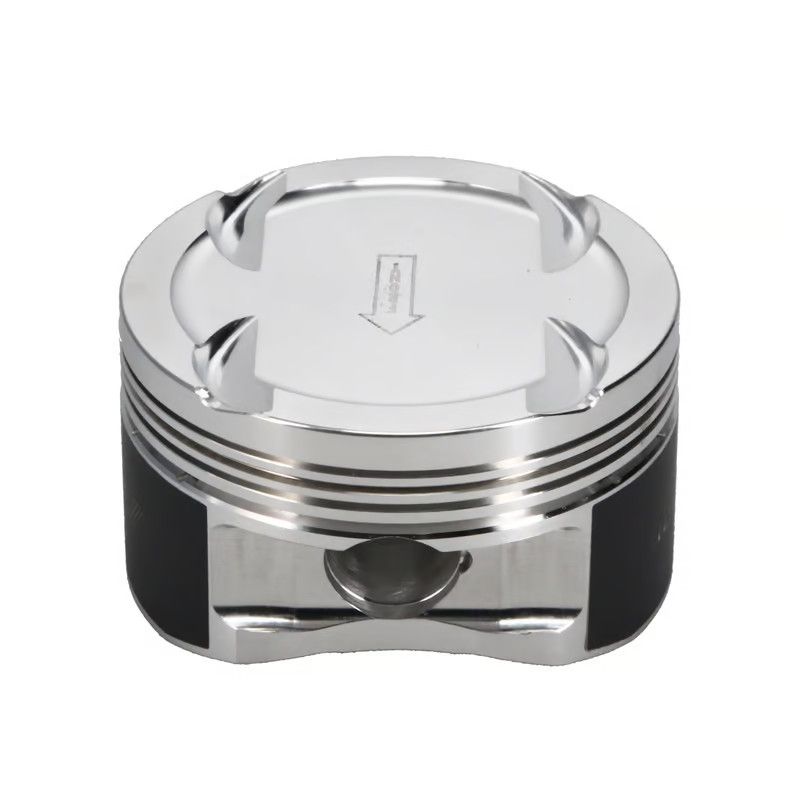

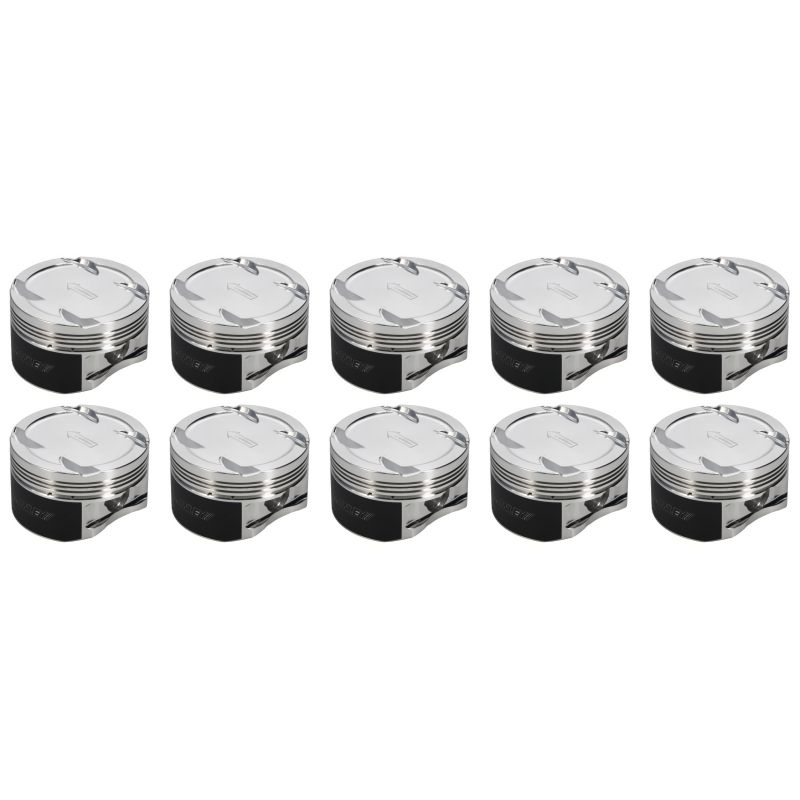

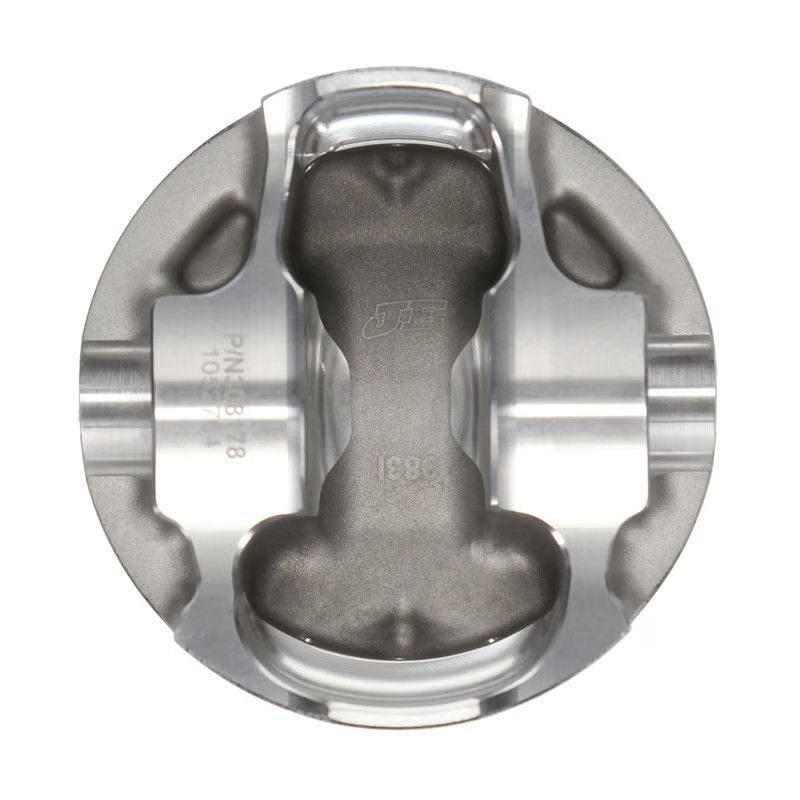

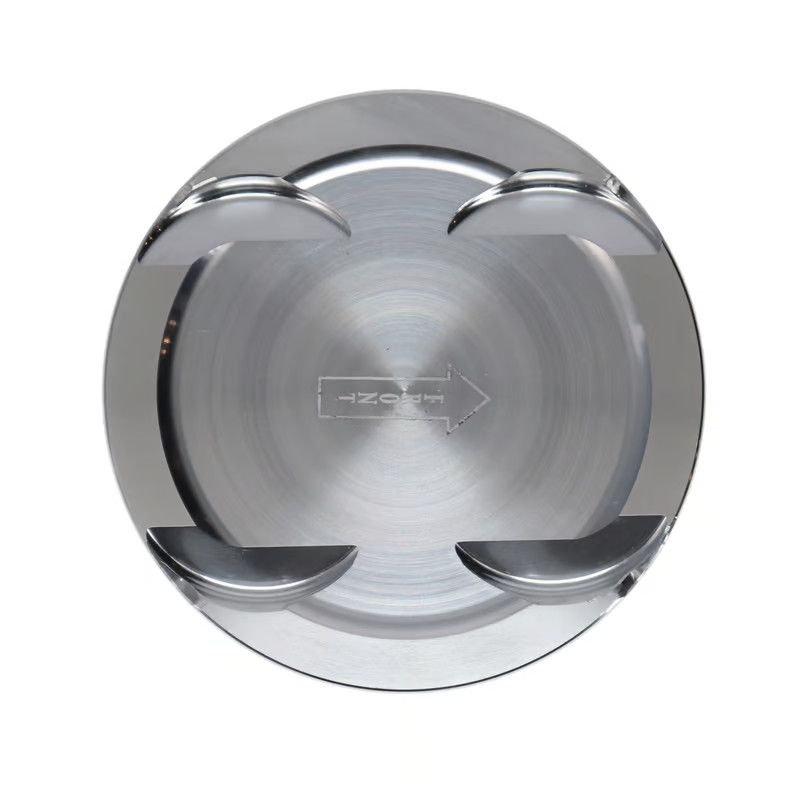

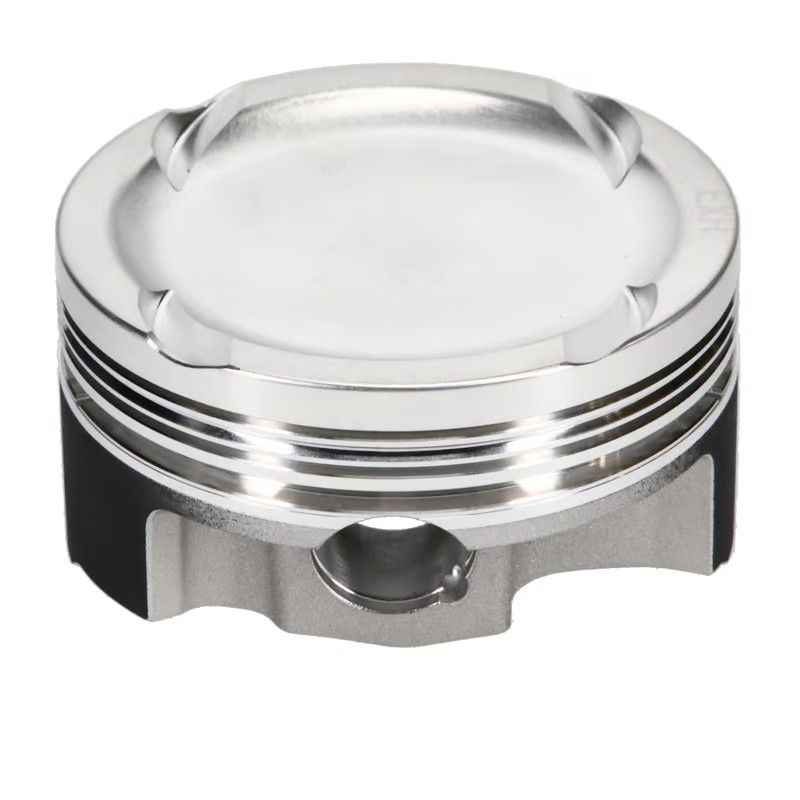

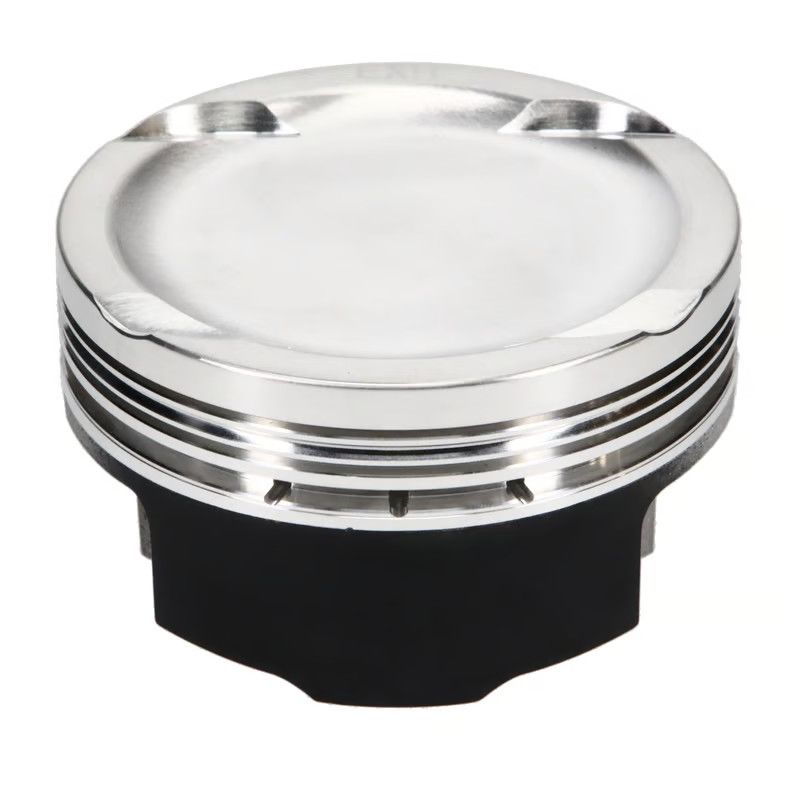

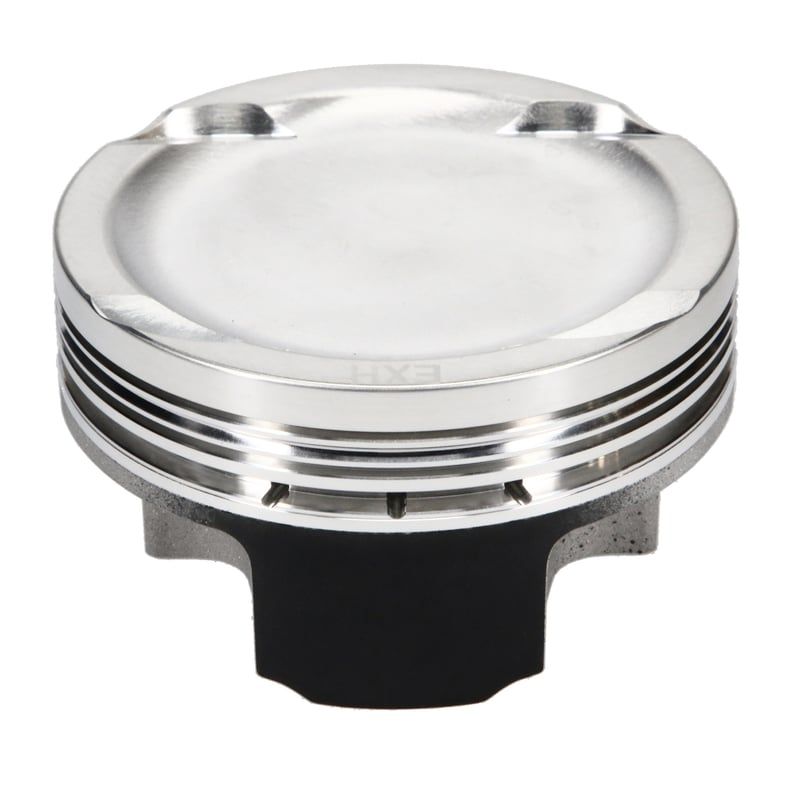

Forged Pistons 5.2L 40v V10 FSI Audi Lamborghini

New product

Forged pistons V10 5.2 FSI Audi/Lamborghini: Rings included, Bores Original/oversize, Pin 20 mm, CH 27.60 mm. COMPatibilities S6/S8, R8 (Type 42 & 4S), Gallardo, Huracan.

More details

1 868,57 € tax incl.

-30%

2 669,39 € tax incl.

  • Characteristics of the forged pistons offered by NSB Concept for Audi / Lamborghini 5.2 L 40 V V10 FSI:

    ReferenceBore OEM
    84.50mm    		OEM CR OEMPin OEM
    20mm    		Original Pin Height
    27.60mm    		RangeCoatingAluminiumForgingDomeWeightRings
    JE-30817884.59:12027.6JE FSRNC2618FSR-14.0284.0NC
    DIA-83070-1084.510:12027.6DiamondSkirt2618NC-6.5NC9573326.0

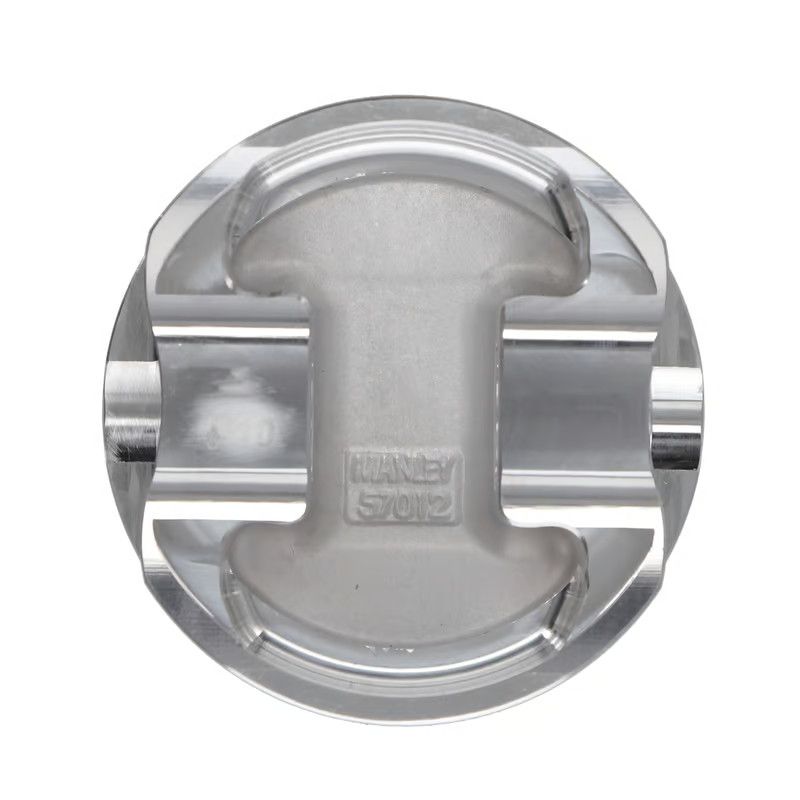

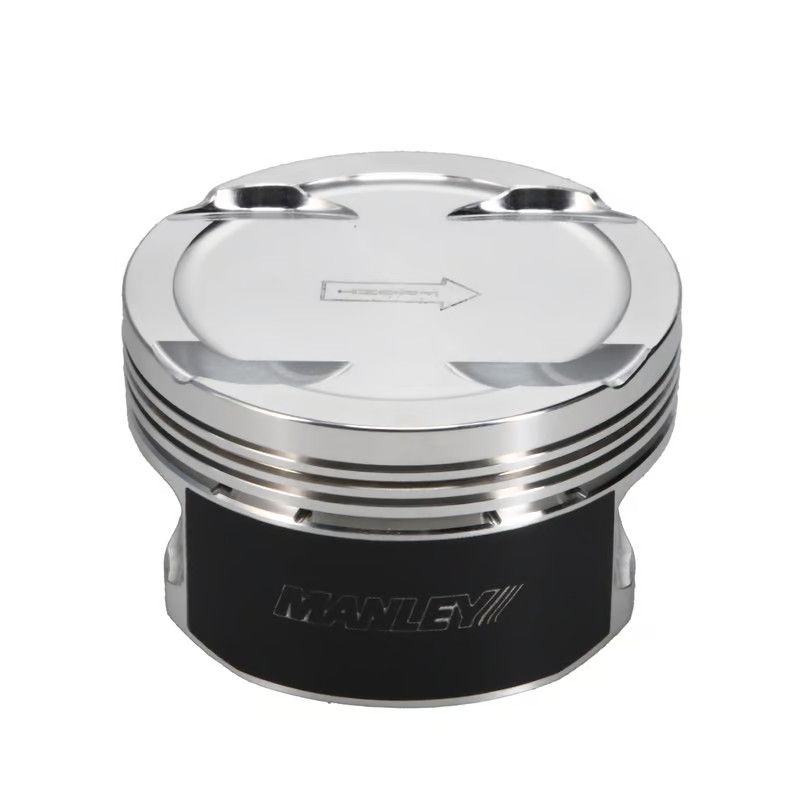

    640000CE-1084.510:12027.6Manley HDSkirt2618NC-6.5NCNC
    JE-36128184.510.5:12027.6JE FSRNC2618FSR-3.7NCNC
    DIA-83071-1084.512.5:12027.6DiamondSkirt2618NC6.8NC9573326.0
    JE-36128085.09:12027.6JE FSRNC2618FSR-14.6NCNC
    JE-36128285.010.5:12027.6JE FSRNC2618FSR-4.7NCNC


    COMPatibilities (engine codes):

    • Audi S6 C6: BXA
    • Audi S8 D3: BSM
    • Audi R8 Type 42: CTYA (525 hp), CTPA (550 hp), CMPA (GT 560 hp)
    • Audi R8 Type 4S: DKA (V10 more), CSPA/CSPB (depending on versions)
    • Lamborghini Gallardo: LP560 4/LP550 2/LP570 4 (V10 5.2 FSI)
    • Lamborghini Huracan: LP610 4 / LP580 2 / LP640 4 (all 5.2 FSI variants)


    Original vehicles equipped with the V10 5.2 FSI:

    BrandModelEngine CodePowerYears
    AudiR8 Type 42 5.2 FSICTYA525 hp2009 2012
    AudiR8 Type 42 5.2 FSI GT/moreCTPA/CMPA550 560 hp2010 2015
    AudiR8 Type 4S V10 / V10 moreDKA/CSPA/CSPB540 610 hp2015 2023
    AudiS6 C6 5.2 FSI quattroBXA435 hp2006 2011
    AudiS8 D3 5.2 FSI quattroBSM450 hp2006 2010
    LamborghiniGallardo LP560 4 / LP550 2 / LP570 4560 570 hp2008 2013
    LamborghiniHuracan LP610 4 / LP580 2 / LP640 4580 640 hp2014 2024


    Pistons manufacturer references (OEM):

    • Audi R8 5.2 FSI (Type 42, 2010 2015): 079 107 065 CS / 079 107 066 CS; 07L 107 065 AC / 07L 107 066 AC.
    • Audi R8 5.2 FSI (Type 4S, 2015 2023): 07L 107 065 AG (depending on versions).
    • Audi S6/S8 5.2 FSI: 079 107 065 AS (and replacements).
    • Lamborghini Gallardo/Huracan 5.2 FSI: Equivalent pistons Audi 07L 107 065 xx / 079 107 065 xx depending on vintage.

    Attention:before any assembly, please check the integrity and conformity of each component of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
