4.8L 24v - TB48DE
Manufacturers
4.8L 24v - TB48DE
Warning: Last items in stock!
New product

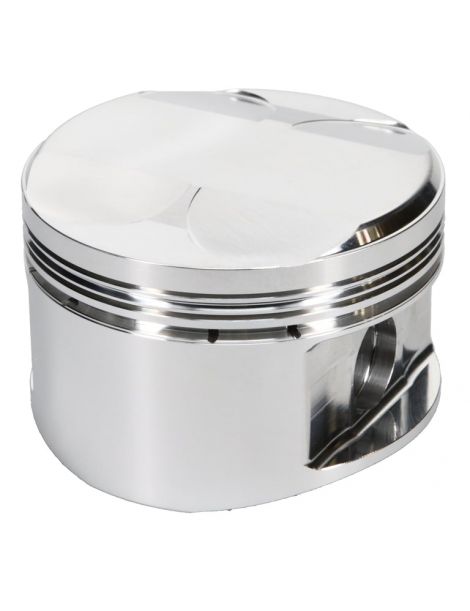

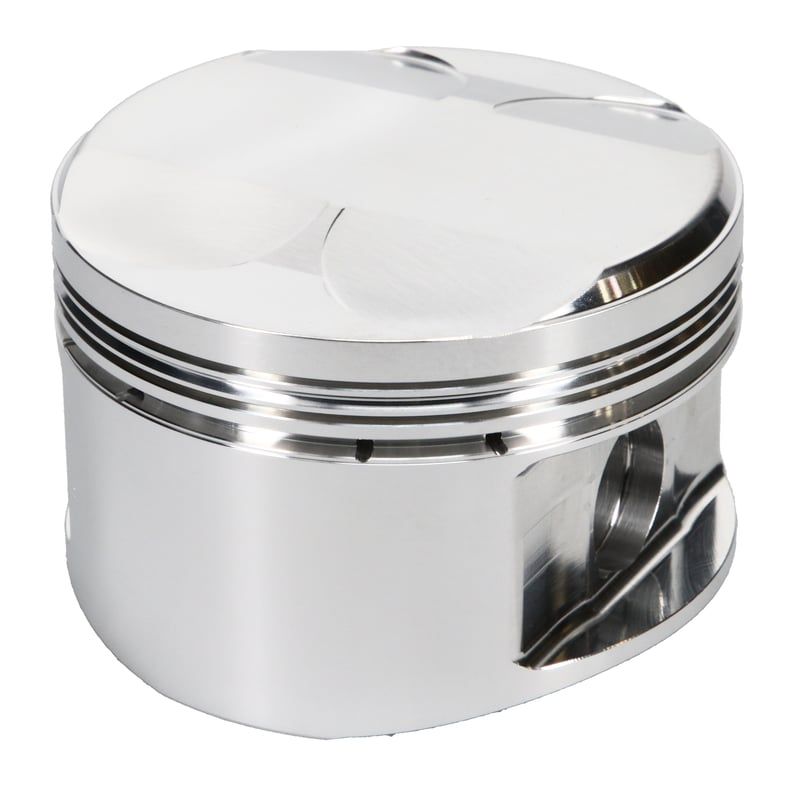

Forged pistons Nissan TB48DE 4.8L 24v: O99.5-101.0mm, Compression ratio 8.5-11.5:1, alloy 2618, forging Round.
Applications Patrol/Safari Y61.
References OEM TB48DE(STD & oversizes) listed
Specifications of the forged pistons for engines 4,8 L 24 v TB48DE :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-327832 | 100 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 499 | — |
| JE-327841 | 100 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 470 | — |
| JE-327835 | 100 | 11,3 :1 | — | — | JE Round | — | 2618 | Round | — | 502 | — |
| JE-327844 | 100 | 11,4 :1 | — | — | JE Round | — | 2618 | Round | — | 474 | — |
| JE-327829 | 100 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 477 | — |
| JE-327838 | 100 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 457 | — |
| JE-327842 | 100,50 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 475 | — |
| JE-327836 | 100,50 | 11,4 :1 | — | — | JE Round | — | 2618 | Round | — | 506 | — |
| JE-327845 | 100,50 | 11,5 :1 | — | — | JE Round | — | 2618 | Round | — | 477 | — |
| JE-327830 | 100,50 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 482 | — |
| JE-327839 | 100,50 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 461 | — |
| JE-327833 | 101 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 503 | — |
| JE-327831 | 99,50 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 496 | — |
| JE-327840 | 99,50 | 10 :1 | — | — | JE Round | — | 2618 | Round | — | 466 | — |
| JE-327834 | 99,50 | 11,2 :1 | — | — | JE Round | — | 2618 | Round | — | 498 | — |
| JE-327843 | 99,50 | 11,3 :1 | — | — | JE Round | — | 2618 | Round | — | 471 | — |
| JE-327828 | 99,50 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 473 | — |
| JE-327837 | 99,50 | 8,5 :1 | — | — | JE Round | — | 2618 | Round | — | 452 | — |
Compatible vehicles:
| Manufacturer | Model | Years |
|---|---|---|
| Nissan | Patrol Y61 (GU) – TB48DE | 2001–2016 |
| Nissan (JDM) | Safari Y61 – TB48DE | 1997–2010 (Japon) / 2016+ Super Safari M.-Orient |
OEM piston references :
| Manufacturer | Model | Reference | Description |
|---|---|---|---|
| Nissan | TB48DE – STD (Safari/Patrol Y61) | A2010-VC200 | piston W/Pin – STD |
| Nissan | TB48DE – STD (variant EPC) | A2010-VC211 | piston W/Pin – STD |
| Nissan | TB48DE – 0.50 OS | A2010-VC28B | piston W/Pin – Oversize 0.50 |
| Nissan | TB48DE – 1.00 OS | A2010-VC29B | piston W/Pin – Oversize 1.00 |
| Nissan | TB48DE – STD (grading) | A2010-VC23A | piston W/Pin – STD (grade G=4-0) |
| Nissan | TB48DE – STD (grading) | A2010-VC24C | piston W/Pin – STD (grade G=5-0) |
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
